Finlay blow bar1310/110 Tesab 2 320 Keestrack R3 R5 Telsmith 6060 McCloskey I44 I54 Lippmann 4248 GIPO 6302 Eagle UM 45 (1400)

Product Overview

Description

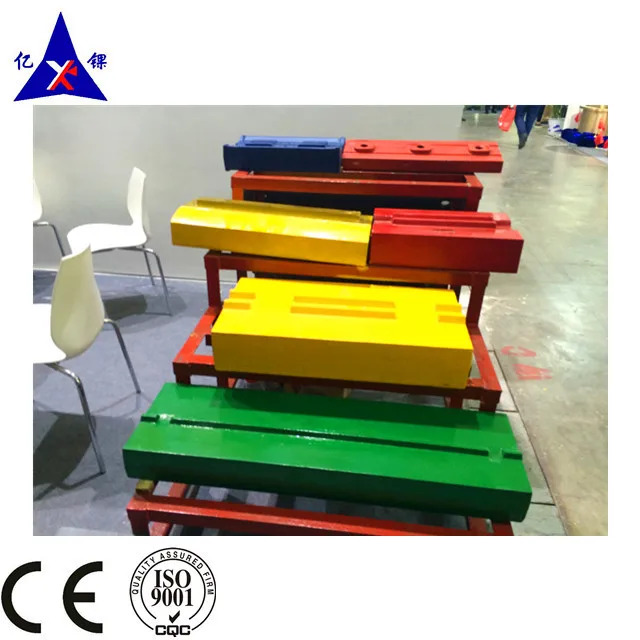

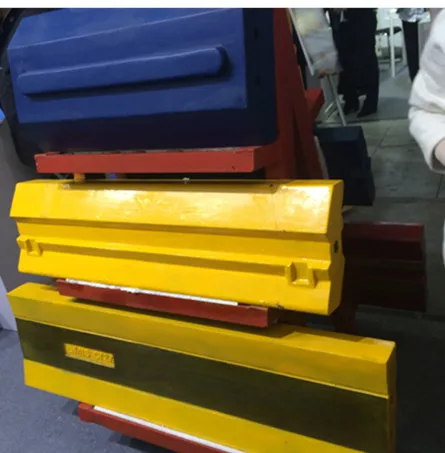

 blow bar

Finlay 1310/110 Tesab 2-320 Keestrack R3 R5 Telsmith 6060 McCloskey I44 I54 Lippmann 4248 GIPO 6302 Eagle UM 45 (1400)

Overseas brand:Hazemag, Hartl, Kleeman  Parker, Pegson, Terex, Atlas Copco,

Tesab,Pilot,Kue Ken,Sandvik,Meto,Sheepbridge,etc



Brand: all the Chinese brand,like jianshe, shanghai sanbao,SMB,etc





1.Material Specifications of blow bar :

High Chrome Casting Material Chemical Composition(%)
Code Elem.	C	Si	Mn	Cr	Mo	Na	Cu	P	S	HRC
KmTBCr4Mo	2.5-3.5	0.5-1.0	0.5-1.0	3.5-4.5	0.3-0.5	-	-	≤0.15	≤0.10	≥55
KmTBCr9Ni5Si2	2.5-3.6	1.5-2.2	0.3-0.8	8.0-10.0	0-1.0	4.5-6.5	4.5-6.5	-	-	≥58
KmTBCr15Mo	2.8-3.5	≤1.0	0.5-1.0	13-18	0.5-3.0	0-1.0	0-1.0	≤1.0	≤0.06	≥58
KmTBCr20Mo	2.0-3.3	≤1.2	≤2.0	18-23	≤3.0	≤2.5	≤1.2	-	-	≥60
KmTBCr26	2.3-3.3	≤1.2	≤1.0	23-30	≤3.0	≤2.5	≤2.0	-	-	≥60





2.Model: for all Chinese brand and many other OEM brand such as hazmag,hartl.etc



Model	Roller size (mm)	Feeding opening(mm)	Max. feed size (mm)	Capacity (t/h)	Power (kw)	Weight (t)
PF-1007	Φ 1000x700	400x730	300	35~50	55	9.5
PF-1010	Φ 1000x1050	400x1080	350	50~80	75	10
PF-1010V	Φ 1000x1050	400x1080	350	50-80	55-75	13.2
PF-1210	Φ 1250x1050	400x1080	350	70~120	110	14
PF-1210V	Φ 1250x1050	400x1080	350	70-120	110-132	15.2

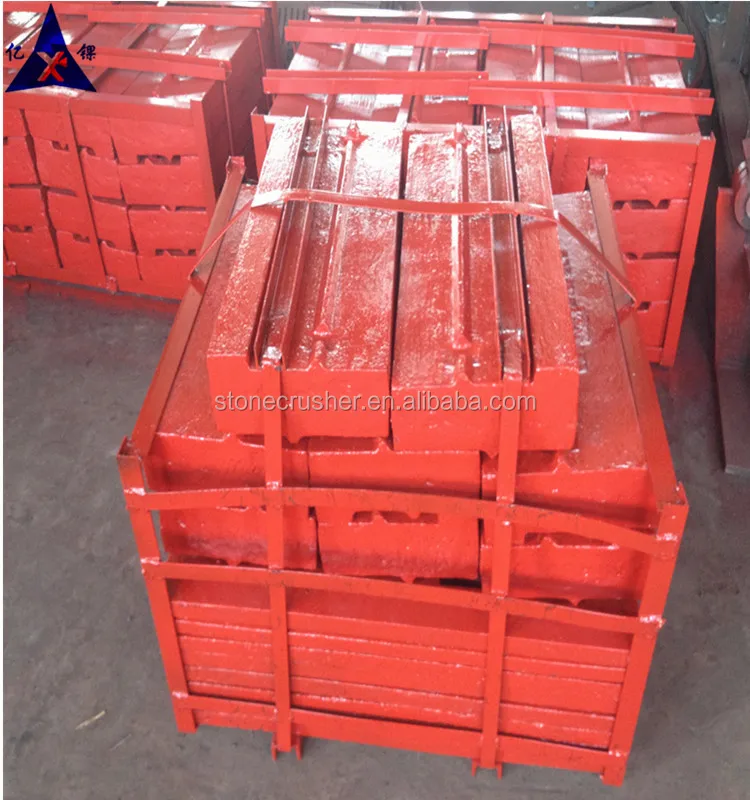

PF-1214	Φ 1250x1400	400x1430	350	80~160	132	18
PF-1214V	Φ 1250x1400	400x1080	350	130-180	132-160	20

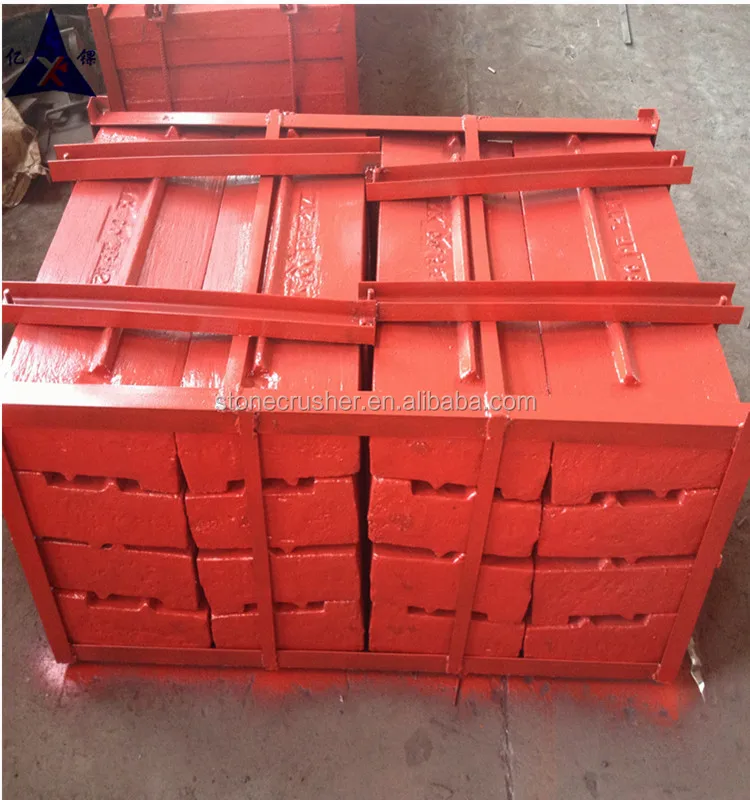

PF-1315	Φ 1300x1500	860x1520	500	160~260	200	19.3
PF-1315V	Φ 1320x1500	860x1520	500	150-220	180-220	20.5
PF-1316	Φ 1300x1600	860x1520	500	170~270	200	19.5
PF-1516	Φ 1500x1600	860x1580	500	240~290	280	26.5

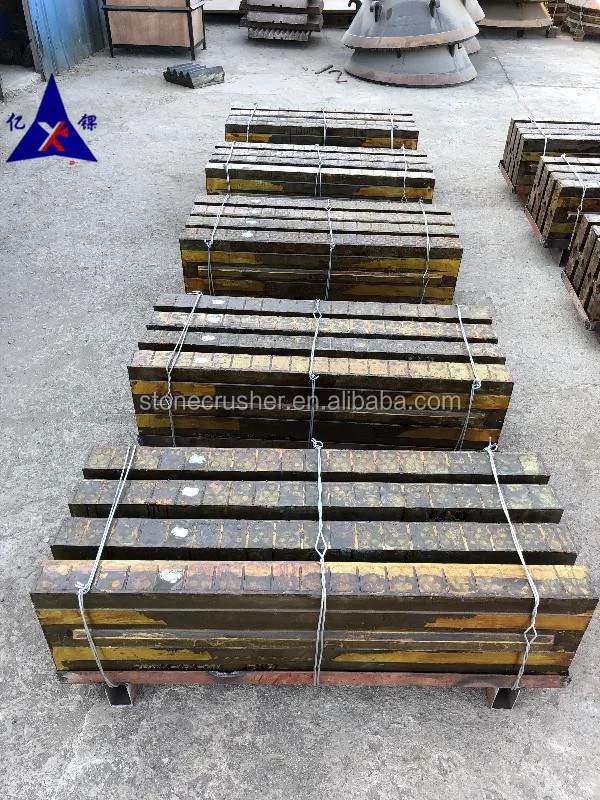

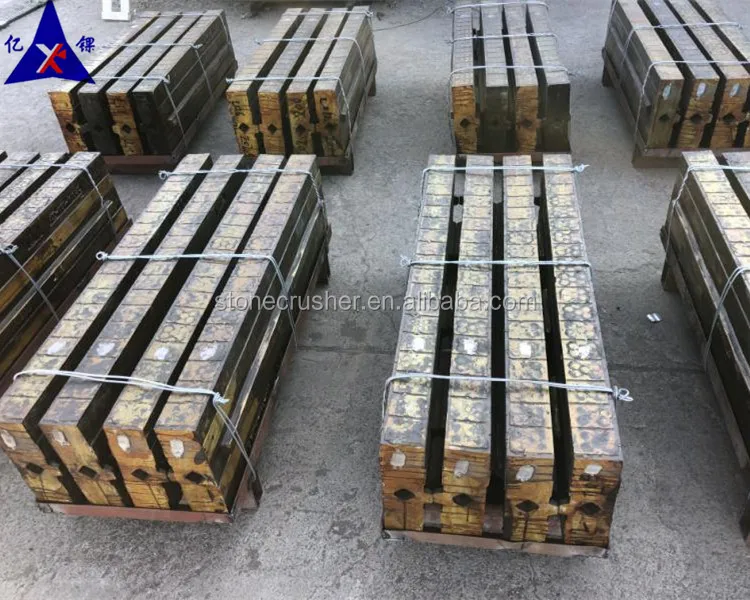

3. Popular   Ceramic blow bar Feature

1).Long working life

2). Nice surface

3). Impeccable wear-resisting, anti-



Welcome your inquiry or Visit us!
