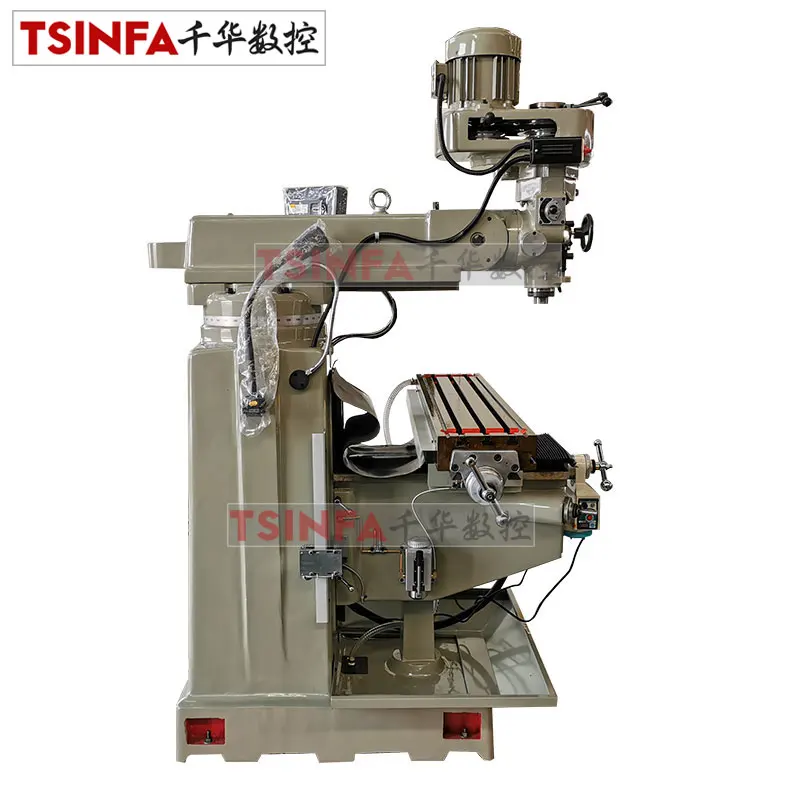

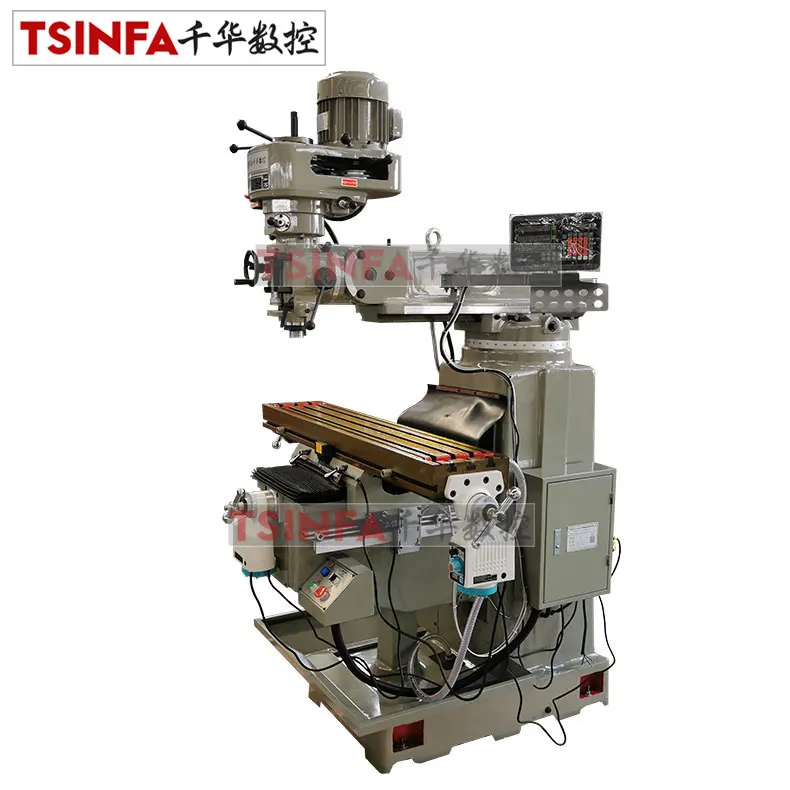

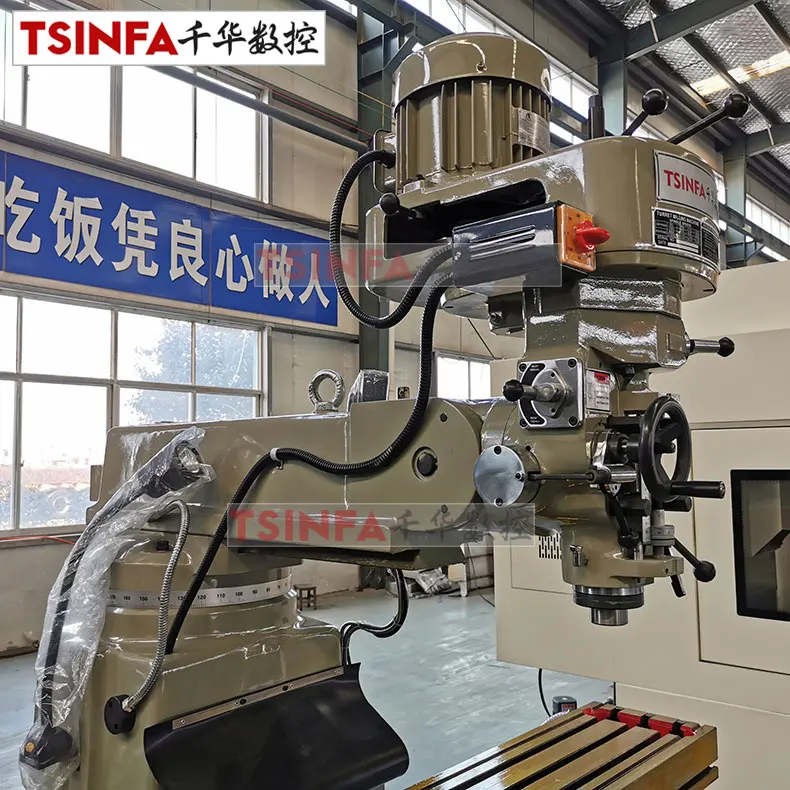

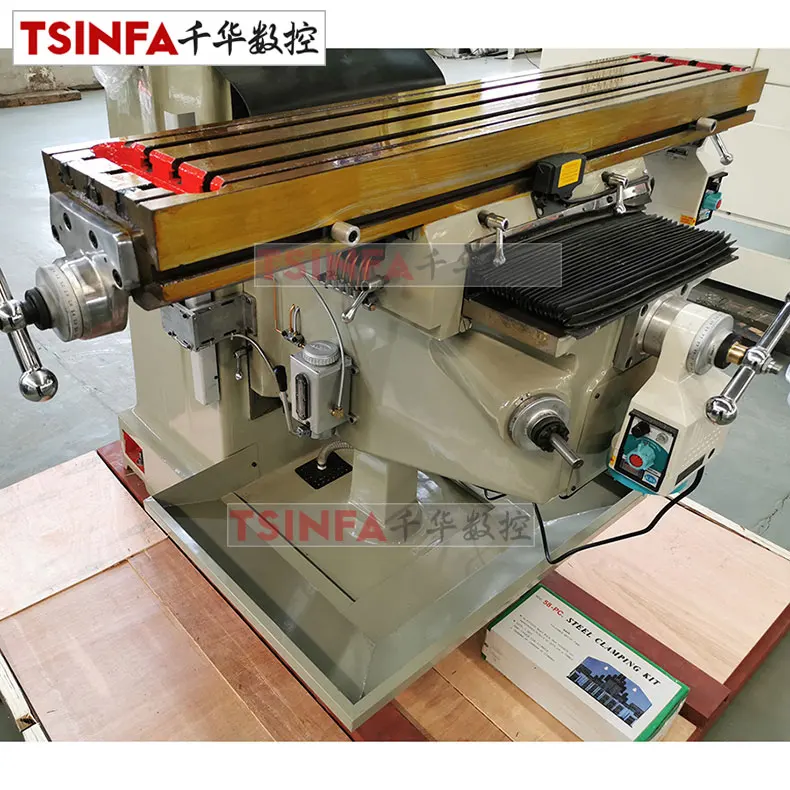

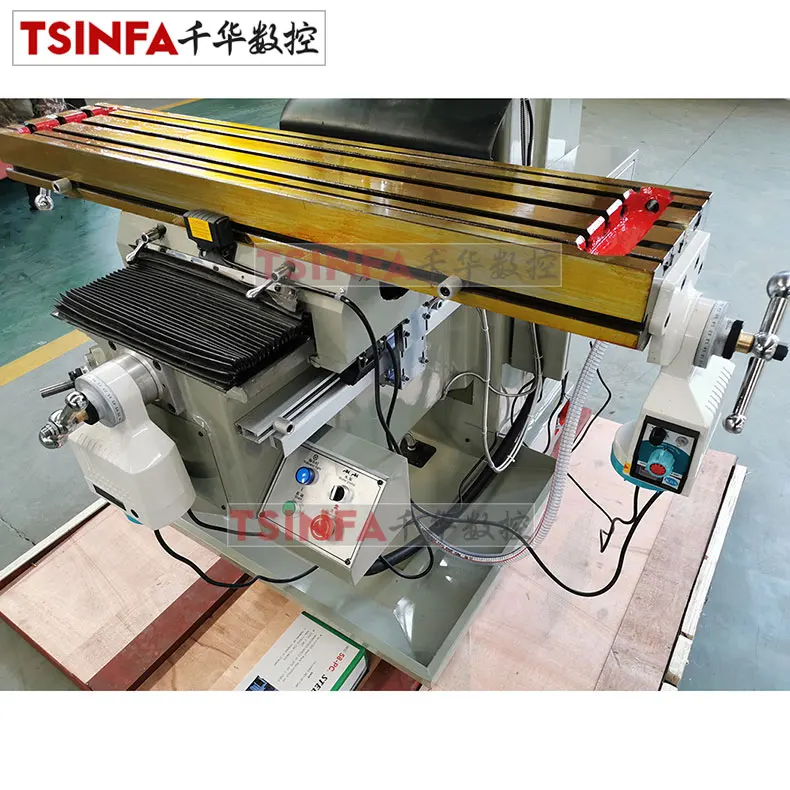

4H 4V X6325 vertical horizontal Turret Milling Machine for sale Universal Milling machine best price with DRO Shandong factory
- Category: >>>
- Supplier: Shandong Tsinfa CNC Equipment Co. Ltd.
Share on (62072256422):
Product Overview
Description
Related Products
Product Description
The machine can be used both for vertical milling and horizontal milling, with corresponding attachments.Cylinder mill, round piece mill, shape mill and end mill can be installed on the conical hole of main pivot of the machine, which is suitable for processing plane surface, oblique plane, groove, hole, gear of all kinds of samll , medium parts. User can select universal dividing head to process groove of thread It is the ideal machining equipment for the industries of mechanic manufacture, mould, automobiles and motorcycles.
1 | Meehanite high strength cast iron, with honeycomb reinforcement structure, high rigidity and long service life. |
2 | The spindle is made of Japanese imported combination diamond. After conditioning and circumferential treatment, it is finely grinded and equipped with 4 imported bearings to ensure high quality and high precision. |
3 | The three axis screw is equipped with advanced phosphate bronze nuts after grinding, which is durable. |
4 | Horizontal milling uses 4 gear shaft speed changes with wide speed range and strong torque. |
Product Paramenters
Specification | units | 4V | 5V | ||

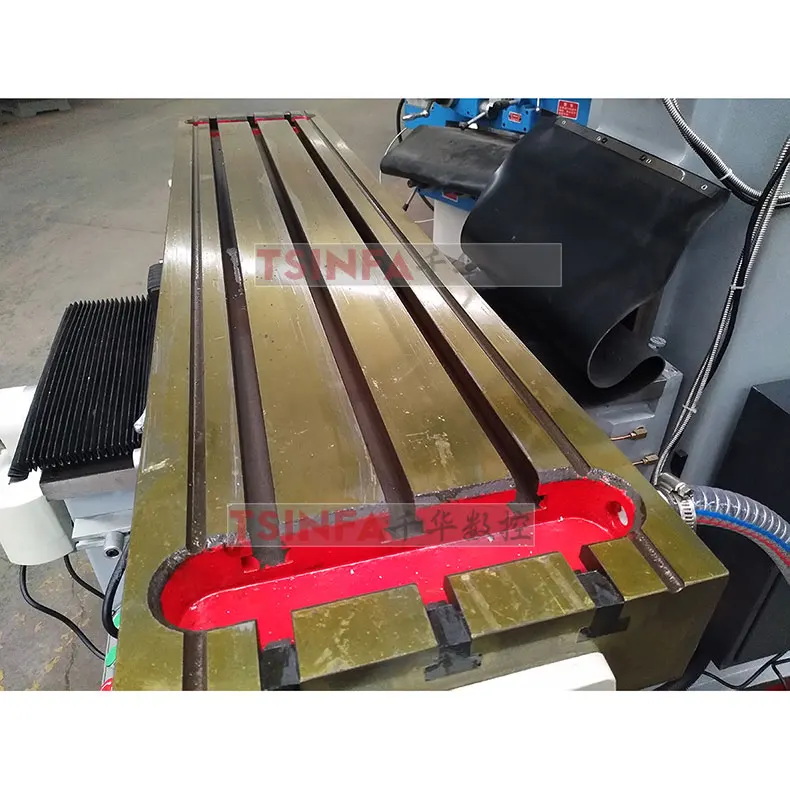

Table size | mm | 1270x254(10”x50”) | 1370x305(12”x54”) | ||
T-slots(Numbers*width) | mm | 3x16 | 3x16 | ||
Table travel | Max.longitudinal travel | mm | 780 | 810 | |
Max.cross travel | 400 | 420 | |||
Max.vertical travel | 500 | 500 | |||
The travel of telescopic arm | mm | 470 | 500 | ||
Spindle nose to table surface | mm | 0-405 | 0-350 | ||
Taper of spindle hole | r/min | Standard: R8; | Standard:ISO40 | ||
Spindle speed | / | Standard:16(shift grade) | Standard:16(shift grade) | ||
50HZ 65-4500 60HZ 80-5440 | 50HZ 65-4500 60HZ 80-5440 | ||||
Spindle travel | mm | 127 | 127 | ||
Spindle feed rate | mm/r | Three steps: | Three steps: | ||
0.04(0.0015”)/ | 0.04(0.0015”)/ | ||||
0.08(0.003”)/ | 0.08(0.003”)/ | ||||
0.15(0.006”) | 0.15(0.006”) | ||||
Spindle motor power | KW/HP | 2.25/3HP | 2.25/3HP | ||

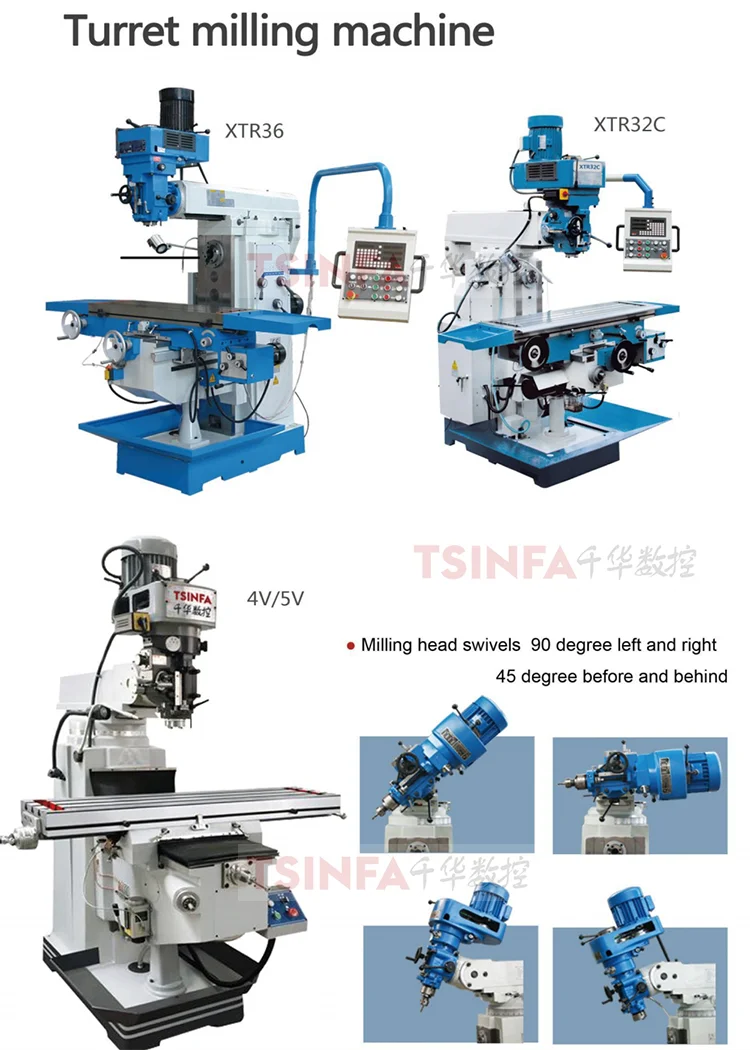

Head rotation(left-right) | ° | 90° | 90° | ||
Head rotation(front-rear) | ° | 45° | 45° | ||
Packaging size(L*W*H) | mm | 1516*1550*2080 | 1566*1550*2080 | ||
Gross Weight | Kg | 1550 | 1700 | ||

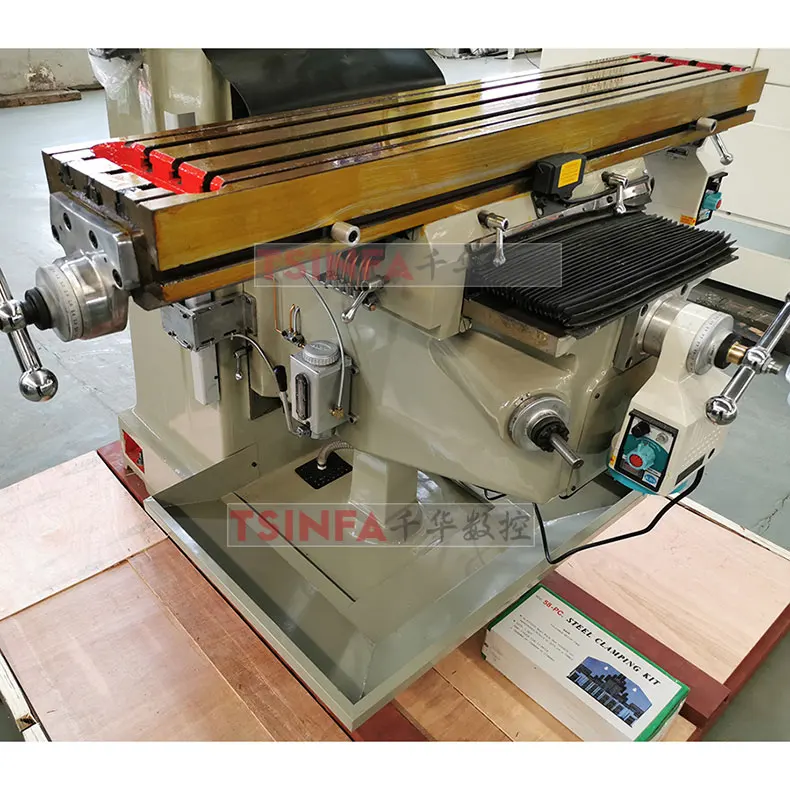

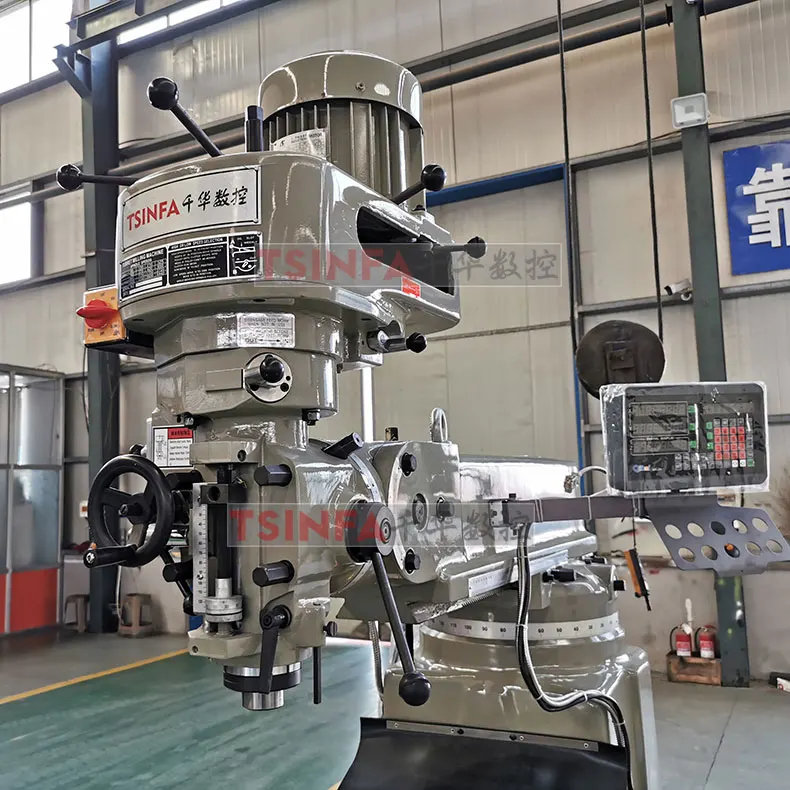

Detailed Images
Packing&Shipping
Company Introduction
Shandong Tsinfa CNC Equipment Co., Ltd specializes in high-end manufacturing and sales of CNC machine tools, machinery and agricultural machinery equipment design and research and development. the company under the jurisdiction of Industrial Park D Area, Tengzhou Shandong province.Our products cover precision CNC cylindrical grinding machines, face cylindrical grinders, CNC lathes, three-axis CNC machining centers, four-axis CNC machining centers, five-axis CNC machining centers, CNC Slotting machines, radial drilling machines, CNC cutting machines, boring machines, and ordinary lathes. Universal milling machine, agricultural mechanization equipment and so on. .
Our mission is to lead in innovation as a machine tool supplier. Supply machine tools with the features of energy-saving,
high-efficient and appropriate. To satisfy requirement for customer and to provide convenience for user, to create value for
society and to seek happiness for employees are our pursuits. Driving customer success and value creation is the key of TSINFA, we stick to giving top priority to the interest of customers by innovation of product’s design and processing technology.
Certifications
FAQ
Q:Your company's delivery time?
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
Q:Your payment?
A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.
Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer traing free of charge.
Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
Q:Your after-sales service?
A:1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
Q:Your payment?
A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.
Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer traing free of charge.
Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
Q:Your after-sales service?
A:1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
