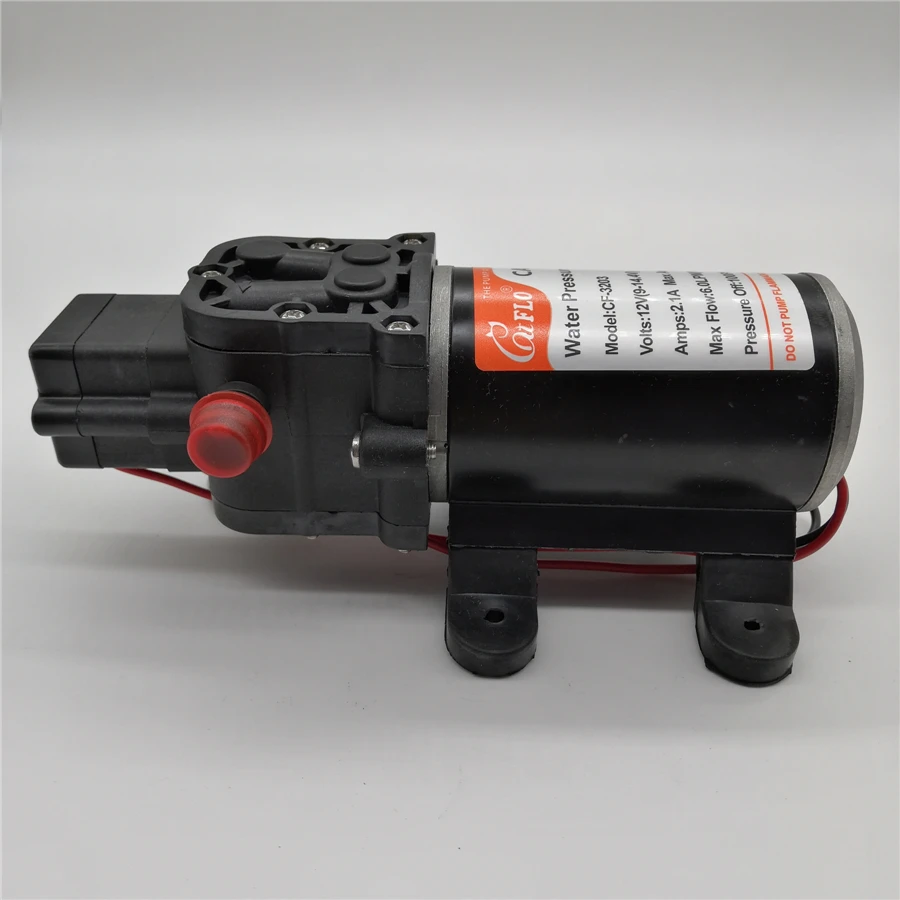

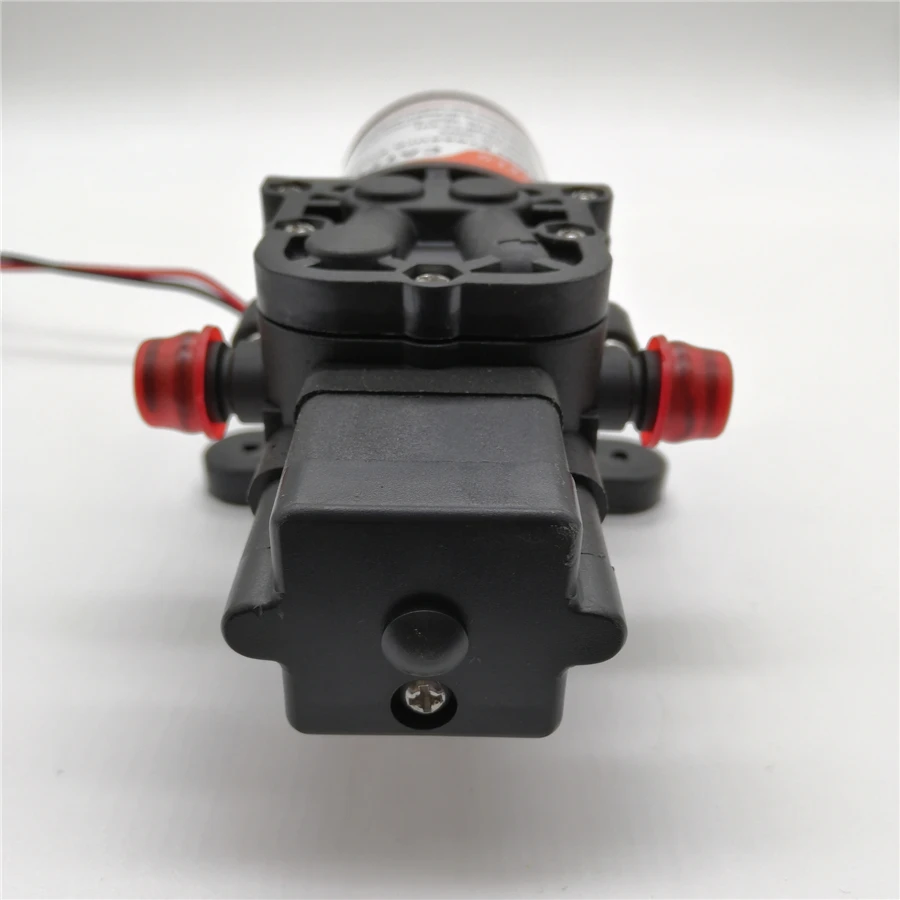

12V 24V mini diaphragm pump Used for Car Washer Sprayer agricultural irrigation
- Category: >>>
- Supplier: Fuan Bidibao Electrical Appliance Co. Ltd.
Share on (62072299263):
Product Overview
Description
Product Description

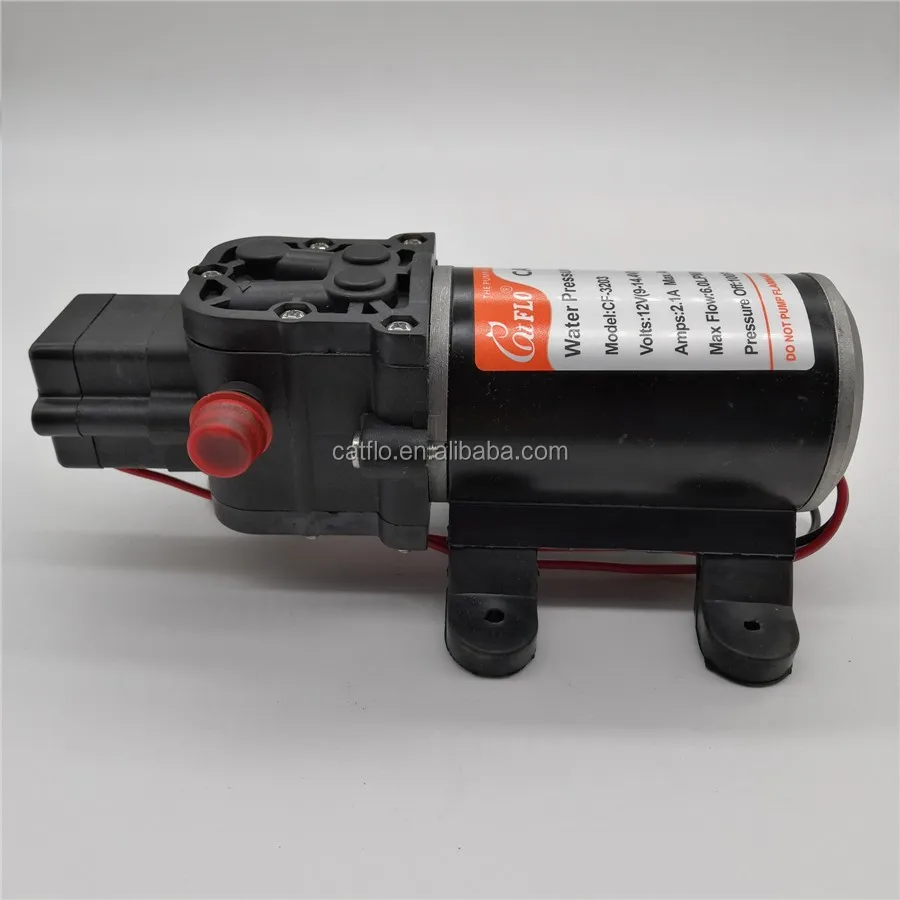

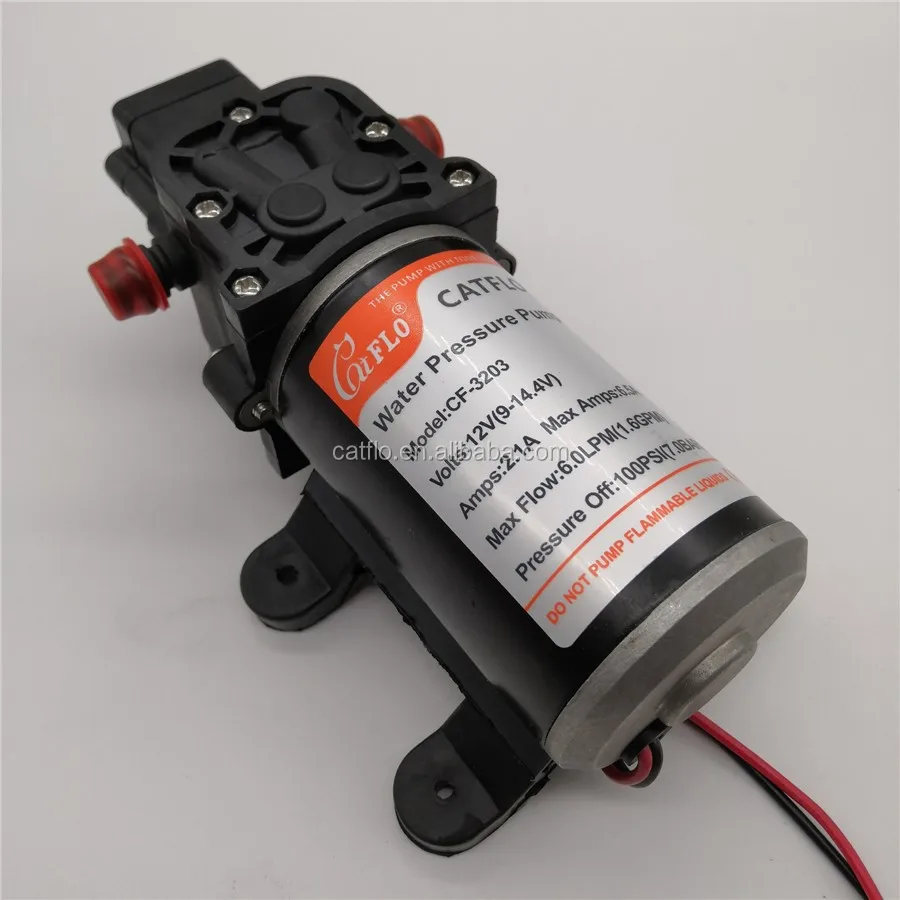

12V 24V diaphragm pump Used for Car Washer Sprayer agricultural irrigation CF-3203
* Max Pressure: 80PSI (5.5BAR)
* Motor Voltage: 12V/24V DC
* Run dry without damage
* 2 Chamber positive displacement diaphragm pump for smooth and quiet operation
* Duty cycle :Intermittent (The continuous working time will be different under different pressure)
* Pump can be with: pressure switch controlled or by-pass controlled.
For the power controlled you can choose pump without pressure swith or by-pass

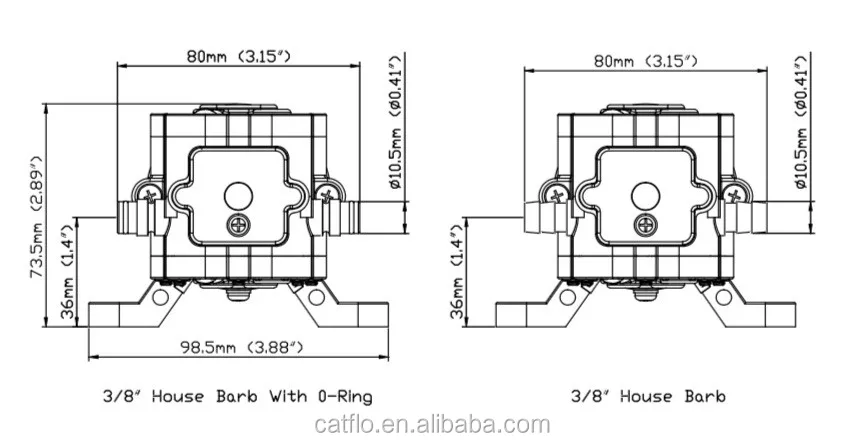

* 20 series multi-inlet & outlet connection ways for you choice
Diaphragm Pump List
| Model | Flow(LPM | Volt | Mxa (A) | Connecting (Inch) | Pressure (PSI) | Power Line | Inner Box (CM) |
| CF-2 Series | |||||||
| CF-2201 | 2 | 12 | 1.6 | 3/8"Barb OR With O-Ring | 55 | 2-Pin/Leads | 18.6x10.5x6.6 |
| CF-2401 | 2 | 24 | 0.8 | 3/8"Barb OR With O-Ring | 55 | 2-Pin/Leads | |
| CF-2202 | 4.3 | 12 | 2.7 | 3/8"Barb OR With O-Ring | 35 | 2-Pin/Leads | |
| CF-2402 | 4.3 | 24 | 1.7 | 3/8"Barb OR With O-Ring | 35 | 2-Pin/Leads | |
| CF-2203 | 2.6 | 12 | 2.1 | 3/8"Barb OR With O-Ring | 70 | 2-Pin/Leads | |
| CF-2403 | 2.6 | 24 | 1.1 | 3/8"Barb OR With O-Ring | 70 | 2-Pin/Leads | |
| CF2203-1 | 3.1 | 12 | 2.6 | 3/8"Barb OR With O-Ring | 70 | 2-Pin/Leads | |
| CF2403-1 | 3.1 | 24 | 1.4 | 3/8"Barb OR With O-Ring | 70 | 2-Pin/Leads | |
| CF2202A | 4 | 12 | 2.6 | 3/8"Barb OR With O-Ring | 80 | 2-Pin/Leads | |
| CF2402A | 4 | 24 | 1.4 | 3/8"Barb OR With O-Ring | 80 | 2-Pin/Leads | |
| CF2202B | 4 | 12 | 2.6 | 3/8"Barb OR With O-Ring | 80 | 2-Pin/Leads with switch | |
| CF2402B | 4 | 24 | 1.4 | 3/8"Barb OR With O-Ring | 80 | 2-Pin/Leads with switch | |
| CF-3 Series | |||||||
| Model | Flow (LPM | Volt | Mxa (A) | Connecting (Inch) | Pressure (PSI) | Power Line | Inner Box (CM) |
| CF-3201 | 5.2 | 12 | 5.3 | 3/8"Barb OR With O-Ring | 100 | 2-Pin/Leads | 20x11.5x8 |
| CF-3401 | 4.5 | 24 | 2.2 | 3/8"Barb OR With O-Ring | 100 | 2-Pin/Leads | |

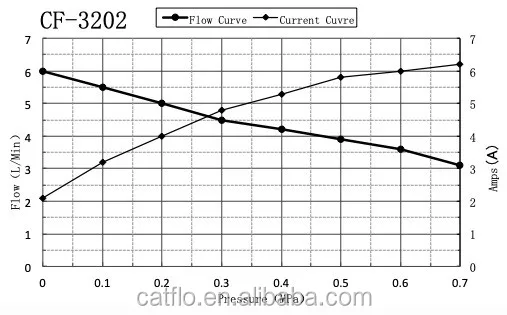

| CF-3202 | 5.8 | 12 | 6 | 3/8"Barb OR With O-Ring | 80 | 2-Pin/Leads | |
| CF-3402 | 5.8 | 24 | 6 | 3/8"Barb OR With O-Ring | 80 | 2-Pin/Leads | |
| CF-3203 | 6.5 | 12 | 6.5 | 3/8"Barb OR With O-Ring | 80 | 2-Pin/Leads | |
| CF-3403 | 5.2 | 24 | 2.2 | 3/8"Barb OR With O-Ring | 80 | 2-Pin/Leads | |
| CF-4 Series | |||||||
| Model | Flow (LPM | Volt | Mxa (A) | Connecting (Inch) | Pressure (PSI) | Power Line | Inner Box (CM) |
| CF-4201 | 7.5 | 12 | 7 | 3/8"FNPT | 100 | 2-Pin/Leads | 26.6x12x10.5 |
| CF-4401 | 7.5 | 24 | 4 | 3/8"FNPT | 100 | 2-Pin/Leads | |
| CF-4202 | 8.5 | 12 | 7 | 3/8"FNPT | 80 | 2-Pin/Leads | |
| CF-4402 | 8.5 | 24 | 4 | 3/8"FNPT | 80 | 2-Pin/Leads | |
| CF-4203 | 9.5 | 12 | 7.5 | 3/8"FNPT | 80 | 2-Pin/Leads | |
| CF-4403 | 9.5 | 24 | 4.5 | 3/8"FNPT | 80 | 2-Pin/Leads | |
Company Profile
FUAN BIDIBAO ELECTRICAL APPLIANCE CO., LTD.
locates in Banzhong industrial park, Fuan city, which is a famous motor export based in China. Since founded in 2011, our company has not only obtained a series of certificates: CE ,RoHs,ISO9001 quality system certificate, China Compulsory Certificate(3C),but also been awarded dozens of national patents. Our factory produces and manufactures high quality 12 and 24 Volt water pumps for many types of water including sea water, salt water, fresh water, bilge water, and much more.
CATFLO pumps are the cost effective, often half the price of other brands as the same quality. Check our prices before you choose another brand. Our pumps are designed for boats, caravans, mobiles, cars and any other application where 12 or 24 volt power exists. Pumps also come with 240 Volt and 110 Volt (Consult factory for other voltage). Besides, our products include alternating current motors, direct current motors, machine tool cooling pumps, car cleaning machines, rechargeable electric backpack sprayers and mechanical timers.
OUR EXHIBITION
Packing & Delivery
| PACKING DETAILS | CARTOM | |||
| Giftbox Size (CM) | N.W/G.W ( KG ) | PCS/CTN | CARTOM SIZE (CM) | G.W ( KG ) |
| 20 * 11.5 * 7.8 | 1.2 / 1.3 | 30 | 60*42*28 | 39.5 |
Trouble - Shooting
| SYMPTOM | POSSIBLE CAUSE | CURE |
| Reduced Flow | Plugged strainer | Clean outside of strainer and clean debris from around impeller. |
| Discharge line plugged | Clean out hose by backflushing. | |
| Low battery voltage | Check battery condition and charge if necessary. | |
| Kinked discharge hose | If hose is kinked because of sharp bend , convert to hose which will not kink at bends. | |
| No water pumped | Wire connections | Make sure wire connections are not corroded . Visual check is not enough -a slight pull on each wire will tell if the wires are still joined .Check to be sure on wire joins are hanging down into the water . |
| Fuse meited | Check fuse to see that it is the correct size if fuse still blows ,check impeller through inlet opening to be sure it is not jammed or stuck with debris. | |
| Float switch failure | Lift end of float switch up-if pump runs , switch is OK . If pump does not run , turn Manual SWITCH TO on position-if pump runs ,automatic switch has failed. | |
| Pump won't shut off | Something under float | Clean under the float to make sure debris is not holding the float up. |
| Stuck float | Chenk to see that the float is loose and free of gummy bilge oil. If float action appears sluggish and / or the float does not move freely , intermittent or sporadic operation of the pump may occur . This condition is usually the result of oil and / or Dirt accumulating in and around the movable parts of the switch . To corrent , try soaking the entire switch in Marine cleaner for ten minutes , agitating several times and checking for smooth and free operation of the float . Repeat if necessary. | |
| Switch mounted too low | If the pump is sucking air and the automatic switch has not reached the OFF position , then the switch may be mounted too low for the pump and should be reinstalled at least 1/4 higher than the pump base. | |
| Wires over-heated. Melted insulation | Combination of jammed impeller and wrong size fuse | Be sure impeller is clean of debris and is free to rotate . Reduce fuse to propei size .Replace damaged wiring and / or switch . |
| Repeated melted | Fuse size or jammed impeller | Be sure fuse has amp rating . Check impeller to see that it is not bound up by fish line . ETC. |
FAQ:
1. Are you a manufacturer ?
Yes,We specialize in different kinds of 12V/24V DC water pump such as diaphragm pump,marine pump,RV pump,drinking water pump,gear pump etc and electric sprayers for over 15 years with excellent quality and competitive price.
2. What's your MOQ ?
Normally it is 100PCS, but we also accept samples for new costumers to test .
3.Do you accept OEM / ODM ?
Yes , we have different customers make their own OEM product. We also can make products as per your requirement .
4. What about the delivery time ?
Usually we can ship your orders within 15-30 days from receipt your 30% deposit .
5.What's your payment terms ?
T/T 30% in advance,70% balance against B/L copy.
6. Can I buy different types in one container ?
Yes, you can mix different types in one container.
7. What is your port of loading ?
Fuzhou Port,Xiamen Port or Ningbo Port .
8.What is your warranty ?
We offer 12 months limited Warranty of Manufacturer for defective items (excluding items damaged and/or misused after receipt ) .
9. Why you find some price on our items show only 1-20USD/PCS, can you get the price at USD1.0 ?
1-20USD is just price range for your reference here.
10.Do you have some discount ?
To clients who bring repeat orders and large orders.Please contact us for the Best Quote.
