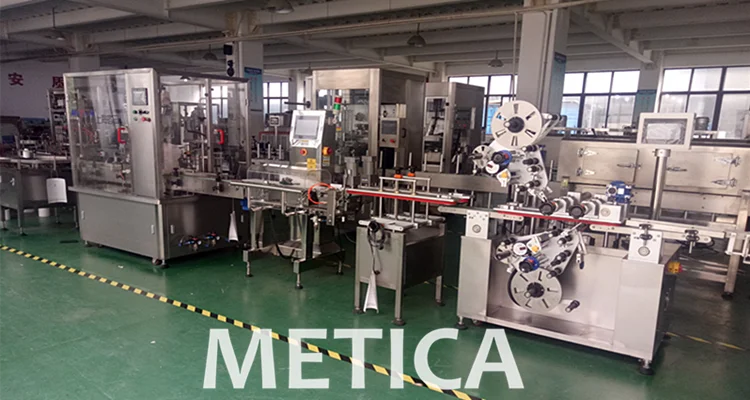

Complete automatic pepper dry powder filling capping and labeling machine
- Category: >>>
- Supplier: Metica Machinery (Shanghai) Co. Ltd.
Share on (62072306430):
Product Overview
Description
Product Description
Automatic powder filling plugging capping and labeling machine
Application :
1.The filling capping and labeling machine is widely used in Pharmaceutical, Health Care industries.
2.This powder filling capping and labeling machine line is suitable for small volume 10-100ml powder automatic packing, like loose powder, Freeze-dried powder,pepper and so on.
Machines Recommended :
1.Full automatic bottle sorting machine
2.Automatic filling plugging and capping machine in 1 machine
3.Automatic bottle clamping
4.Automatic weighting machine
5.Automatic top and bottom labeling machine
6.Auto collecting products
Detailed Images

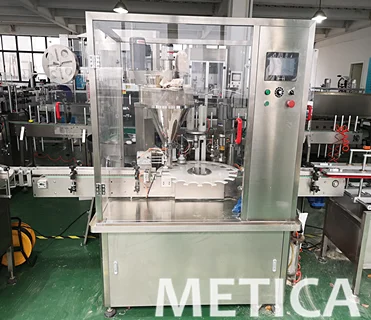

Auto powder filling plugging capping machine | ||
Filling accuracy | >99% | |
Bottles applicable | glass or plastic bottle | |
Caps applicable | Screw caps, press-in caps, aluminum caps | |
Machine size | 120*135*150cm | |
Materials applicable | dry powder products | |

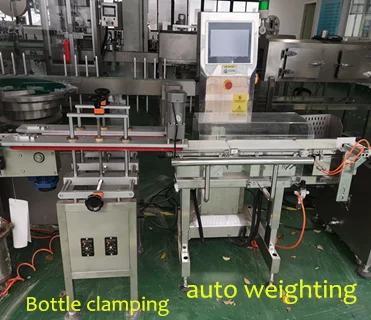

Bottle clamping device and auto weighting machine | ||
Products applicable | Can be customized according to products | |
Usage | Automatic weighing machine that automatically detects unqualified products | |
Application | Widely used in Pharmaceutical and cosmetics industry | |
Machine material | 304/316 Steeless | |
Auto top and bottom labeling machine | ||
Label applicable | adhesive paper stickers in roll | |
Products applicable | flat or square bottle | |
Feature | Easy to operate on touch screen, labeling controlled by PLC | |
Power | 220v 50/60Hz,1KW | |
weight | 350kg | |
1 | A wide range sized turning tables for options |
2 | Unscrambler and feeding bottles |
3 | Accumulator |
4 | Diameter: 80cm |
5 | Linked to conveyor |

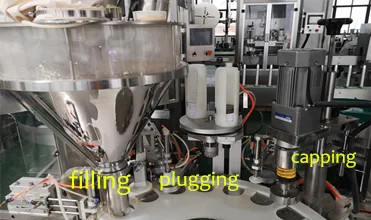

1) workflow:auto filling→The robot automatically puts a puff or other internal plug→auto plugging→auto capping
2) Mitsubishi and SIMENS PLC control and international branded electrical parts,more stable and long time use.

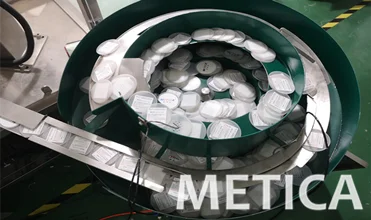

Vibration plate
1) for feeding cap or other plugs
2)different cap and plug need different plate
Ribbon Belt coder
1) Coding on labels
2) Temperature: 150º +/-
3) Air: 0.4-0.5mpa
4) Installed on labeling machine with a rack
5) coding max: 3lines
6) Speed: 70-80 per minute
2) Temperature: 150º +/-
3) Air: 0.4-0.5mpa
4) Installed on labeling machine with a rack
5) coding max: 3lines
6) Speed: 70-80 per minute
