wholesale mini portable solar panel 60w for small system
- Category: >>>
- Supplier: Yangzhou Henglong Photoelectric New Energy Co. Ltd.
Share on (62072601674):
Product Overview
Description
Product Description

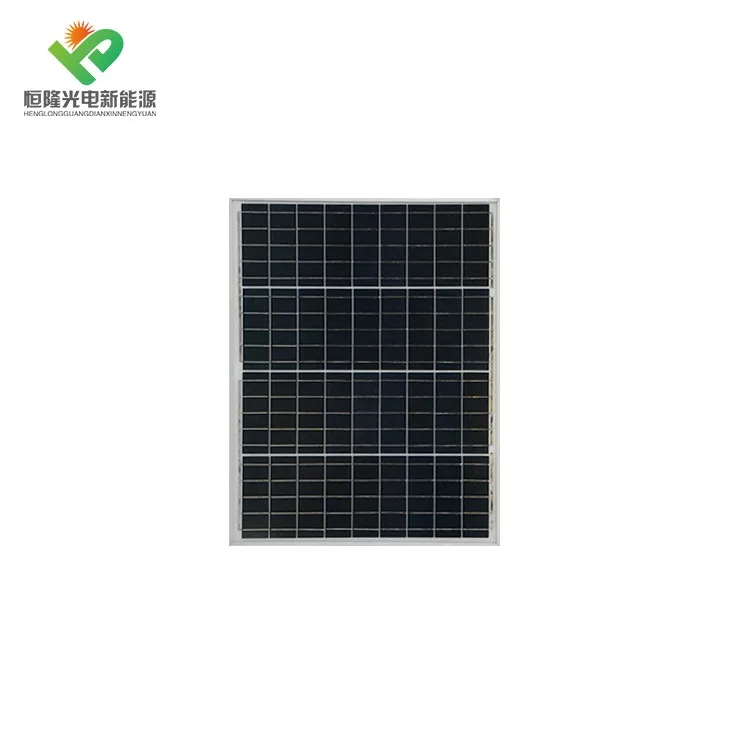

wholesale mini portable solar panel 60w for small system
Model: | HL-Poly 60W |
Size: | 670*580*25mm |
Working Voltage(Vmp/V): | 17.5V |
Working current(Lsc/A): | 3.42A |
Open circuit voltage(Vmp/V): | 21.6V |
Short circuit current(Lsc/A): | 3.86A |
Cell number: | 4*9pcs |
Cell grade: | A |
Cell efficiency: | 18.40% |
Net weight: | 4Kg |
Package: | carton or pallet |
Max.System Voltage: | DC1000V(IEC) |
Design Life: | 25years |
Warranty Life: | 10years |
TEMPERED GLASS
*Anti-reflective coating to increase the module efficiency up to 2%
*Light transmittance improvement above 3%
*Self-cleaning function
SOLAR CELL
*High power efficency
*Stable performance under weak light conditions
*PID free treatment upon request
EVA FILM
*Light transmittance more than 92%
*small trail prevention teratment
*UV resistance against against
BACK SHEET
*Low moisture permeability against snail trail defect
*Excellent electric insulation for high system voItage up to 1500V
*Outstanding weatherproof performance

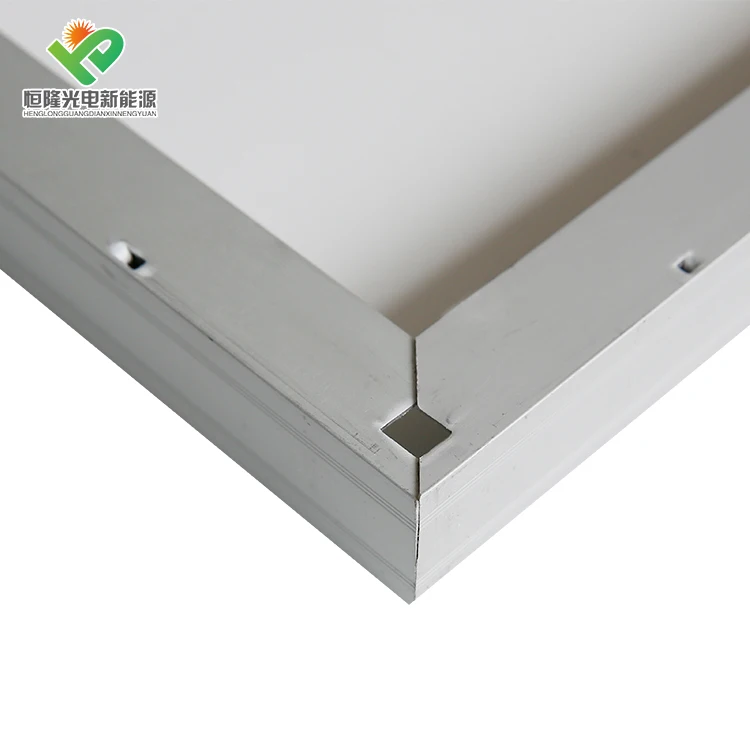

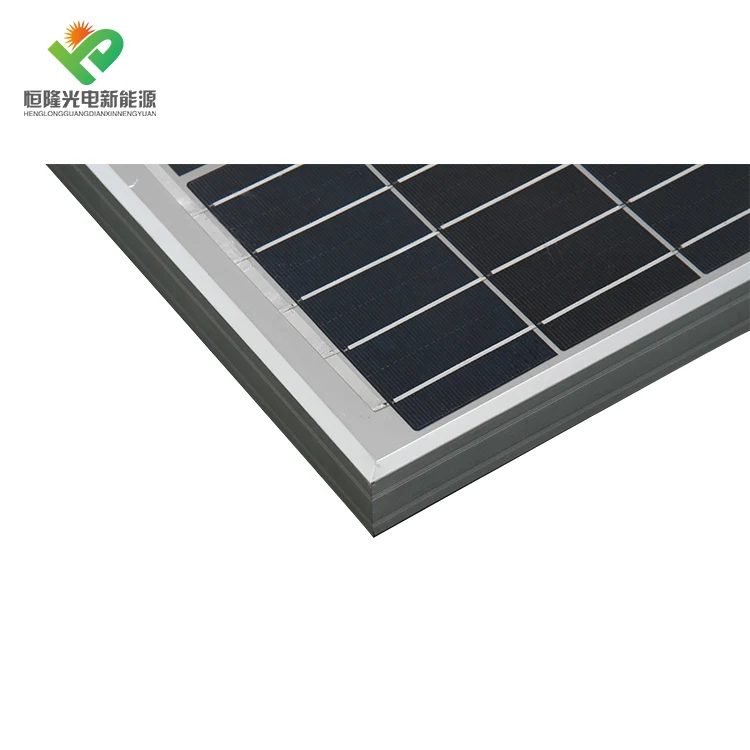

ALUMINUM ALLOY FRAME
*Strong mechanical load resistance up to 5400pa
*Anodic oxidation layer resistant chemical corrosion
*Silver and black color optional

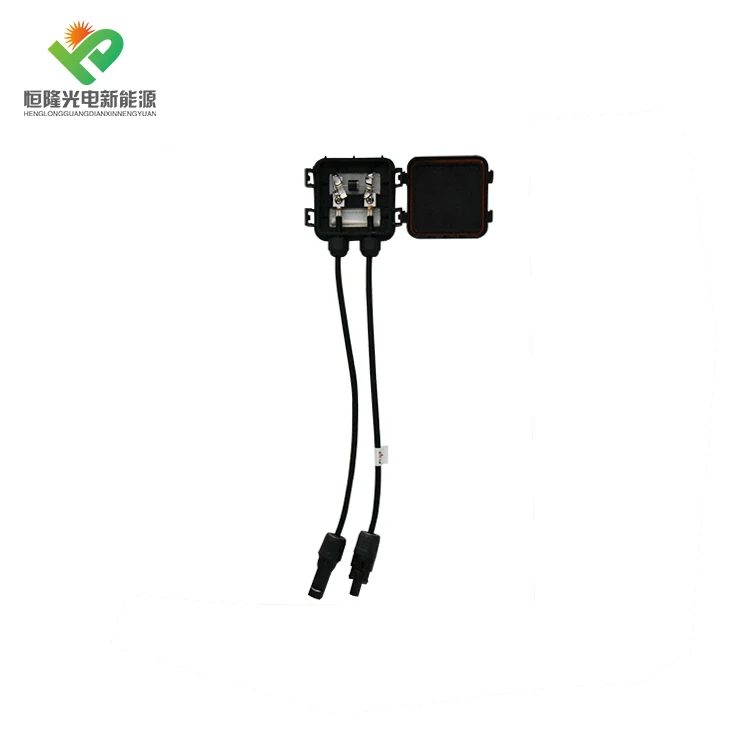

JUNCTION BOX
*Ip 67 protection grade
*High quality diodes for electric safety
*1500V system voltage available
