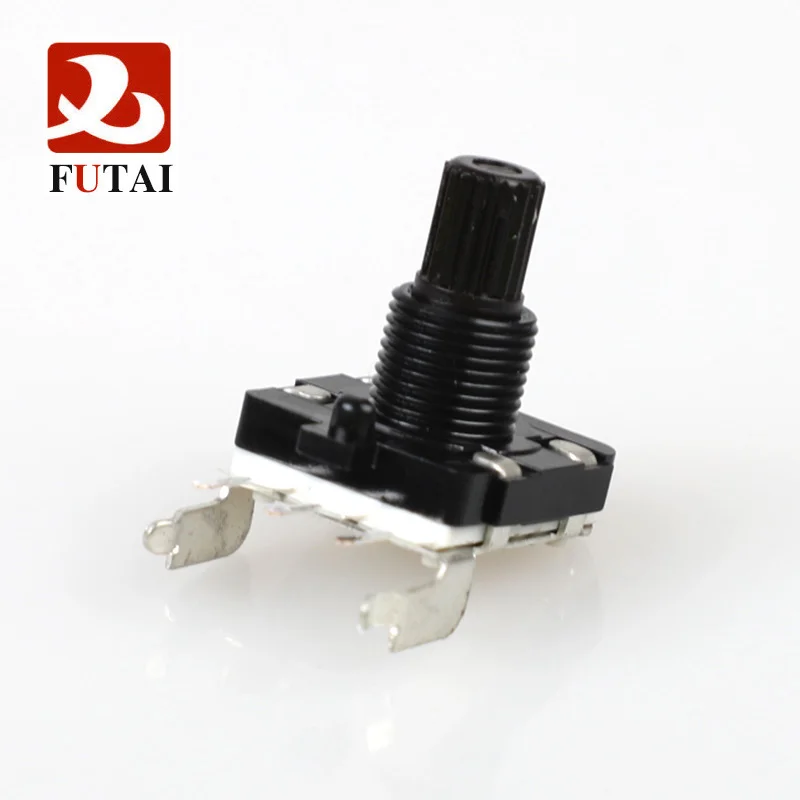

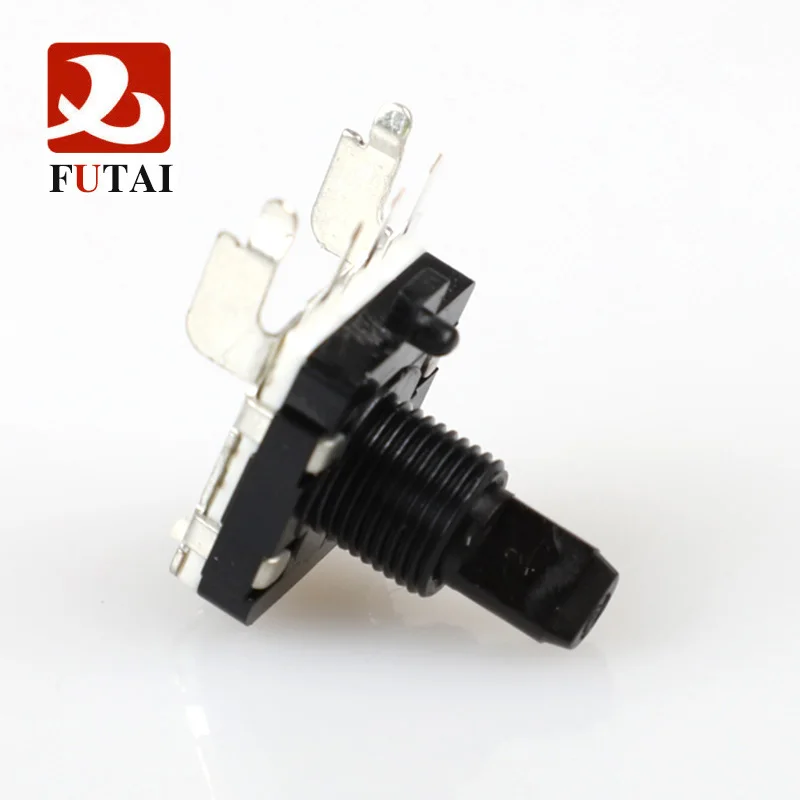

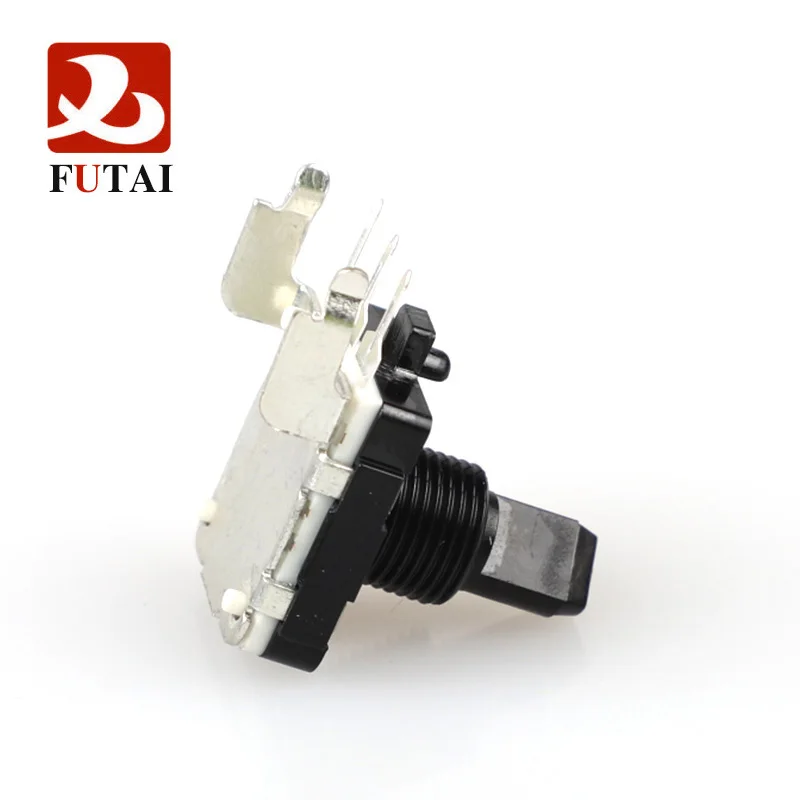

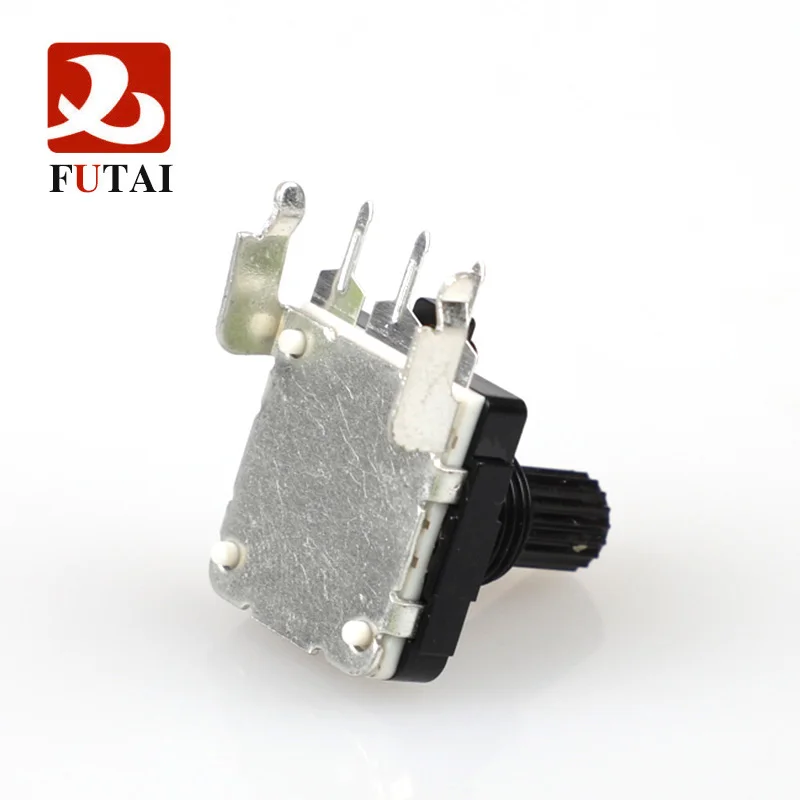

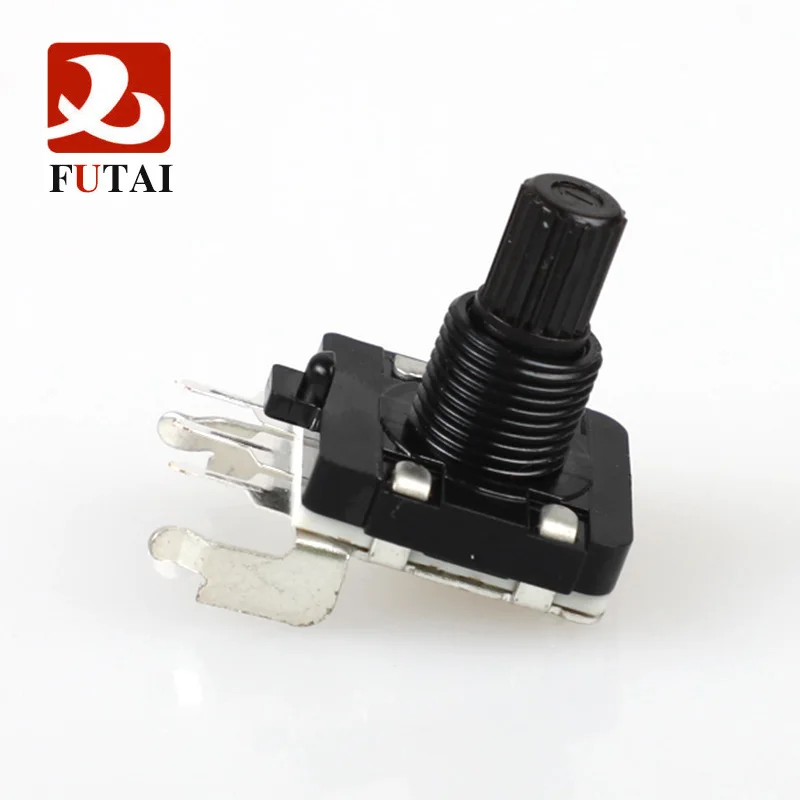

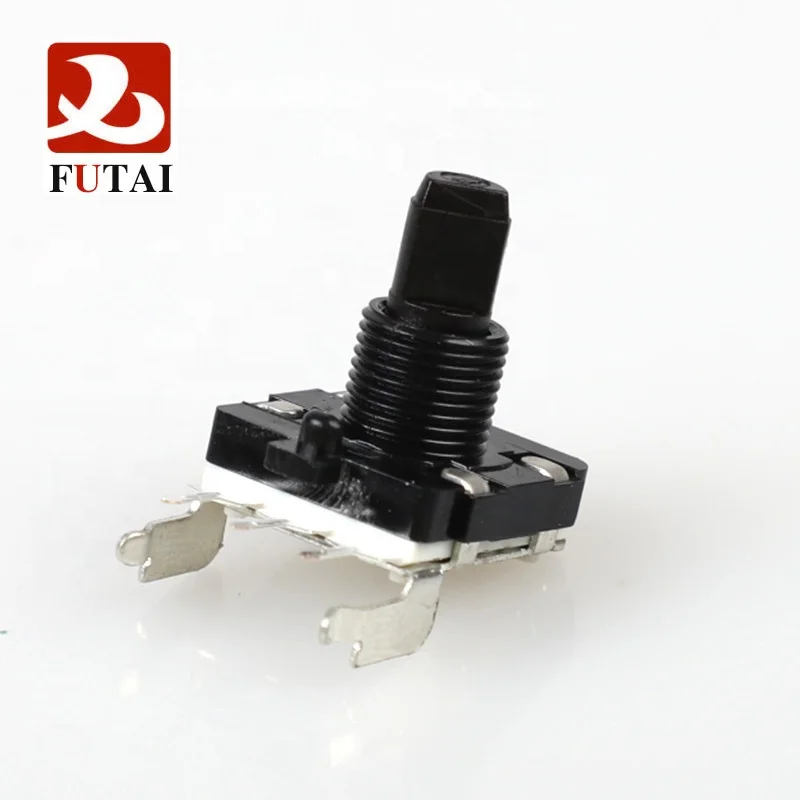

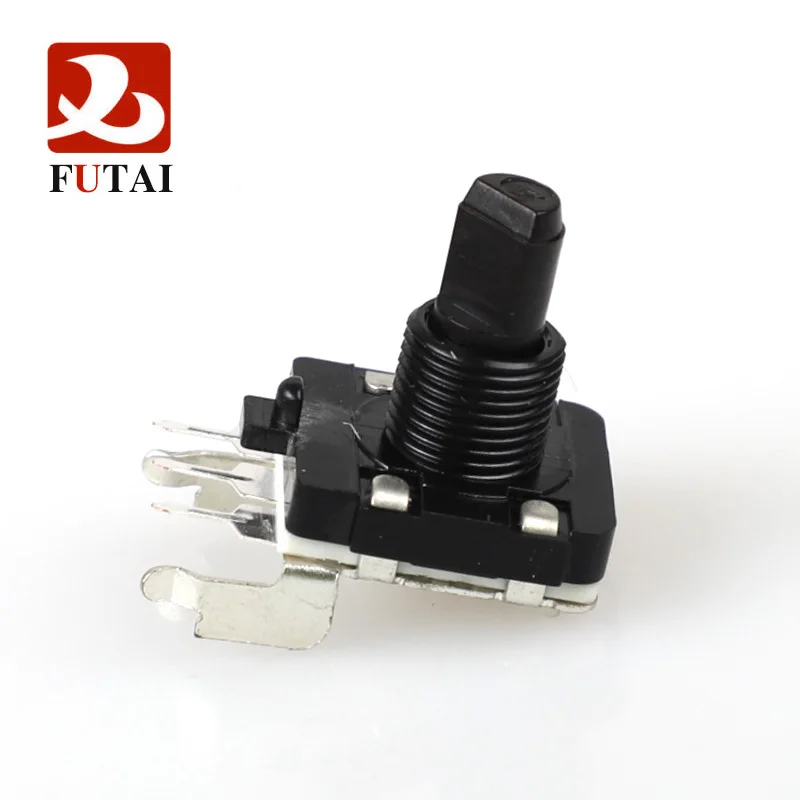

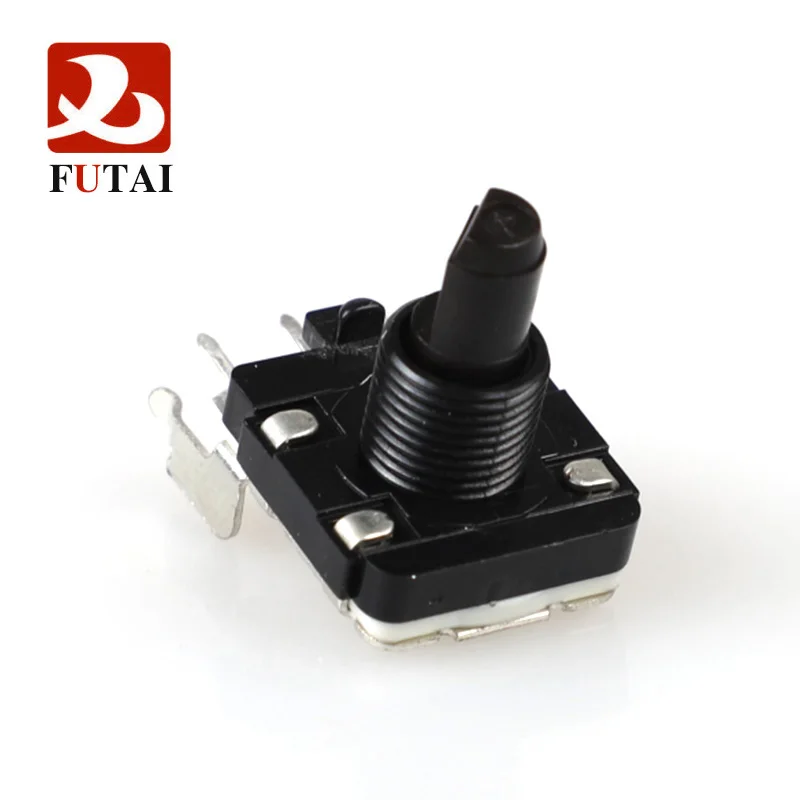

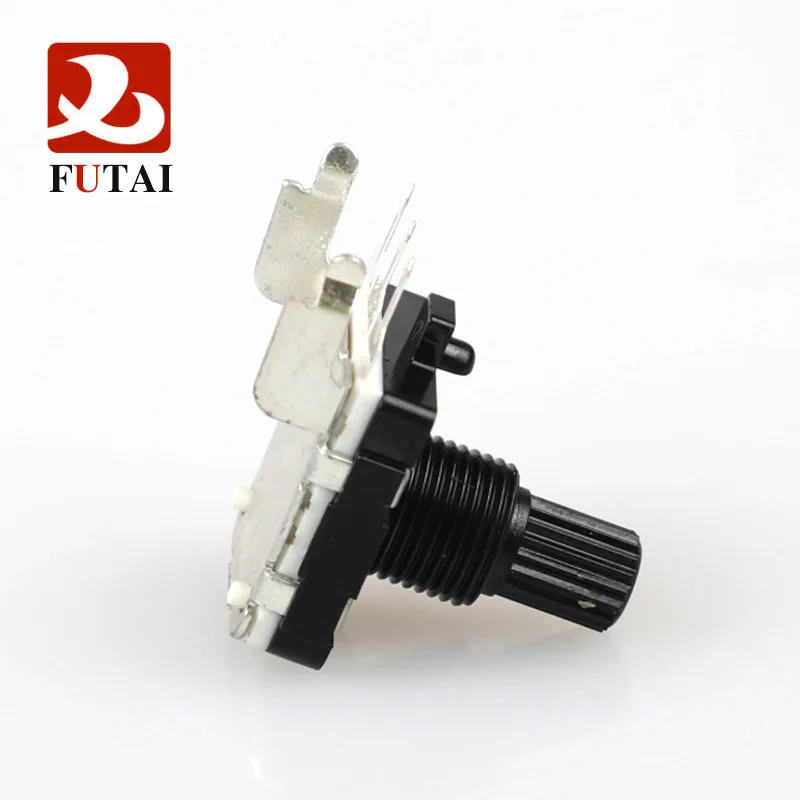

EC16 rotary encoder without switch encoder, high quality and stable products, support customization

Product Overview

Description

Appliance:

the product are mainly suitable for microwave ovens, washing machines and other household appliances, also can be used for multimedia audio/amplifiers and related electronic equipment, the main function of regulating the temperature, adjust the time, adjust the volume, function selection.

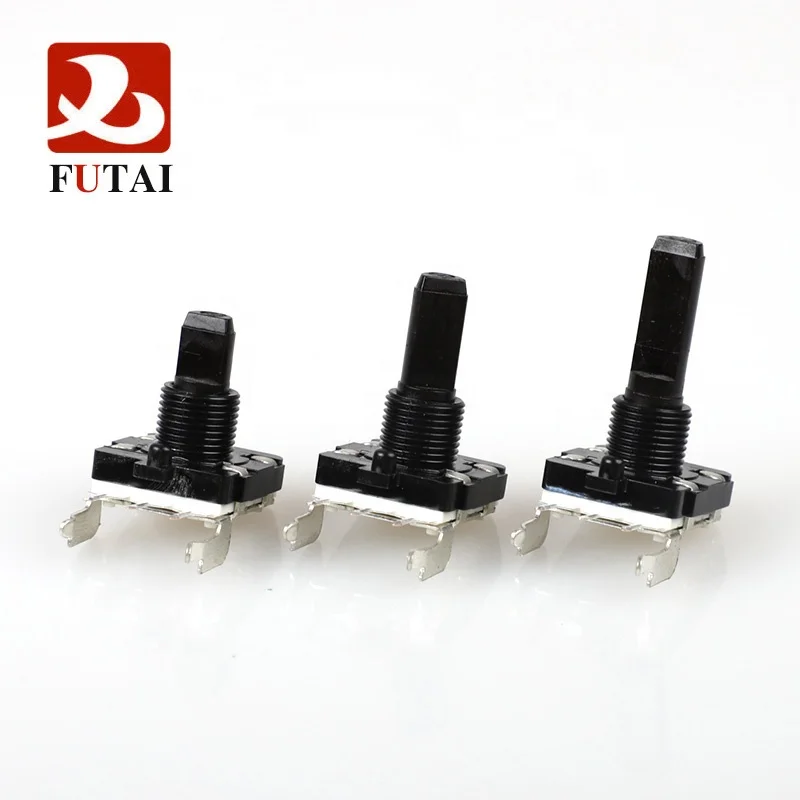

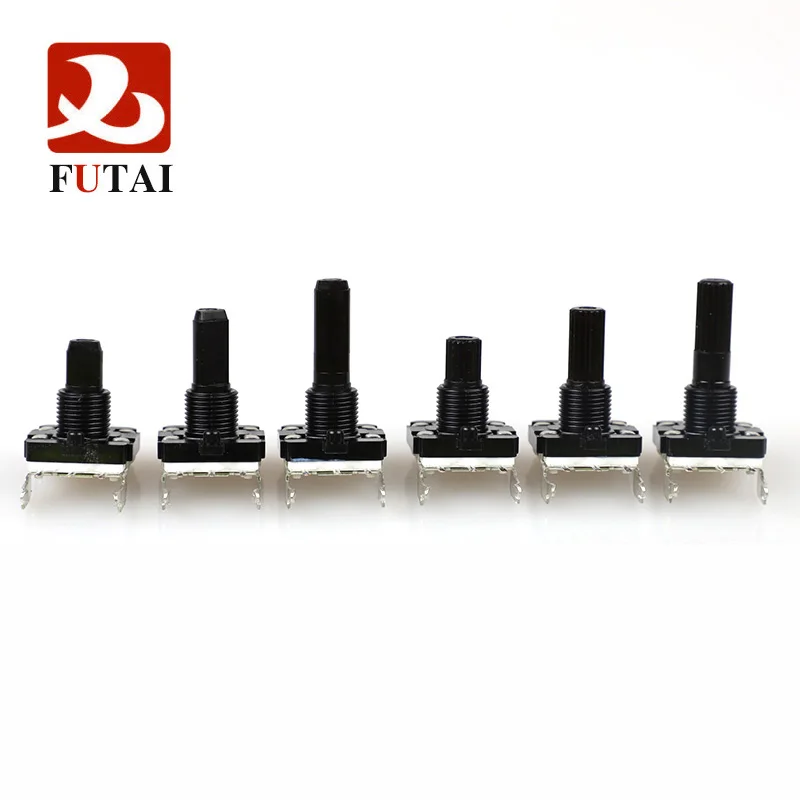

 SHAFT TYPE (flat shaft or tooth type shaft) AND SHAFT LENGTH CAN BE CUSTOMIZED AS DRAWING.

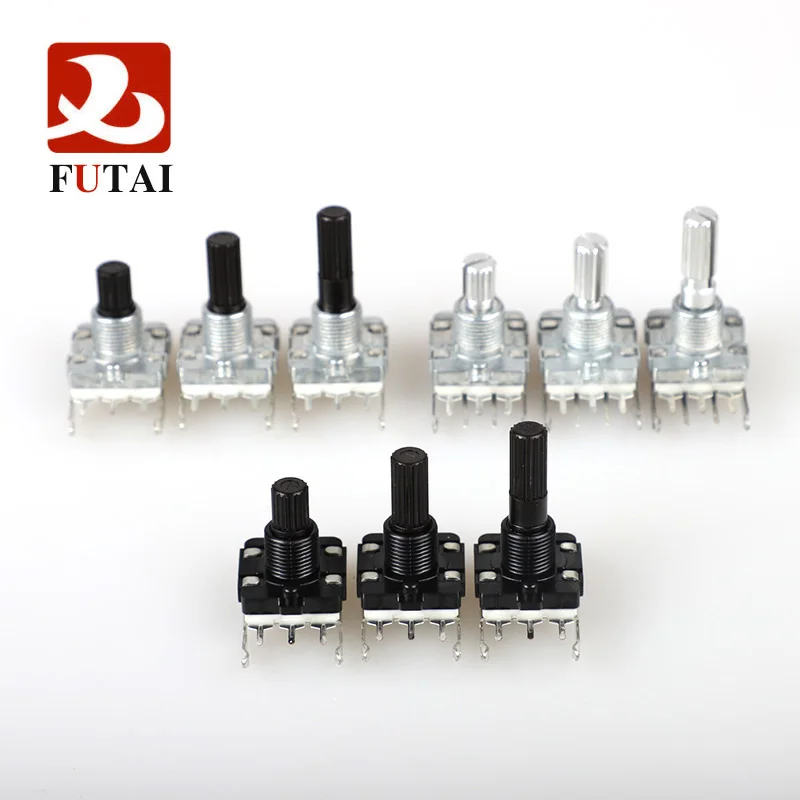

EC16-12PULES-12CLICK CW

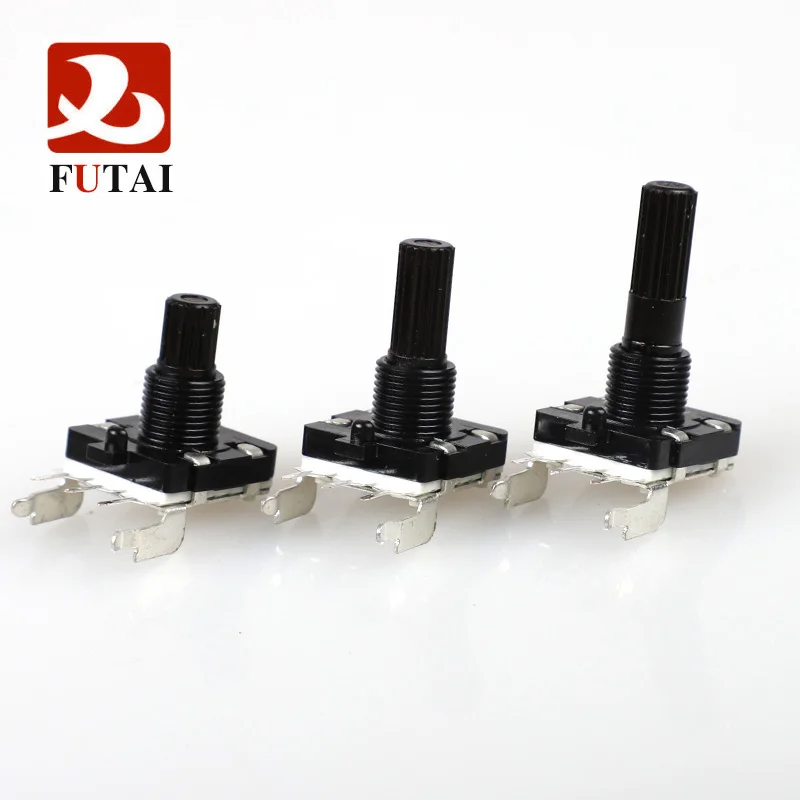

EC16-24PULES-24CLICK CW





Mechanical characteristics
Total rotational angle		360°
Click torque		30-120gf.cm
No. Of click		12pules/12detent  12 click step angle:30±2° 24pules/24detent  24 click step angle:15±2°
Push-pull strength		8.0kgf Max
Shaft play in rotational wobble		5°Max
Electrical characteristics
rating		DC 5V,A,B lead 5mA Max, C lead 10mA Max
resolution		24 pules/360° 12pules/360°
Insulation resistance		100MΩMin at DC250V
Dielectric		1 minute at AC 300V
Phase difference	T1.T2. T3.T4≥0.08T
Sliding noise	T1,t3≤3mS t2≤2mS
Endurance characteristics
Rotational life		30000±200 cycles≤100gf.cm
Storage temperature range		-40℃≈85℃
Operating temperature range		-30℃≈80℃
Soldering characteristic		Dipping in soldering≤206℃±5°,within 3S Solder by hand≤300℃±5°, within 3S



Switch characteristic
Switch type	SPST
Operating force	500±200gf.cm
Travel	0.5±0.3mm
life	30000±200 cycles
