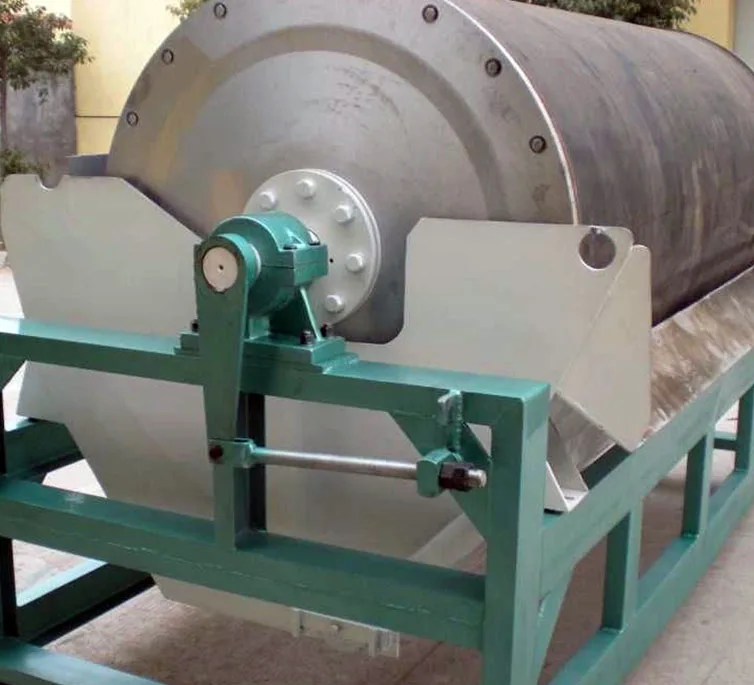

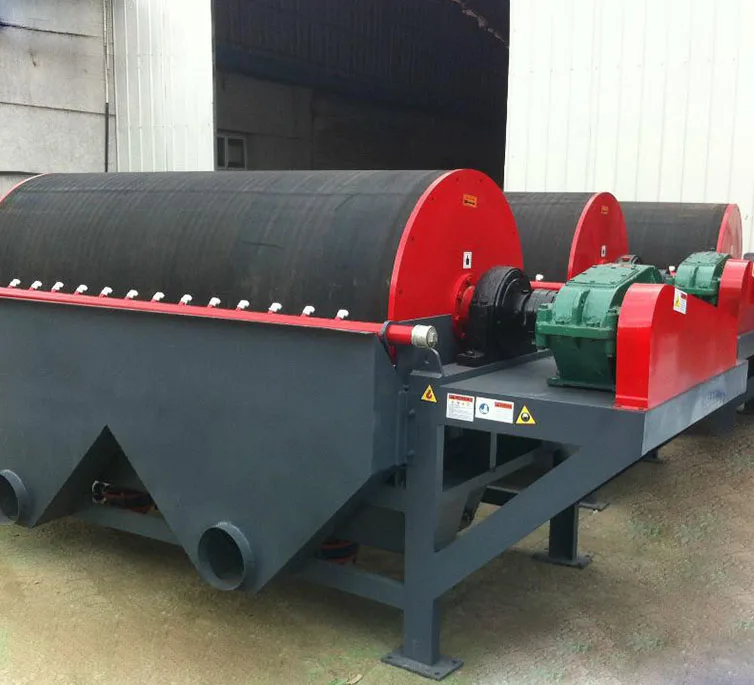

Iron ore magnetic separation equipment
- Category: >>>
- Supplier: Yantai Jinpeng Mining Machinery Co. Ltd.
Share on (62072839587):
Product Overview
Description
Product Description

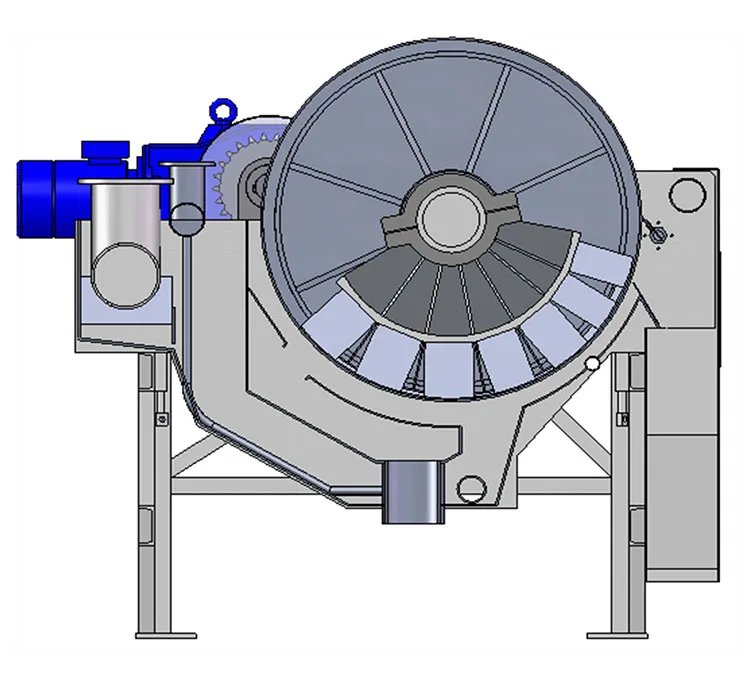

When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw
materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials cannot be attracted and will flow to the discharge pipe for tailings.
materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials cannot be attracted and will flow to the discharge pipe for tailings.
Features
--Optimized design
--Scientific magnetic circuit, made of strong magnetic coercive force
--High-eminence permanent magnet
--Safe and reliable.
(Different Gauss can be expected at the drum surface.)
--Scientific magnetic circuit, made of strong magnetic coercive force
--High-eminence permanent magnet
--Safe and reliable.
(Different Gauss can be expected at the drum surface.)

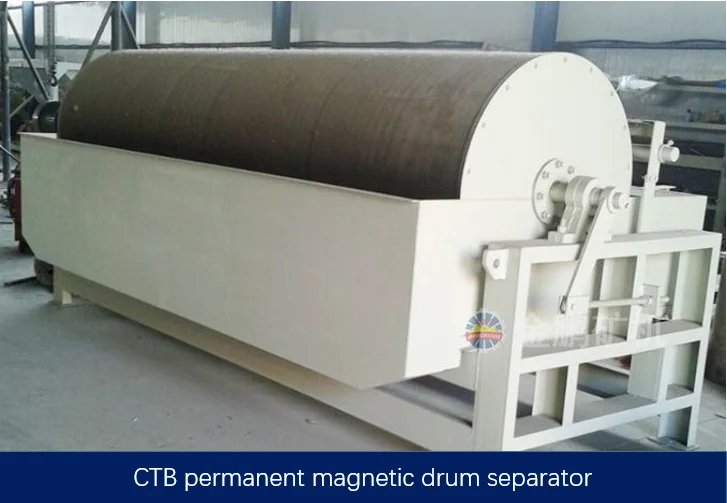

Technical parameters.
Model | cylinder surface magnetic field strength (mT) | Production capacity | cylinder size（diameter ×length）mm | Motor power(kw) | cylinder speed(r/min) | ||||||
center pole | Scavenging district average value | High magnetic induction intensity | T/h | m3/h | |||||||
CTB（N.S）-612 | ------ | 145 | 170 | 10-20 | 32 | 600×1200 | 2.2 | 40 | |||
CTB（N.S）-618 | ------ | 145 | 170 | 15-30 | 48 | 600×1800 | 2.2 | 40 | |||
CTB（N.S）-712 | 120 | 155 | 180 | 15-30 | 48 | 750×1200 | 3 | 35 | |||
CTB（N.S）-718 | 120 | 155 | 180 | 20-45 | 72 | 750×1800 | 3 | 35 | |||
CTB（N.S）-918 | 148 | 165 | 190 | 25-55 | 90 | 900×1800 | 4 | 28 | |||
CTB（N.S）-924 | 148 | 165 | 190 | 35-70 | 110 | 900×2400 | 4 | 28 | |||
CTB（N.S）-1018 | 148 | 165 | 190 | 40-75 | 120 | 1050×1800 | 5.5 | 22 | |||
CTB（N.S）-1021 | 148 | 165 | 190 | 45-88 | 140 | 1050×2100 | 5.5 | 22 | |||
CTB（N.S）-1021 | 160 | 240 | 280 | 45-88 | 140 | 1050×2100 | 5.5 | 22 | |||
CTB（N.S）-1024 | 148 | 165 | 190 | 52-100 | 160 | 1050×2400 | 5.5 | 22 | |||
CTB（N.S）-1024 | 160 | 240 | 280 | 52-100 | 160 | 1050×2400 | 5.5 | 22 | |||
CTB（N.S）-1030 | 160 | 240 | 280 | 65-125 | 200 | 1050×3000 | 7.5 | 22 | |||
CTB（N.S）-1218 | 148 | 165 | 190 | 47-90 | 140 | 1200×1800 | 5.5 | 19 | |||
Customer Case

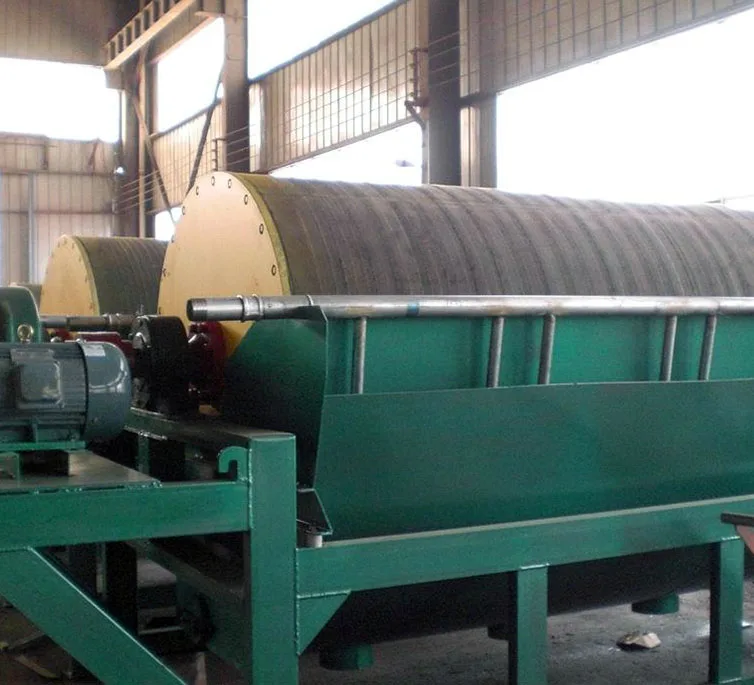

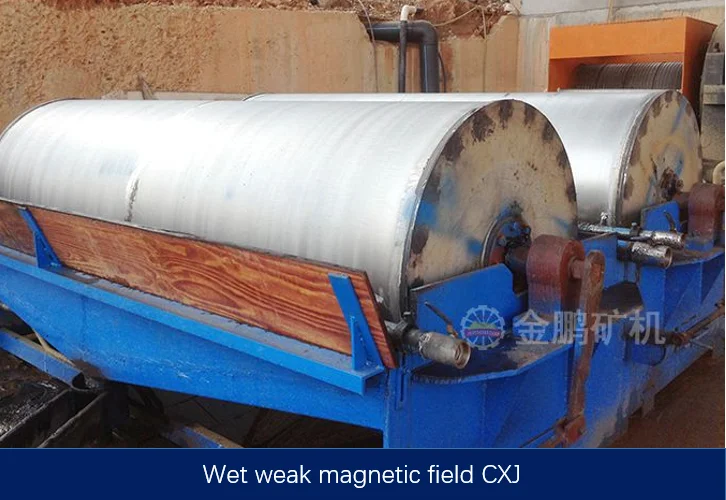

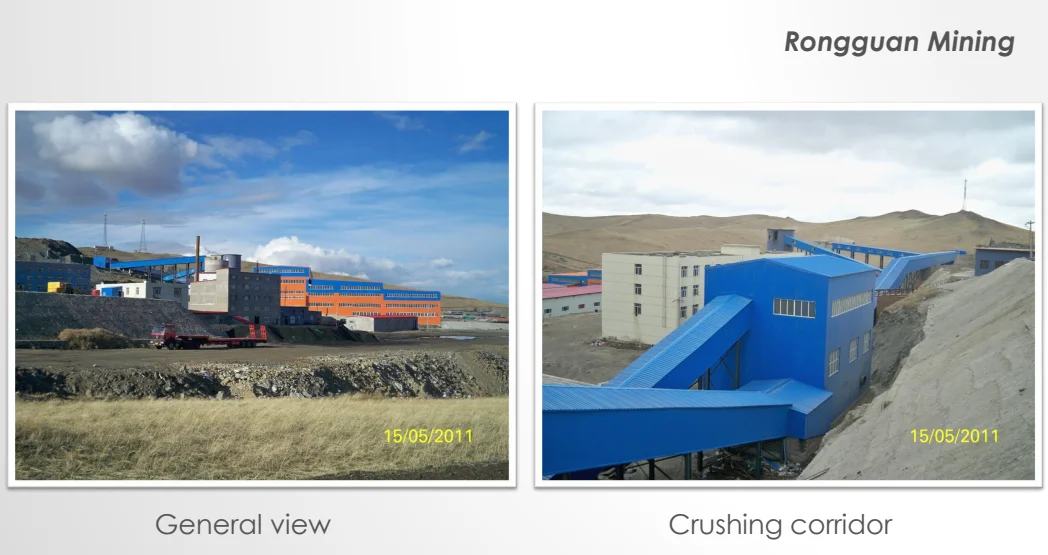

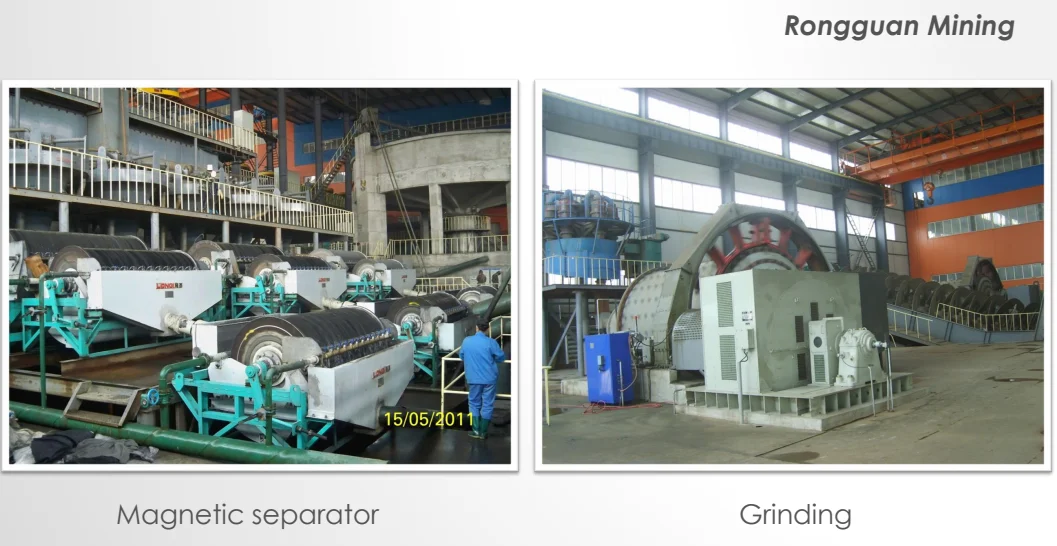

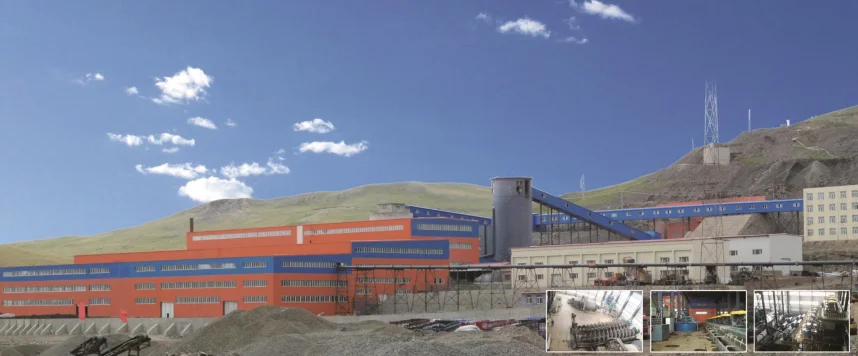

Chaganaobao iron and zinc mine
Project name: Chaganaobao iron and zinc mine, Rongguan mining company
Location: 180km from Dongwuzhumuqin banner, Inner Mongolia, 45°59′49″N, 118°17′50″E
Ore type: Iron and zinc
Design capacity: I stage 500,000 TPA+ II stage 1,000,000 TPA
Location: 180km from Dongwuzhumuqin banner, Inner Mongolia, 45°59′49″N, 118°17′50″E
Ore type: Iron and zinc
Design capacity: I stage 500,000 TPA+ II stage 1,000,000 TPA
Main process
II stage
Crushing: Three stages crushing with single closed circuit
Main equipment: C110 Jaw crusher+HP300 cone crusher+HP400 cone crusher+ 2YA2448 screen
Grinding: Two stage closed circuit
Main equipment: 1st, 3645 ball mill+ 2FG-30 spiral classifier, 2nd, 3645 ball mill+Φ500 hydrocyclone
Zinc concentrate: one rough+ two cleaning+ three scavenging flotation
Iron concentrate: one rough+ two scavenging flotation+ magnetic separator
II stage
Crushing: Three stages crushing with single closed circuit
Main equipment: C110 Jaw crusher+HP300 cone crusher+HP400 cone crusher+ 2YA2448 screen
Grinding: Two stage closed circuit
Main equipment: 1st, 3645 ball mill+ 2FG-30 spiral classifier, 2nd, 3645 ball mill+Φ500 hydrocyclone
Zinc concentrate: one rough+ two cleaning+ three scavenging flotation
Iron concentrate: one rough+ two scavenging flotation+ magnetic separator
