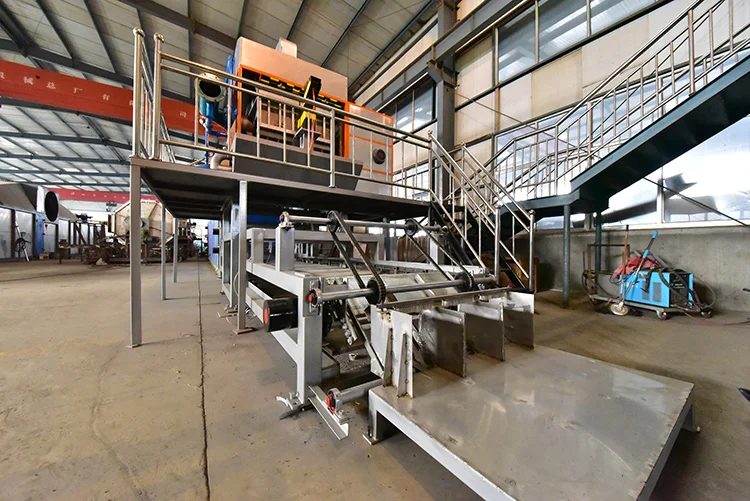

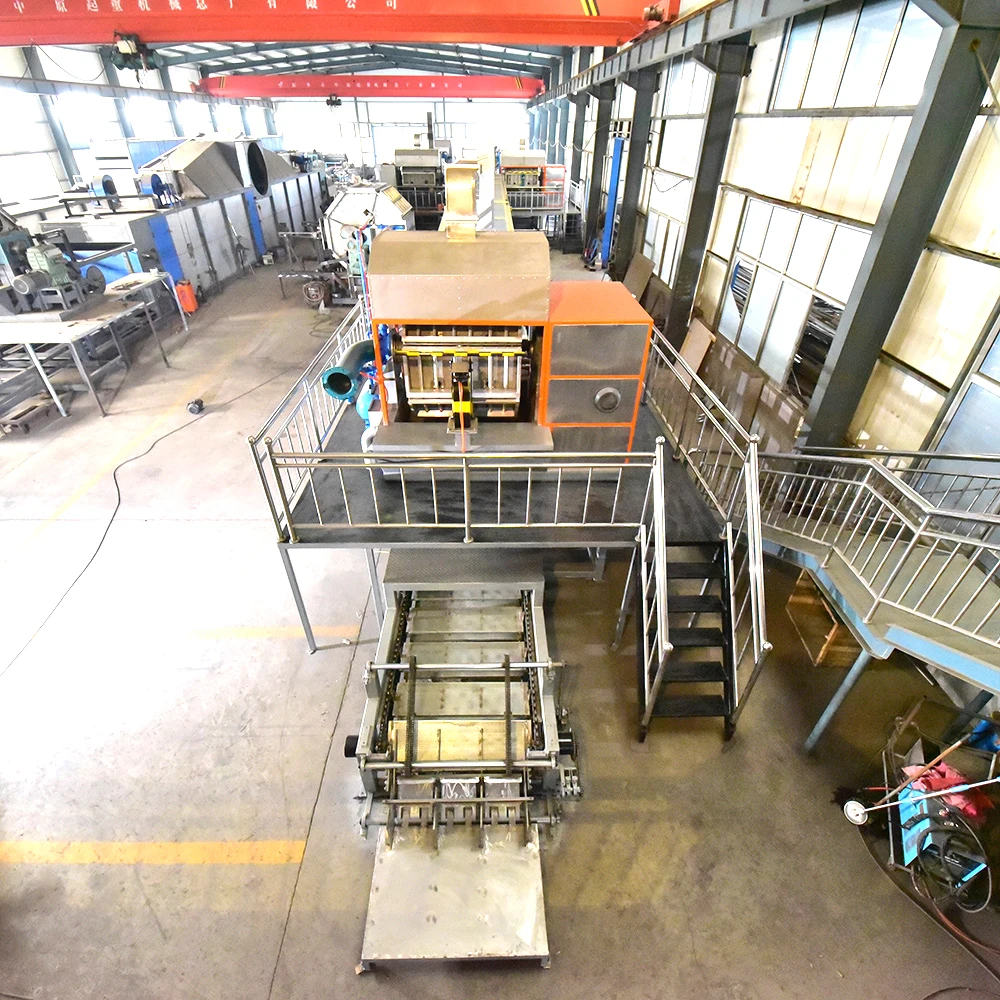

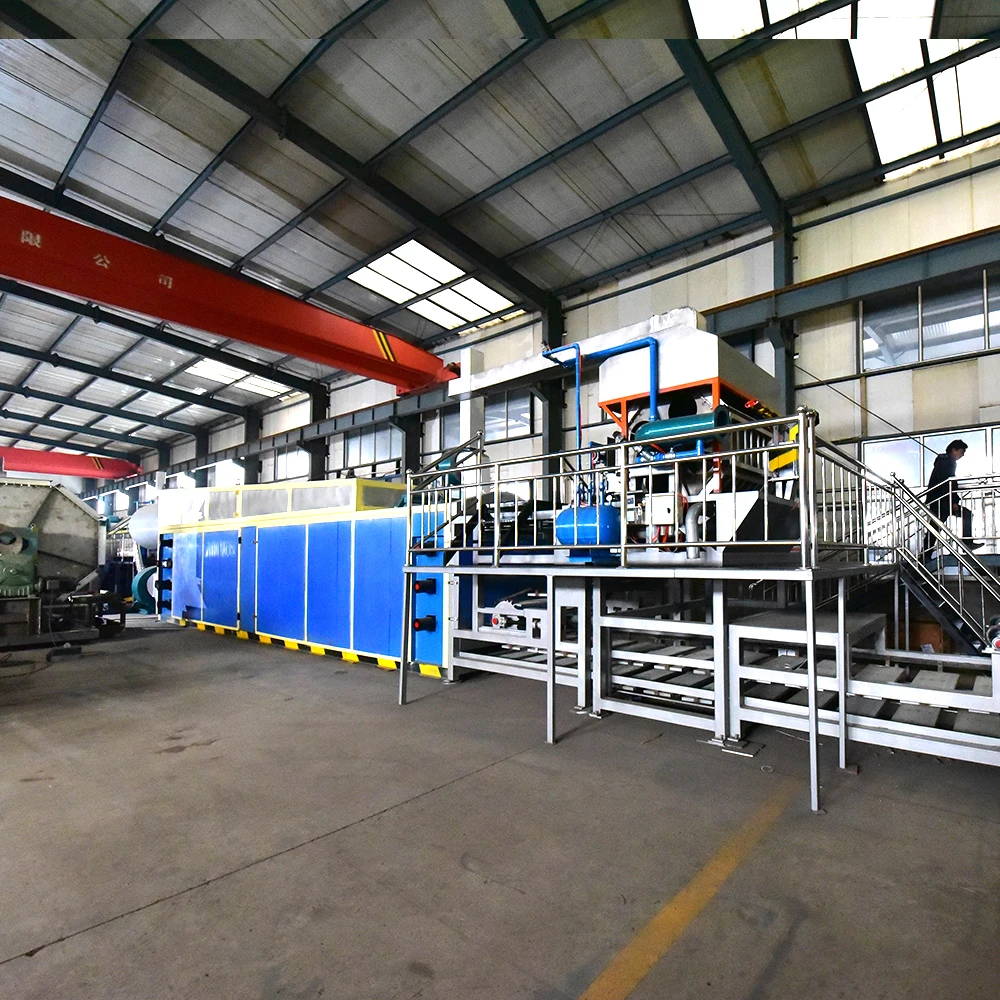

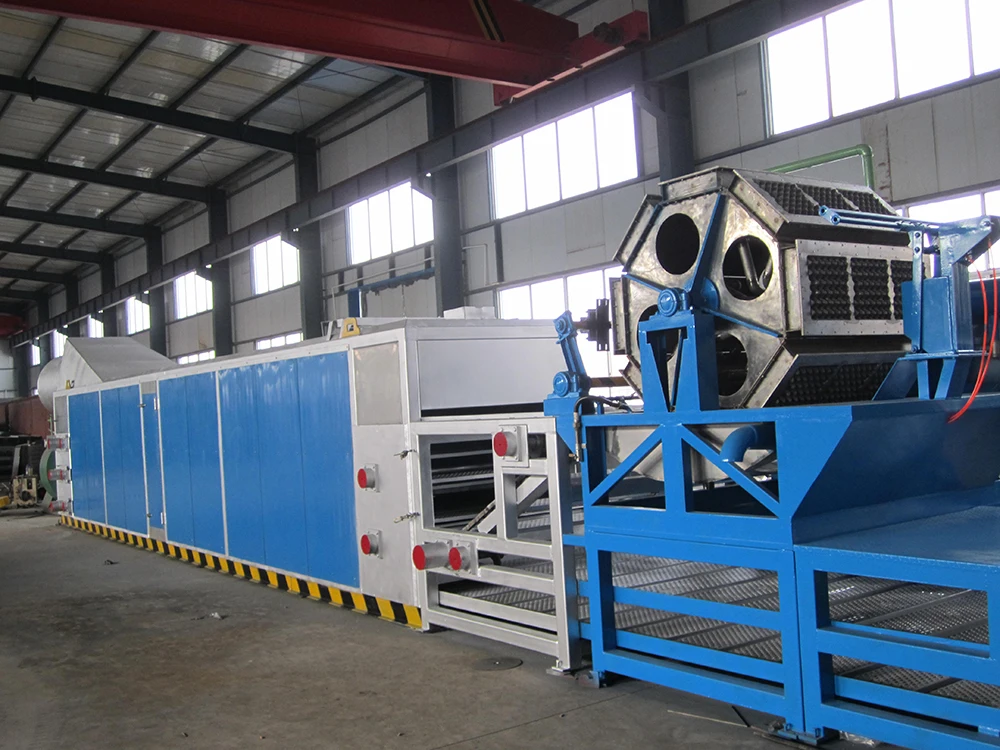

clima machine making egg trays automatic egg tray machine

Share on (62073084159):


Price:RUB 5,910,013.10 - RUB 6,790,260.08

Quantity:


Product Overview

Description

Product Description

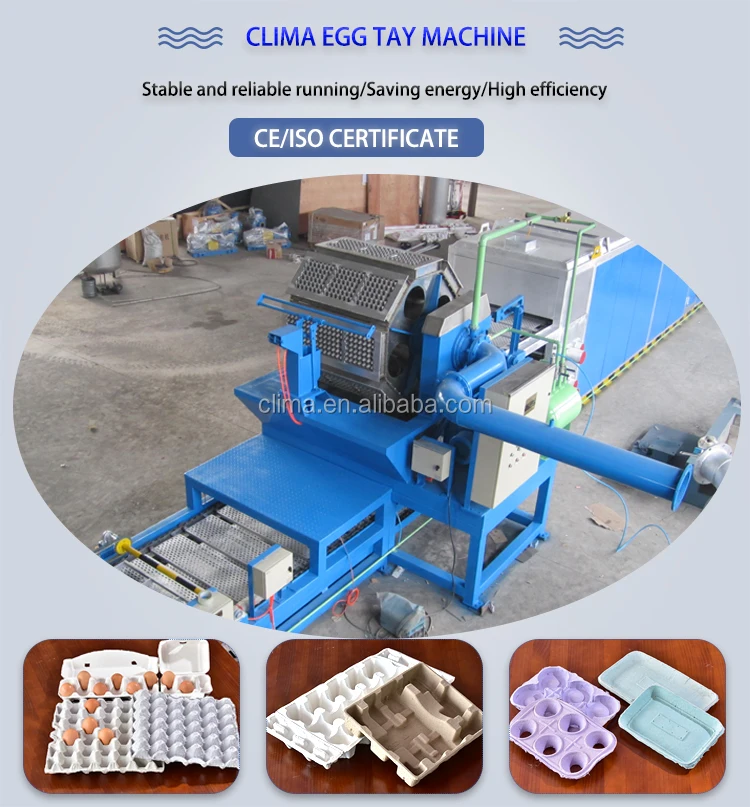

clima making s automatic automatic egg tray machine

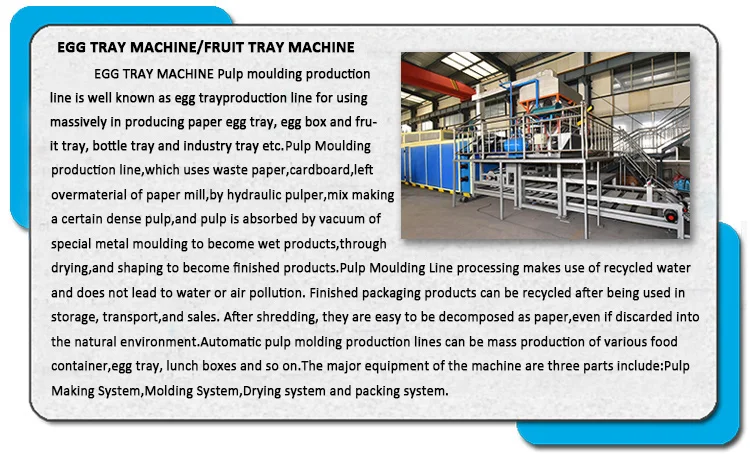

Egg tray machine uses waste paper as raw materials to produce different kinds of products according to your requirements, such as egg trays,  egg cartons, egg boxes, apple trays, fruit trays, industrial trays, seeding trays etc. Our machine include  pulp making system ,forming system and drying system.

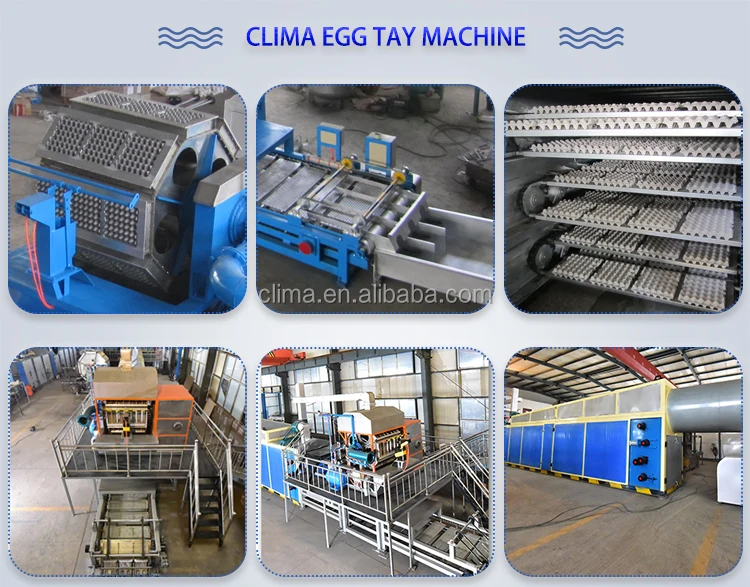

clima making s automatic egg tray machine

clima making s automatic egg tray machine

Advantage of Automatic pulp molding machine Advanced Processing small automatic egg tray machine:

1. Raw material: Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get

2. Automation: Fully-automatic control

3. Quality standard: CE

4. 100% environmentally production process.

5. Engineers available to service machinery overseas.

clima making s automatic egg tray machine



clima making s automatic egg tray machine

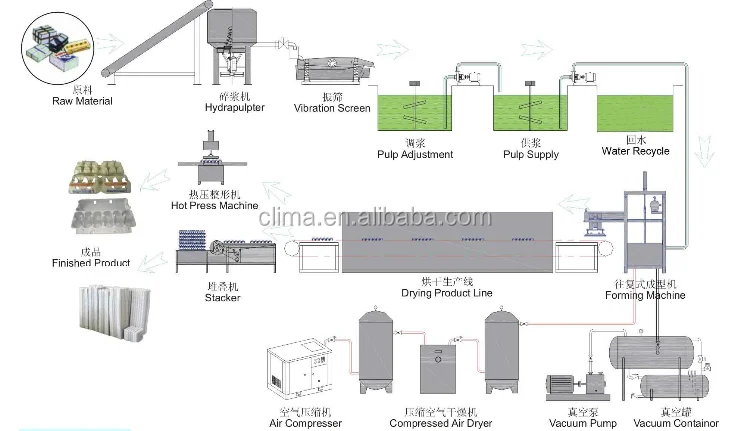

Technology



Pulp Making System:

Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.

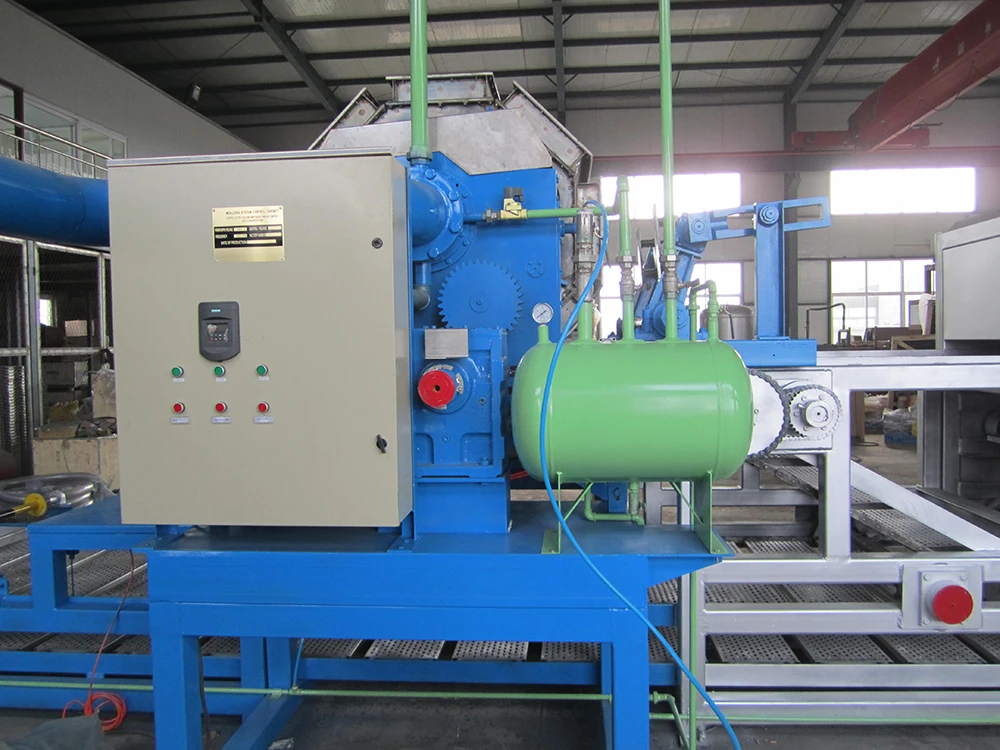

Moulding System:

Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on..

Drying System:

Bellows, Air Blower, Conveyer

Packaging Machine:

High quality of pulp molding machine for paper trays could design according to the customer’ requirement.

clima making s automatic egg tray machine

clima making s automatic egg tray machine

Capacity:

720pcs/hr,1500pcs/hr,2000pcs/hr,3000pcs/hr,4000pcs/hr,5000pcs/hr,6000pcs/hr,8000pcs/hr,10000pcs/hr,12000pcs/hr

Model Number10000

8000

6000

5000

4000

3000

2000

1500

720

Floor space

40m*15m

*6m

40m*10m

*6m

40m*10m

*6m

40m*10m

*6m

35m*8m

*6m

35m*8m

*6m

35m*8m

*6m

35m*8m

*6m

35m*8m

*6m

Voltage

380 V

380 V

380 V

380 V

380 V

380 V

380 V380 V380 V

Frequency

50 Hz

50 Hz

50 Hz

50 Hz

50 Hz

50 Hz

50 Hz50 Hz50 Hz

Production capacity

10000-12000pcs/h

80-10000pcs/h

6000-7200pcs/h

5000-6600pcs/h

4000-5000pcs/h

3000-4800pcs/h

2000-3000pcs/h1500-2000pcs/h720-960pcs/h

Water consumption

1400kg/h

1120kg/h

840kg/h

700kg/h

560kg/h

560kg/h

280kg/h210kg/h100kg/h

Gas consumption

160m3/h

130m3/h

97m3/h

80m3/h

65m3/h

65m3/h

32m3/h24m3/h12m3/h

Raw material

700Kg/h

560Kg/h

420Kg/h



350Kg/h

280Kg/h

210Kg/h

140Kg/h

105Kg/h

50Kg/h Heating source

Note: The above-mentioned data is only for your reference and we keep the rights for modification of the component and machinery structure. The relevant contents involved in equipment purchased should be subject to the contract.
