cheap hand pump suction cup lifter double glass handling suction cups

Share on (62073204126):


Price:

Quantity:


Product Overview

Description

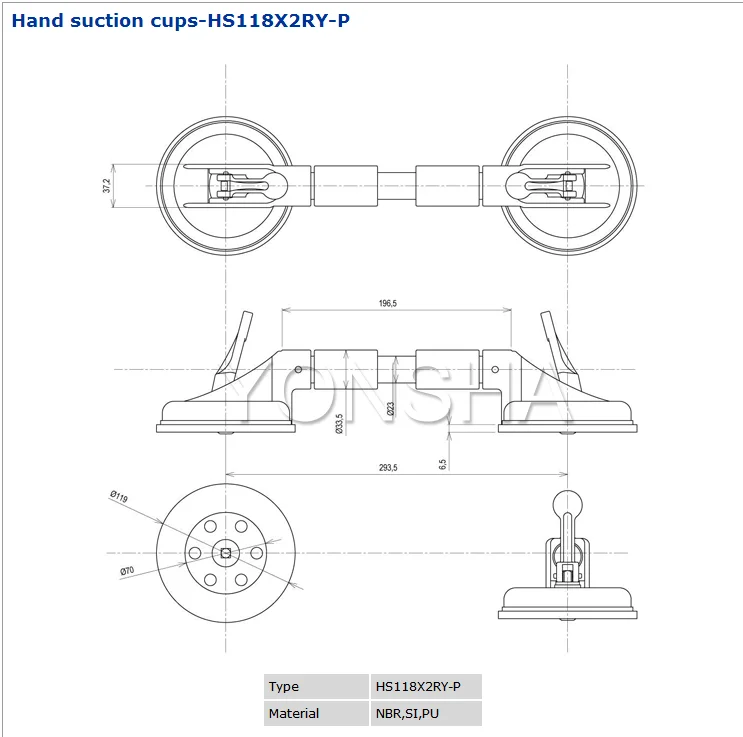

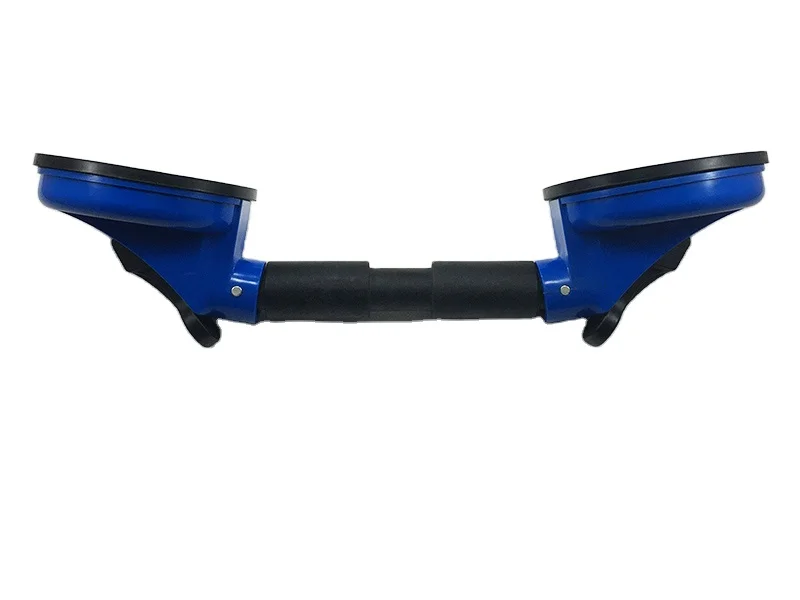

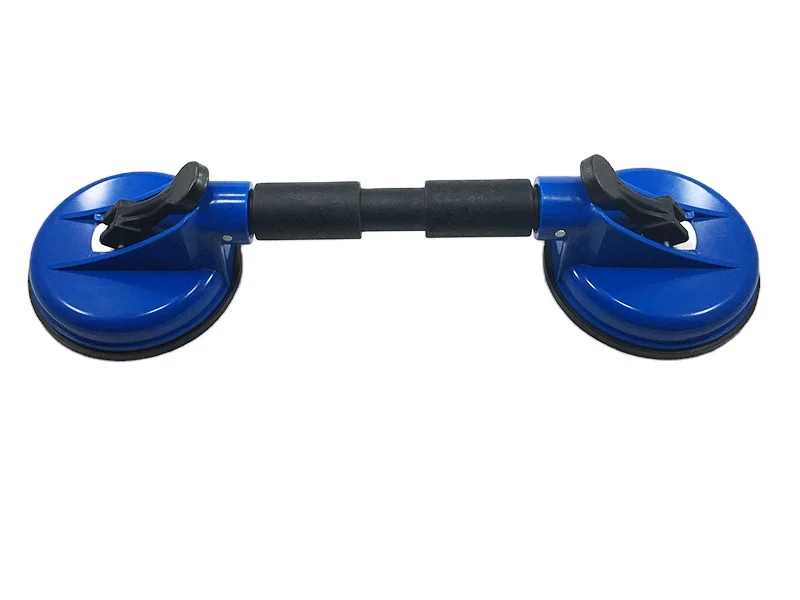

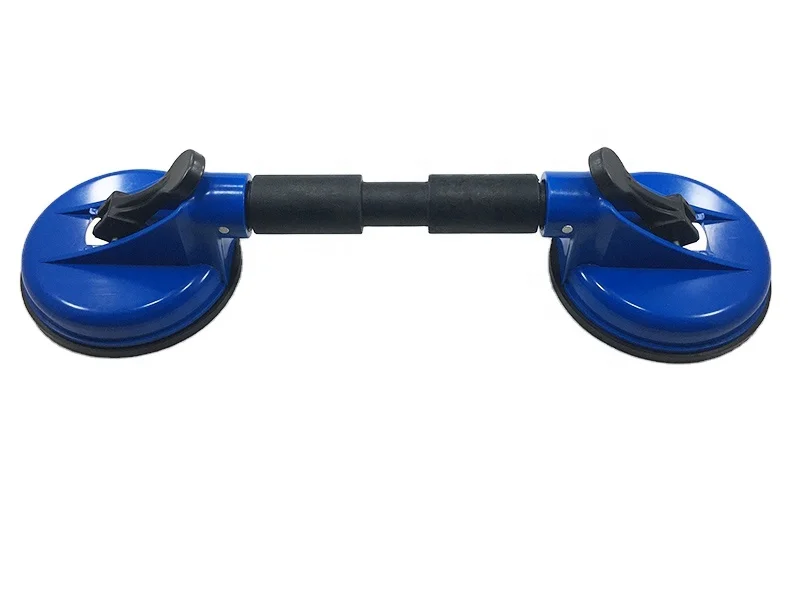

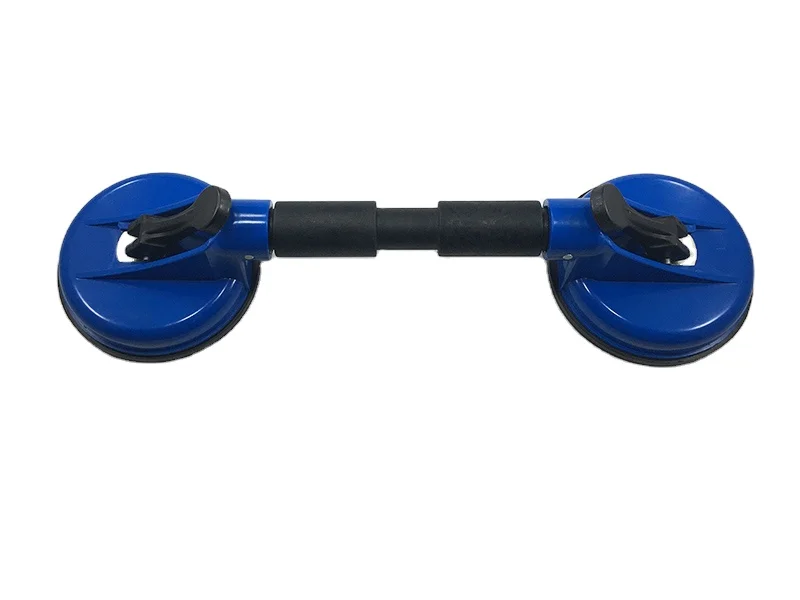

Shanghai Doullens 118mm Double plastic hand suction cups for glass HS118X2RY-P

























Size118mm
Materialblack NBR, plastic handle
Available surfacesmooth surface
Capacity64kg used level, 32kg used on vertical
Packingcarton boxes





















































































hand pump suction cups
HS55Y-AL
Dia: 55mm
Material:
black NBR
bright Al.
black plastic pin
Holding weight:
8kg horizontally
































hand pump suction cups
HS118Y-P
Dia:118mm
Material:
black NBR
plastic
Holding weight:
40kg each pad
horizontally





























hand pump suction cups
HS118X2Y-P
Dia:118mm
two heads
flexible
Holding weight:
40kg each pad
horizontally





























hand pump suction cups
HS18X2RY-P
Dia:118mm
two heads
flexible
Holding weight:
40kg each pad
horizontally
































hand pump suction cups
HPS78X156G-P
Shape: oval
Size: 78x156mm
Material:
black NBR
Metal
Holding weight:
40kg horizontally





























hand pump suction cups
HPS150
Dia:150mm
Material:
black NBR
plastic
Holding weight:
50kg horizontally





























hand pump suction cups
HPS153G-A
Dia:150mm
Material:
black NBR
Metal
Holding weight:
50kg horizontally
































hand pump suction cups
HPS204G-P/ FE
Dia:204mm
Material:
black NBR
plastic or metal handle
Holding weight:
95kg horizontally
Flat
































hand pump suction cups
HPS230G-FE
Dia:230mm
Material:
black NBR
metal handle
Holding weight:
125kg horizontally
Flat
































hand pump suction cups
Art No.:HPS240CY-FE
Dia:240mm
Material:
black NBR
metal handle
Holding weight:
150kg horizontally
Curve



Suction cups


Based on the materials, suction cups can be rubber suction cups, plastic suction cups and metal suction cups. Most of our commom rubber materials are NBR, SI, SE,EPDM,PUR,FKM,NR and NE.





Based on the shapes, suction cups can be divided into flat suction cups,oval suction cups, bellows suction cups and special suction cups.





Based on the methods of reducing the pressure, there are pneumatic suction cups and hand suction cups.











QQ20190416125003






Hand suction cups


Based on the materials, suction cups can be rubber suction cups, plastic suction cups and metal suction cups. Most of our commom rubber materials are NBR, SI, SE,EPDM,PUR,FKM,NR and NE.





Based on the shapes, suction cups can be divided into flat suction cups,oval suction cups, bellows suction cups and special suction cups.





Based on the methods of reducing the pressure, there are pneumatic suction cups and hand suction cups.
