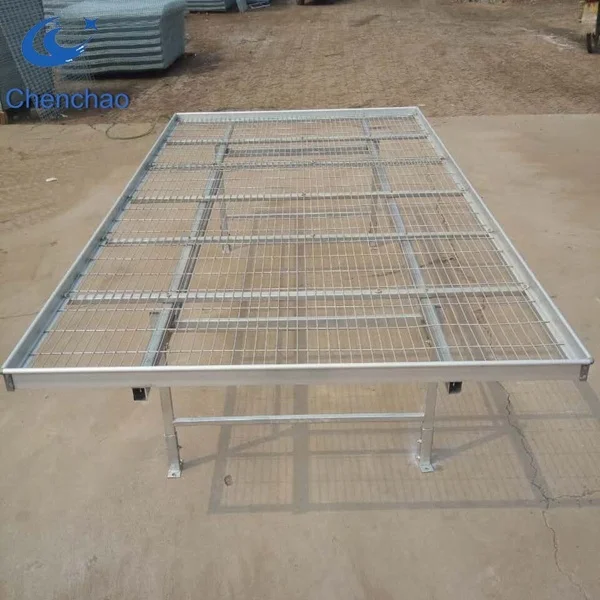

agricultural greenhouse equipment welded mesh movable seedbed table

Share on (62073220948):


Price:

Quantity:


Product Overview

Description


Product Description

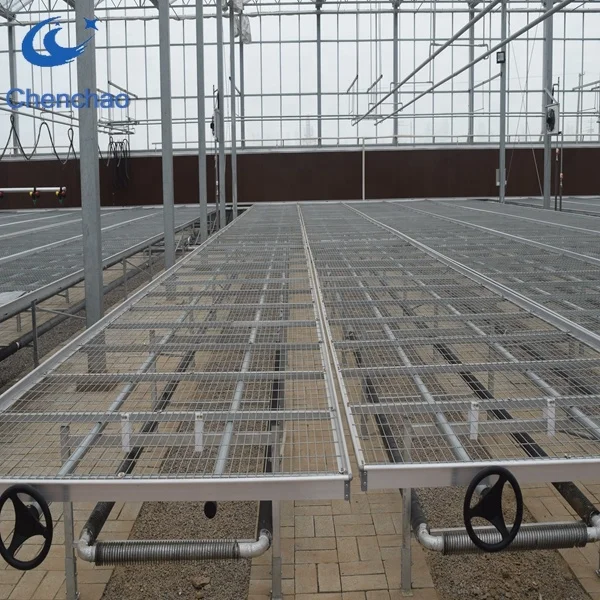

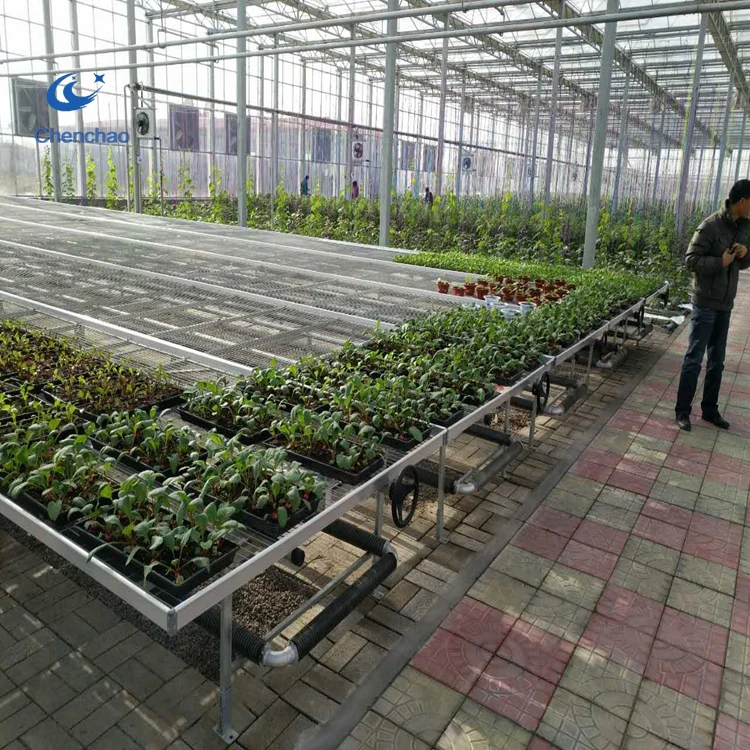

Greenhouse welded mesh rolling bench is designed to cut labor, increase greenhouse service efficiency and prolong its service life. Our rolling benches are designed for in-ground installation and used for saving space in high production process. Overall it offering superior strength and longevity.

The standard size of movable wire mesh seedbed is 2.5m×1.65m×0.75m(L×W×H), and customization is also acceptable according to your requirements. Generally the aperture of movable seedbed is 130 mm × 30 mm (L × W), and the position of seedbed could be fine-tuned by hand-wheel.

The advantages of greenhouse rolling bench:

1. Manual drive, ease operation and movement. High quality aluminum alloy frame. The surface treatment of steel pipes, bracket and seedbed networks is hot dip galvanizing, which particularly suitable for hot and humid environment greenhouse.

2. The range of trimming is 30cm, which can make the utilization of greenhouse area upon 80%.

3. Anti-tilt device prevent the inclination problem caused by the plants weight.


Specifications

\t
product name
\t
greenhouse wire mesh rolling bench
\t
wire diameter
\t
3.0mm*3.0mm
3.2mm*3.5mm
4.0mm*3.0mm
\t
mesh size
\t
120mm*25mm
130mm*30mm
125mm*50mm
50mm*50mm
\t
height
\t
0.6m,can be change between 0.6-0.65m
\t
width
\t
2.5m max,can be customized
\t
length
\t
30m max,can be customized
\t
load range
\t
50kg/m2
Detailed Images

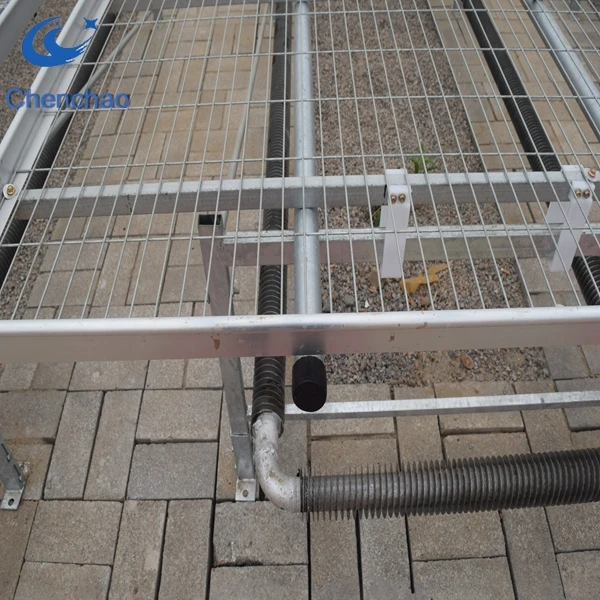

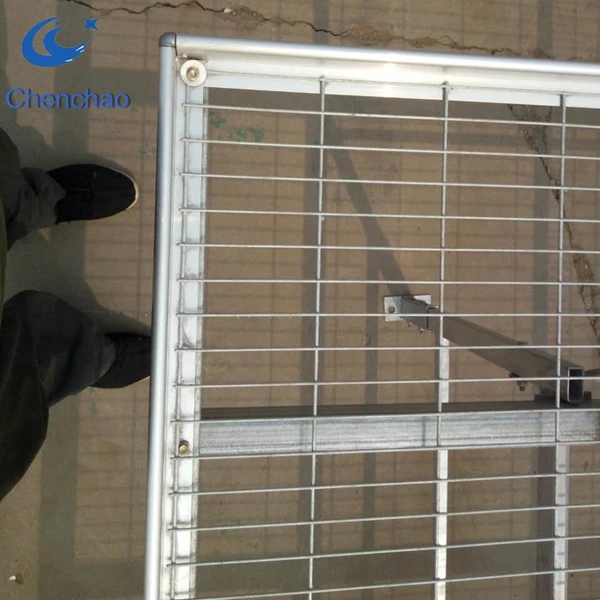

wire mesh

hot dip galvanized seedbed networks,it's particularly suitable for hot and humid environment greenhouse

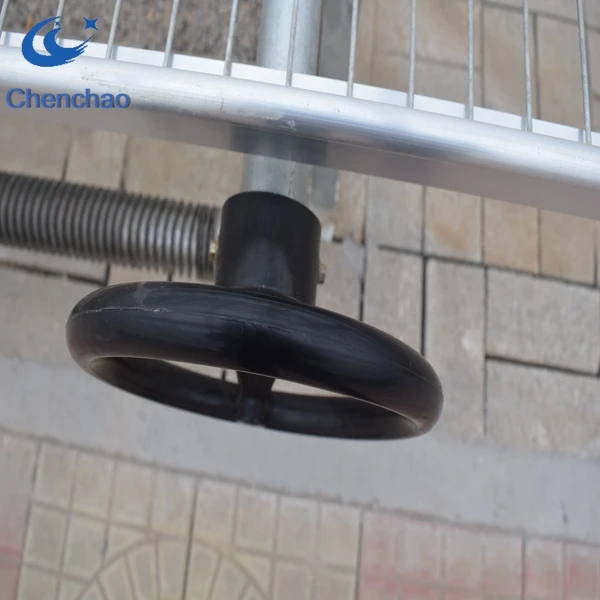

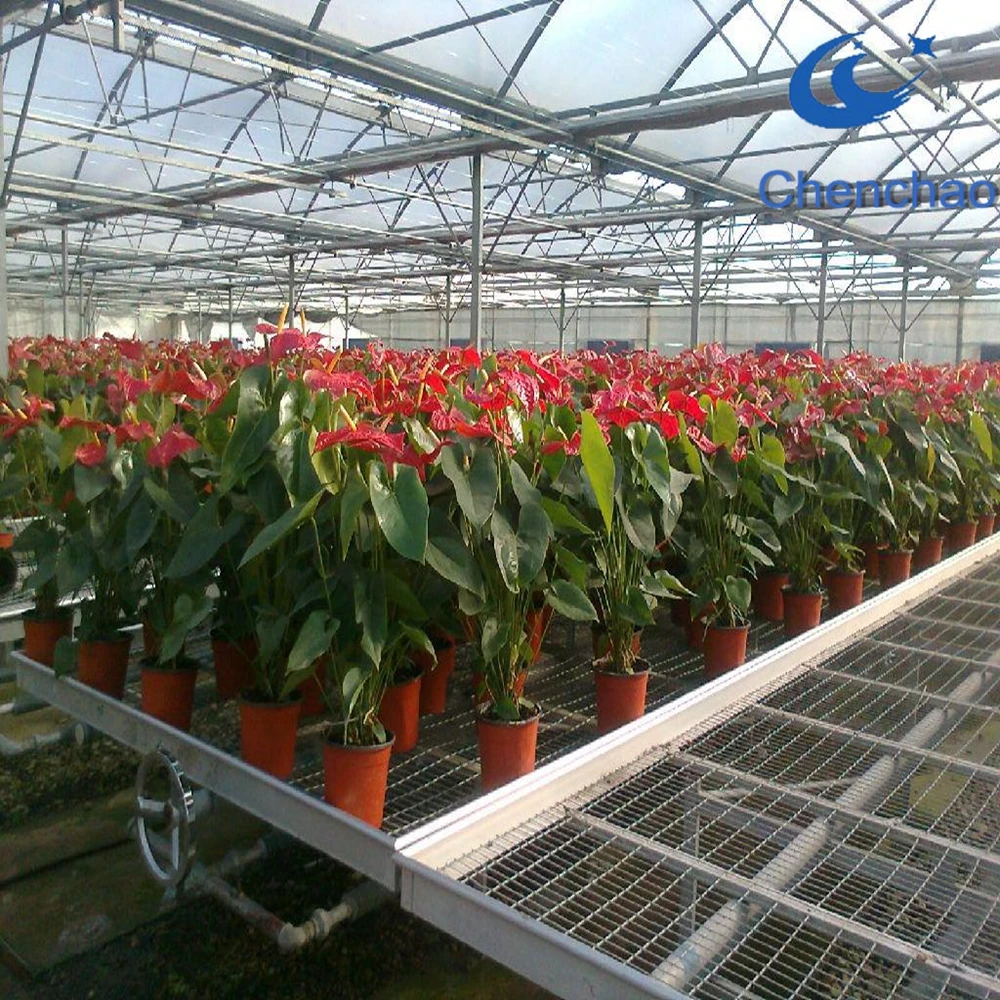

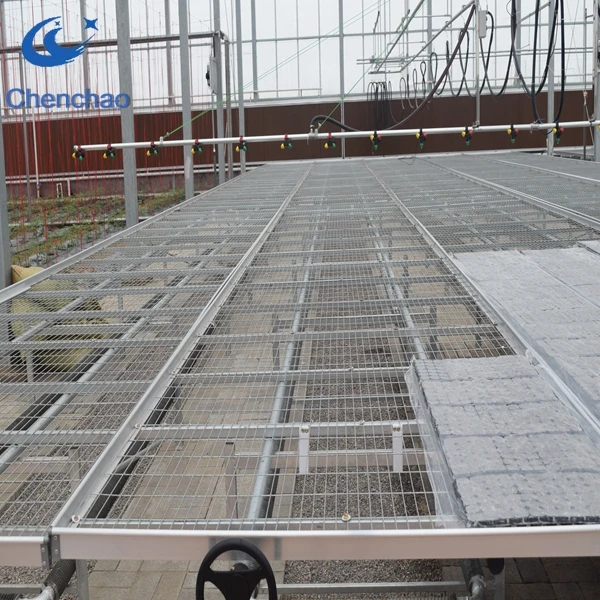

Hand wheel

The range of moving from side to side is 30cm,it can make the utilization of greenhouse area upon 80%

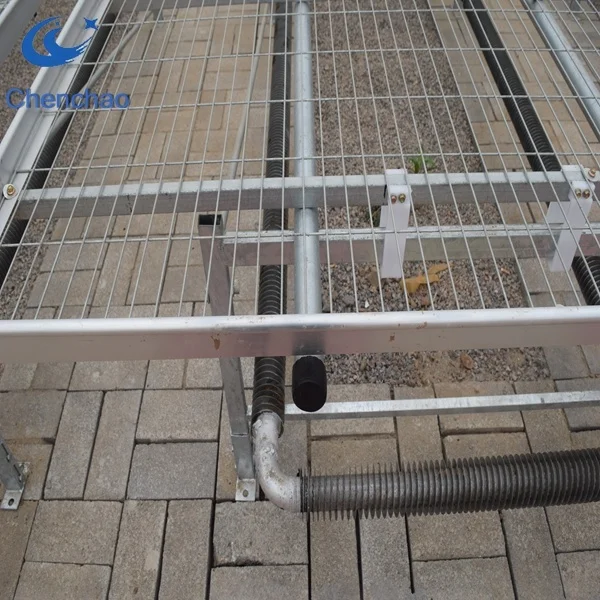

Anti-tip brackets

The white anti-tilt device prevent the inclination problem caused by the plants weight.

Packing & Delivery

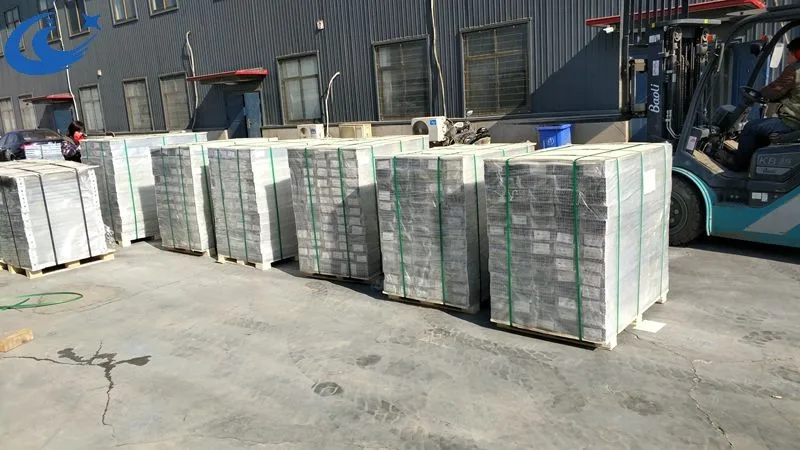

pallet packing

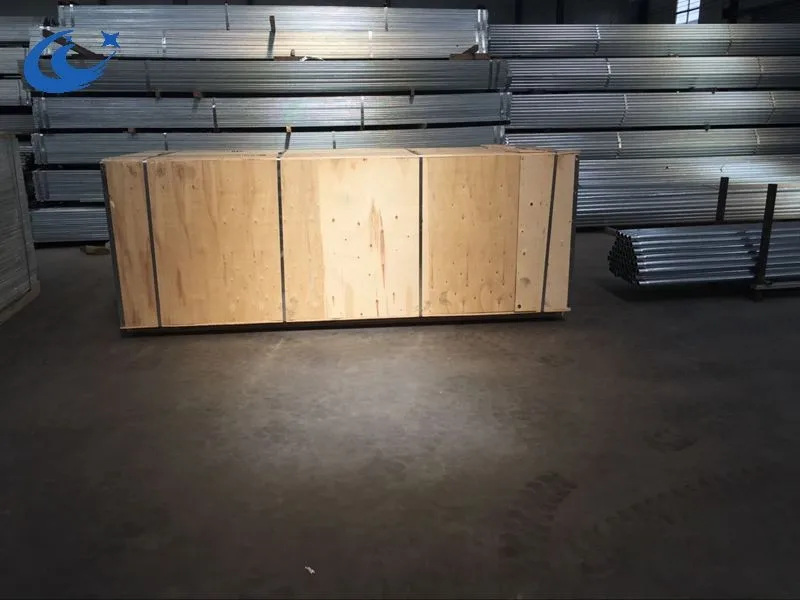

wooden box
