Rotary Spin Flash Drying Machine production line,Spin flash dryer, flash drying equipment machine

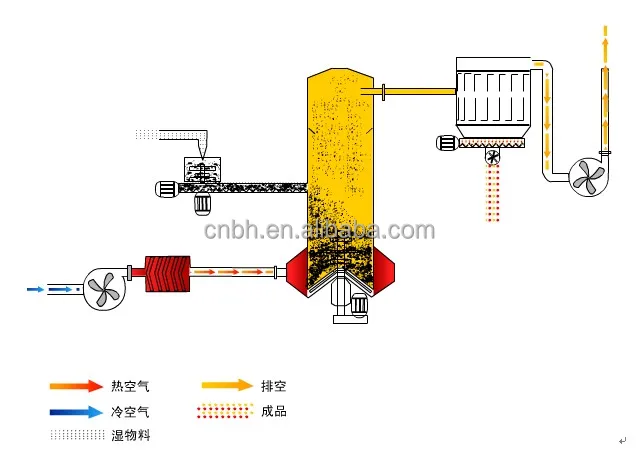

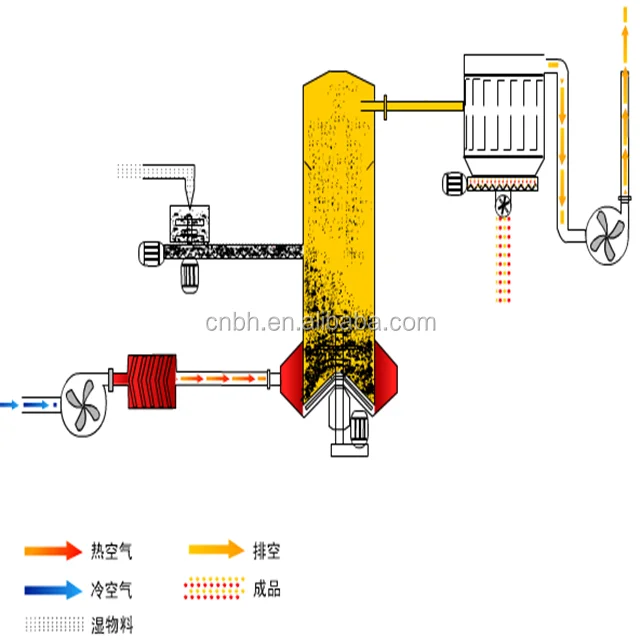

After the wet materials from the previous process are added to the mixing stock bin of the feeder, the materials are evenly mixed by the agitator and quantitatively transported to the drying chamber by the auger at the bottom of the stock bin. The clean air is heated, and then enters the bottom of the inverted conical drying chamber tangentially, the crusher mechanism (movement) at the bottom of the drying chamber rotates rapidly to form a violent rotating airflow in the drying chamber. The wet materials are crushed and dried at the same time under the joint action of rotating flow and the flash drying machine movement. The dried materials are carried by air to the top of the drying chamber. The materials that do not meet the drying requirements or particle diameter will stay on the top of the drying chamber, and be settled to the bottom of the drying chamber after classified by grading ring, then crushed and dried with new materials again. Qualified products are carried out by air from the top of the drying chamber and separated by the following gas-solid separation equipment (cyclone dust collector, cloth bag dust collector, etc.). The exhaust gas is discharged by the induced draft fan.

Equipment advantages

1. One-time drying into powder, no need for secondary crushing, especially suitable for drying filter cake.
2. Continuous drying, PLC automatic control, stable production and labor saving.
3. Fast drying speed, suitable for drying heat-sensitive materials.
4. The system is completely closed, with good operating environment, and it can realize closed-circuit circulation and organic solvent recovery.
5. The equipment covers a small area and does not require large space for installation.
6. The equipment is of easy maintenance and long service life.

FAQ

Q: Are you trading company or manufacturer ?

A: Banghua International Granulation Engineering Co.,Ltd is specialized in the hot air furnace,heat exchanger technology research,development,design,production,installation,commissioning and other engineering contract.Relying on our own scientific and technological strength,we always commit to advanced stove,heat exchangers and other equipment design and manufacturing technology development. Self-developed direct coal (biomass)-fired hot air furnace and indirect coal (biomass)-fired hot air furnace which has hit the leading domestic level,are widely used in heating,drying,reaction,calcined and other industries.

The company has been passed the ISO9001:2008 international quality system certification.The company has completed product development system,quality management system and professional construction team,succeeded at home and abroad in undertaking hundreds of sets of hot air equipment design,manufacture,installation and commissioning.

Realistic,pragmatic,hard-working,enterprising,"Banghua"uphold "Honesty,cooperation and win-win"business philosophy,and always provide our customers with advanced technology,first-class products,quality service.We not only adhere to create more value for customers,but also to save energy,clean environment,promote human harmony with the environment to do our best.

Q: How long is your delivery time?

A: Generally it is 30-90 days, it is according to your details capacity demands and our factory busy situation.

Q: Do you provide client site case for investigation?

A: Yes, we have many domestic and overseas site cases could for your investigation.

Q: What is your terms of payment ?

40% T/T in advance, 50% balance before shippment, 5% after installation and commissioning acceptance, 5% within 10 working days from the date of the expiration of warranty period of one year .
