Automatic Disposable Syringes Assembling Machine
- Category: >>>
- Supplier: Hangzhou Dingchuan Import&export Co. Ltd.
Share on (62073398764):
Product Overview
Description

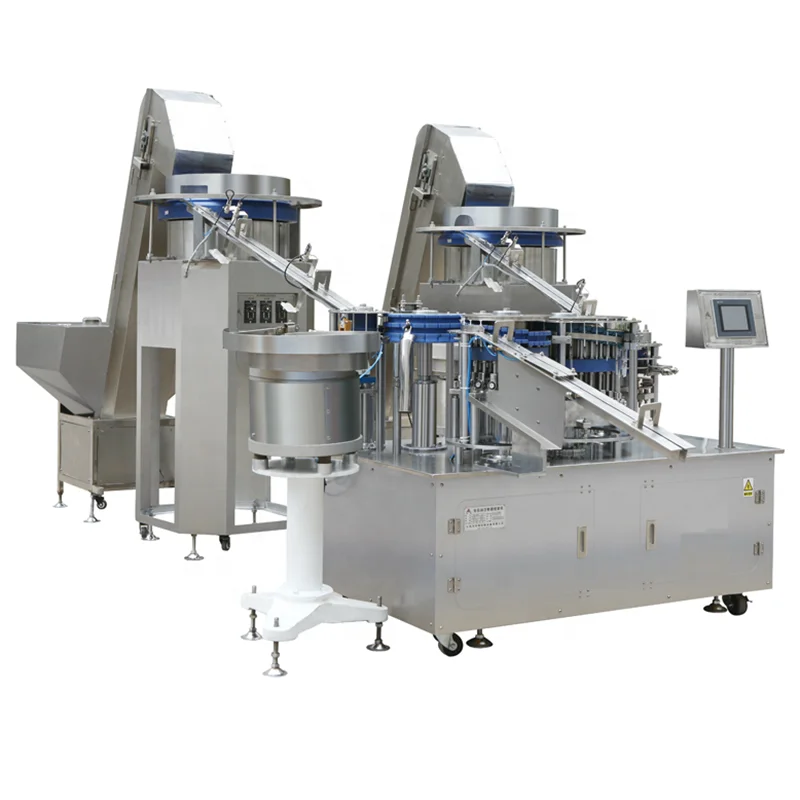

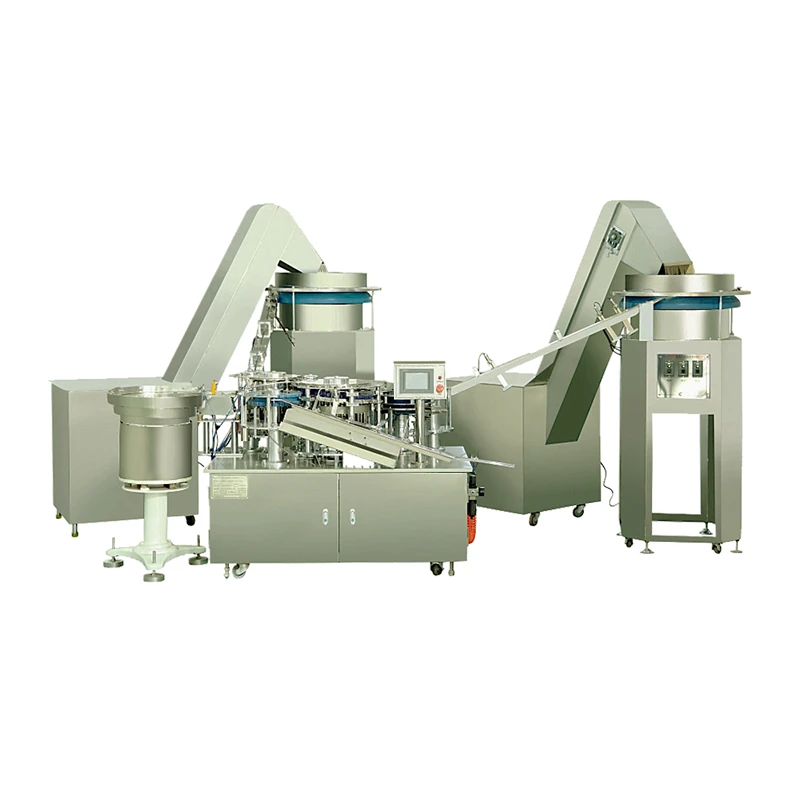

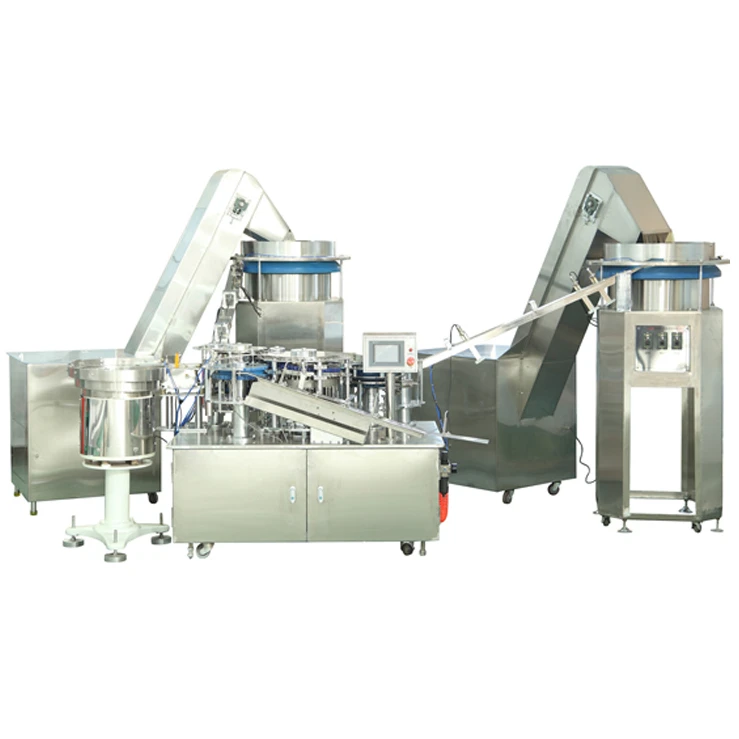

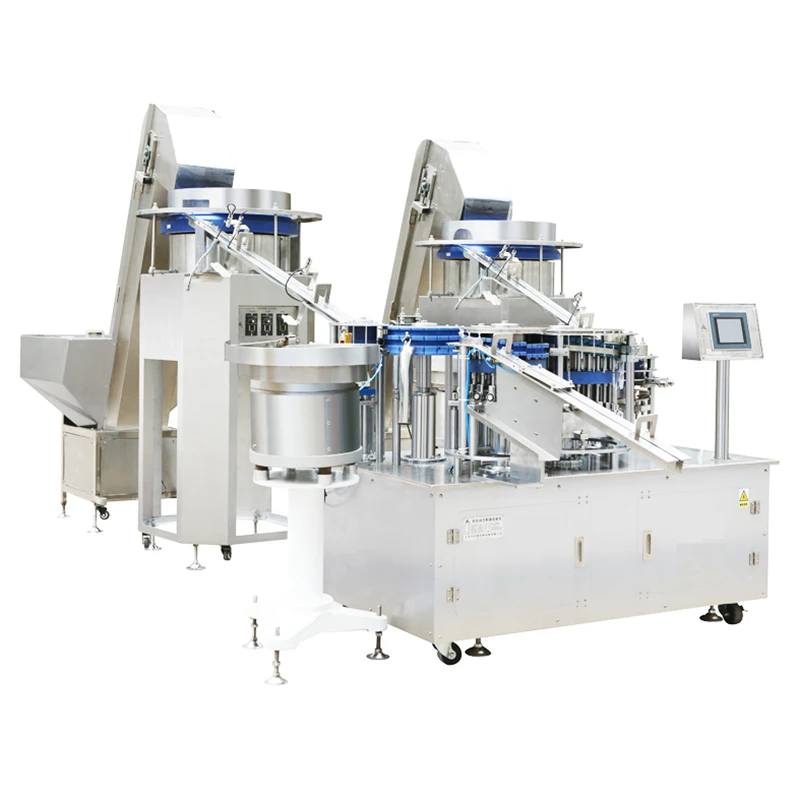

Automatic Disposable Syringes Assembling Machine
Contact: Kevin Kong
Mobile&Wechat&WhatsAPP: +86 18768196956
Automatic Assembly Machine for Syringe is specially designed for Medical Syringe Production. The whole process is highly automatic.
Touch Screen PLC operation panel with automatic finished products counting system, the machine is easy to operate and with high efficiency, low noise, stable running. It meets the demands for all kinds of syringe manufacturing.
Main Technical Parameters
1. Product Specifications: 1cc, 2cc, 3cc, 5cc, 10cc, 20cc, 30cc, 50cc
2. Production Capacity: 15000 pcs/hour according to 5cc design under normal production conditions;
3. Equipment Dimensions: 4800x2300x2200 (mm);
4. Personnel: 1 operator/set;
5. Feeding Method: silo material extraction, automatic centrifugal cutting, automatic material control without material;
6. The designed service life shall not be less than 8 years (excluding the life of spare parts manufacturing). during continuous operation, the equipment shall be regularly maintained to ensure the service life of the equipment;
7. The whole machine power: 2.5kw, input power can be customized accordingly.
8. Weight: 1500 kg;
| Spec. | Name | QTY |
| 1 | Main Machine | 1 |
| 2 | Lifting Hopper | 2 |
| 3 | Vibration Hopper Base | 2 |
| 4 | Centrifugal Hopper | 2 |
| 5 | Vibration Hopper | 2 |
| 6 | Centrifugal hopper Slide | 2 |
| 7 | Finished Products Outlet | 1 |
| 8 | Toolbox with Accessories | 1 |
