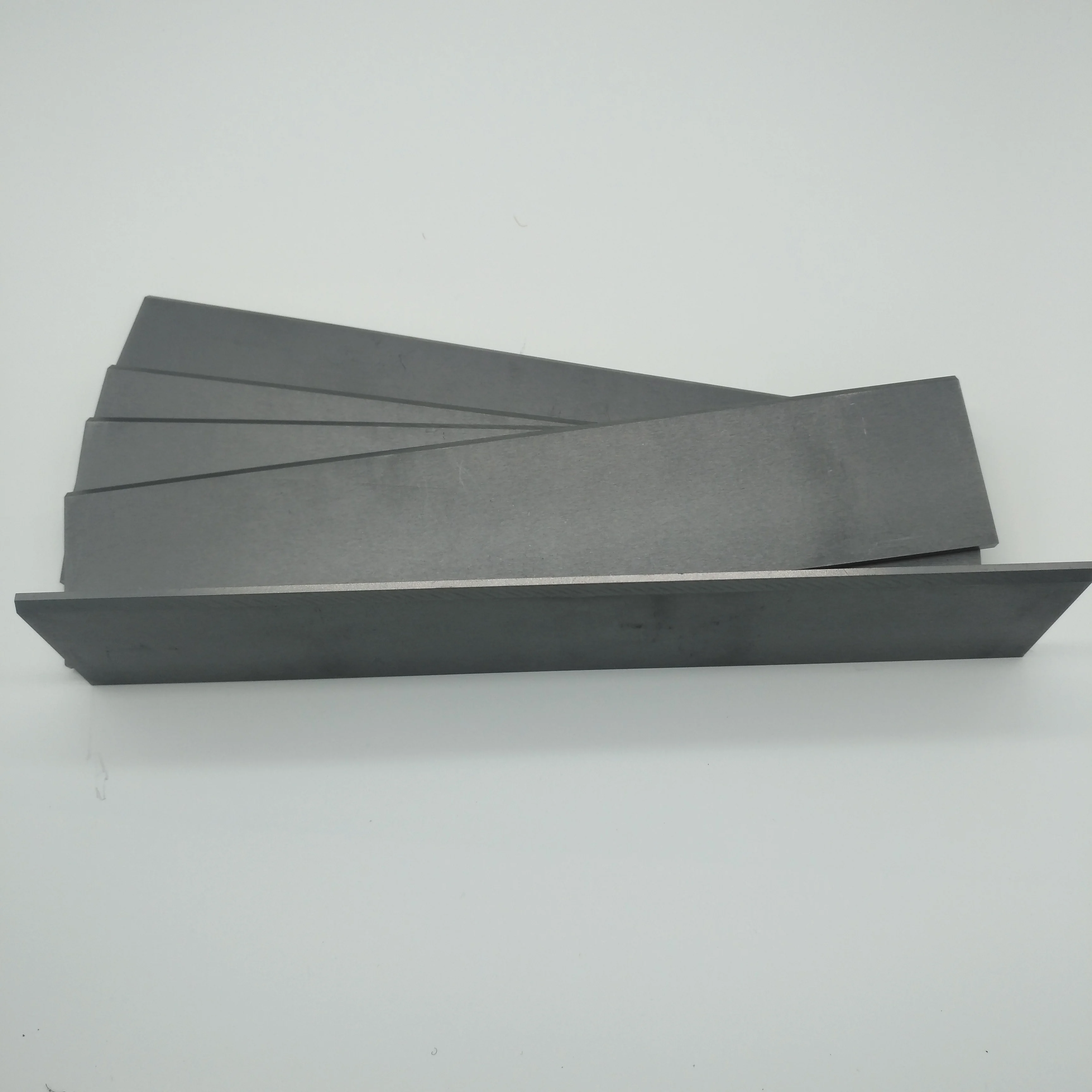

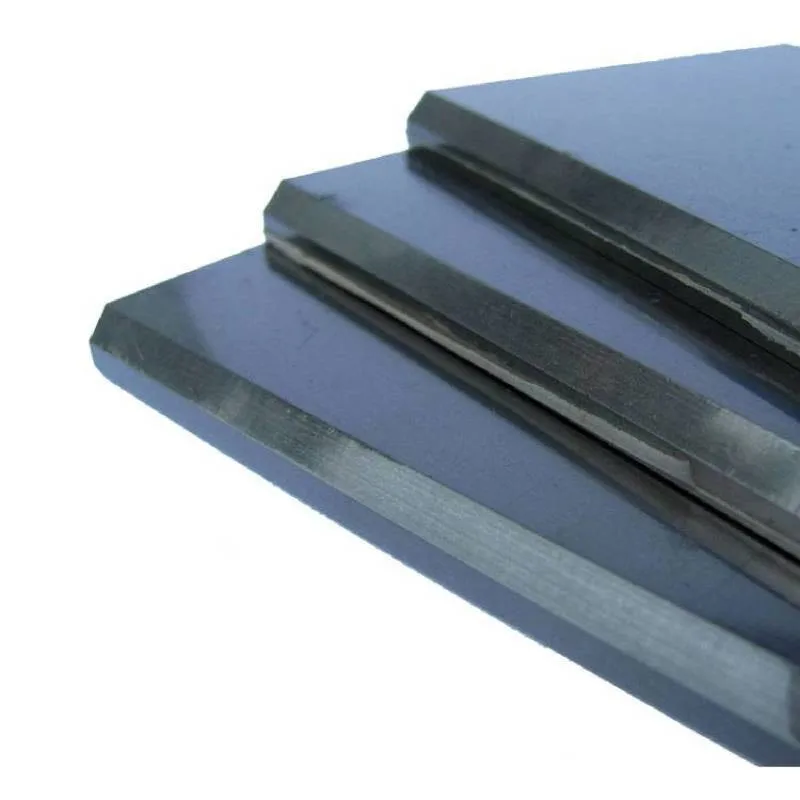

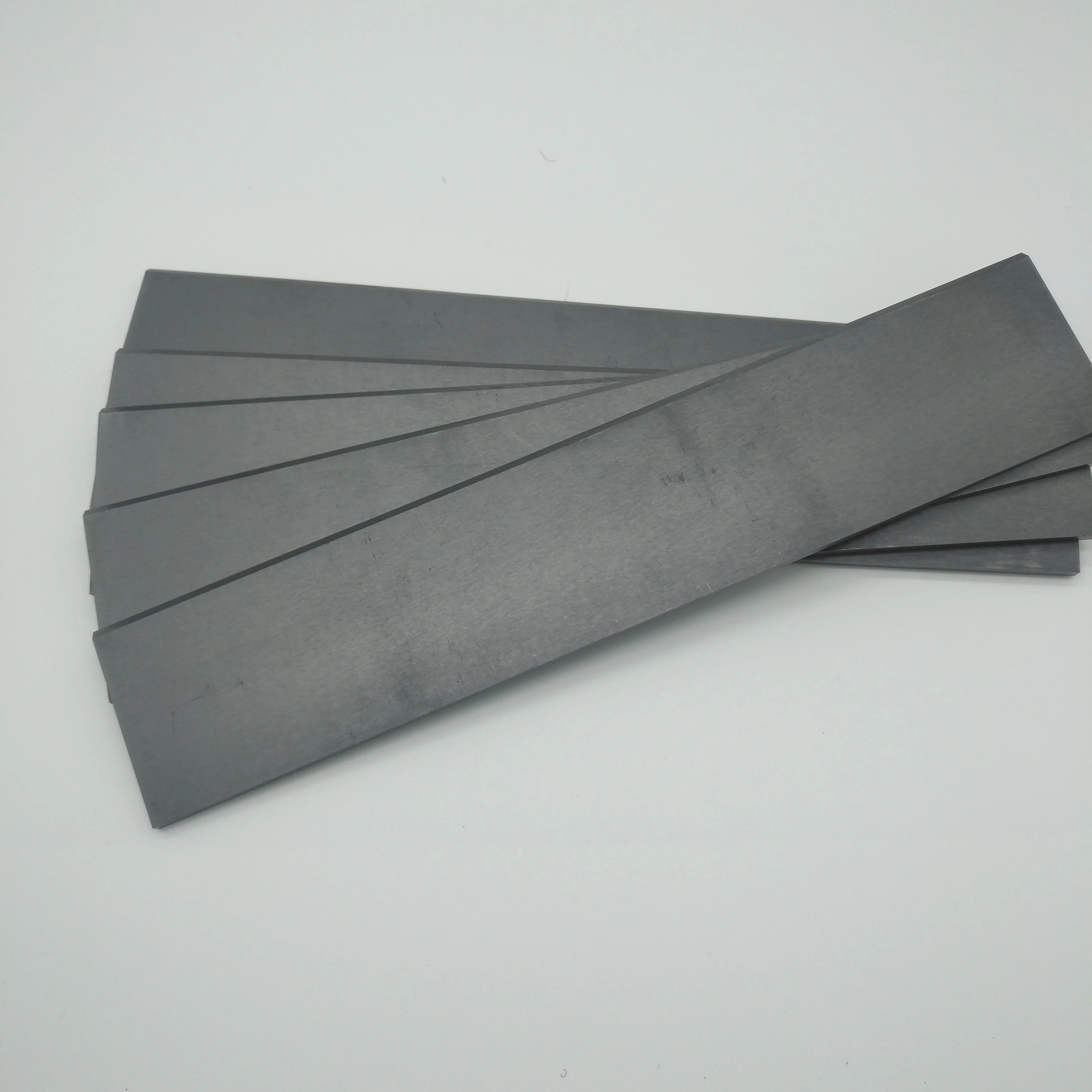

China zion EK60 high strength vacuum pump graphite vane
1.Density:2.00g/cm3
2.Compressive strength:90Mpa
3.Ash content:0.20%
4.Dimension:we have lots of standard size in stock, also can produce as per your size.
Graphite vanes&blade processed by excellent graphite material,density: 2.0g/cm3.
Widely used for various mechanical equipment, vvacuum pump etc.
With good properties of corrosion resisting, self-lubrication,high and low temperature durability,thermal stability.





Main Features

•Self lubricating – dry running
•Low wear rate
•Low coefficient of thermal expansion
•Dimensionally stable
•Compatible with food & pharmaceuticals
•Excellent thermal shock
•Good hardness
•Good impact resistance
•Excellent strength



How to maintenance




  01

Clean up cylinder wall before changing , don't allow any residue




02


Check whether the cylinder wall wear and tear




03



Note direction of chamfer, not opposite direction, otherwise the vanes will be broken quickly


04



Regular upkeep pump bearings filling high temperature lubricating oil




05

Keep air inlet filter good work performance, replaced periodically and maintenance



06

Size must be to measure accurately from the amount of rotor slot to the cylinder wall, please leave small gap, must consider the expansion coefficient of vanes, otherwise the vanes will be creashed from two ends.



07

Graphite vanes mainly based on the material, wear the cylinder if too hard, consumption quickly if too soft, size tolerance less than 0.01mm



Our size talbe






Production process


               01. Design                             02. Drawing                          03.Cutting                          04.Machining




Production series


Grahpite                                           Graphite mold                            Graphite                                  Graphite

for Electronic semiconductor                  for sintering                     for Mechanical Industry                              for EDM



           Graphite                                   Graphite                 High-tech fields Application   Aerospace Application

for High Tem Industry Furnace              for smelting
