MF53 inverted fluorescence microscope

Product Overview

Description

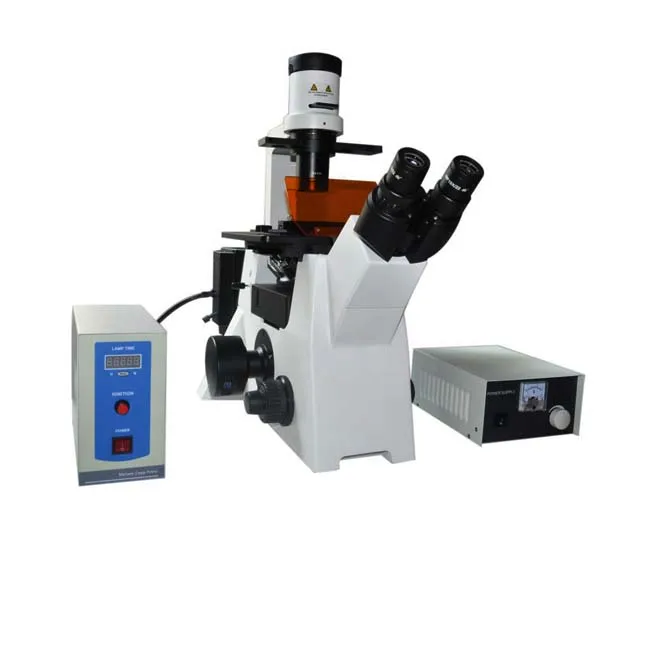

MF53 inverted fluorescence microscope

Introduction:

Inverted Fluorescence Microscope MF53 is a new product developed by our company with the performance of international fluorescence microscope. The infinity achromatic independent correction optics used by the MF53 guarantees a clearer image quality. At the same time, MF53 can also perform phase contrast, fluorescence, simple polarized light, digital, and photographic observation.

Features:

1. Excellent infinity achromatic aberration-corrected optical system for clear image quality.

2. The wide function expansion space makes the MF53 inverted biological microscope easy to phase contrast, fluorescence, simple polarized light, digital, photographic observation, and can easily work with the constant temperature stage, patch clamp, and auxiliary stage.

3. The interface on the side of the fuselage can easily connect various cameras and digital observation devices.

4. The 72mm long working distance condenser provides enough space for the culture dish.

5. User-friendly mechanical design allows you to work easily for a long time.

6. Stable and excellent quality to improve your work efficiency.

7. The center pre-adjusted phase contrast slide makes it easy to observe the phase contrast.

8. Powerful upgrade space, easy to achieve multi-functional.

9. MF53 can be equipped with four groups of UV, V, B, G fluorescence excitation devices, easy to change the observation mode between fluorescence and bright field. The fluorescent device is fitted with a 100W mercury light box.

Technical Parameters:

Eye lens: Binocular observation tube, 45 degree inclination, 52-75mm pupil distance adjustment, adjustable visibility

eyepiece:

 WF10X/20 flat field eyepiece, high eye point

Center telescope

Objective lens (infinity long working distance objective lens): 10X infinity long-range flat field achromatic objective lens. NA0.25 WD9.67

20X infinity long-range flat field achromatic objective lens. NA0.40 WD7.97

40X infinity long-range flat field achromatic objective lens. NA0.60 WD3.76

20X infinity long-range flat field positive phase lining achromatic objective lens. NA0.40 WD7.97

Focusing mechanism: coarse and fine-tuning coaxial, with limit device and locking device, low-handed coaxial focusing hand wheel, fine-tuning hand wheel value 0.001mm, more precise focusing

Converter: 5-hole internal positioning converter, positioning inside ball bearing, anti-mold device

Stage: Fixed stage 240mmX260mm; equipped with low-position coaxial flexible XY-direction moving adjustment handwheel, moving range 135mmX85mm, with water-loaded slide (Φ118), multi-functional slide (76 X 26, Φ60)

Epi-fluorescent device: Multi-function fluorescent semi-reflector

Mercury light box

100W/DC mercury lamp

Power box: AC: 110V or 220V

(import) UV excitation fluorescence module

UV excitation band: 330~380nm

(import) blue light excitation fluorescence module

B excitation light band: 460~490nm

(import) green light excitation fluorescence module

G excitation light band: 510~550nm

Condenser: Ultra-long working distance condenser 72mm, numerical aperture N.A0.30, with three-hole phase-ring ring plate, with yellow, green and blue filter sets

Condenser:

Transmission light source: Built-in aspherical lens, 6V30WOsram halogen lamp, wide voltage 110-240V, 50/60Hz, dedicated power box

CCD interface: 0.5xC

Spare bulb: 6v 30w halogen lamp
