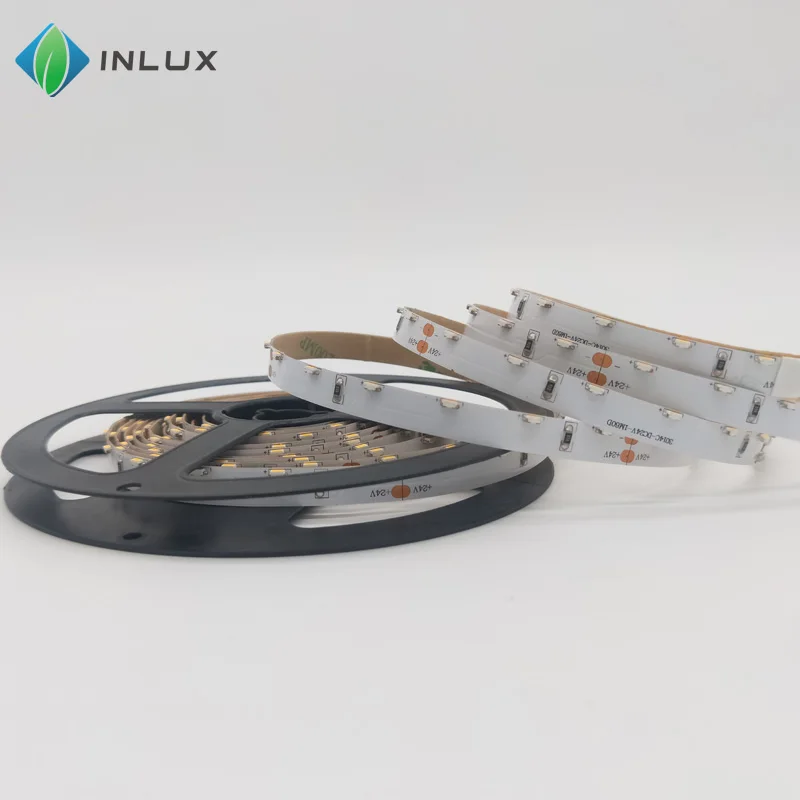

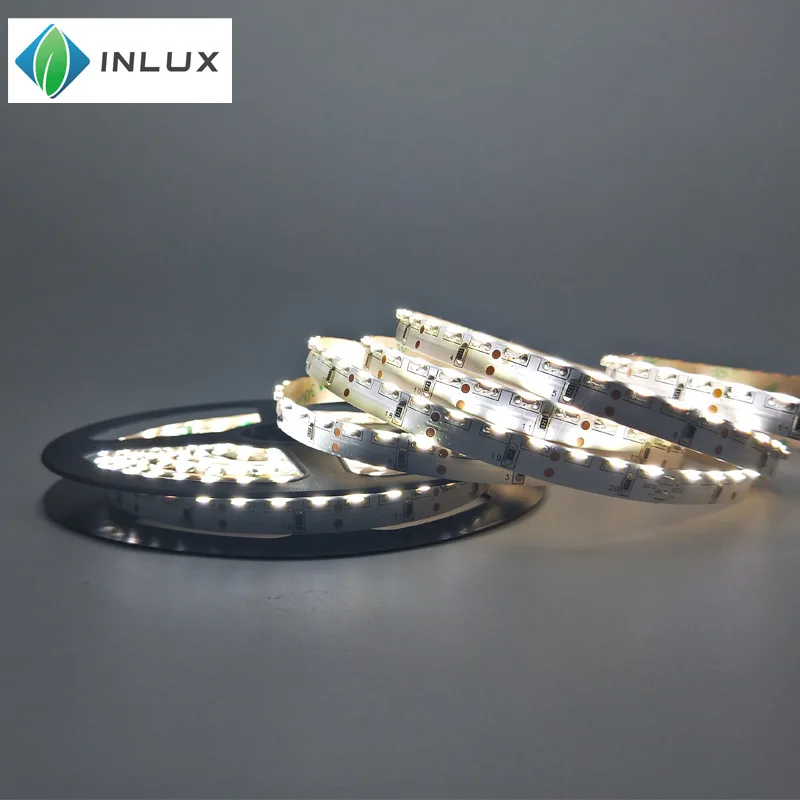

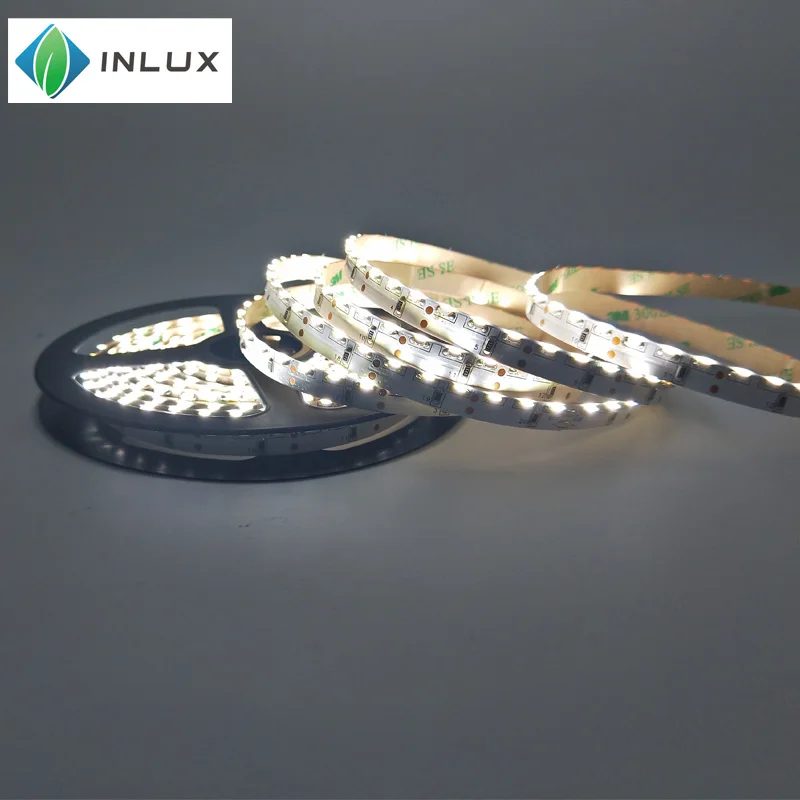

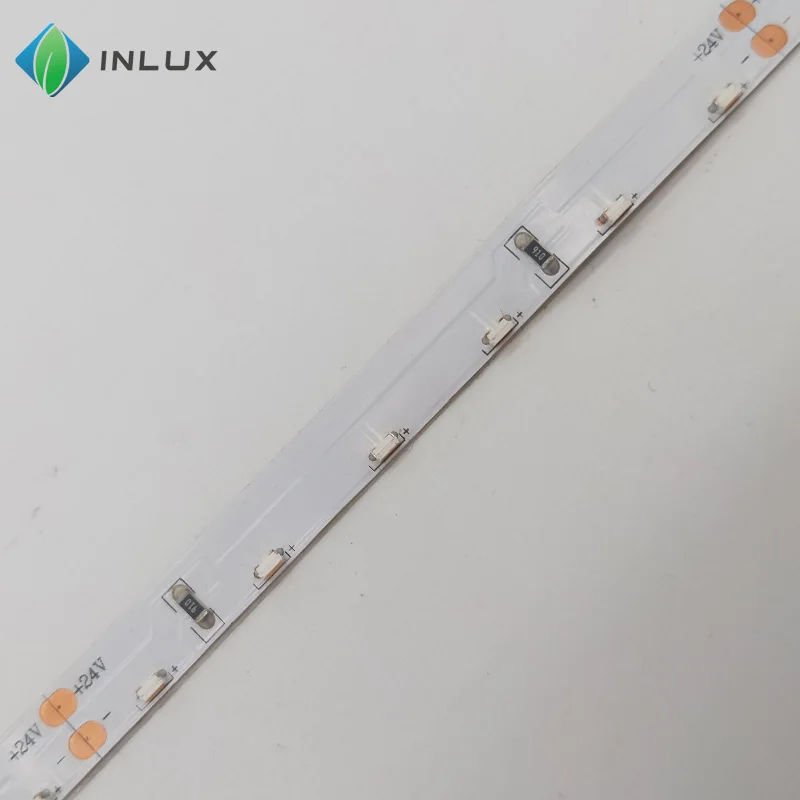

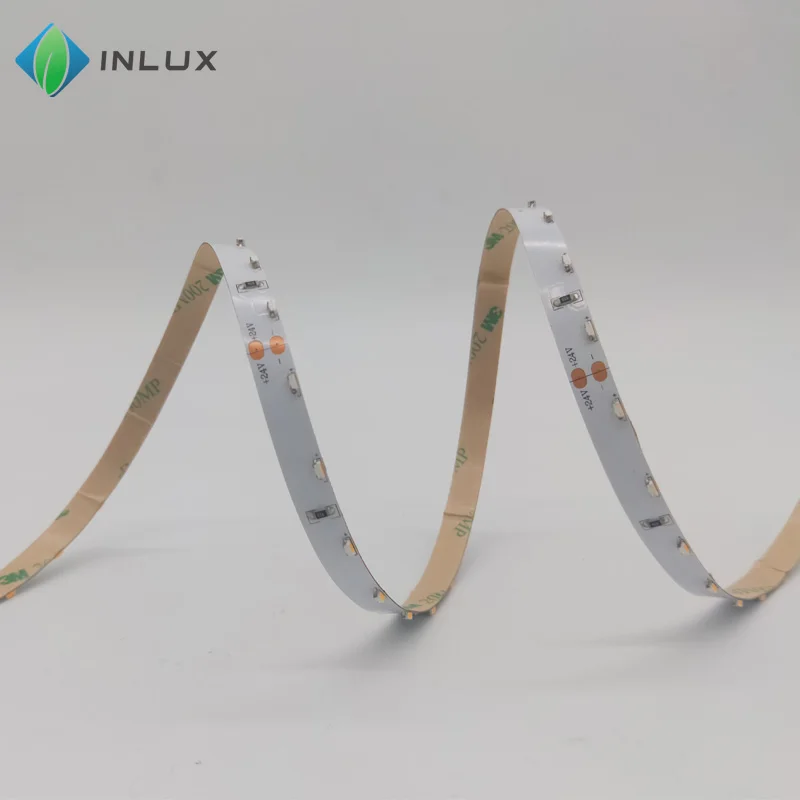

Hot sale DC24V 12V side emitting smd 3014 replacing smd 335 warm cold natural white 60leds/m side view led strip
- Category: >>>
- Supplier: Shenzhen Inlux Lighting Co. Ltd.
Share on (62074087658):
Product Overview
Description
Hot sale DC24V 12V side emitting smd 3014 replacing smd 335 warm cold natural white 60leds/m side view led strip
Product Description
Different types of SMD3014 led strip lights for options: 30LEDs/M, 60LEDs/M, 90LEDs/M, 120LEDs/M, 240LEDs/M, etc.
SMD 3014 flexible LED strip is currently one of our popular LED strips available.
Product Features
1. Made of SMD3014 LEDs with side emitting in the side direction of PCB.
2. Avaiable colors: various colors changable operated by LED controller,
and white color can be from 1800K to 9000K.
3. Working Voltage: DC24V ( DC5V, 12V or other voltage available ).
4. 5 meter per reel, cuttable every 6LEDs a group.
5. Beam angle: 120 degrees
6. Linear LED strip on flexible PCB with original 3M self-adhesive tape on the back.
7. Anti-UV Design, no harm to eyes.
8. IP20 ( IP65, IP67 and IP68 available ).
Product Parameters
| Model Number | IX-60XFS3014SV-XX |
| LED Typ&Qty | Side View SMD3014 60LEDs/M |
| Working Volatge | DC24V ( DC12V available ) |
| Power | 6W/M |
| Luminous Flux | 10-13lm/LED |
| Lighting Colour | WW, DW, PW, CW, Red, Green, Blue, Yellow, Pink, etc. |
| PCB Size | 8*5000mm(W*L)/Reel |
| IP Rating | IP20 ( IP65 , IP67, IP68 available ) |
| Beam Angle | 120° |
| Cuttable Unit | 6 LEDs per 100mm |
Hot Sales
The range of our quality LED strip lights includes Constant Voltage Series, Constant Current Series,
S Shape / Zigzag / Bendable Series, High CRI Series, Mixed Color / RGB / WW / RGBWW Series,
CCT Adjustable Series, Side View Series, Neon Dot Free Series, Ultra Narrow Width Series,
Digital / Addressable / Pixel / Programmable Series, etc.
The lighting sources of our LED strip lights cover many types of SMD LEDs, such as SMD3528,
SMD3014, SMD2835, SMD3014, SMD2216, SMD5730, SMD3535, SMD4040, etc.
Hot sale LED strip lights, please click each image to see more.
Advantages
| LED Type | Dimensions | CCT | Emitting Color | Luminous Flux | CRI | VF | IF | Beam Angle |
| SMD3528 | 3.5*2.8*1.8mm | 1800-12000K | W/R/G/B/Y/A/PK/UV | CRI80: 7-8lm CR90: 6-7lm CRI95: 6-7lm | 80/90/95Ra | 3.0-3.2V | 20mA | 120° |
| SMD5050 | 5.0*5.0*1.6mm | W/R/G/B/Y/A/PK/UV | CRI80: 22-24lm CR90: 18-20lm CRI95: 16-18lm | 3.0-3.2V | 60mA | |||
| SMD5050RGB | 5.0*5.0*1.6mm | RGB 3 in 1 | / | 3.0-3.2V | 60mA | |||
| SMD5050RGBW | 5.0*5.0*1.6mm | RGBW 4 in 1 | / | 3.0-3.2V | 80mA | |||
| SMD5050RGBWW | 5.0*5.0*1.6mm | RGBWW 5 in 1 | / | 3.0-3.2V | 100mA | |||
| SMD2835 | 2.8*3.5*0.8mm | W/R/G/B/Y/A/PK/UV | CRI80: 22-24lm CR90: 18-20lm CRI95: 16-18lm | 3.0-3.2V | 60mA | |||
| SMD3014 | 3.0*1.4*0.8mm | W/R/G/B/Y/A/PK/UV | CRI80: 10-13lm CR90: 9-12lm CRI95: 9-10lm | 2.8-3.2V | 30mA | |||
| SMD5730 | 5.7*3.0*0.8mm | White | CRI80: 55-60lm CR90: 50-55lm CRI95: 50-52lm | 2.8-3.6V | 150mA | |||
| SMD2216 | 2.2*1.6*0.6mm | White | CRI80: 7-9lm CR90: 7-8lm CRI95: 6-7lm | 2.8-3.2V | 30mA |
