electric start agriculture diesel engine and gasoline engine

Product Overview

Description

electric start agriculture diesel engine and gasoline engine



Air-Cooled Single Cylinder Diesel Engine Advocate Material Light weight, Heat faster, cooperate with international leading handspace injection pump and P-Type injection system. Easy to start, low fuel consumption. The Patent has forced air cooling system. Exhaust Temperature drop more than 10 degrees than similar models.



Feature

1. New design make diesel engine more beautiful
2. Green environmental protection the king of power
3. Easy to start
4. Low consumption

Model	170FB	173FB	178F	182F	186FA	188FB	192F
Type	Single-cylinder / 4-stroke /Air-cooled
The combustion chamber type	Direct injection
Rated output (KW)	3.5	4.05	4	5.6	6.3	7.5	8.3
Rated speed (r/min)	3600
Starting system	Hand starting/Electricity starting
Net weight (kg)	≤29	≤30	≤35	≤37	≤49	≤50	≤52
Dimensions (L*W*H) (mm)	335*392*422		385*420*460		420*440*495	420*450*495	420*450*505

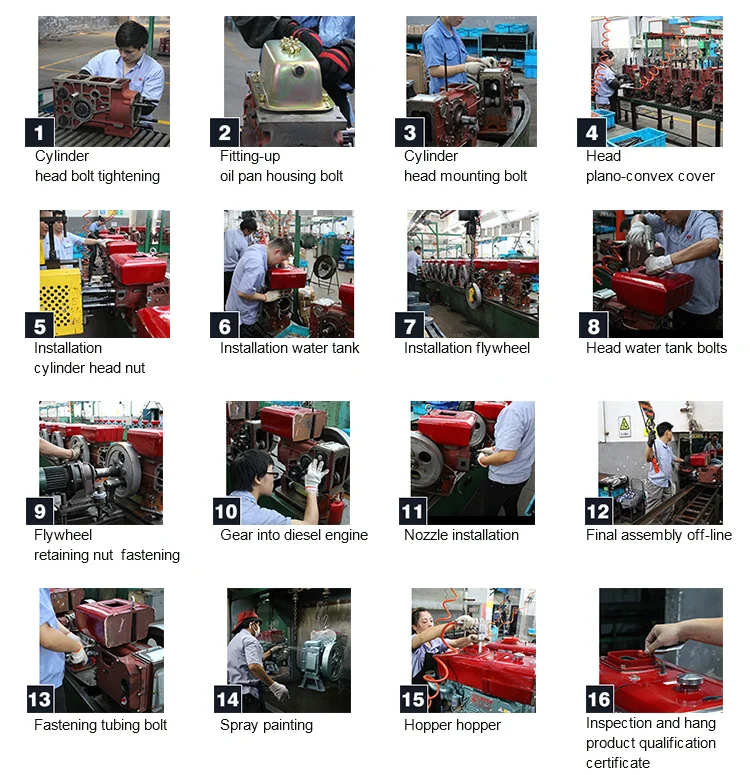

Production Process

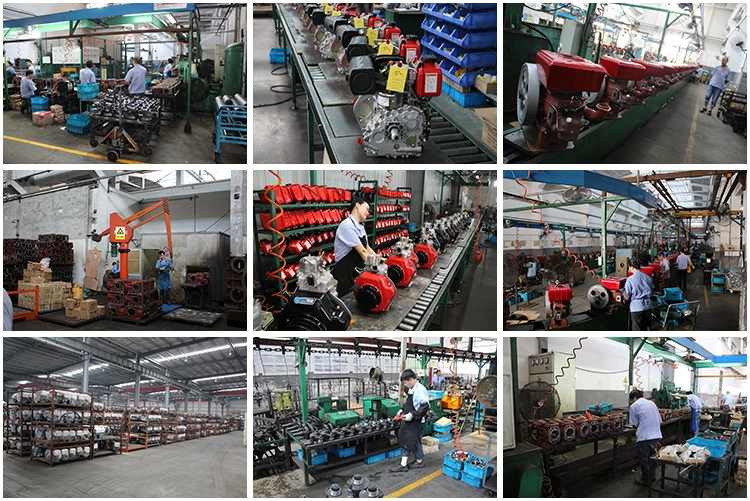

Production Workshop
