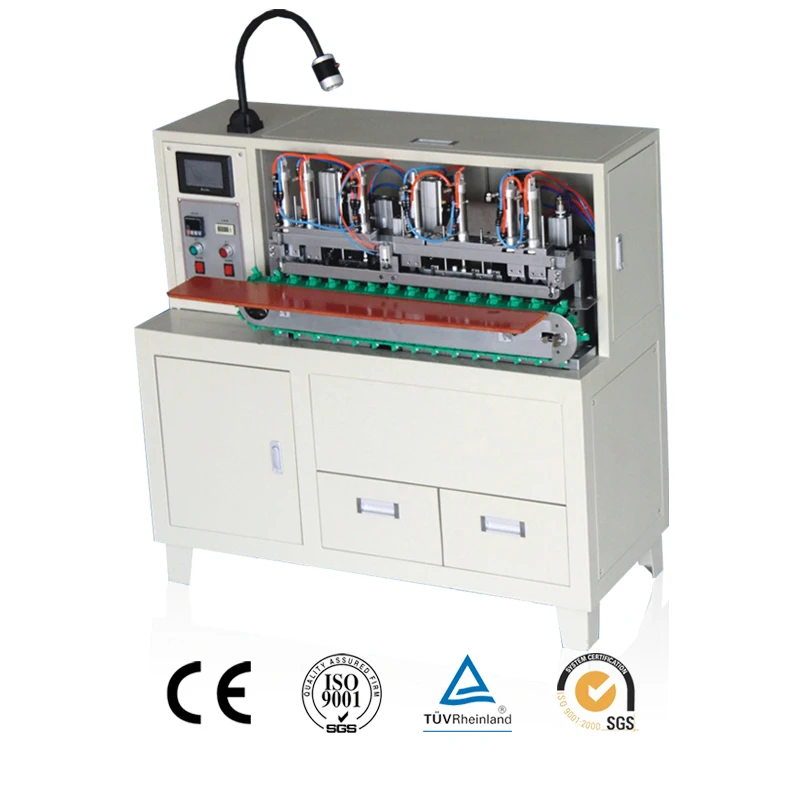

EW 702 устройство для зачистки проводов, скручивания и лужения

Share on (62074138131):


Price:

Quantity:


Product Overview

Description






.jpg























































Model



EW-702-1



EW-702-2

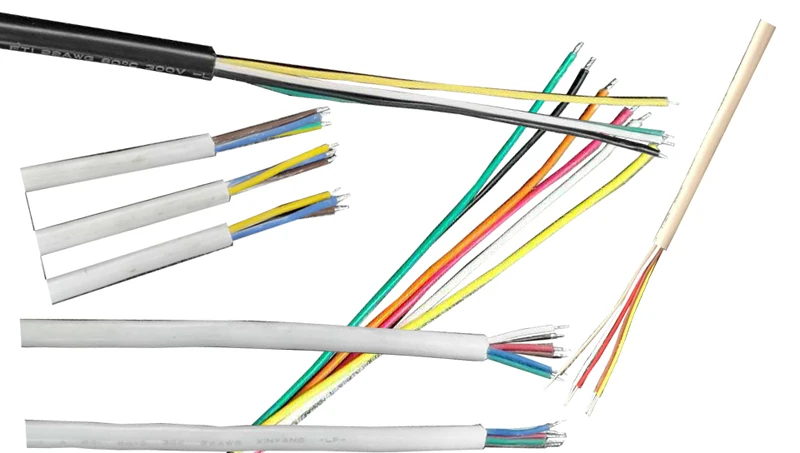

Wire stripping size



2mm-9mm (0.08-0.35in) (Round sheathed wire, for two core)



2mm-9mm (0.08-0.35in) (Round sheathed wire, for three cores or more)



Max size of slitting



50mm (1.97in)



50mm (1.97in)



Soldering(Tinning) size



2mm-9mm (0.08-0.35in)



2mm-9mm (0.08-0.35in)



Production capacity



1700-2000 purchase



1700-2000 purchase



Voltage



AC220V/50HZ



AC220V/50HZ



Pressure of air source



0.5-0.8MPa



0.5-0.8MPa



Weight



300KG



300KG



Dimension (L*W*H)



1200*630*1300mm



1200*630*1300mm



CE-Conformity



The EW-702 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility
