CMM Meauring Machine,DRANON |Manual Type CMM

Product Overview

Description

CMM Meauring Machine,DRANON |Manual-Type CMM cmm mitutoyo

Features:

Easy & reliable in operation The manual operation mode easy to learn can meet the diversified accurate measurement requirements of the workshop site....

Description:

When operating the manual CMM measuring machine, the operator only hold the probe by hand to move it along X,Y and Z axis, so as to complete the whole measurement process.



Manual measuring machine use the fixed workbench with good rigid structure and light weight, and fully enclosed frame moving bridge structure, which can carry strong capacity and obtain good motion performance.



Manual machine has better quality rigidity ratio, and optical video system is optional to choose to meet the various different inspection requirements at workshop.



The gantry-moving structure, integral workbench make the machine have strong bearing capacity wide workpiece placing space and convenient loading and unloading;

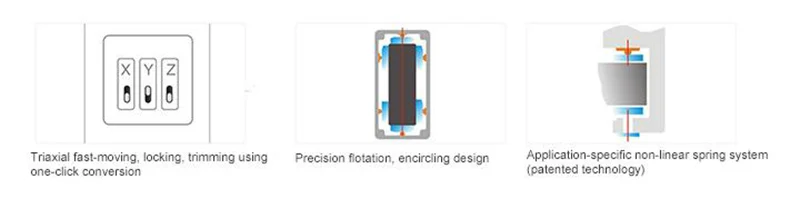

The high-precision air bearing is used, and the rigidity and stability of the machine are improved by means of the encircling bearing layout design, so that the high precision can also be maintained even if working for a long time, and meanwhile, the excellent dynamic characteristics of the machine are ensured;



3 axis’s fast moving,locking& fine tuning could be realized through only 1 key . With tightly flipping the switch corresponding to air locking device, each axis will be shifted from fasting moving to locking condition. Fine tuning switch could be used to moving X,Y,Z axis after locking,This function is fully embodied especially when inspecting those narrow parts of the workpiece.

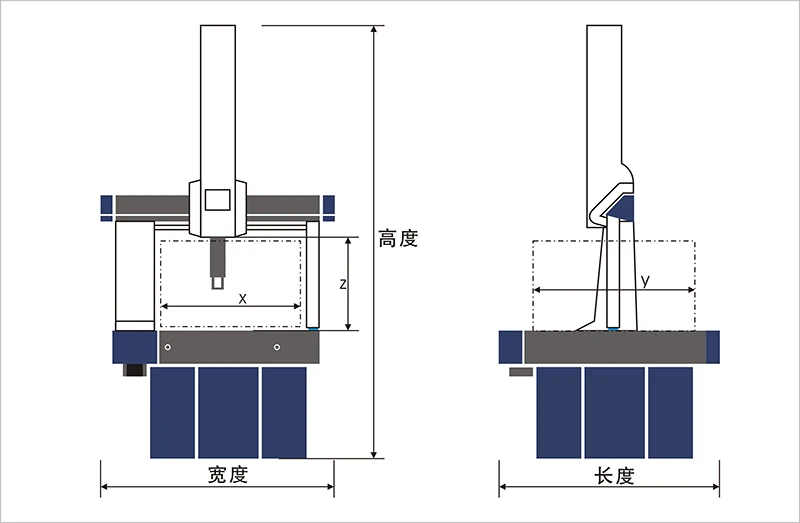

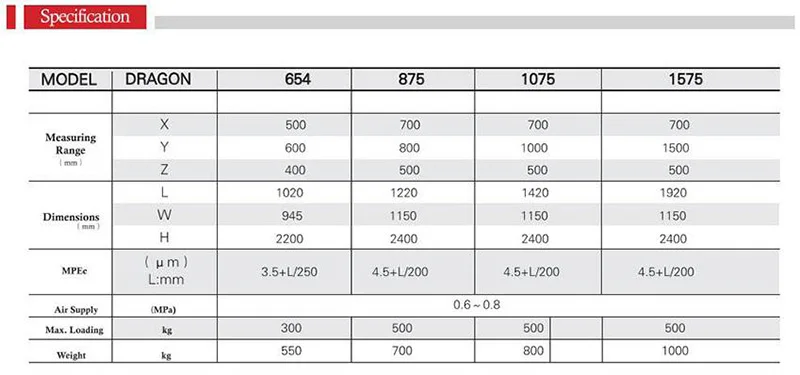

Specification

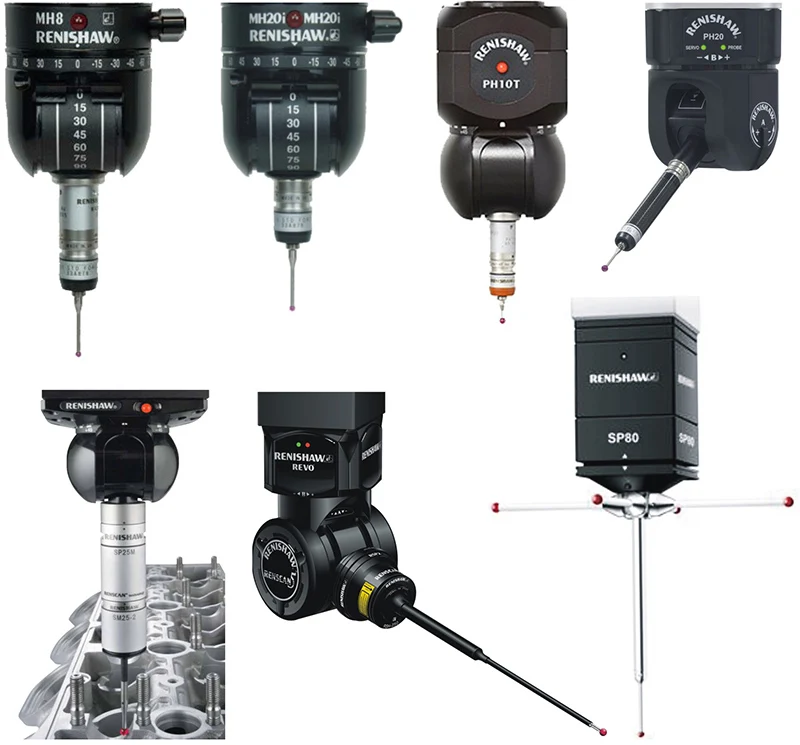

CMM Sensor Systems--- RENISHAW MPC

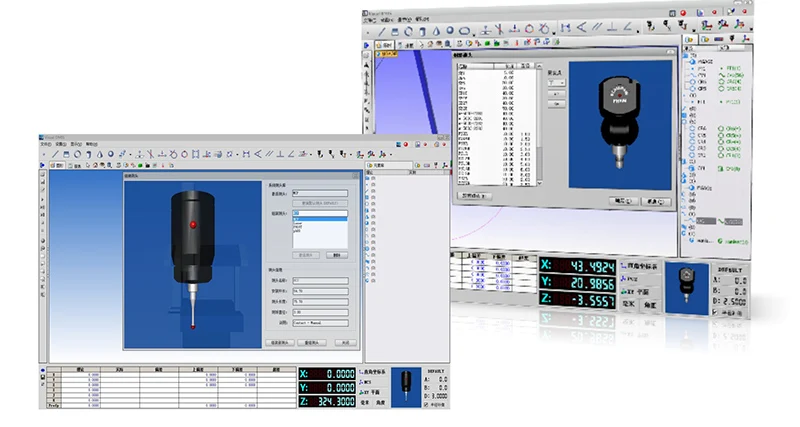

  CMM SOFTWARE --- VISUAL DMIS(PTC Certificate)

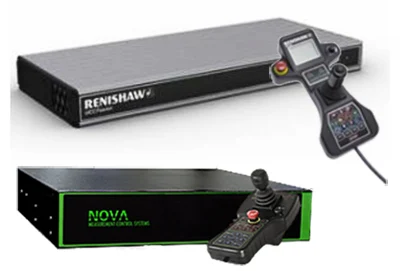

  CMM Control System --- Lead NOVA

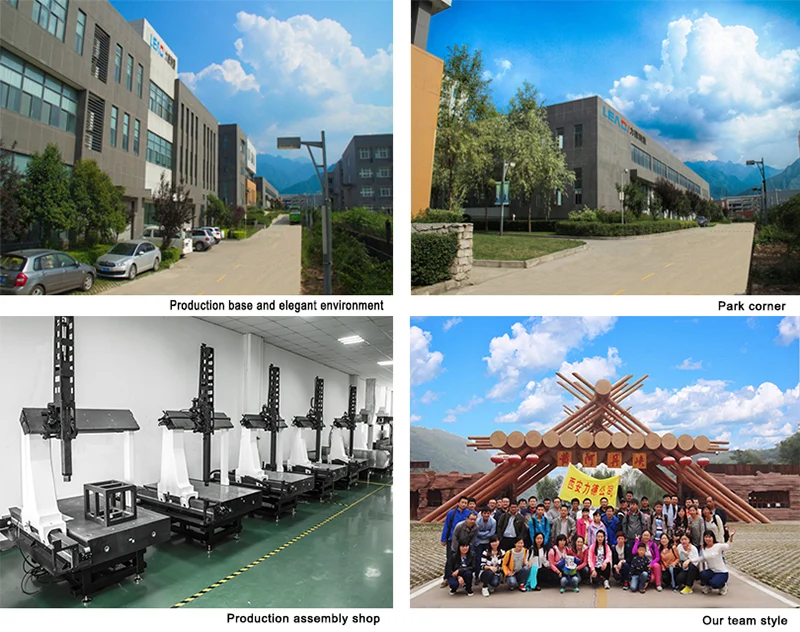

LEAD Factory



Our Service



Service Philosophy

By adhering to the philosophy of service always on the way, engineers from Lead Measurement Technology Center provide customers with timely, considerate and thoughtful after-sales value-added services regardless of whether the equipment is within warranty period or not.

Commitment

We answer all your service requests on the phone in time and offer technical assistance in response to your needs via phone call, fax and email.

Measuring system upgrading and reconstruction

The most advanced measuring machine control system and sophisticated measuring software are configured into measuring machines developed in early times to upgrade them to modern advanced level with cost of only 1/4-1/3 of new machine purchase expense.

Calibration service

Through periodic calibration and correction, your measuring machine will be calibrated to the highest precision all the time to ensure the reliability of measured results.

Professional software customization and upgrading

Lead is endowed with strong software development capacity with multiple available software options, including the software for vane, cam and screw thread measurement or professional measurement solution dedicatedly designed for customer.

Contract service

High-standard scheduled maintenance to ensure reliable operation and prolong the service life of the machine.

Spare parts in abundant supply

Spare parts and measuring head and probe in abun-dant supply let your use the machine at ease.

Skill training and technical communication

Professional custom-made training are available for customers to improve their detecting ability; technical discussion is held regularly for customers to exchange ideas about operating experience to improve their troubleshooting abilities.

Equipment relocation, installation and com-missioning services

Experienced software and application engineers will offer technical guidance in the course of equipment relocation, installation and commissioning.

Custom-made special fixture

We provide customers with flexible multifunctional fixtures to simplify the measuring technique and improve the measuring efficacy and precision.

Custom-made measuring machine technical solution

Supported by our professional R&D team, we offer custom-made coordinate measuring machine technical solution as per customer’s requirement to recommend the equipment matching customer’s special measuring needs.

Detection and Programming Services

Rest assured, you can hand the measuring machine maintenance work over to our maintenance specialist and we can ensure you the followings:

- Prompt service response     - Equipment hidden problem prevention and elimination in advance

- Productivity enhancement   - Equipment failure rates deciease

- Service life prolonging        - Custom-made technical solution made by specialist



Our professional and experienced application engineer can assist you in programming parts for programs to improve the detection stability and efficiency based on your product detection

and measuring demands.



Well stocked spare parts and Components

Lead has well supplied spare parts inventory, being able to offer you professional and thoughtful after sales spare

parts purchasing enquiry, quotation, shipment and payment services.

- Please contact our seller or distribution to order spare parts.

- Please dial our 24h customer service hotline for order placing.
