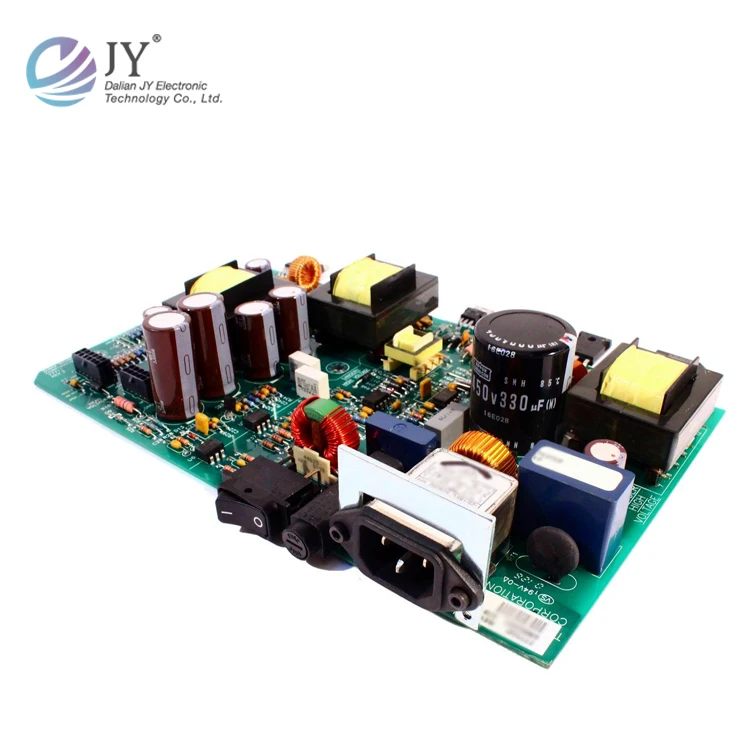

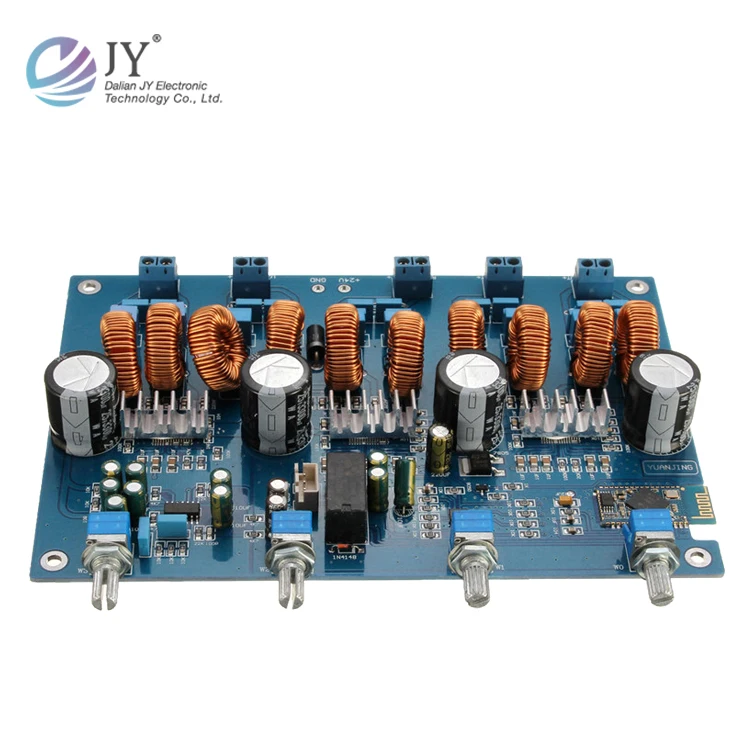

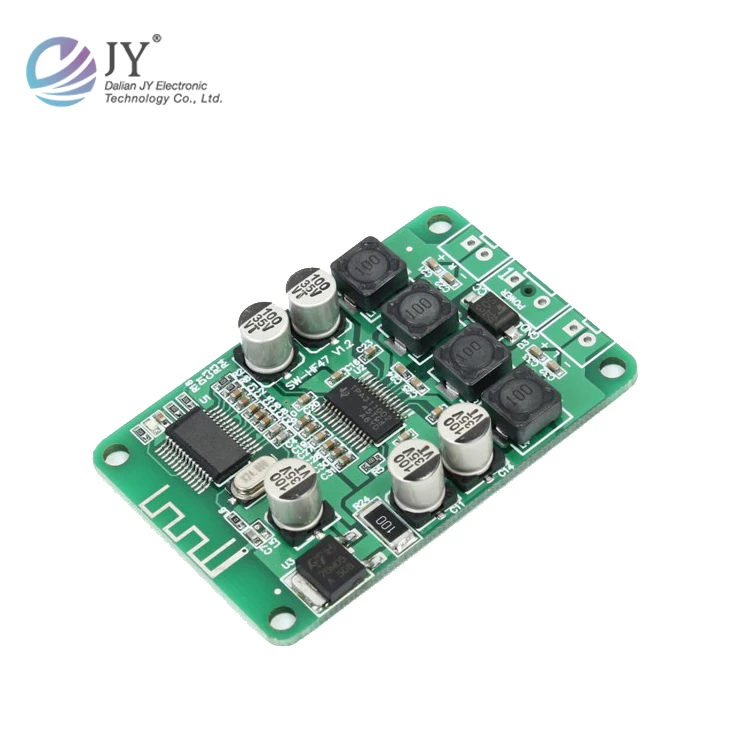

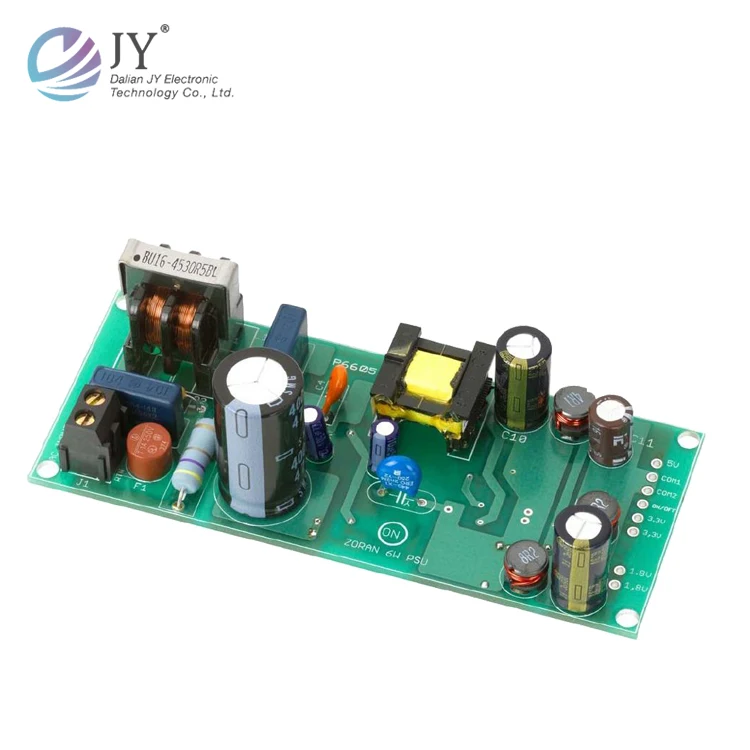

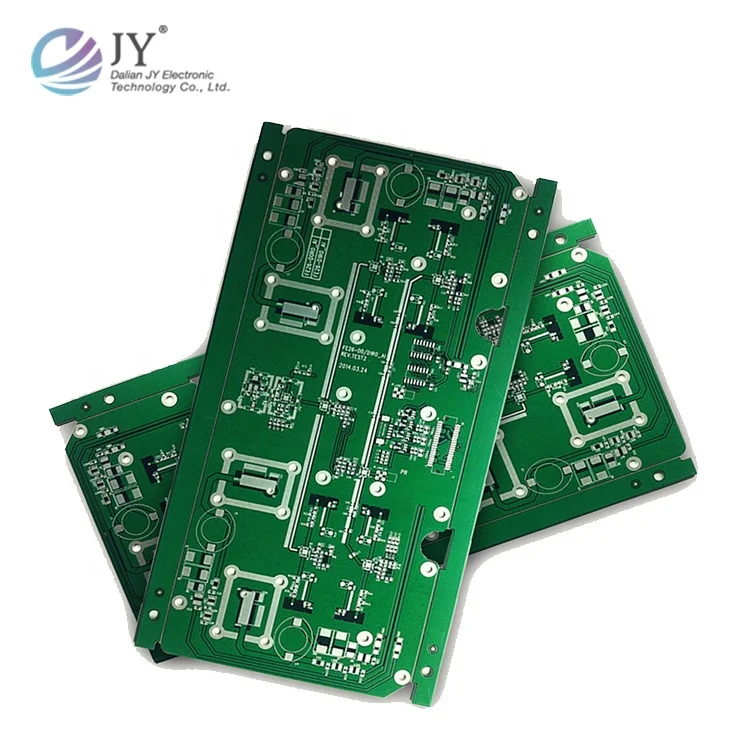

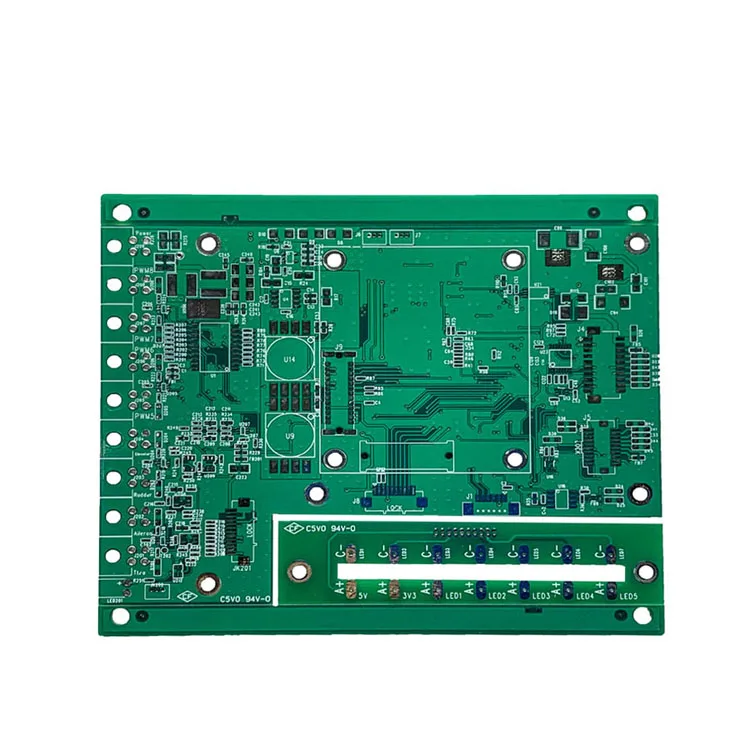

PCB Board we have produced are mainly used in the Industrial Control, Medical Treatment, Automobile area. All the products must meet ISO9001 CE etc. certification with high quality sodering for wires and no fingerprint.
DHI PCB
HDI PCB Boards contain blind and/or buried vias and often contain microvias of .006 or less in diameter. They have a higher circuitry density than traditional circuit boards.
High TG PCB
The general TG plate is more than 130 degrees, the high TG is generally greater than 170 degrees, and the medium TG is more than 150 degrees.
High Frequency PCB
RO4003C, RO4350B, Ro3003, Ro3010, and RT5880 etc with frequency typically in the range from 500MHz to 2GHz, products are applied to power devider,radar,satellite system, mobile phone reception base station and so on.
Carbon Ink PCB
As carbon ink pcb has very good resistance value that will help supply good conductivity. Carbon ink pcb is widely used in automotive filed, medical electronics,communication equipment and so on.
Special Material PCB
Rogers4350,Rogers4003,Arlon 25FR,25N for Ceramic PCB powder filling, Rogers series, Taconic series,Arlon series,Nelco series ect for PTFE high frequency material.
Thick Copper PCB
Ensure that there is enough thick copper plating in the hole to ensure that the resistance is within the range of the process requirements. 70% of the circuit board to complete the use of 35um of copper foil thickness, some will use 70um , 105um ,140um copper thickness and so on.
Drill is very important, so we have a perfect drill management area, and a machine 24 hours polished to ensure the quality of the drill bit.
PCBA Capability
Item
Capability
Item
Capability
Solder Paste
Printing
Accuracy: ±0.025mm
Wave Soldering
Max. speed: 150mm/sec
Nitrogen source: external
PCB max. area: 400*310mm
PCB max. size: 400*330mm
PCB thickness: 0.2-6mm
Temperature accuracy: ±1°C
SMT
Accuracy: ±0.03mm
Lead free compatible
Speed: 0.17sec/pc
PCB max. area: 350*350mm
AOI
Available part:
0201 chip to 35*35mm
Accuracy: ±0.0024mm
Accuracy: ±0.05mm
Speed: 5in² /sec (60FOV/sec)
Speed: 0.048sec/pc
PCB max. area:300*300mm
PCB max. area:
350*350mm
Available component:
0201 chip and fine pitch
Available part:
0402 chips to 14mm (H 12mm)
X-ray Inspection
Minimum SMD resistor and
capacitor: 0201
BGA void
(0.5mm distance between Ball)
Minimum BGA R-VTx: 0.15mm
Solderability inner shielding
Reflow
Soldering
Nitrogen source: external
BGA Rework
PCB max. size: 400*330mm
Nitrogen source: NA
Temperature accuracy: ±4°C
PCB max. size: 350mm
Zones: 8
Temperature accuracy: ±1°C
Lead free compatible
Lead free compatible
Our Services
Now we have been a factory which can provide one-stop service, from the PCB production, the components purchasing to the components assembled.
Exhibition & Client
When we attended some Exhibition Show all around the world, such as USA, India, Japan, Thailand etc., our products attracted many people and they like our products and give high praise for our professional service. Thanks for their trust and we have already built long term business cooperation.
When the client visits our factory, all of them were satisfied with our workshop, they said "The factory is so clean, big and professional. Your machines, production line, and your team are amazing."
Packaging & Shipping
Our company is not only trying to give customers a good product but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.
Customized Cartons: Carton outside according to the requirements of customers printed the name of the customer address, mark, the customer needs to specify the destination and other information.
PCB Fast Delivery
Order Type / PCB Layers
1/2-layer
4-layer
6-layer
Above 8-layer
HDI
First Batch Order
7-9 days
10-12 days
13-15 days
14-16 days
20-22 days
Fast Sample Order
48-72 hours
5-7 days
6-8 days
6-7 days
12-14 days
Normal Sample Order
5-6 days
6-7 days
7-8 days
10-12 days
15-20 days
FAQ
-- FAQ --
- How to control products with high quality?
We ensuring products quality by IPC-610 F standard, The test will be done as customer’s requests. If any rejects during transportation, We will supply maintenance free of charge.
- What service can JY supply to the customer?
We can supply PCB, PCBA, Gerber design, Clone, OEM and ODM service.
- How does JY ensure customers' profit?
To protect customers' profit, we will sign NDA with customers and strictly abide by it.
