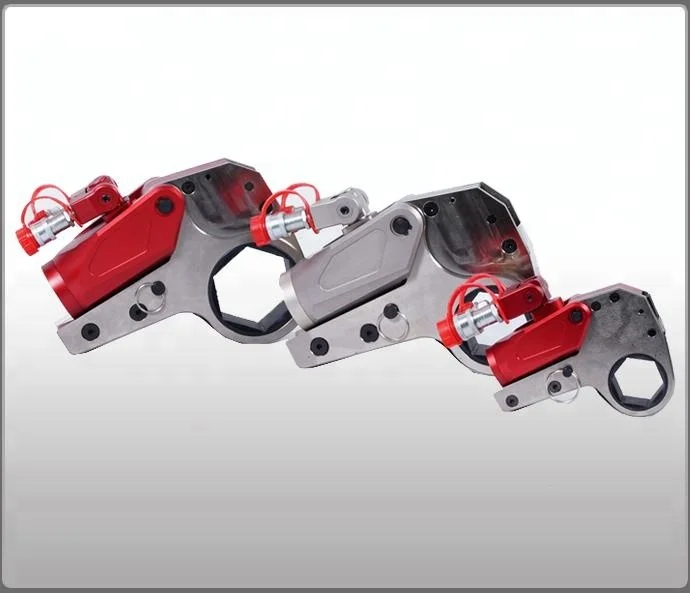

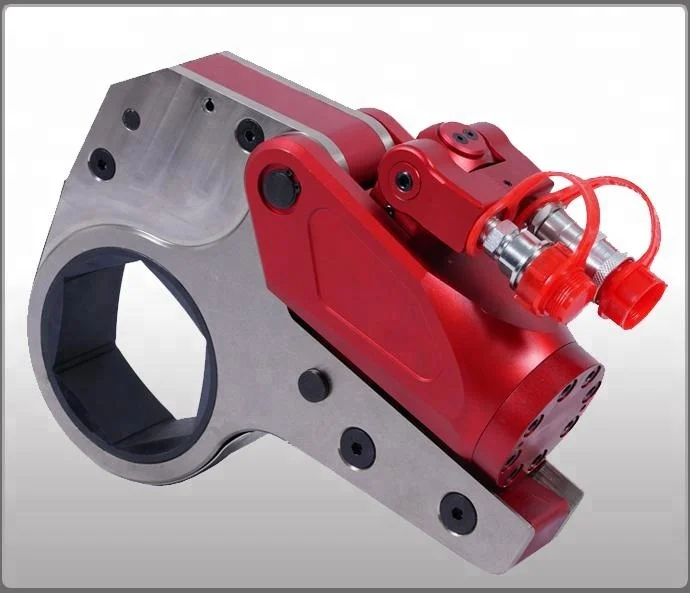

Low profile hexagon hydraulic torque wrench manufacturer

Product Overview

Description

Characters:

1. Hydraulic torque wrench, made of ultra-high strength aluminum-titanium alloy, thin design, double - acting, high speed and big corner;
2. clamping type, interchangeable plug - ins, no need of special tools, torque repetition accuracy as high as ±3%;
3, 360°×360° and 180°X360° rotary hose connectors, which are suitable for compact occasions and convenient for positioning.
4, wrench strength design is sufficient, the overall reaction arm, fewer movable parts, durable and reliable;

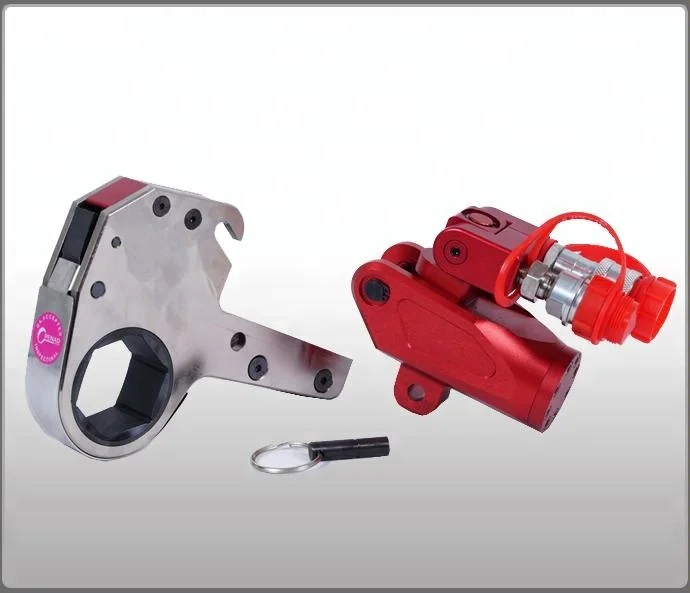

5. Can work with metric and imperial hexagonal insert socket, which can realize that one power head is equipped with multiple insert socket for simultaneous use;
6. Most of them are used in special working conditions: double nuts, bolts are too close to the equipment wall, bolts are too long, nut spacing is too small, etc.

7. If needed, can work with our back-up wrench, more convenient.



Hydraulic torque wrench is one kind of power tool designed to exert torque  on a faster to achieve proper tightening or loosening of a connection through the use of hydraulics. Hydraulic torque wrench is applied to the nut either directly or in conjunction with an impact socket. Hydraulic torque wrenches apply a predetermined, controlled amount of torque to a properly lubricated fastener.



Application field:

Hydraulic wrenches are widely used. Hydraulic torque wrench is an important tool for the installation and disassembly of large-sized bolts in the construction, maintenance and repair of shipbuilding, petrochemical, wind power, hydropower, thermoelectric, mining, machinery, steel mills, rubber, pipelines and other industries. There is no substitute for other tools, which is not only convenient to use, but also provides very accurate torque, and the torque repetition accuracy reaches about ±3 %.



 Products drawings:



Selection Chart:

SELECTION CHART OF PDCT SERIES ULTRO THIN HOLLOW HYDRAULIC WRENCH
MODEL	2PDCT		4PDCT		8PDCT		14PDCT	18PDCT	30PDCT		50PDCT
TORQUE(N.m)	232-2328	241-2414	585-5858	647-6474	1094-10941	1177-11774	1852-18521	2695-26958	488-41882	4459-44593	7081-70813
NUT SIZE(S)	19-55	60	34-65	70-80	41-95	100-105	50-117	65-130	110-155	160-175	105-225
POWER HEAD WEIGHT(KG)	0.9	0.9	1.7	1.7	3	3.1	4.6	6.5	10.4	10.4	35.5
WORKING HEAD WEIGHT(KG)	1.5	1.5	3.4	3.4	6.3	6.3	11.4	14.3	20.5	20.5	42
L	196	196	258	263	30	311	360	388	430	441	493
H1	126	129	163	173	192	201	225	264	303	315	328
H2	102	105	136	146	168	177	2045	231	272	285	295
W1	32	32	42	42	53	53	64	71	85	85	102
W2	51	51	66	66	83	83	99	109	131	131	160

Working site:





FAQ:

Q: Can you do OEM?
A: Yes, we can.
Q: How about the MOQ?
A: 1PCS.
Q: How about the delivery time?
A: Normally, 2-3 days. But it depends on your order quantity.
Q: How about the warranty?
A: 1 year.
Q: What certificate do your product have?
A: We have CE, ISO 9001:2000
Q: Where is your loading port?
A: Ningbo or Shanghai China port.
Q: Are you a manufactuer or trading company?
A: We are a manufacturer specialize in hydraulic tools for more than 10 years.
