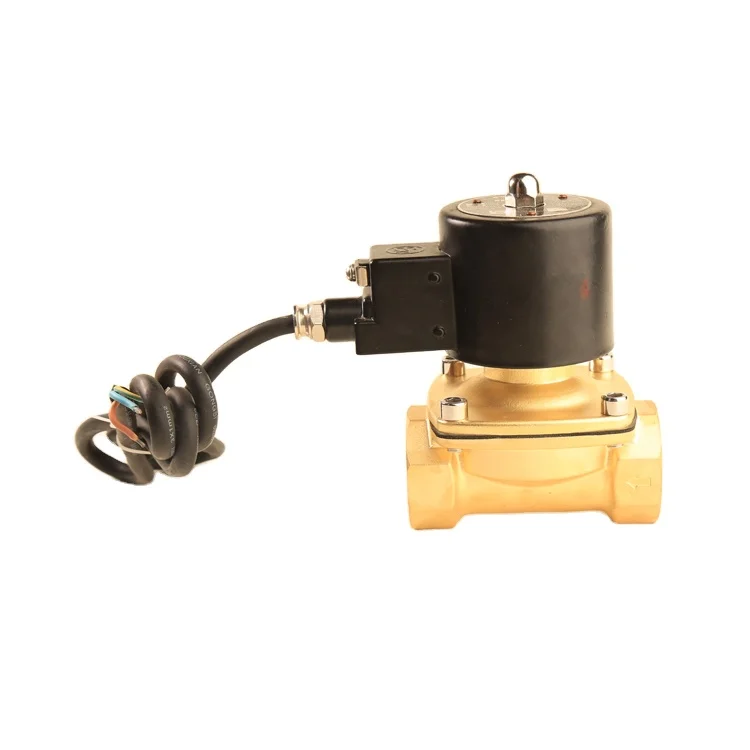

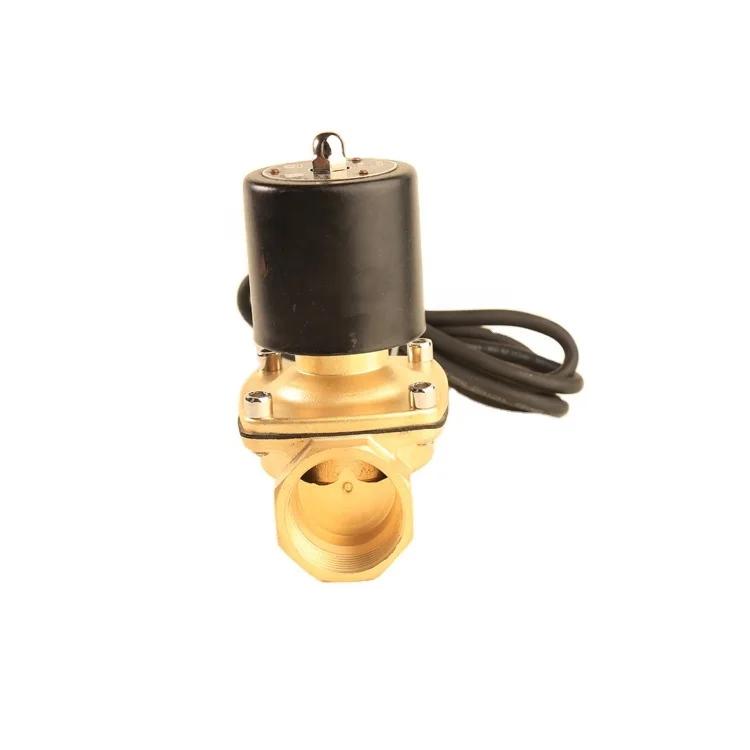

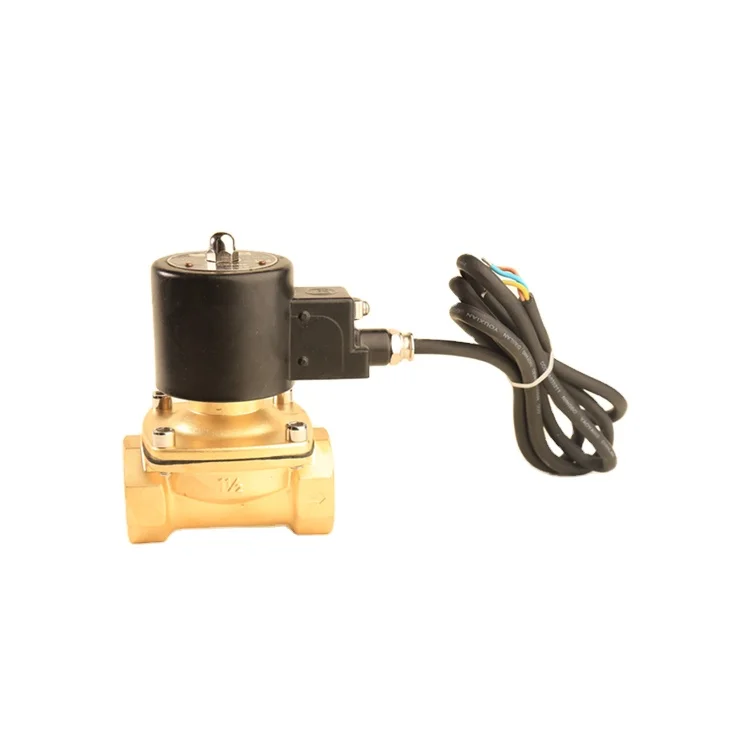

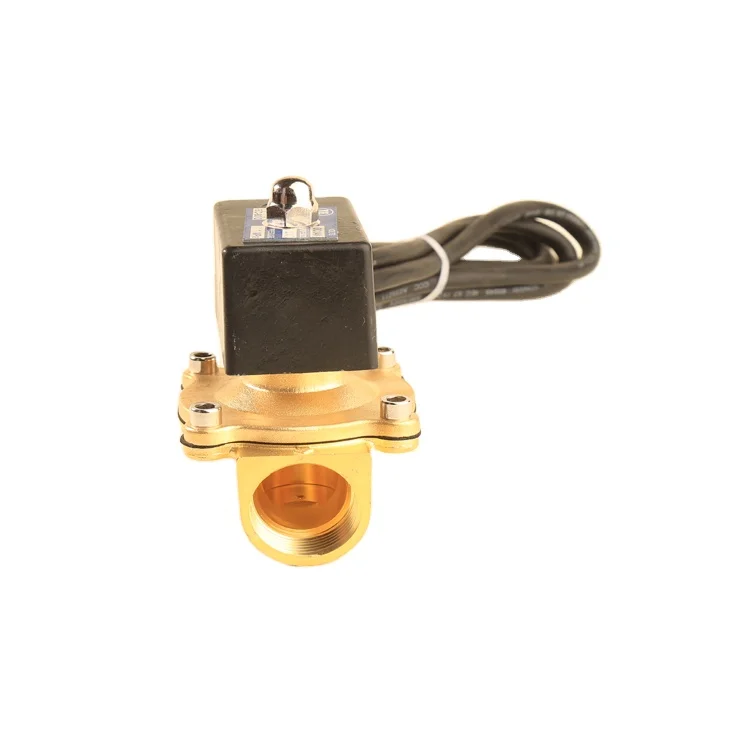

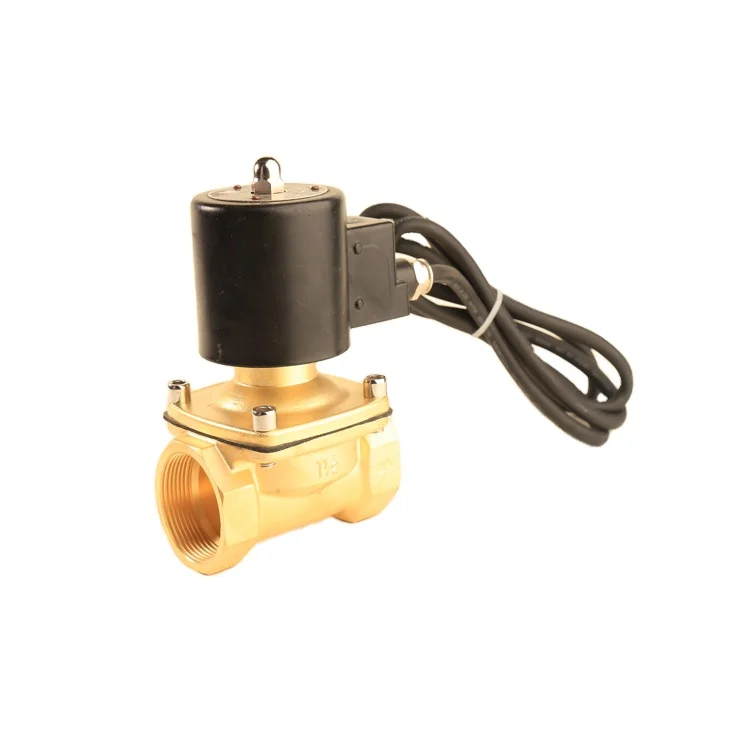

ZCM 40 Brass LPG Natural Gas Solenoid Valve ZCM 40 Brass LPG Natural Gas Solenoid Valve
- Category: Brass Valves >>>
- Supplier: Ningbo Hewcho Machinery Co. Ltd.
Share on (62074467054):
Product Overview
Description
ZCM-40 Brass LPG Natural Gas Solenoid Valve
Technicial Detail
| Part Number:ZCM-40 Mode of Operation:Normally Closed Pipe Size: 1 1/2" Body Material:Brass Components:Stainless Steel Seal Material: FKM Orifice:40mm Temperature Range:-30-150°C Pressure Range: 0-4Bar |
Coil Type: DIN Coil Class: H Class Voltage:AC220V Response Time: Less than 1 second Duty Cycle: 100% but not indefinitely Suitable Media: Water, Air, Oil, Gas Weight: 2.1KG Height:162mm Length:115mm |
Description
The ZCM-40 is Brass LPG Natural Gas Solenoid Valve. It's two way two position direct acting diaphragm electric solenoid valve with available voltage AC220V, AV110V, DC24V and DC12V. It can be used for liquid , air, water, gas in a variety of different applications. This valve uses NBR or Viton seal material that is compatible with many liquid such as water up to 80°C. The valve is normally closed, closed when de-energized and open when energized. It is capable of operating at zero differential pressure. This compact solenoid features with female BSP 1-1/2" thread or NPT 1-1/2" thread.
The ZCM-40 Brass LPG Natural Gas Solenoid Valve. The coil head is fitted with a wire lead connection that can easily be connected with your own choice of terminals. This model is mountable in any position and features a conveniently positioned arrow on the body to indicate the direction of flow. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.
Non-applicable fluid
When the temperature is high, it is liquid, and solid when cooled; Corrsive Fluid; Fluid above 20 cst concentration.
Attention
The impurities in the line must be cleaned first before installation. In order to prolong service life, Y filter should be installed on the front end of solenoid valve.
