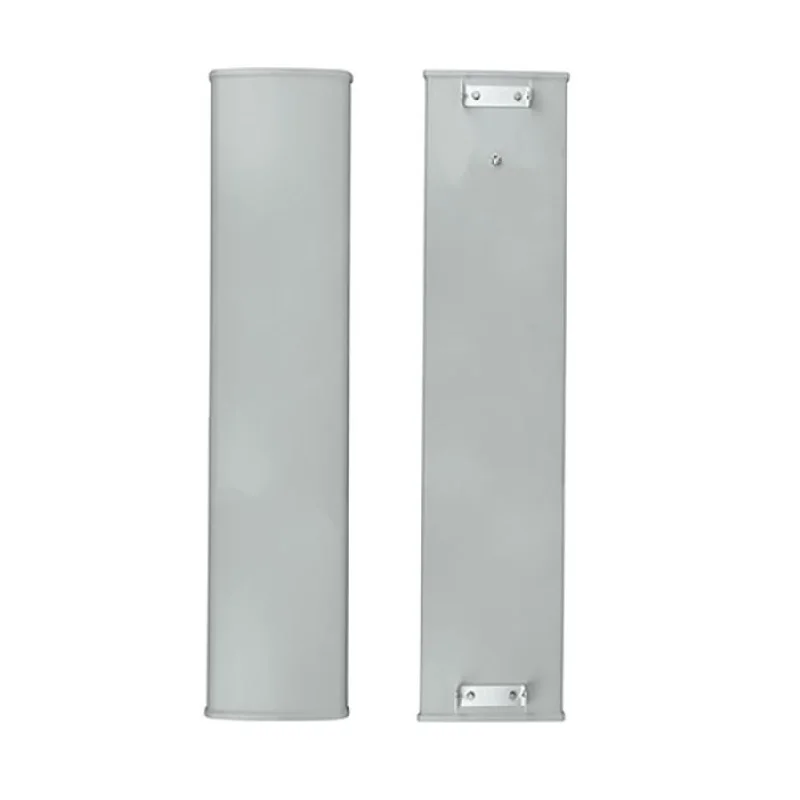

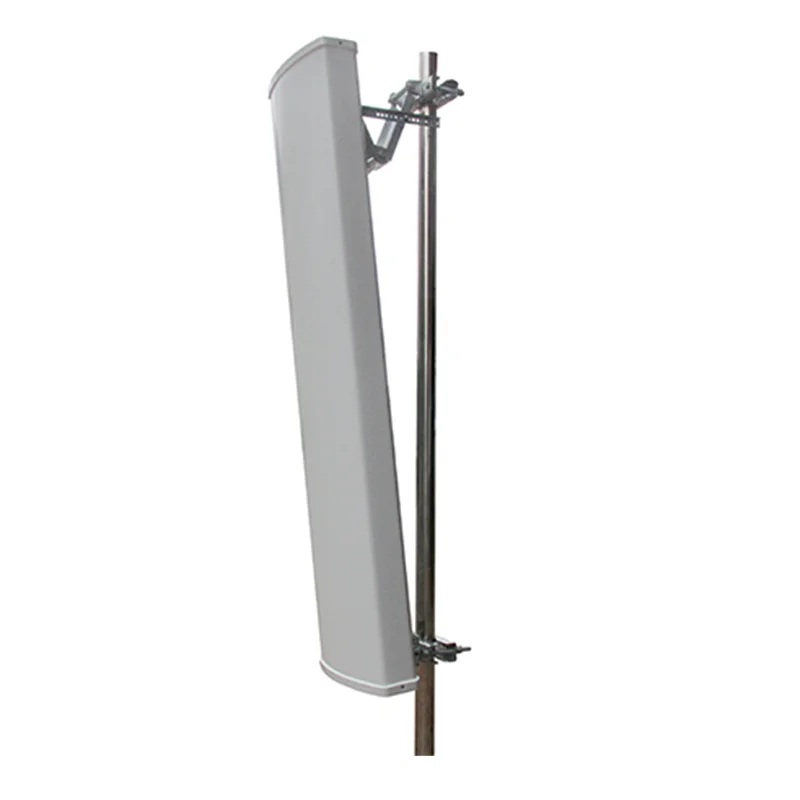

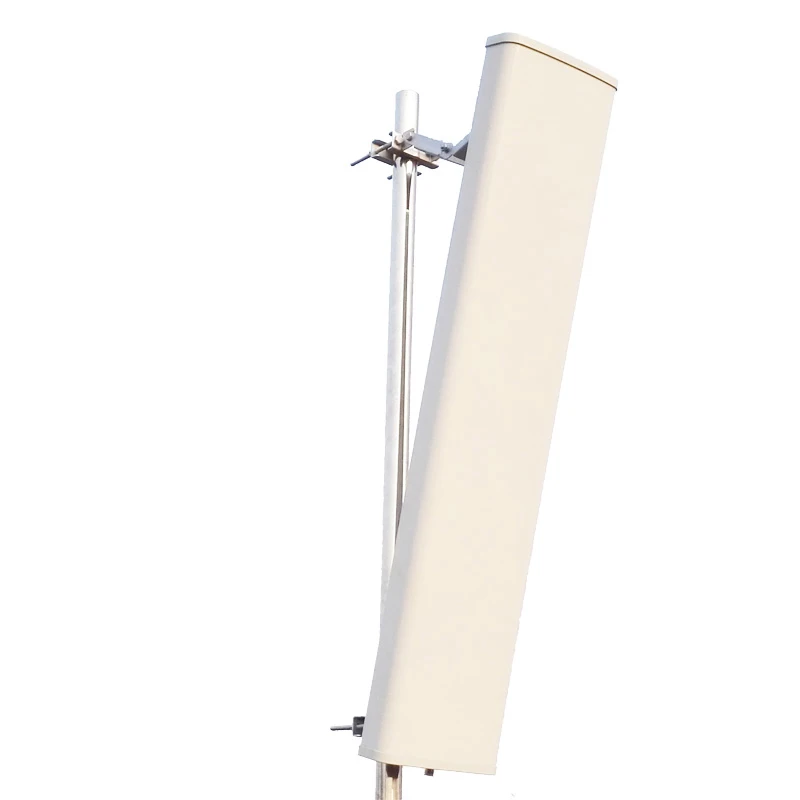

900 2700 MHz 1.08 meter GSM DCS UMTS 14/15 dbi high gain 2G 3G 4G antenna
- Category: >>>
- Supplier: Hwatel (Beijing) Technology Co. Ltd.
Share on (62074605985):
Product Overview
Description

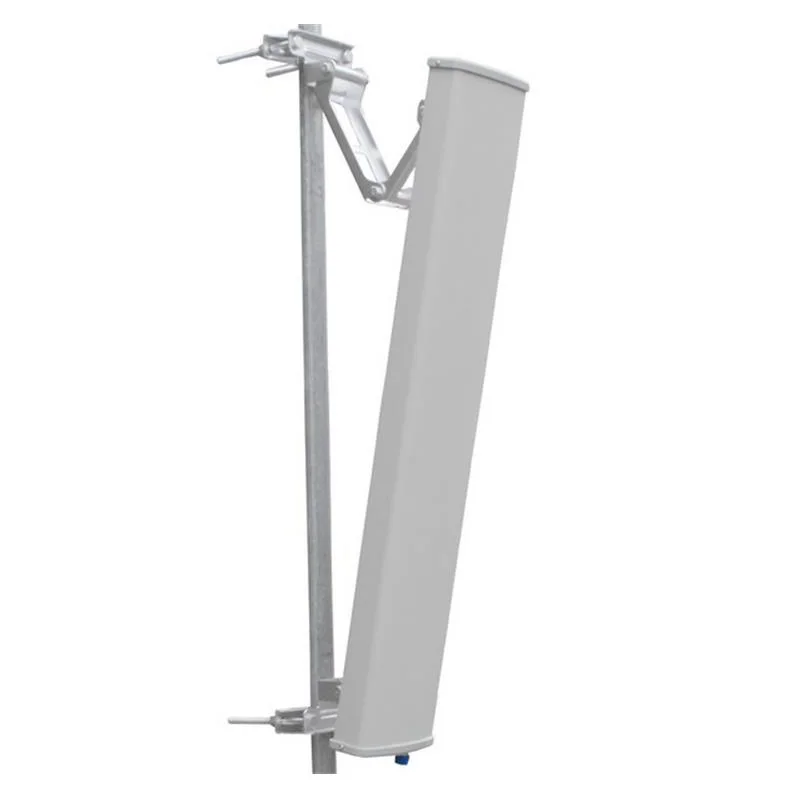

3G 4G Panel Antenna
1710~2170M 17 dBi 65 degree 1.08 meter
DJ-B-17-1721
Overview
HG DJ-B is HWATEL V-Pole 65degree Scope Directional Panel Antenna, broadly utilized for directional signal transmitting, especially used as the service antenna of repeater.
Family
Tech Specification
Electrical specifications |
| |||
Frequency range (MHz) | 790-896 | 870-960 | 1710-2200 | 2200-2690 |
Polarization | ±45° | |||
Gain (dBi) | 2x11 | 2x11.5 | 2x14 | 2x14.5 |
Electrical Downtilt (°) | 0 | |||

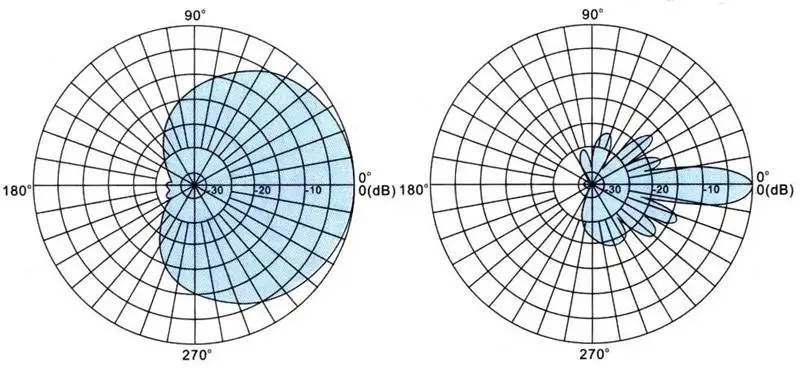

Half-power beam width (°) | Horizontal:67 Vertical:32 | Horizontal:64 Vertical:30 | Horizontal:65 Vertical:15 | Horizontal:62 Vertical:14 |
Front-to-back ratio (dB) | ≥23 | ≥25 | ||
Impedance (Ω) | 50 | |||
VSWR | ≤1.5 | |||
| Isolation(dB) | ≥27 | ≥30 | ≥28 | |
Maximum power (W) | 400 | 200 | ||
Lighting protection | DC Ground | |||
Mechanical specifications | |
Connector | 2X N Female |
Connector position | Bottom |
Height/width/depth (mm) | 1085×280×85 |
Packing size (mm) | 1180×380×200 |
Weight (kg) | 9 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt (°) | 0~14 |
Operating temperature (℃ ) | -40~60 |
Rated wind velocity (m/s) | 60 |
Suitable pole diameter (mm) | 50~75 |

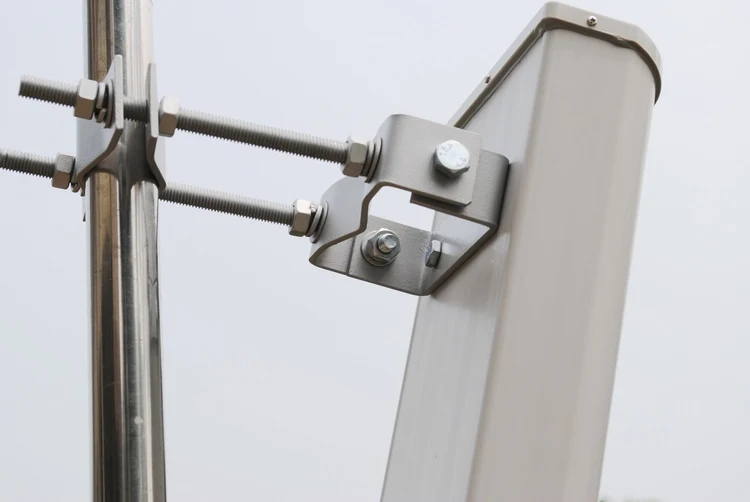

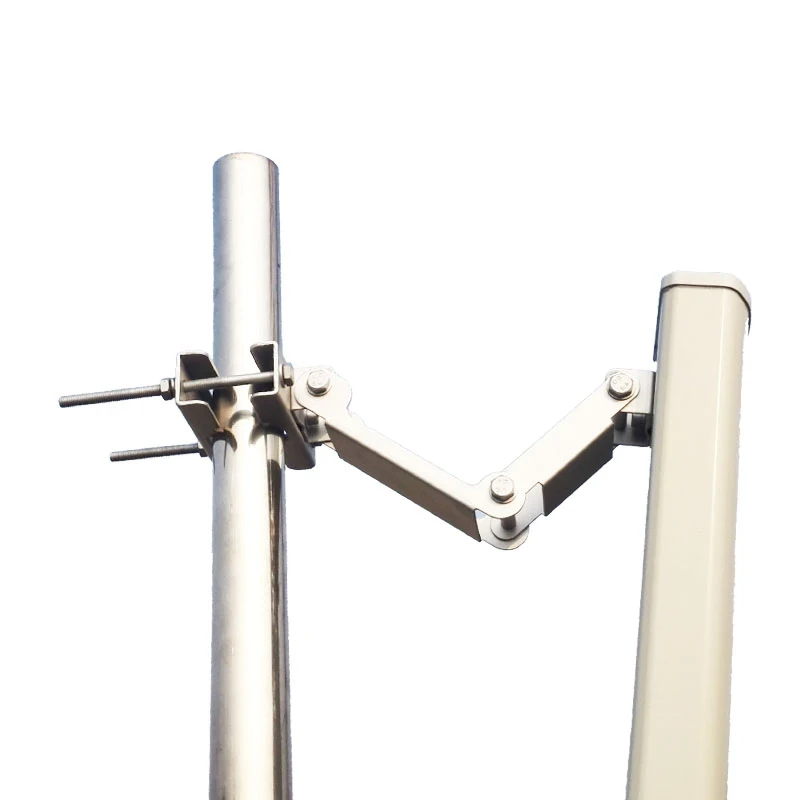

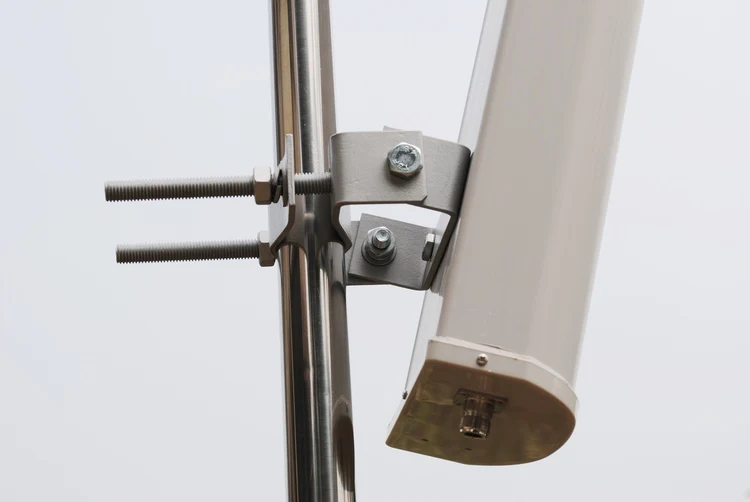

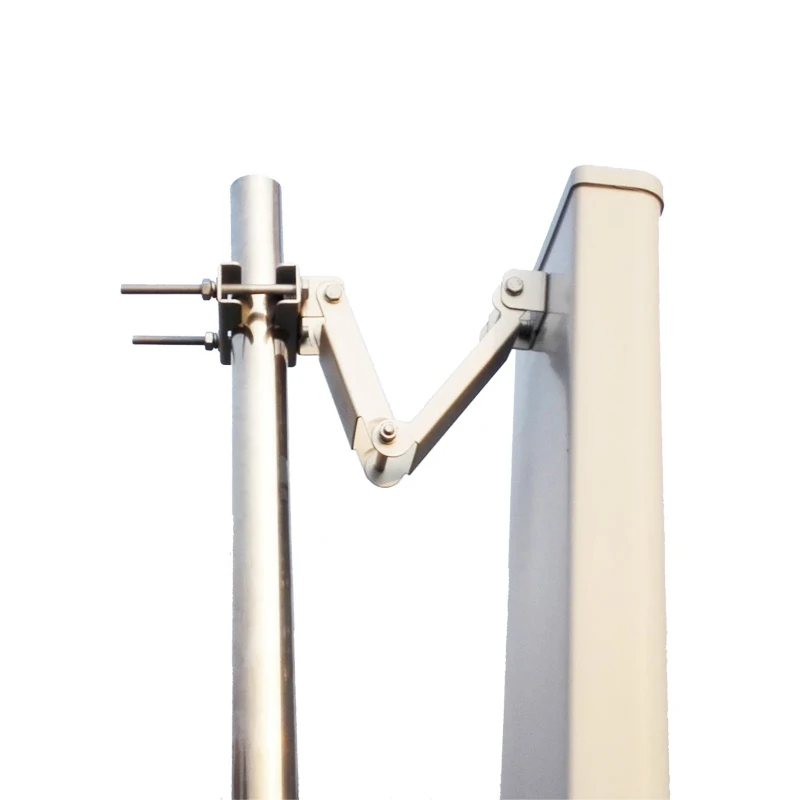

Mounting kit | JM-VA1 |
Detailed Images
