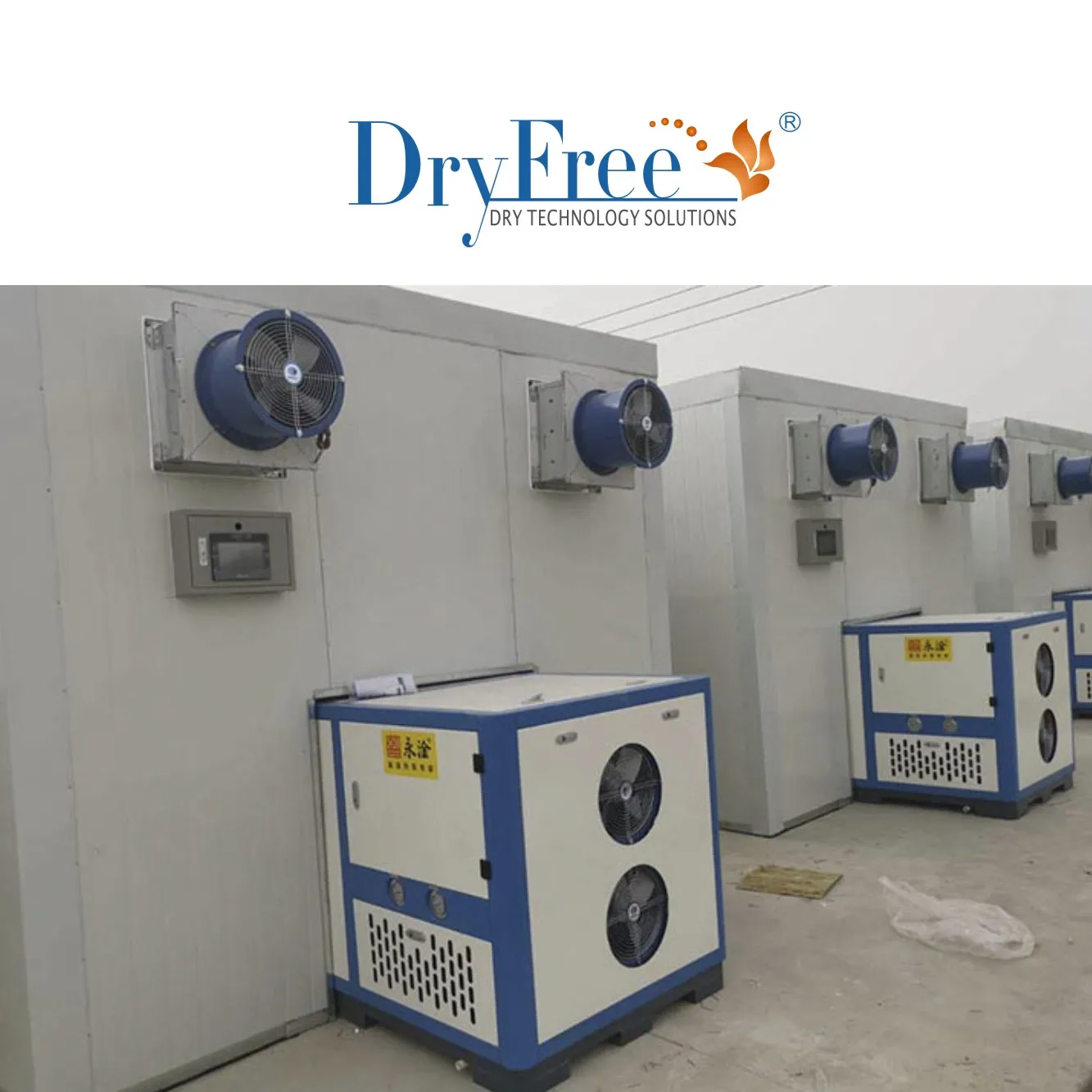

electric drying oven solar food dryer fruit drying machine vegetable dryer machine food dehydrator for betel nut drying machine
- Category: >>>
- Supplier: Dryfree Technology Equipment Co. Ltd.
Share on (62074682645):
Product Overview
Description
Related Products
Product Description

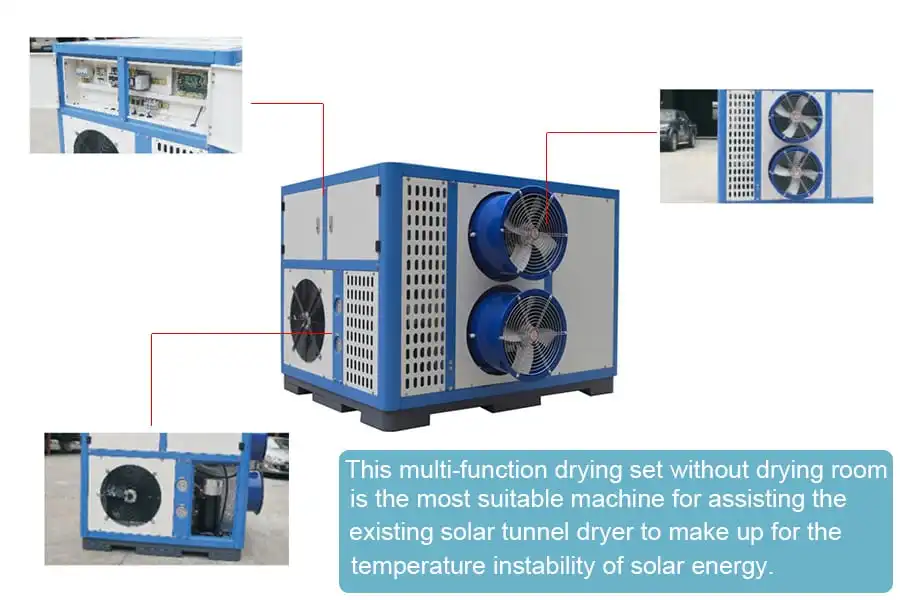

Integrated Multifunctional backup quick-installation energy-save heat pump dehydrator,the multi-function drying set without drying room.It is most suitable for assiting the existing solar tunnel dryer to make up for the temperature instability of solar energy.The installation of the dryer is very simple and saving the cost of drying.
Features
1>> The 6HP dryer integrates all the components together through an integrated design. The actual installation is very simple. You just need to connect the air duct.
2>> The use of 220-230V voltage for household use does not require commercial 380V power consumption, so the scope of use is no longer limited. It can be used in households, small factories or remote places without commercial 380V power consumption.Businessmen do not need to apply for commercial electricity, expanding the scope of use of equipment.

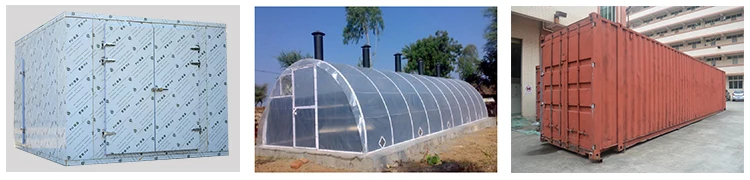

3>> It is most suitable for auxiliary use of existing SOLAR TUNNEL DRYER, which makes up for the temperature instability of solar energy - - no sunshine at night, the goods will be damaged. It combines free solar energy with energy-saving and stable heat pumps that work all day.
4>> It can assist COMMERCIAL SOLAR DRYER, combined with solar energy, to refine the quality of products and the effect of all-day use.
5>> Saving the cost of drying - --- Combining solar energy to achieve the optimal use effect and the maximum energy saving.
6>> The multi-functional drying unit has its own control system and drying software system, which can reasonably control the drying temperature, humidity and time, and can set different drying temperature and humidity in multiple time stages. The adjustable program ensures that different parameters are input when drying a variety of products. It can be widely used in fruits,vegetables, other agricultural products, fish, shrimp and other seafood, cocoa beans, coffee beans, tea, spices and other cash crops. Can ensure work continuously for 12 months in a year.
2>> The use of 220-230V voltage for household use does not require commercial 380V power consumption, so the scope of use is no longer limited. It can be used in households, small factories or remote places without commercial 380V power consumption.Businessmen do not need to apply for commercial electricity, expanding the scope of use of equipment.
3>> It is most suitable for auxiliary use of existing SOLAR TUNNEL DRYER, which makes up for the temperature instability of solar energy - - no sunshine at night, the goods will be damaged. It combines free solar energy with energy-saving and stable heat pumps that work all day.
4>> It can assist COMMERCIAL SOLAR DRYER, combined with solar energy, to refine the quality of products and the effect of all-day use.
5>> Saving the cost of drying - --- Combining solar energy to achieve the optimal use effect and the maximum energy saving.
6>> The multi-functional drying unit has its own control system and drying software system, which can reasonably control the drying temperature, humidity and time, and can set different drying temperature and humidity in multiple time stages. The adjustable program ensures that different parameters are input when drying a variety of products. It can be widely used in fruits,vegetables, other agricultural products, fish, shrimp and other seafood, cocoa beans, coffee beans, tea, spices and other cash crops. Can ensure work continuously for 12 months in a year.
Detailed Images
Product Specifications
Technical Parameters | ||
Model No. | DR-6P(S) | |
Power supply | 230v/1/50hz | |
Dryer heating capacity | 14kw(70℃) | |
Rated input power(Compressor) | 4.8kw | |
Rated input power(Circulating fan) | 0.6kw(2pcs) | |
Total power | 6kw | |
Rated input currents | 26A | |
Compressor | 3HP scroll | |
Compressor quantity | 2pcs | |
Refrigerant type | Dryfree special refrigerant | |
Refrigerant charge | 8kg | |
Circulation fan volume capacity | 5000-8000m³/h | |
Circulation fan speed | 2800R/min | |
Evaporator | Copper tube,aluminum fins | |
Condenser | Copper tube,aluminum fins | |
Ambient temperature | 5-45℃ | |
Load capacity | 500-800kg | |
Maximum/rated temperature | 85/80℃ | |
Noise | 55dB(A) | |
Chamber dimension | 1540*1050*1040mm | |
Exhaust maximum temperatureAbsorber | 115℃ | |
Exhaust pressure | ≤2.35Mpa | |
Return air pressure | ≤0.03Mpa | |
Net weight | 350kg | |
Application type | Indoor & outdoor | |
Container loading | 30sets | |
Application
Widely used to drying vegetable,fruit,herbs.Such as cabbage,daylily,litchi,honeysuckle,mushrooms,blueberry,jujube,tea,apricot,raisin,etc.So this dryer can be a food dryer,fruit
dehydrator,herb dehydrator.
dehydrator,herb dehydrator.

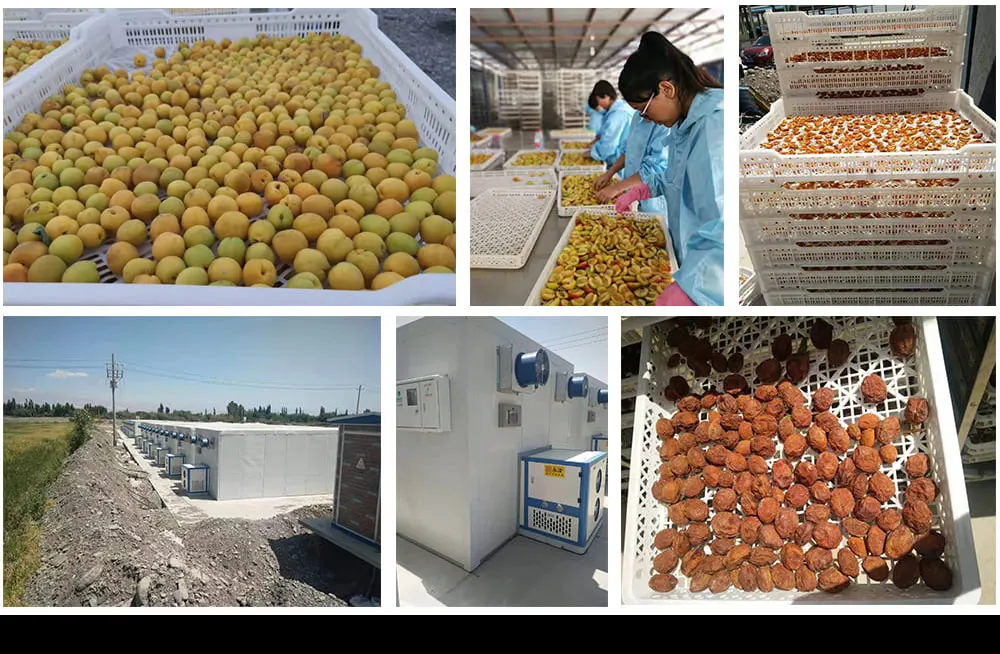

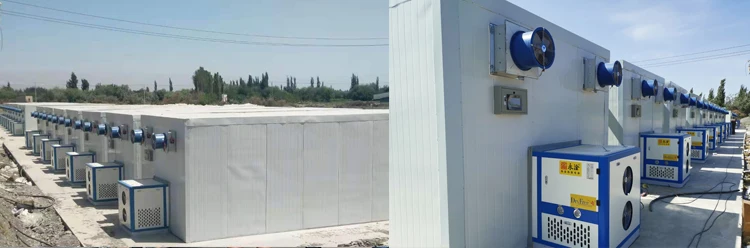

Case show
Packing&Shipping
Certificate
As an enterprise that takes technology as the core and new technology products as the driving force for development, our company has always paid close attention to and insisted on the strong investment in technology research and development, obtained 33 patent certificates, and created the cascade new product echelon. Always maintain product technology leadership and rapid response to market demand.
Company Introduction
Dryfree is China's first factory specializing in the production of dehydrator, solar dryers, heat pump dryer machines and
solar+heat pump dryer, which used to dry fruit, flowers,agricultural products,herbs,nuts,meat,seafood,industrial products etc.Our company began to concentrate on the design and installation of drying engineering projects since 2002. In 2006, we established a factory in Dongguan to concentrate on the design, research and development, production of solar unit and heat pump drying unit.And we pioneered the combination of solar dryer and heat pump drying units to provide the most optimized new energy drying and energy-saving design scheme for customers.We hope to create more value for our customers and decrease more pollution and increase more green for our world “Work with your need, save more energy cost, decrease more pollution.”
solar+heat pump dryer, which used to dry fruit, flowers,agricultural products,herbs,nuts,meat,seafood,industrial products etc.Our company began to concentrate on the design and installation of drying engineering projects since 2002. In 2006, we established a factory in Dongguan to concentrate on the design, research and development, production of solar unit and heat pump drying unit.And we pioneered the combination of solar dryer and heat pump drying units to provide the most optimized new energy drying and energy-saving design scheme for customers.We hope to create more value for our customers and decrease more pollution and increase more green for our world “Work with your need, save more energy cost, decrease more pollution.”
