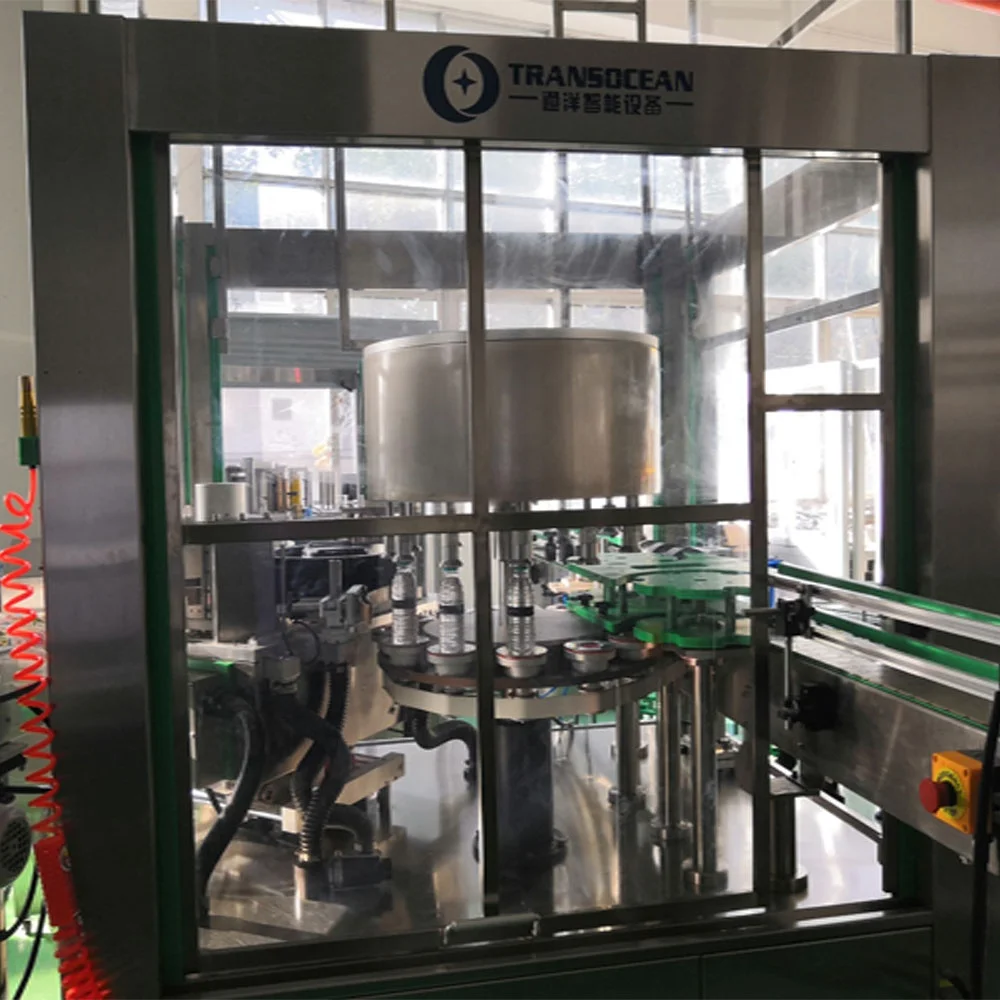

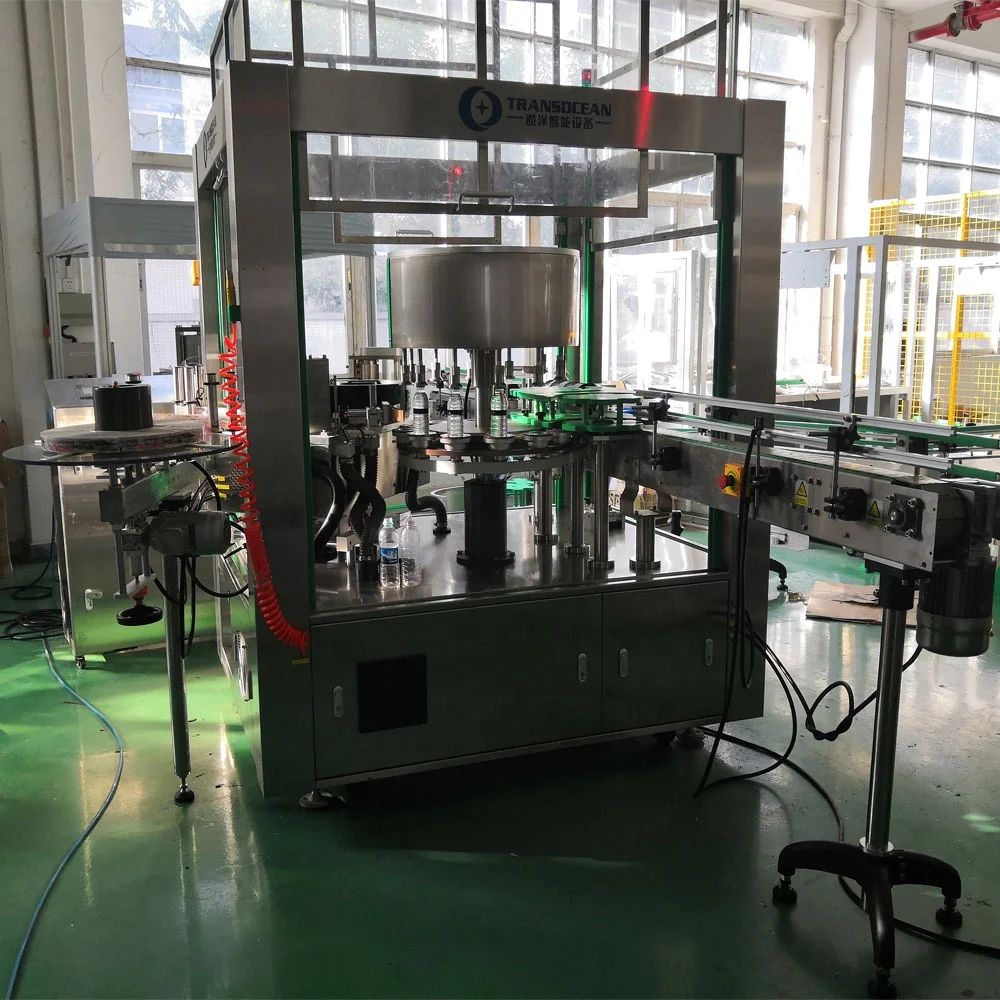

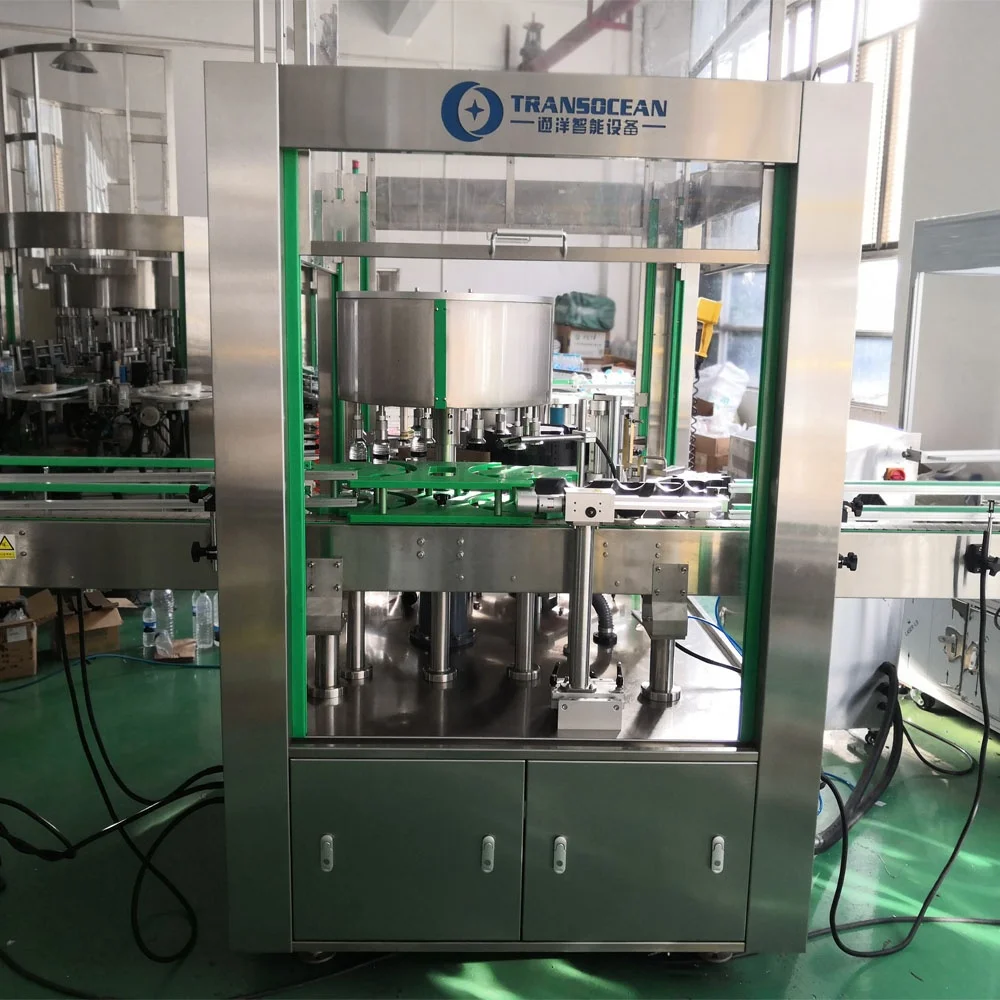

rotary automatic star wheel hot melt glue opp round water 500ml bottle labeling machine 12000 BPH

1. Suitable for labeling on all kinds round bottles for wrap around.
2. Label material: hot melt glue label, OPP film or pearl film.
3. Apply to the industry of detergent, food, beverages etc.

SPECIFICATIONS
Label size	L:130-330mm W:20-145mm	Labeling accuracy	±1mm
Labeling product size	L: 50-300mm ￠: 40-100mm Remark: Can be customized, the height adjustment range of each machine: ±50mm	Max speed of come out label	100M/min
labeling speed	4000 -36000 BPH	Labeling glue	Hot melt glue at both ends of each
Max outer diameter of the label	600mm	Heating glue temperature	120~160℃
Label inner core diameter	152mm	Speed adjustment method	Uninterrupted-adjust rate
Conveyor belt	L:3000mm W: 100mm H: 1100mm ±30mm Remark: Can be customized, the height adjustment range of each machine: ±50mm	Power consumption (W)	8000
Air consumption(MPA)	5-6	power supply	Three phase 380V 50Hz According to local voltage in different countries, can add voltage transformer after customer told us about the local voltage.

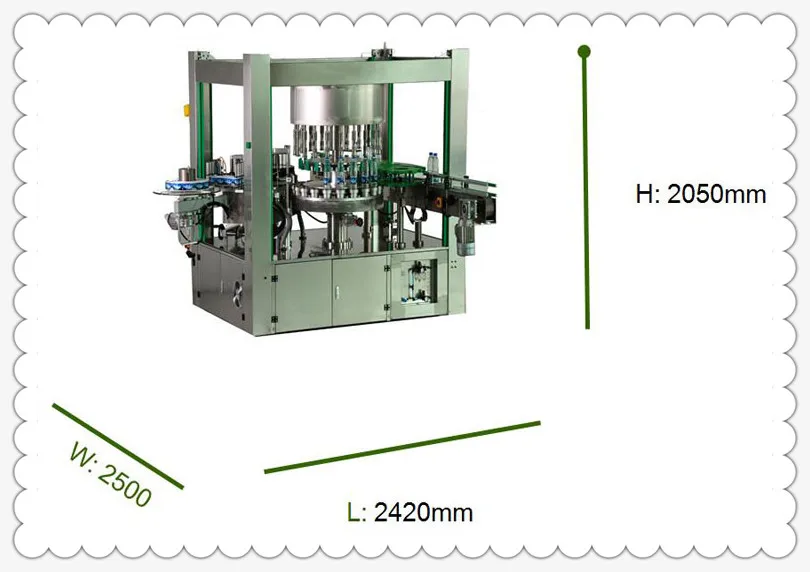

Machine net size(L*W*H)	2420*2500*2050mm	Machine net weight	About 3000kg

Detailed Images

BOTTLE MOLD

For each set of machinery, we will provide a complete set of molds for free. If there are many styles of bottles, we can make more molds according to the specific size of the bottle (price calculated separately. can be replaced when change bottles.

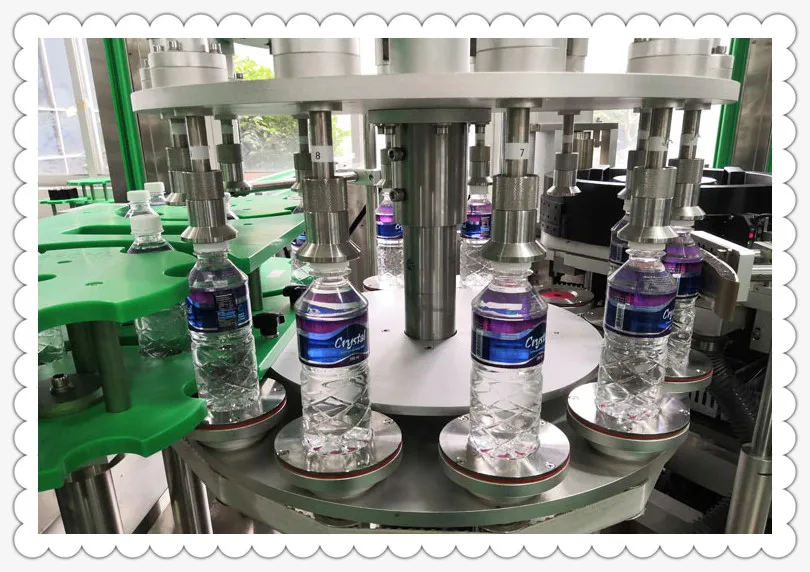

IN/OUT OF THE BOTTLE METHOD

In/out of the bottle star wheel, the spacing of the bottles can be separated, the bottle can be smoothly inserted/exited, and the labeling efficiency can be improved to smoothly complete the labeling.

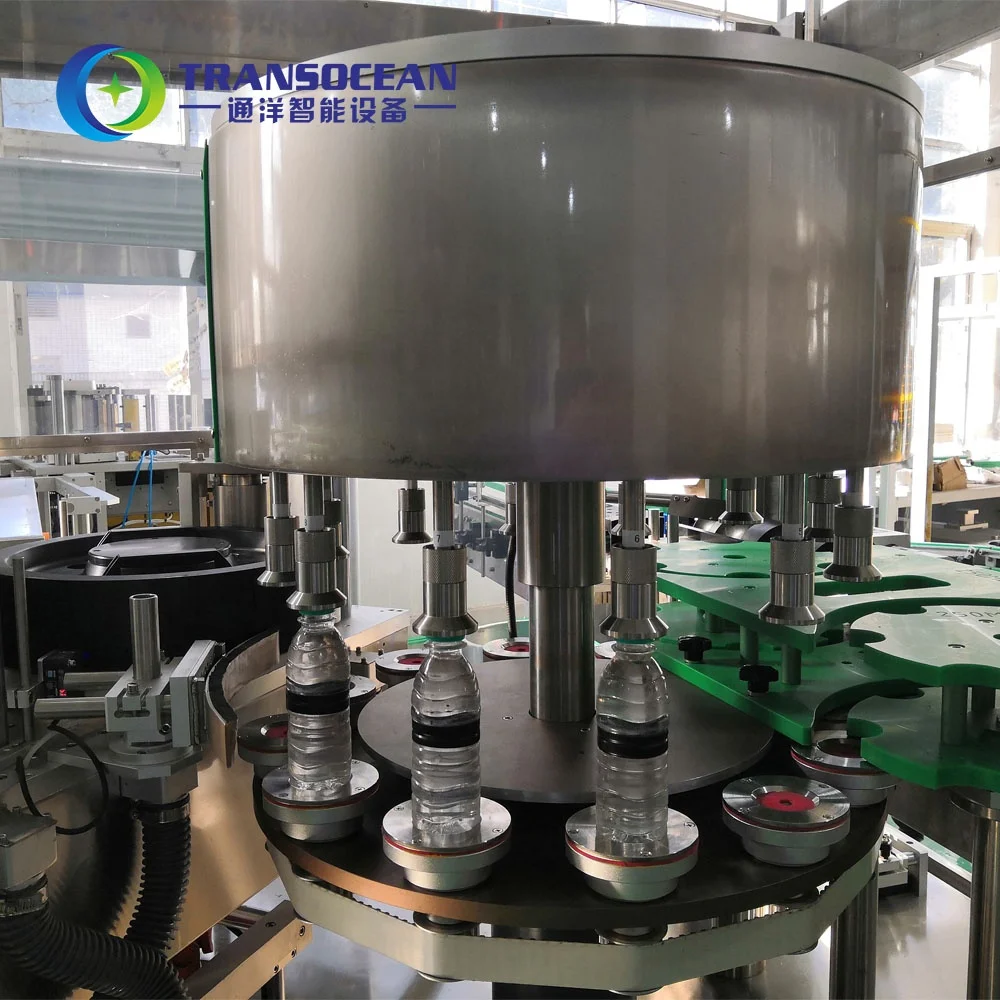

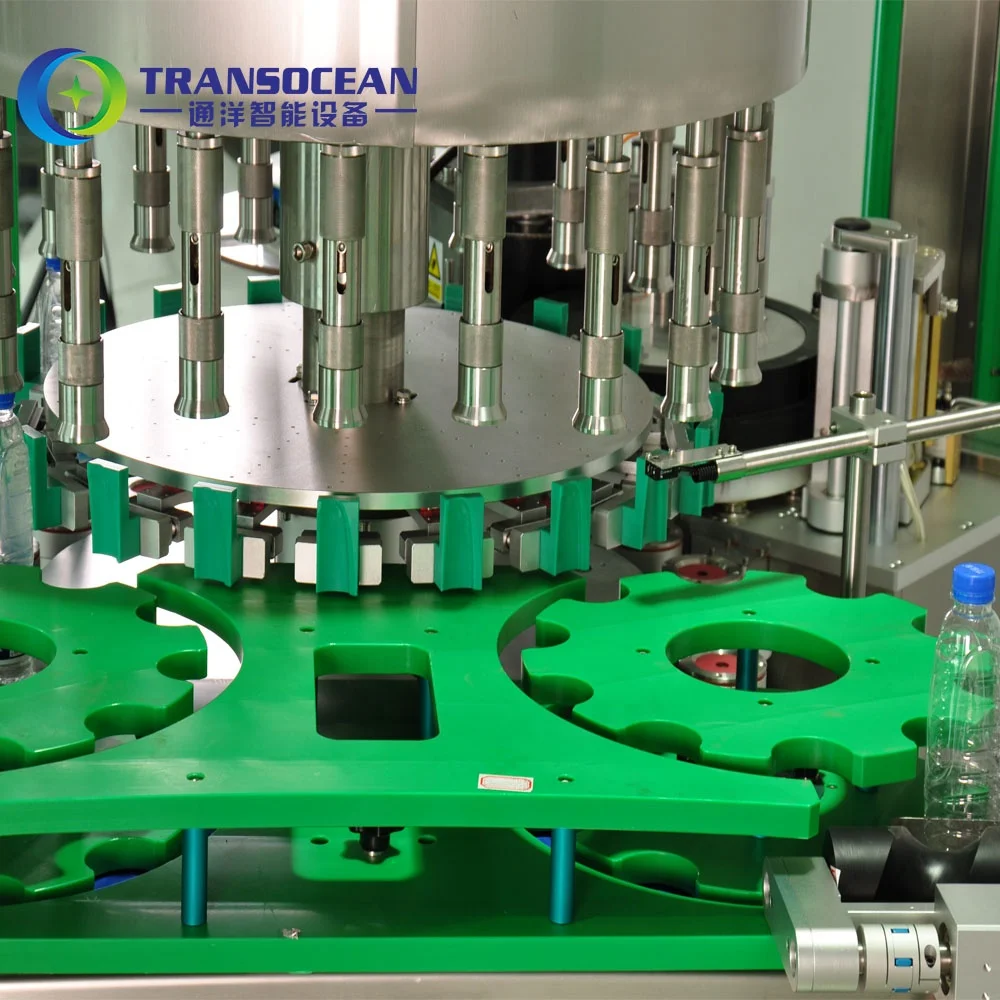

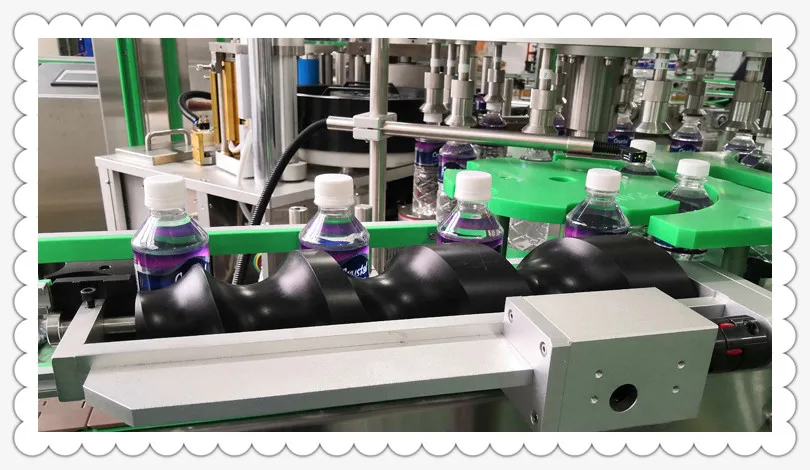

SCREW AND STAR WHEEL COOPERATE IN AND OUT BOTTLES

Adopts for screw and star wheel cooperate in and out bottles, ensure high speed operation, products smooth and stable.

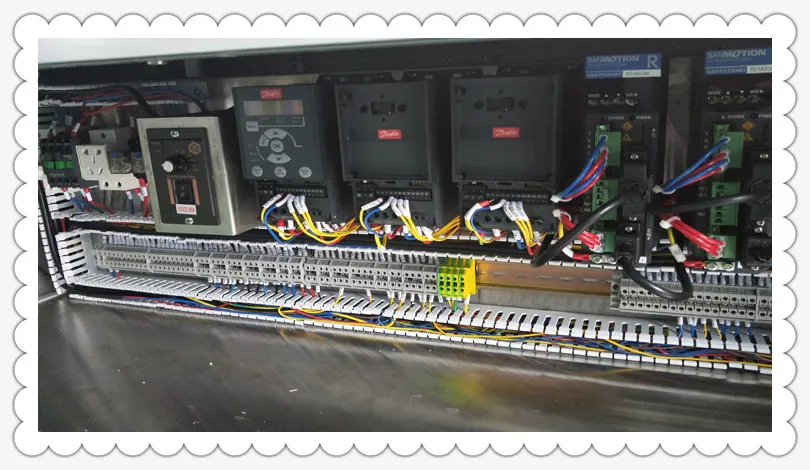

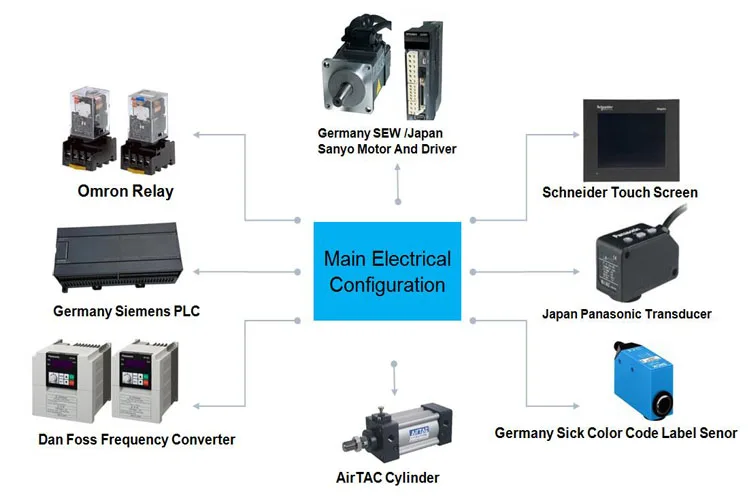

IMPORTED ELECTRICAL COMPONENTS

German Siemens and other World Brand imported electrical components to ensure the long-term stability and reliability of the machine;

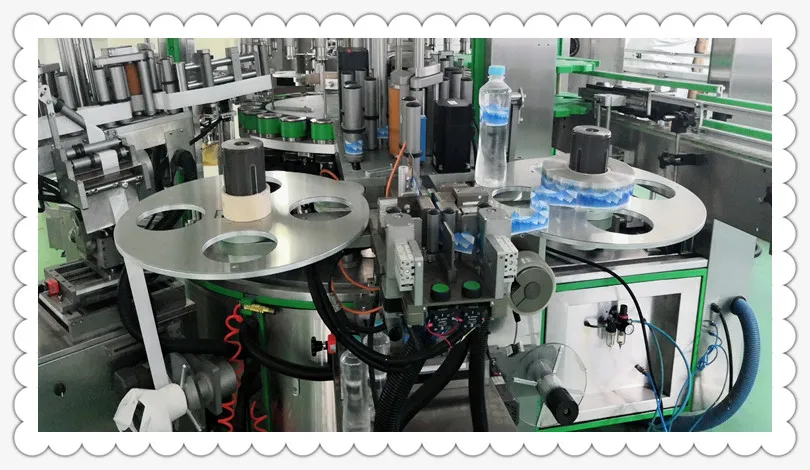

LABEL FEEDING SYSTEM

Using German high-speed servomotor and controller for label feeding system to make sure high-speed of accuracy and stable label cutting and feeding.

TOUCH SCREEN IN ENGLISH

Imported PLC control system, colorful touch screen, easy operation, intuitionist and efficient, with auto warning protection function to minimize loss. Multiple language for choice.

EMERGENCY STOP SWITCH

Mobile emergency stop switch for quick and easy operation

AIR FILTER

Filter the moisture in the air, when working in machinery, it is need to connect the air compressor, and the working air pressure is 6KG-8L/min.

PACKING SIZE

Host packaging: 3060*1390*1200mm

Control box and others: 1520*1960*2200mm
GW: 6000kg

Available function(customized type)

Automatic connection label mechanism

In the case of non-stop machinery,can replace the new label roll.

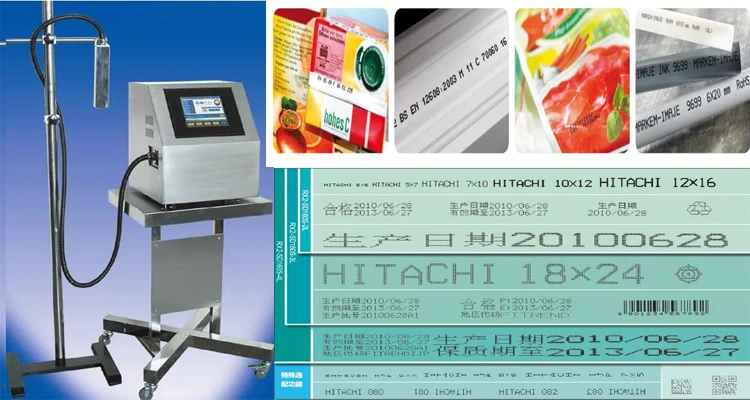

INKJET PRINTER

Can match production line printing: MFD (manufacture date), EXD (expiry date) and BATCH (batch lot) serial number, etc.

Payment terms and service

PAYMENT TERMS.
L/C at sight, T/T, alibaba trade assurance(BOLETO, Mastercard, Visa, e-Checking, PAYLATER). 40% deposit, 60% balance pay before
send out the good or see the scan bill of lading.

PRE-SALES SERVICE
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
AFTER-SALES SERVICE
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.

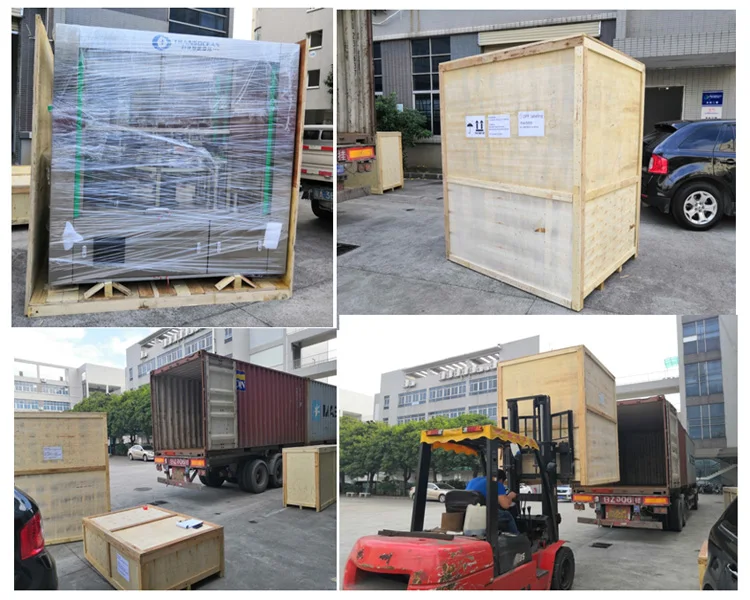

Packing & Shipping

Packing.
Export wooden box

1) Deduct & Cleaning
2) Lubricate Drive Parts

3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules Into Plywood Cases
6)mark Shipping Mark In The Cases if Any Special Requirements, We Will Pack It As Requested.
Shipping.
Upon receipt of payment , delivery date will be in 30-60 days,
By Air, by Sea or by Express (DHL etc),
Shipment cost will depend on the destination, shipment way and the weight of the goods.
