10kw BLDC Brushless Motor 96V/ 72V
- Category: >>>
- Supplier: Ningbo Jigu Motor Technology Co. Ltd.
Share on (62074833719):
Product Overview
Description

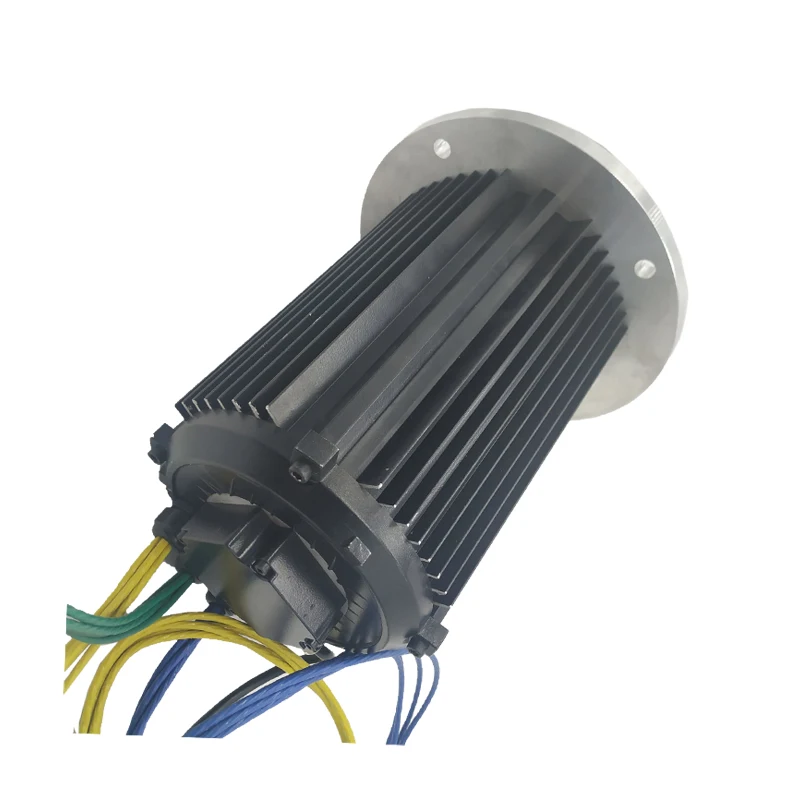

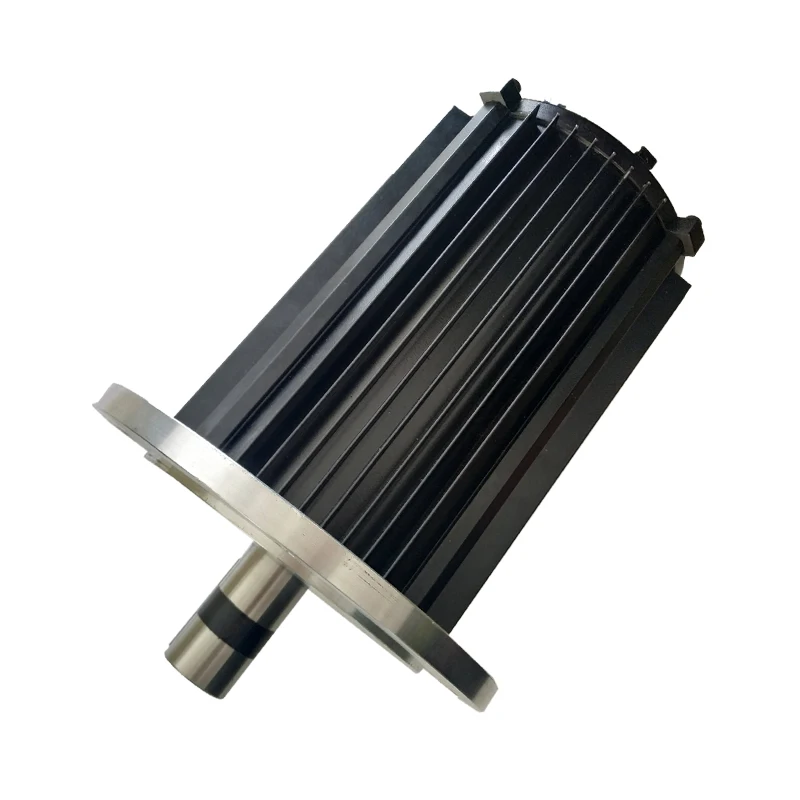

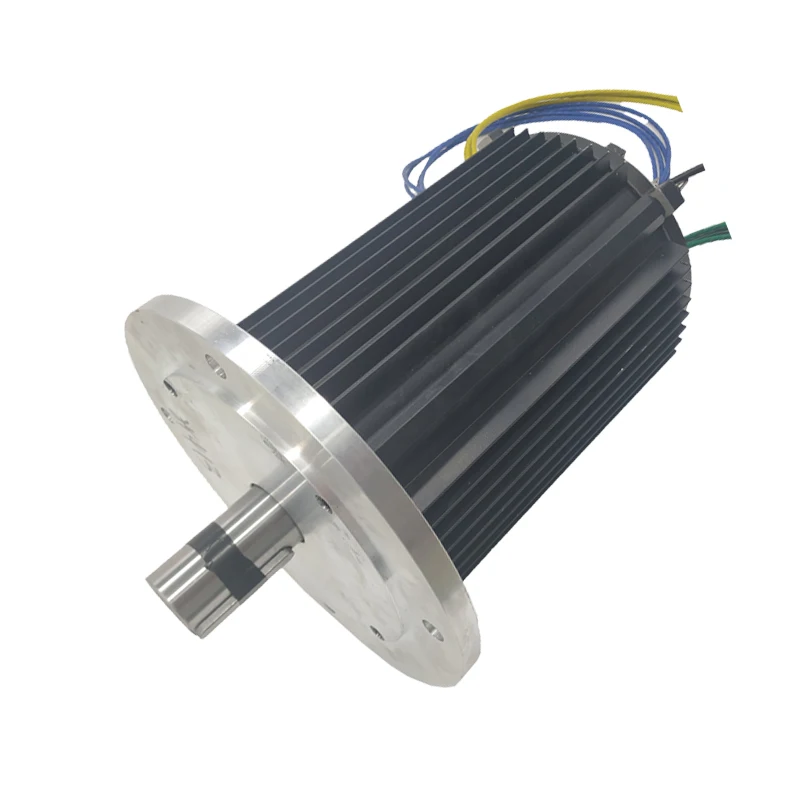

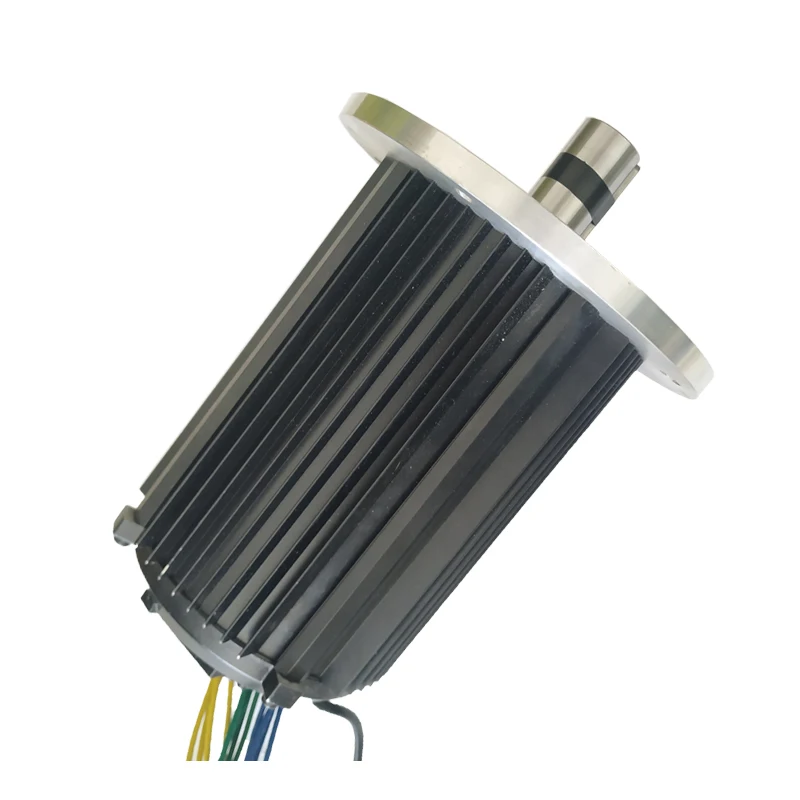

10kw BLDC Brushless Motor 96V/ 72V
Product Overview
| Diameter | Up to 150 (customized) |
| Voltage | 3v 5v 6v 9v 12v 24v 36v 48v 96v 110v to 230v (customized) |
| Speed Range | Up to 8000rpm (customized) |
| Insulation Class | Class "B" or "F" (customized) |
| Type of Production | IP55 (customized) |
| Bearing | Ball or Sleeve (customized) |
| Shaft OD | 5~25mm (customized) |
| Life Time | 50,000 hours (customized) |
Product Description
| Product Name |
BLDC Motor |
| Model No. | 180BLF |
| Voltage | 96 VDC |
| Speed Range | 3000rpm |
| Output Watt |
10kw |
| Protection Class | IP65 |
| Life Time |
5000 hours |
|
Specification |
||||||
|
Item Code: 180BLF |
||||||
|
Rated |
Current(A) |
Input |
Speed |
Torque (N.m) |
Output |
Efficienc(%) |
|
96 |
125 |
11.2 |
3000 |
31 |
9.7 |
87 |
|

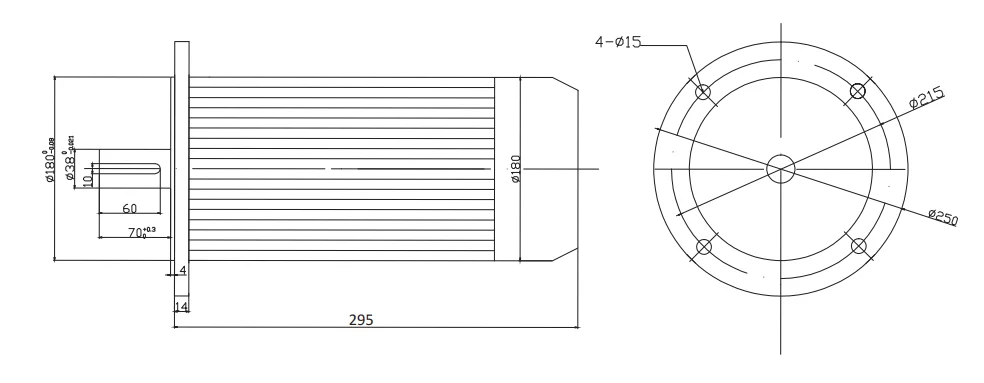

Outline Drawing |
||||||
|
|
||||||
Applications
Customized Solutions
Our Services

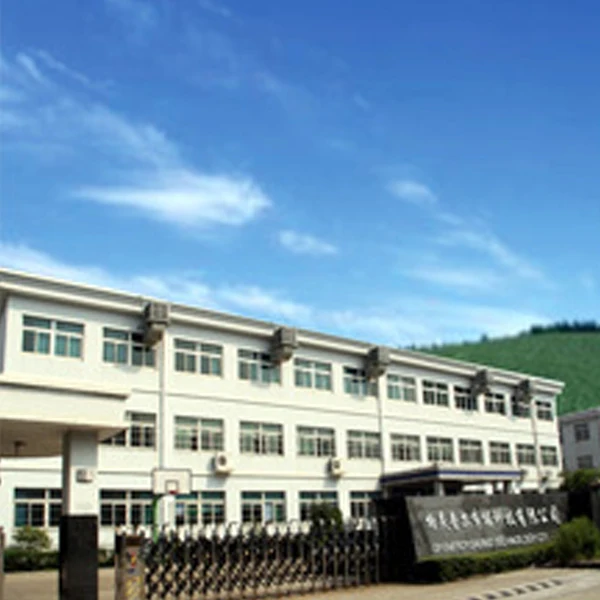

GP Motor has been a sophisticated designer and manufacturer of topnotch custom DC motors, Brushless Motors, Gear Motors, Motor Drivers, etc. for different applications since 1991.All of our custom electric motors are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing plant located in Ningbo, Zhejiang.
