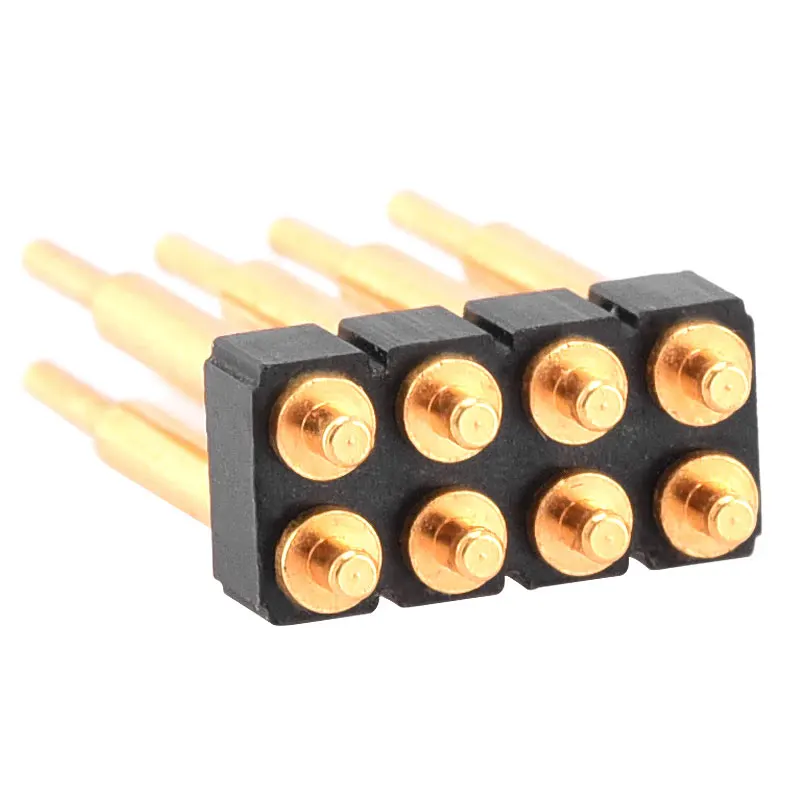

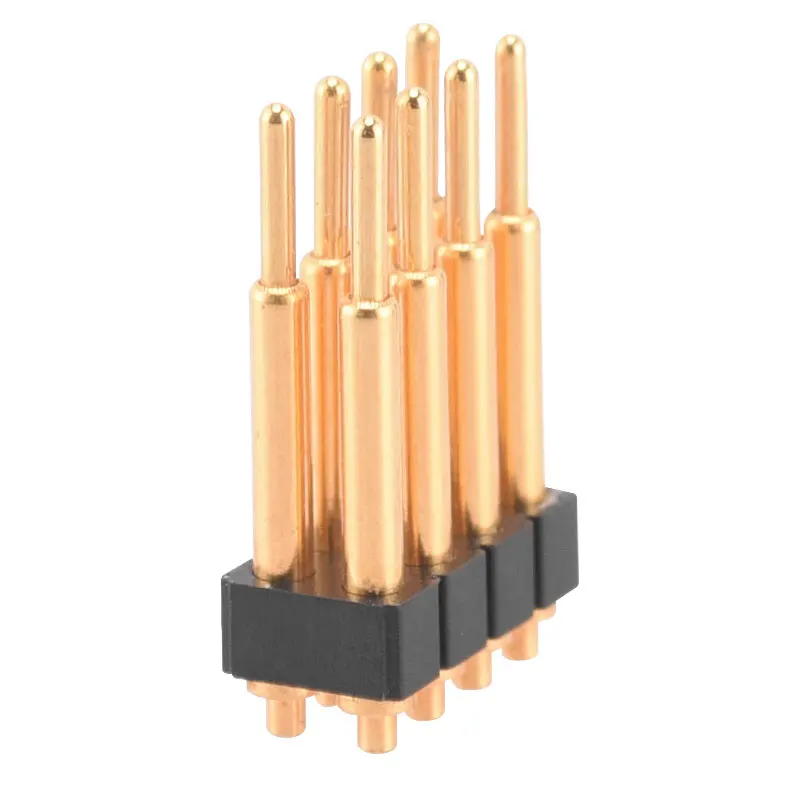

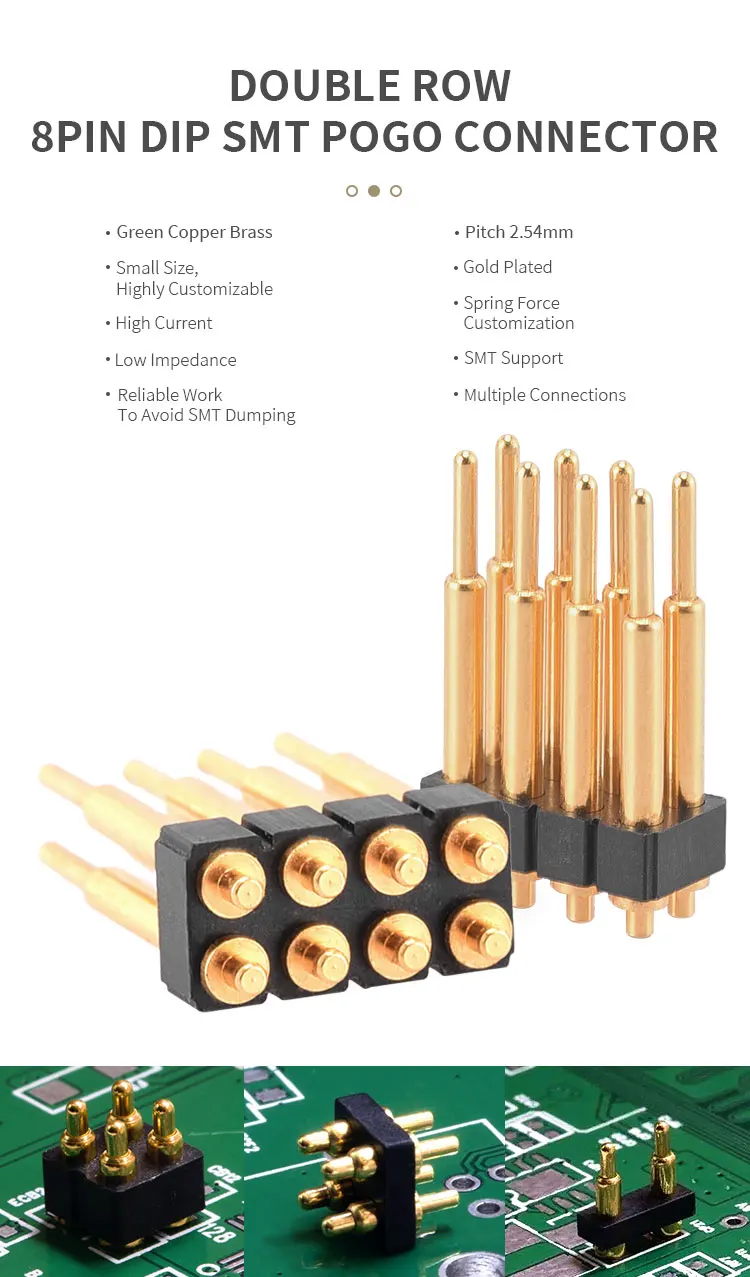

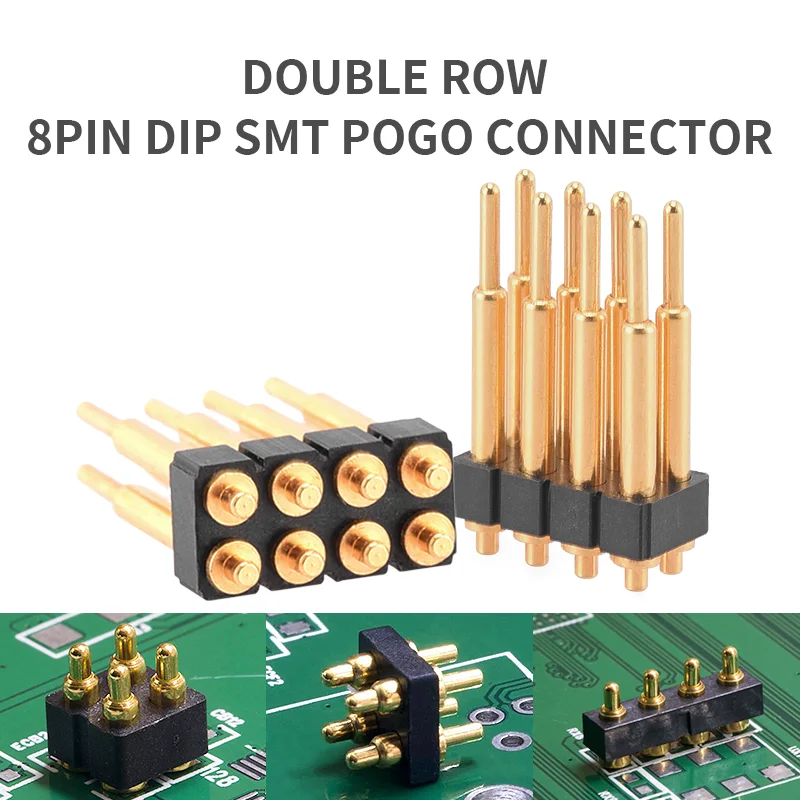

8Pin Double Row Customize Length 8 Pin Pitch 2.54mm 5V2A 12V 2A Gold Plated Dip Pogo Pin Contact Height 12mm




A. Electrical
1) Contact resistance
30mOhm Max
2) Voltage rating
12V DC Max
3) Current rating
2.0A
B. Material/Finish

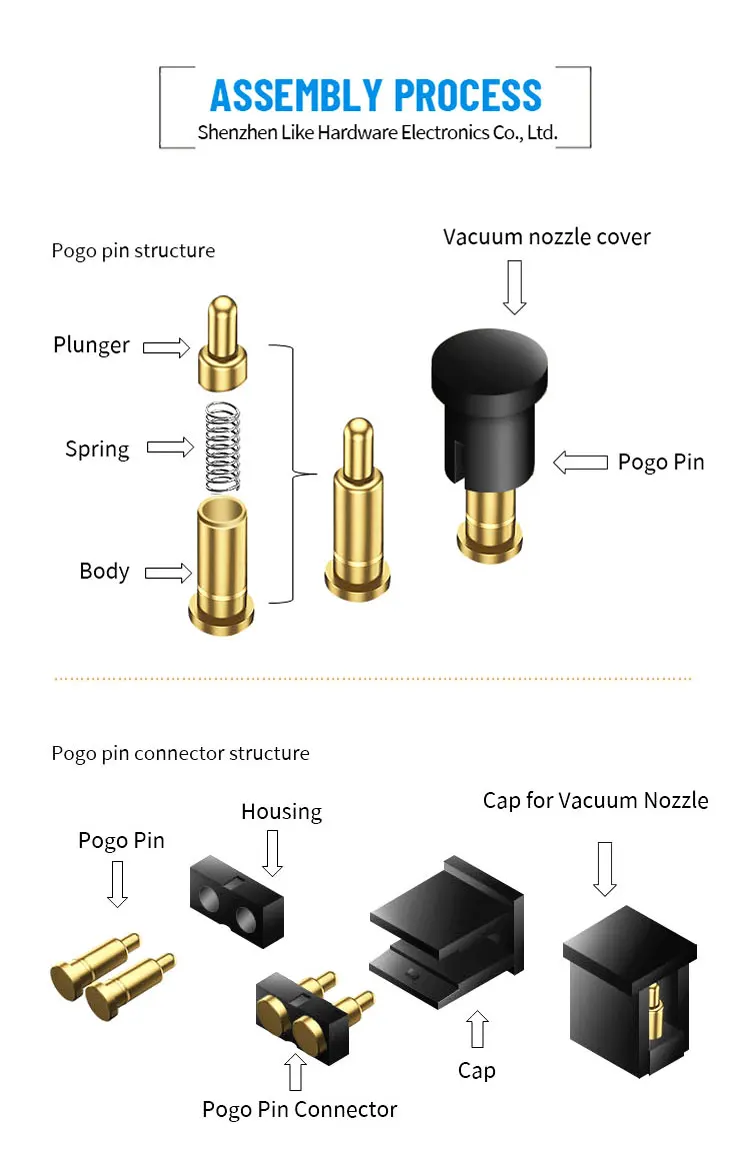

1) Body&Plunger
Green copper brass，Gold plating over Nickel plating
2) Spring
SUS 304，No plating
3) Housing&Cap
PA46+30% glass fiber; Black(UL94V-0)
C. Mechanical
1) Mechanical life:
10,000 cycle min.
2) Plunger swing angle
±5° Max.
D. Environmental
1) Storage and operating temperature range
-40°C~+85°C
2) Humidity range
10% RH to 95% RH
3) Salt spray
48H
4) High temperature resistance
260℃ ,3 minutes


Details Images

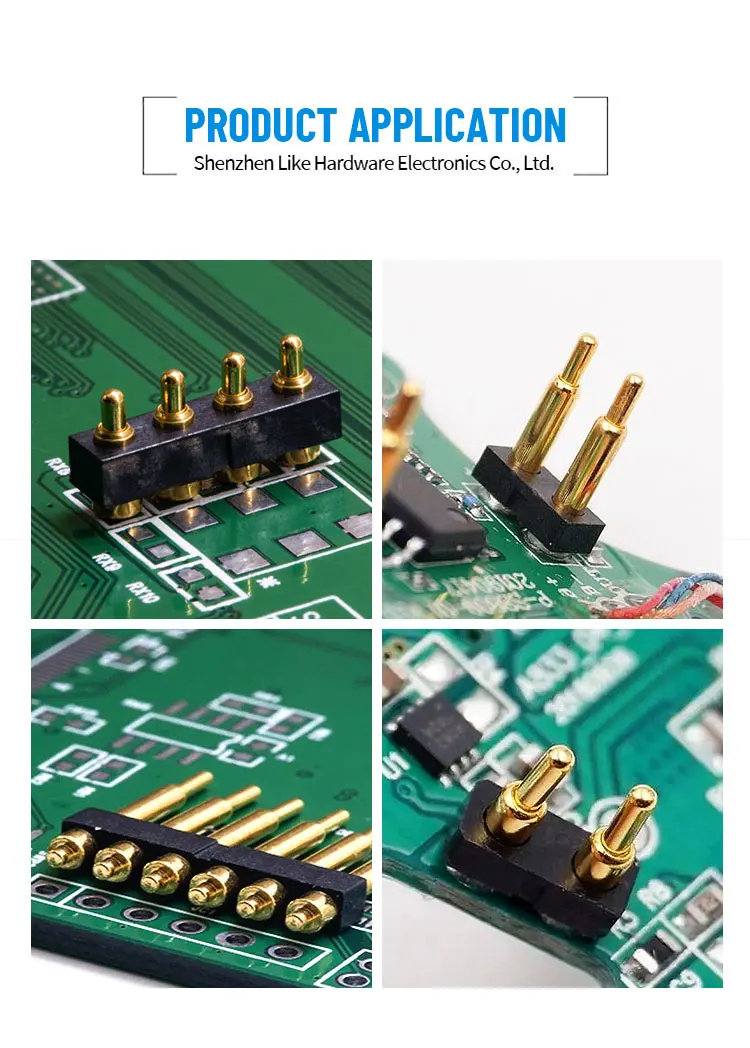

Product Application

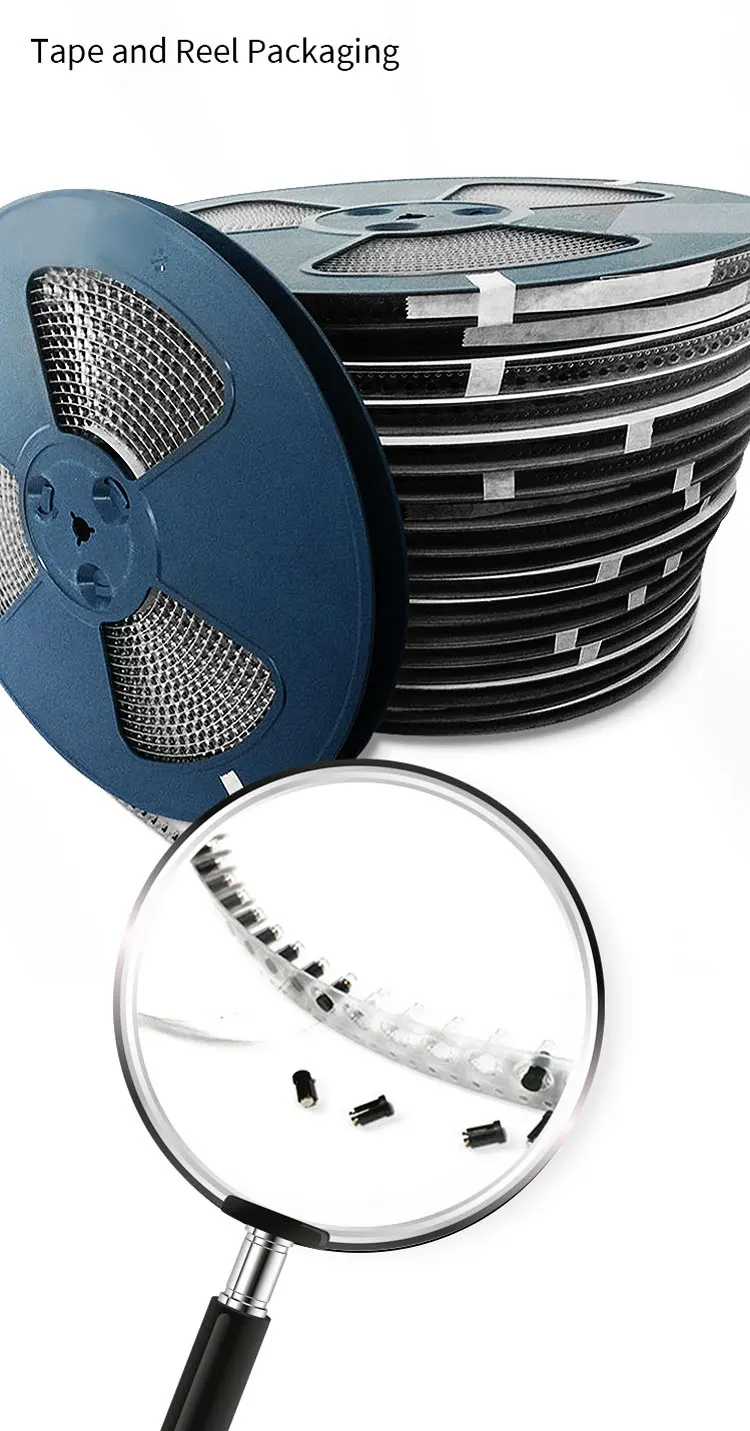

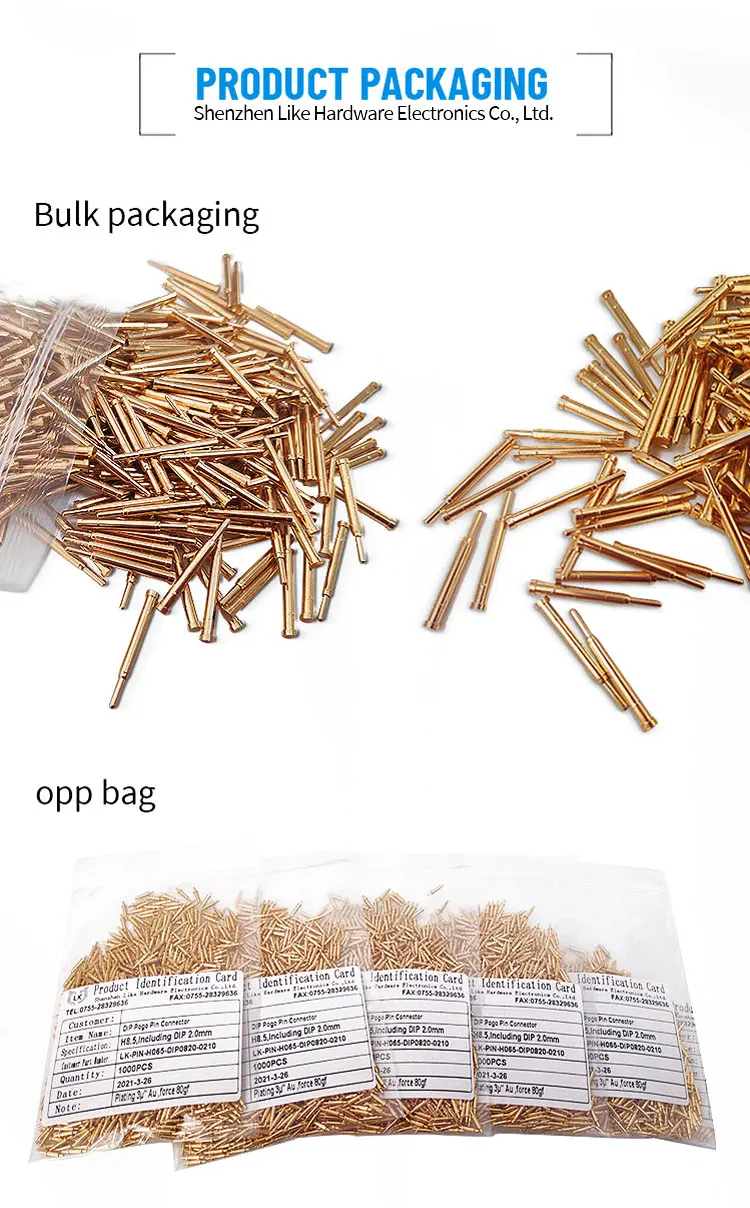

Packing & Delivery






Company Profile

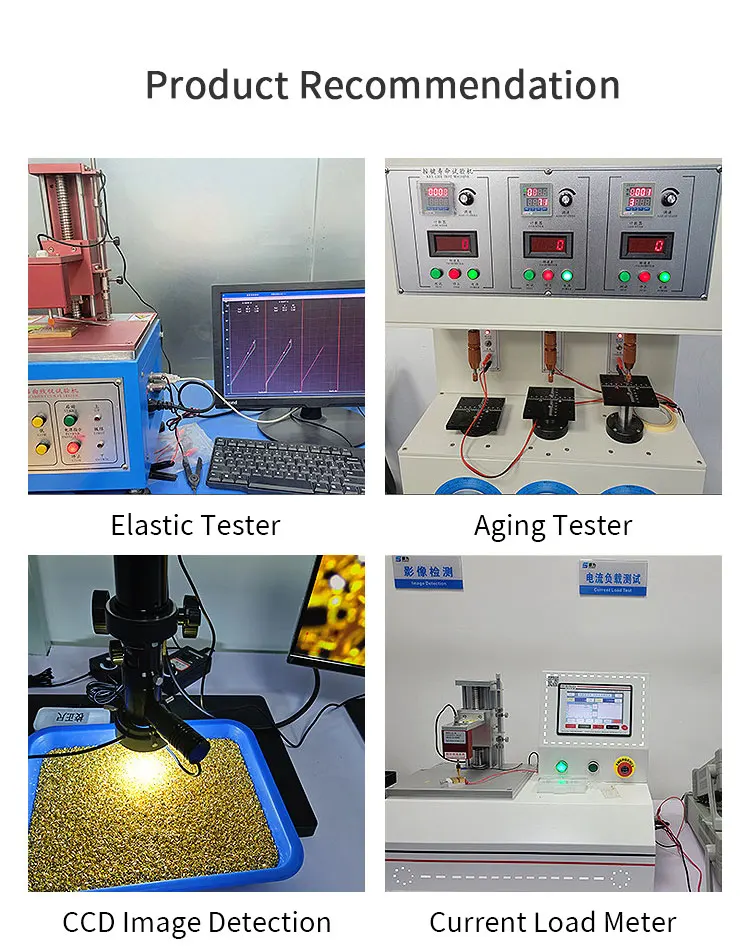

Factory Workshop
