YL 2A Table Top Tablet Capsule Counting Machine

Product Overview

Description

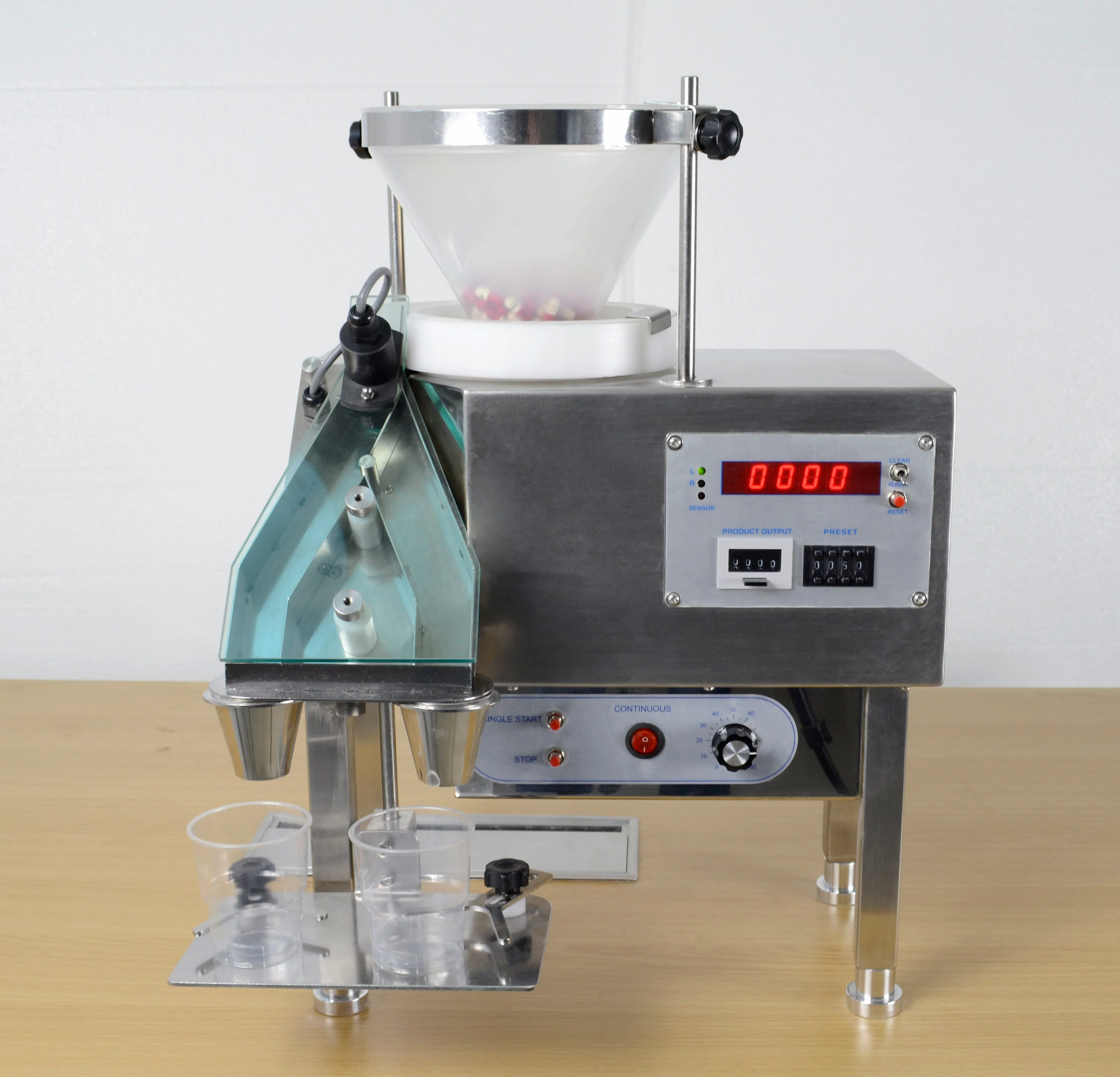

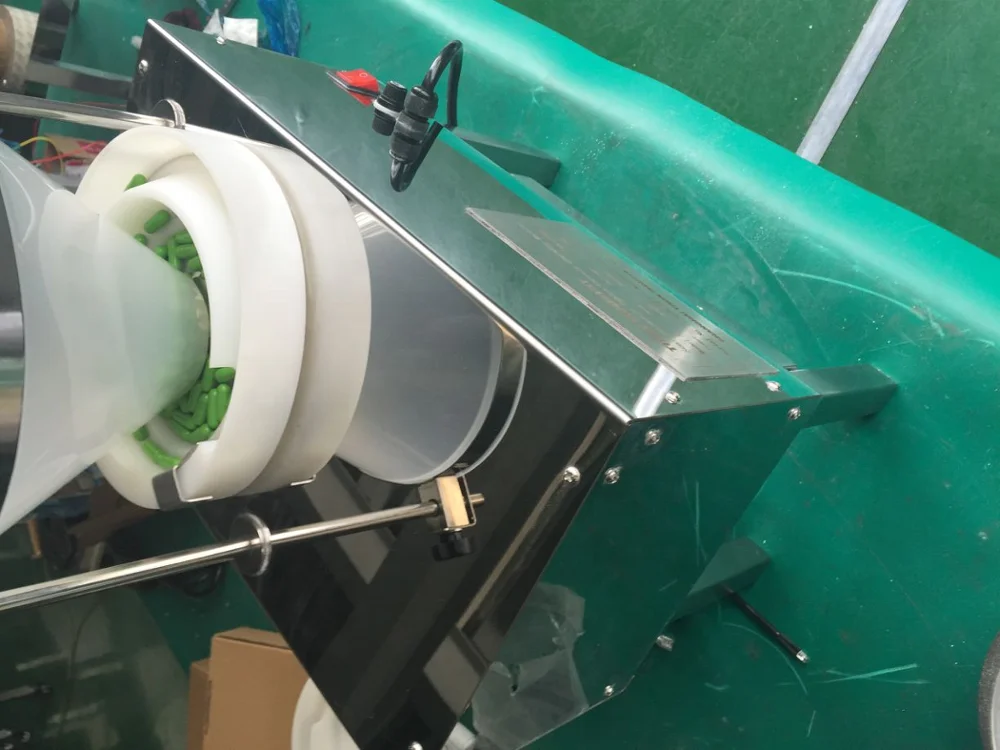

YL-2A Table Top Tablet Capsule Counting Machine









Specification	YL-2A
Size	440*370*580mm
Voltage	110-220V,50HZ-60HZ
weight	20kg
Power	100W
Counting speed	500-1500pcs/min

















Remark: counting speed

for diameter 11mm , thickness 5mm tablet is 1100pcs/min

Can’t be applied for soft gelatin

Size 1# Hard Capsule 0.4g/pcs ,

Operation Step:



1. Check that there are no other medicines or sundries in the entire tray.

2. Pour the medicine into the dish, not too full.

3. The cutting tube is inserted into the plastic bag.

4. Adjust the height of the lifting plate.

5. Turn on the power switch and check if the sensitivity display is normal (sensitivity adjustment reference troubleshooting).

6. Set the quantity, if the inventory is set to 1000 or more.

7. The number is zeroed.

8. Turn on the vibration switch, adjust the vibration, and pay attention to whether the medicine particles on the whole array are arranged one by one, and do not overlap.

9. When the number of pills is finished, the other side will be automatically counted.

10. Please pay attention to whether the sensitivity indicator light flashes normally during operation, and check it at any time. If there is any abnormality, stop it immediately.

11. When the medicine is poured into the dish, it should not be too much at the time, so as to avoid overlapping of the entire track, and the counting is not accurate.

12. Avoid placing it in the window, outdoors, or in the sun.
