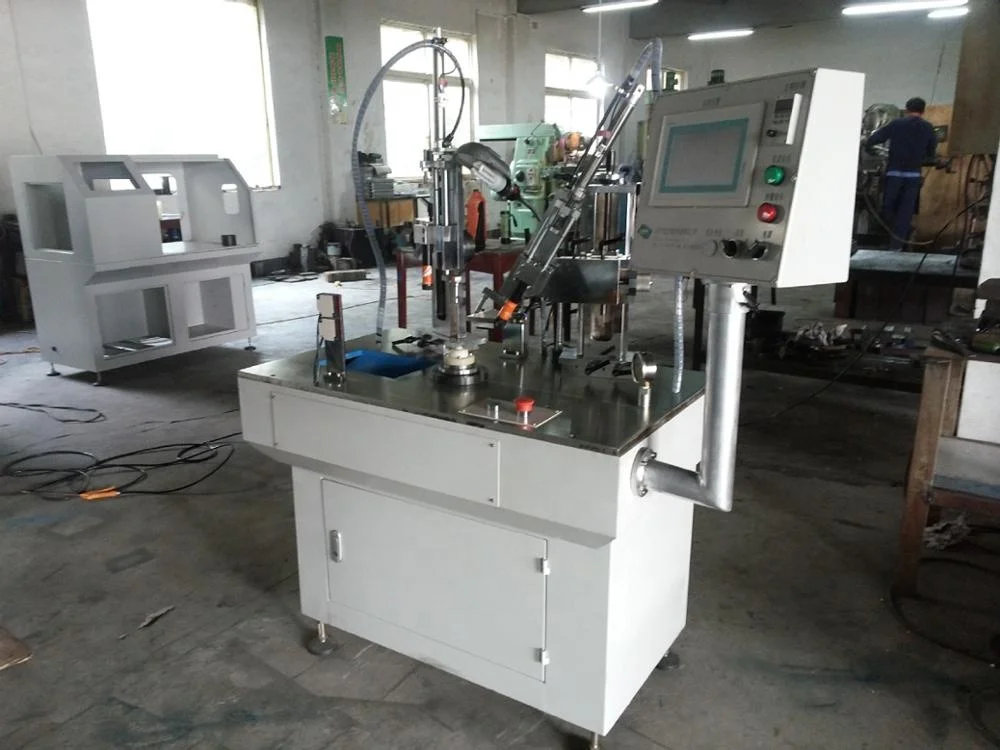

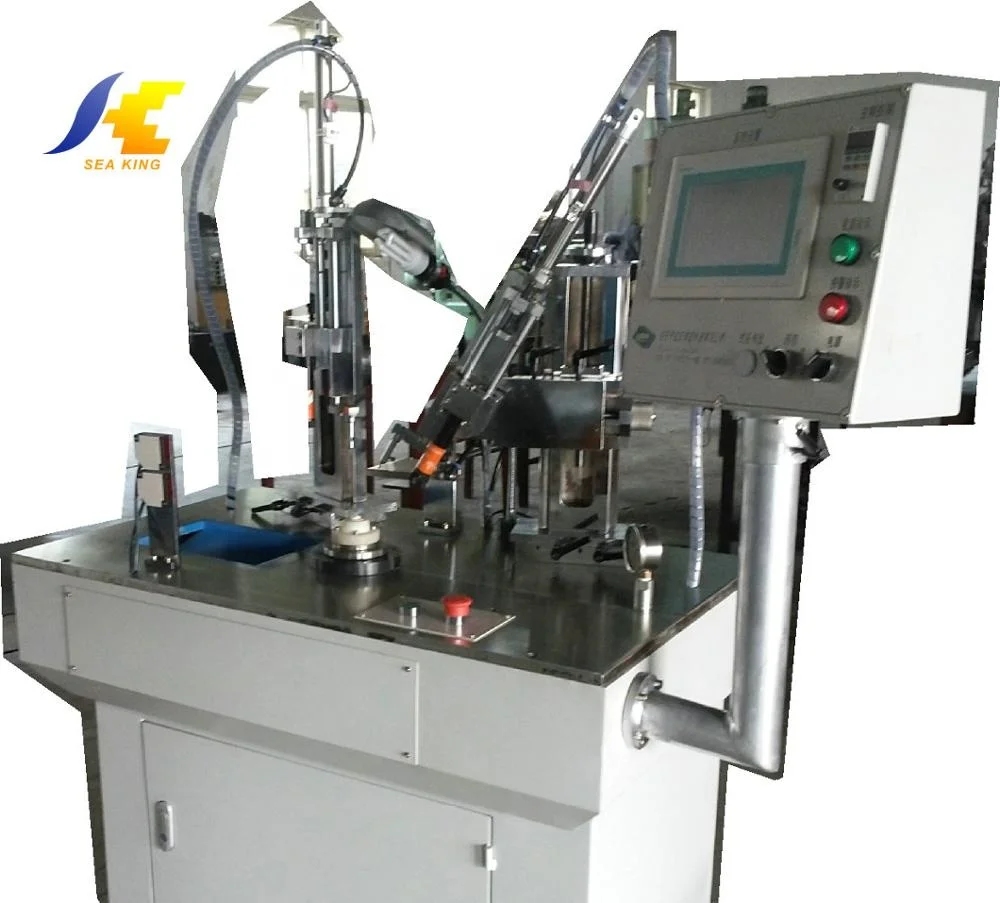

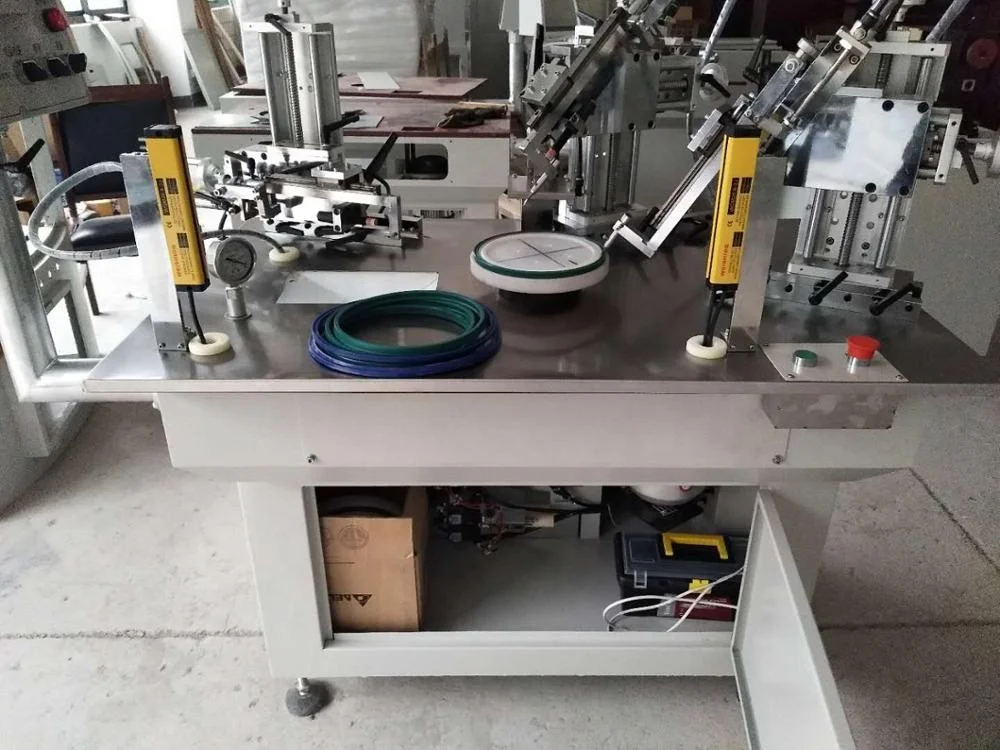

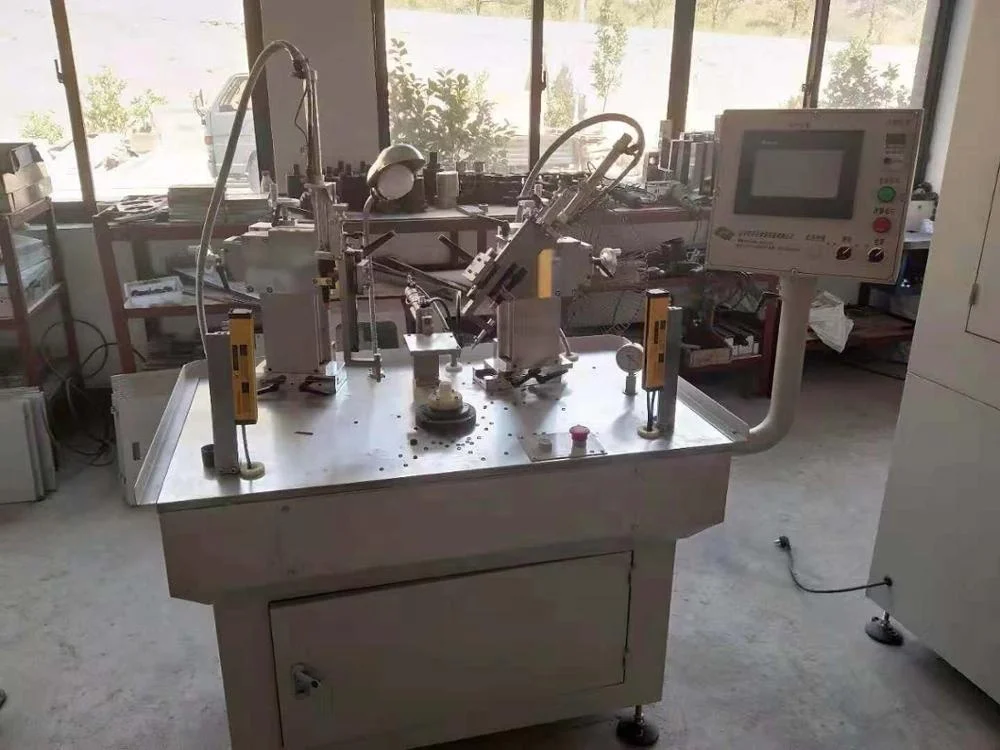

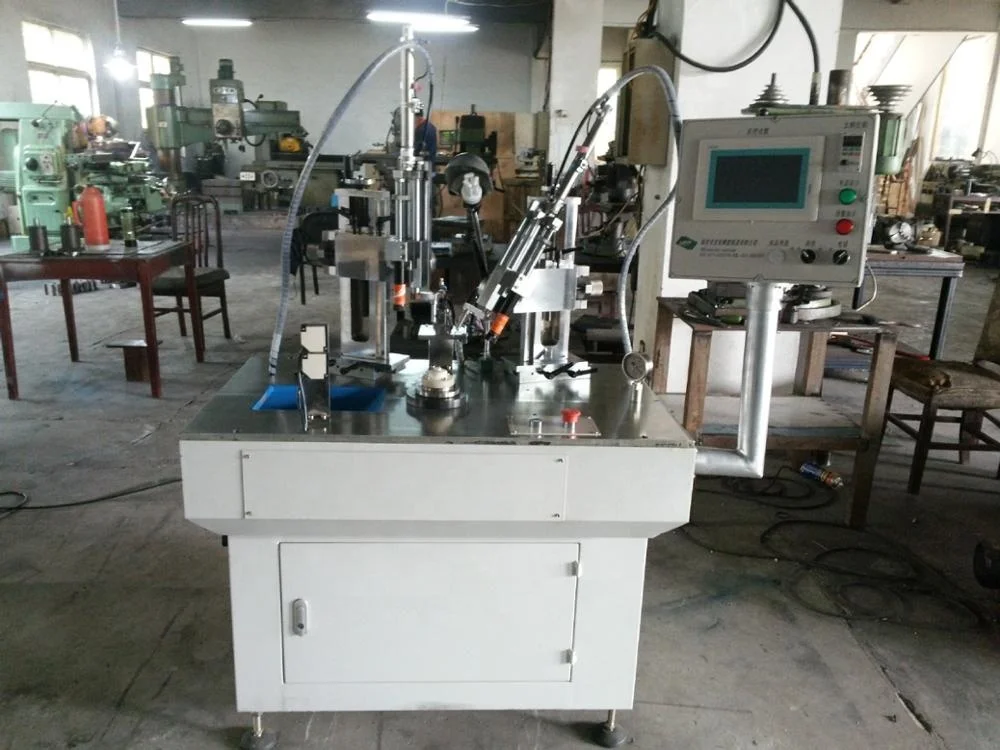

Automatic oil seal and O ring trimming machine

application

     All kinds of skeleton oil seals, non-frame oil seals, all kinds of cups, pressing parts and all rubber and plastic products that can not be clamped by round and soft body.



Characteristics

  1. Reasonable structure, advanced design and convenient operation. High production efficiency is one of the more advanced trimming equipment.

  2. This machine is composed of chassis, headstock, left and right tool holders, conveying, transmission, electric control and other components, and is equipped with photoelectric sensor switch protection to protect the safety of the operator's operation process.



3 LCD user interface (touch screen) control parameters, parameters at a glance, simple and clear, easy to debug and operate.



4 system with programmable controller control, free to choose manual and automatic and cyclic automatic mode operation. This machine can be cut vertically or horizontally with single or double knives. It can also be combined vertically and horizontally. The combination of vertical and angle can be adjusted according to the shape of the product.



5 cutting range can reach 0---250mm, flat cutting can reach 0-160mm, the cutting angle is larger and horizontal. Cut at a vertical angle. Achieve -10-100 degree cutting





The main function

     This machine adopts imported programmable controller, and the spindle is equipped with imported frequency converter. According to the diameter of the processed product and the linear speed, the stepless speed change can achieve the ideal process requirements. The liquid crystal display output is convenient and intuitive; the movable parts of the tool holder adopt imported bearings with high precision and reliable operation; the structure of the machine is reasonable and accurate; the volume is small, and it is similar to the computer table. Pneumatic components and actuators are imported products with high quality, increased stability and reduced maintenance. Vacuum suction products are used for stability and versatility. The humanized design of the machine allows the operator to easily complete the workpiece. The processing process has a high degree of automation, that is, it reduces labor intensity and improves production efficiency. It adopts frequency conversion speed regulation and can be adjusted freely in the range of 0~3000r/min to ensure smooth and flat cut. The use of electronic brakes, no noise, no loss, to avoid the inconvenience of the brake pads easy to wear..
