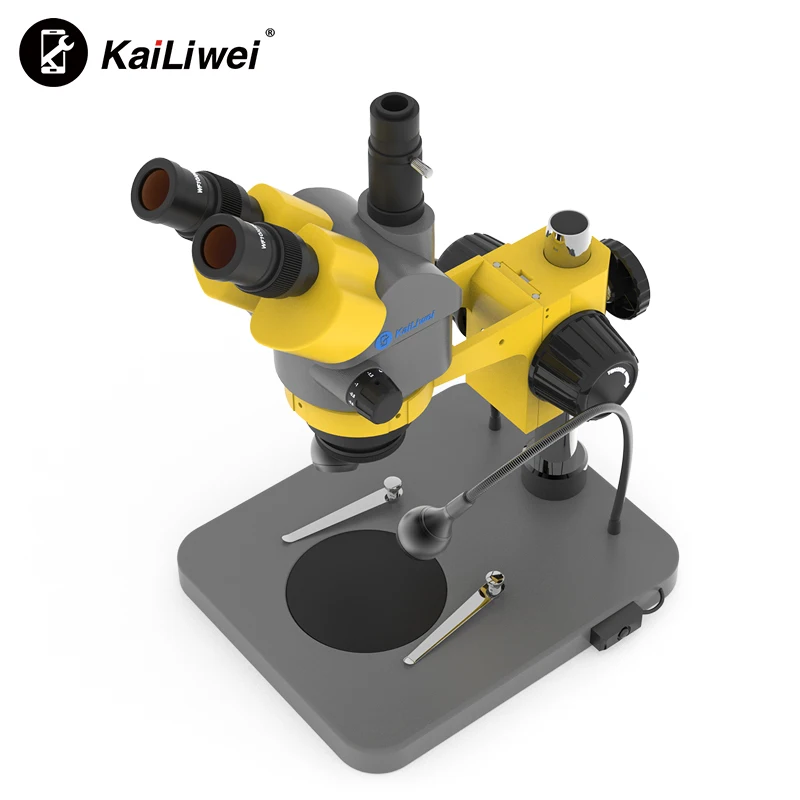

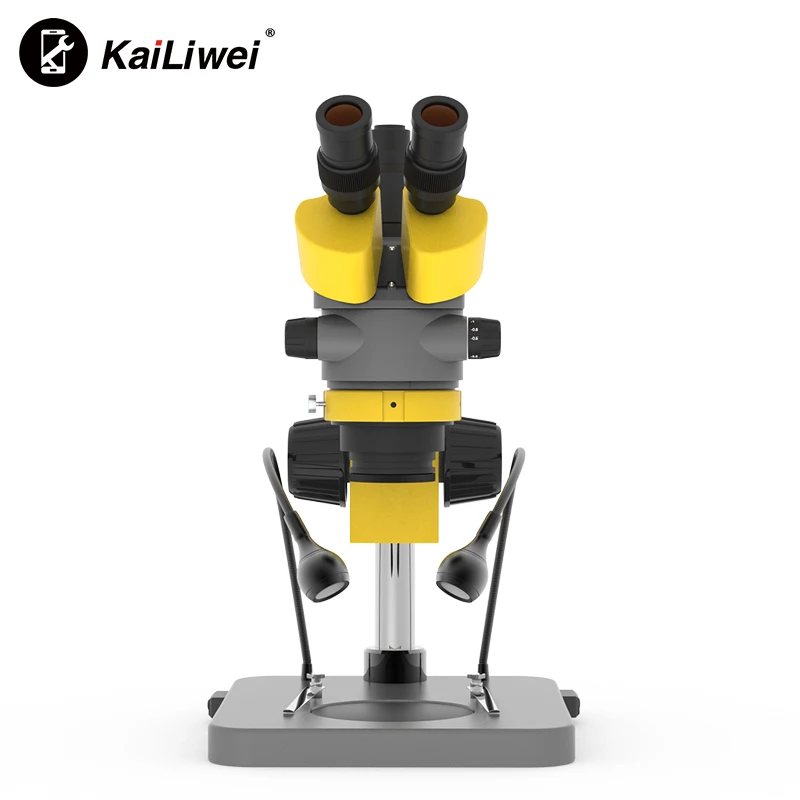

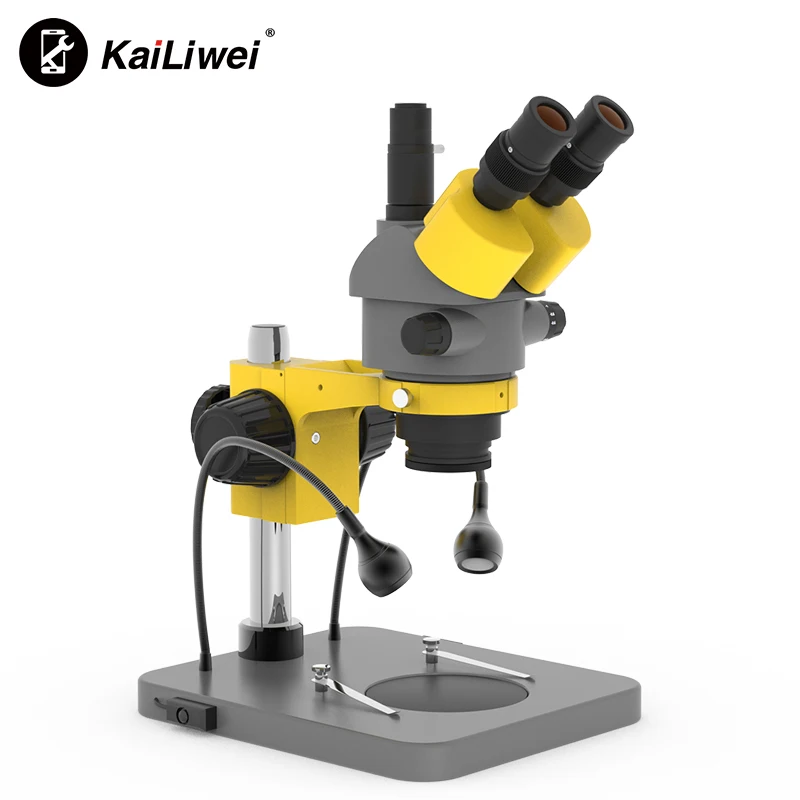

Cheap price 6 55X Continuous zoom Repair Microscope Metallurgical with Double Light Microscope manufacturers
- Category: >>>
- Supplier: Shenzhen Ksl Electronic Equipment Co. Ltd.
Share on (62075350391):
Product Overview
Description
Overview

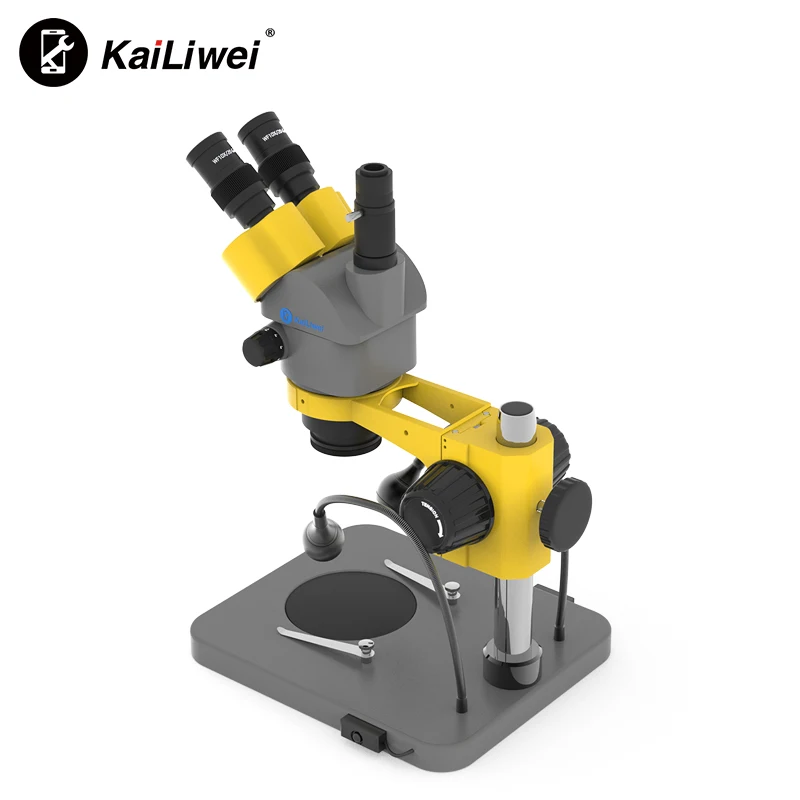

Microscope manufacturers 6-55X Continuous zoom Repair big base Microscope
1.Special design magnification, especially good image. Total magnification(standard outfits): 6X~55X,
2.Extend total magnification:K0655 series:0.22X~ 330X,
3.The working distance is 108mm. extreme good

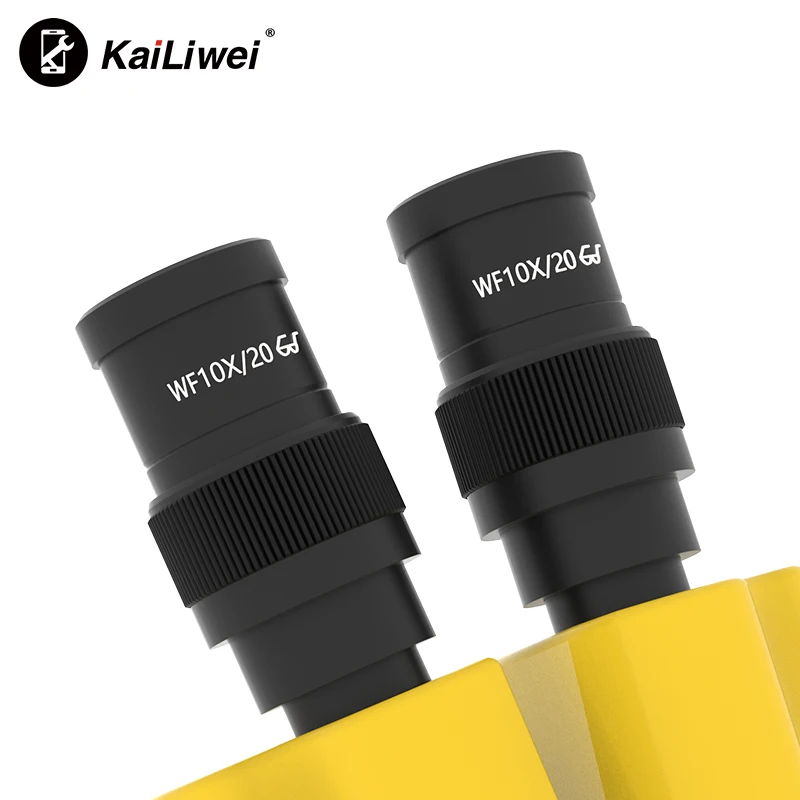

4.With wide field and high eye point eyepiece WF10X/20
5.Trinocular/Binocular drawtubes horizontal inclined 35°and main body can be rotated 360°
6.The range of adjusting the diopter is ±6
7.Interpupillary distance adjustment range 52mm~76mm (Left and right move at the same time)
8.The range of adjusting the focus is 50mm(the square post is 100mm).
9. build in double light, good for repairs
2.Extend total magnification:K0655 series:0.22X~ 330X,
3.The working distance is 108mm. extreme good
4.With wide field and high eye point eyepiece WF10X/20
5.Trinocular/Binocular drawtubes horizontal inclined 35°and main body can be rotated 360°
6.The range of adjusting the diopter is ±6
7.Interpupillary distance adjustment range 52mm~76mm (Left and right move at the same time)
8.The range of adjusting the focus is 50mm(the square post is 100mm).
9. build in double light, good for repairs
Specification
结构

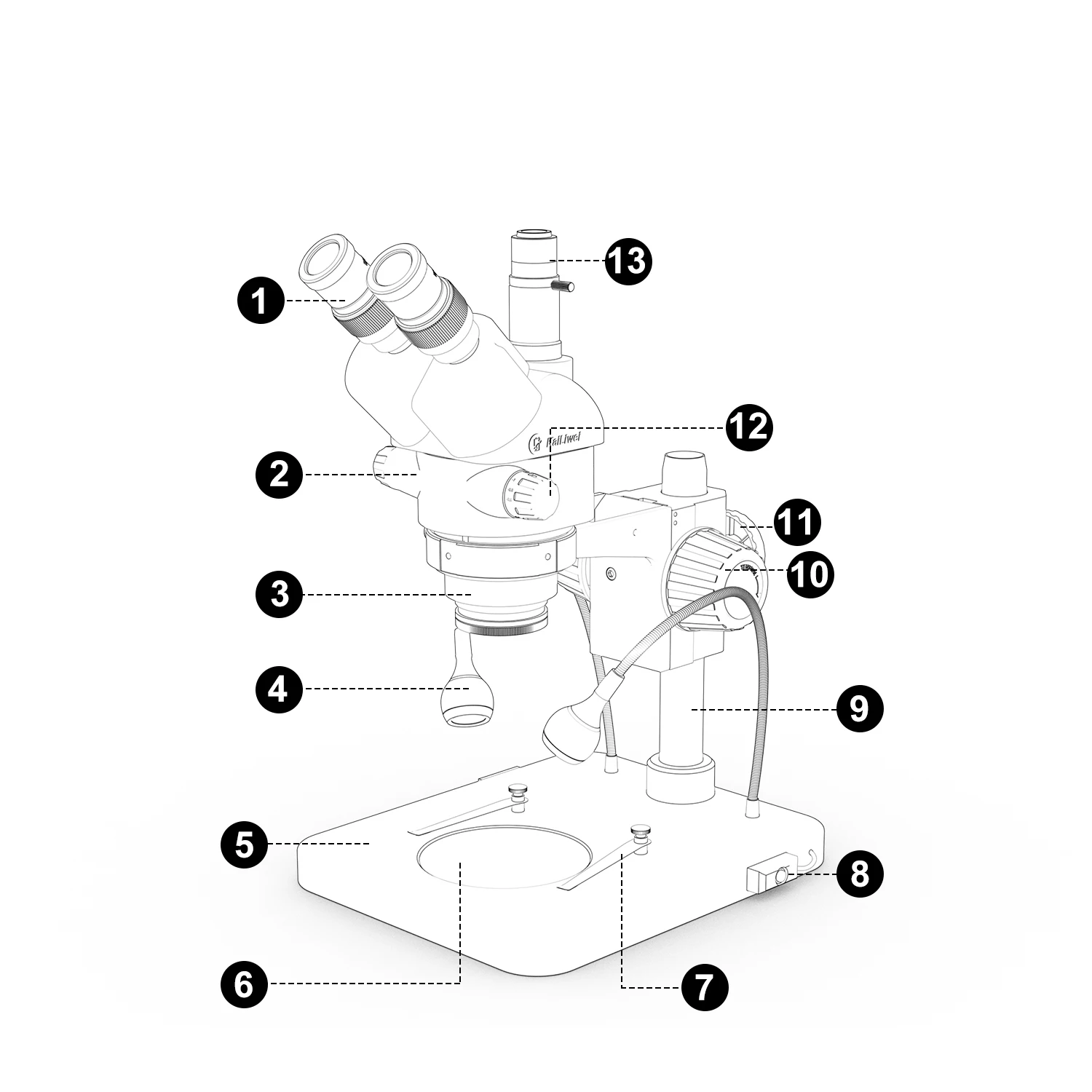

Structure（check below view）
1 Eyepiece目镜
2 Head 显微镜镜体
3 Objective lens 物镜
4 light 灯光
5 BASE 底座
6 black and white plate黑白板
7 Clip夹片
7 Clip夹片
8 The light switch 灯光开关
9 Round Column圆立柱
10 Focusing knob 调焦手轮
11 Up/Down Knob固定旋钮
12 Zoom Control Knob
变焦手轮
变焦手轮
13 Camera adapter
相机适配器

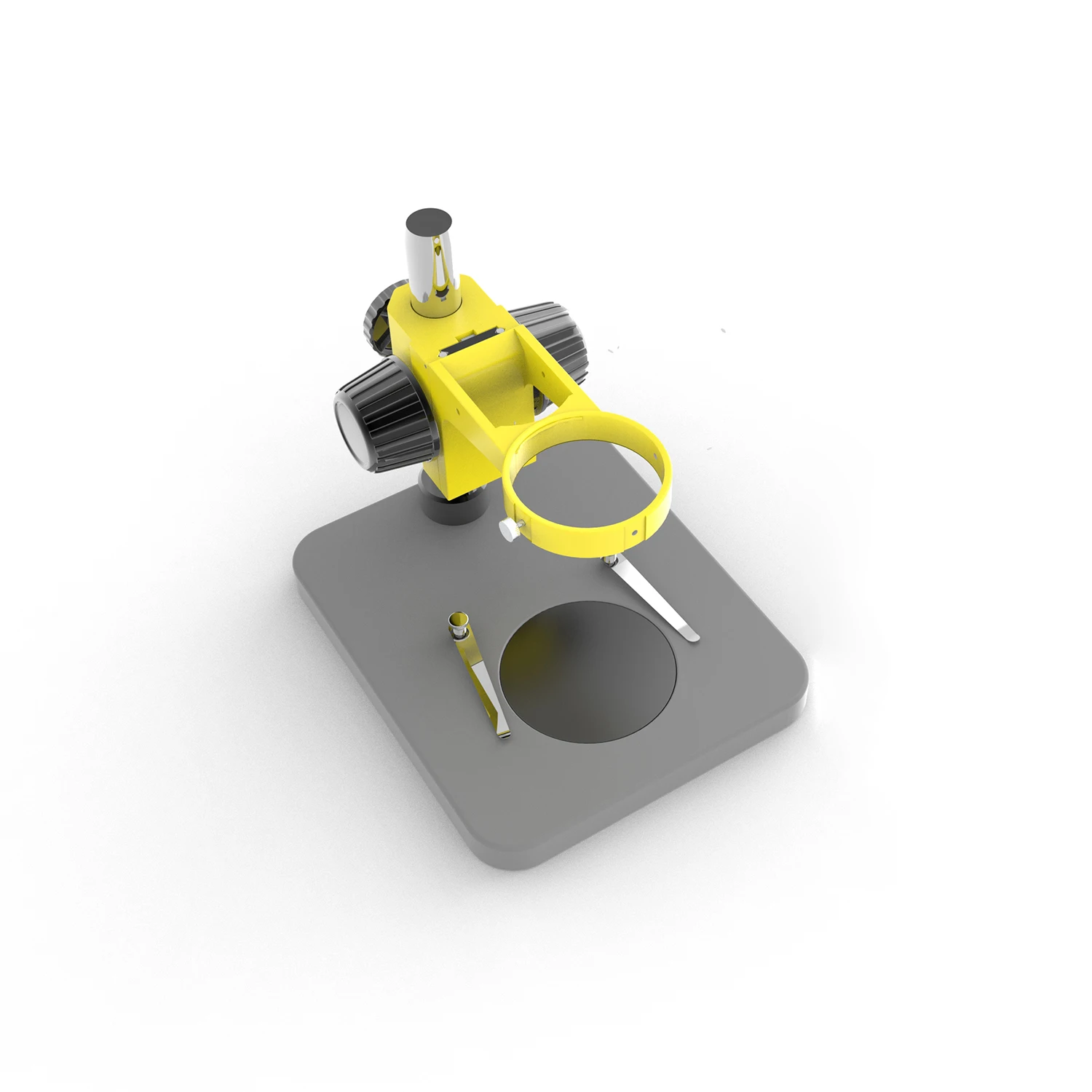

支架参数 Support parameters
立柱孔径：φ32m
Column aperture: Φ32mm
镜体孔径：φ76mm
Lens aperture: Φ76mm
中心距：155mm
Center distance: 155mm
升降范围：50mm
Lifting range: 50mm
底座参数The base parameters
立柱高：240mm
Column height: 240mm
直径：φ32mm
Diameter：φ32mm
配有压片和φ95mm 黑白板
Equipped with pressing tablet and Φ95mm black and white
plate
plate
底座：200x255x22mm
Base: 200 x255x22mm
不同目镜匹配不同同物镜的放大倍率
Different eyepieces match different magnifications of the same objective lens
Eyepiece 目镜 | Standard configuration 标准配置 | 附加大物镜 | ||||||||||||
0.5X | 1.5X | 2X | ||||||||||||
Working distance 工作距离100mm | Working Distance 工作距离165mm | Working Distance 工作距离45mm | Working Distance 工作距离30mm | |||||||||||
Magnification 放大倍率 | Field of View 视场范围 | Magnification 放大倍率 | Field of View 视场范围 | Magnification 放大倍率 | Field of View 视场范围 | Magnification 放大倍率 | Field of View 视场范围 | |||||||
10X/20 | 6X | 33 | 3 | 67 | 9 | 22 | 12 | 17 | ||||||
55X | 4 | 27.5 | 7 | 82.5 | 2 | 110 | 2 | |||||||
15X/15 | 9X | 25 | 4.5 | 50 | 13.5 | 17 | 18 | 13 | ||||||
82.5X | 3 | 41.25 | 5 | 123.75 | 2 | 165 | 1 | |||||||
20X/10 | 12X | 17 | 6 | 33 | 18 | 11 | 24 | 8 | ||||||
110X | 2 | 55 | 4 | 165 | 1 | 220 | 1 | |||||||
Packing list

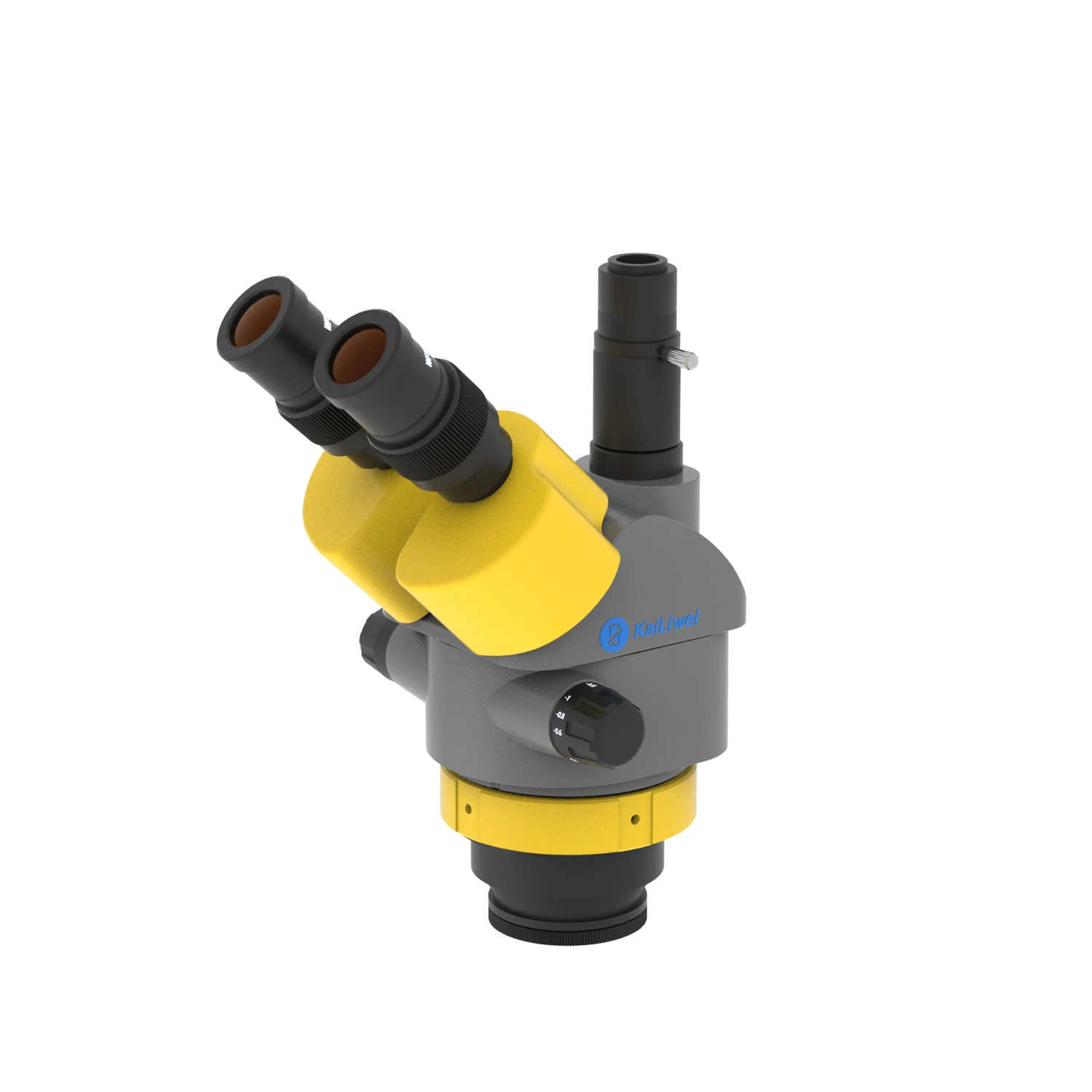

1.One 6x~55x Zoom Stereo Trinocular Microscope Head
2.One Pair of Super Widefield High-Eyepoint WF10X/20 Eyepieces
3.One metal repair pad with anti temperature round table
4.One Focusing Rack
5.One Pair of Eye-guards
6.One Dust Cover
7.double side led ring lights
2.One Pair of Super Widefield High-Eyepoint WF10X/20 Eyepieces
3.One metal repair pad with anti temperature round table
4.One Focusing Rack
5.One Pair of Eye-guards
6.One Dust Cover
7.double side led ring lights
Packing & Delivery
Packing Detail:carton within foam inside or wooden box;
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
Our Services
1.We Will provide you User manual in English or operating videos for free ;
2.24 hours technical support by email or vedio call via wechat or skype;
3. Free training to make sure you master the operating of our products;
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
2.24 hours technical support by email or vedio call via wechat or skype;
3. Free training to make sure you master the operating of our products;
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
