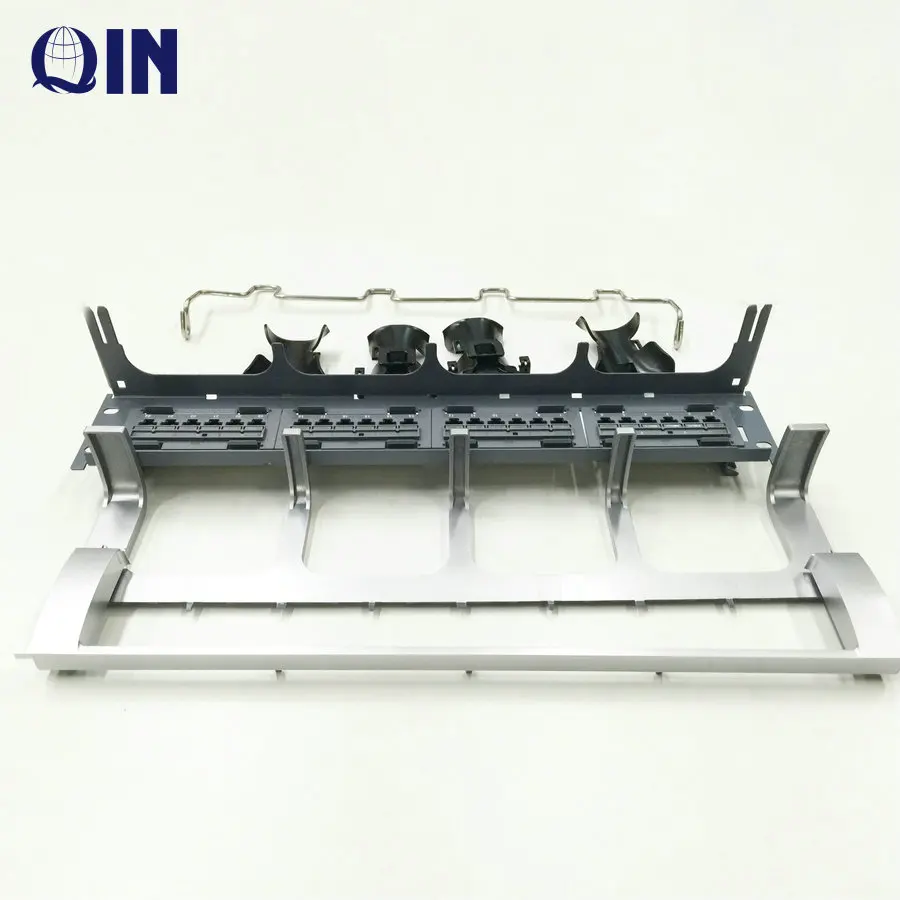

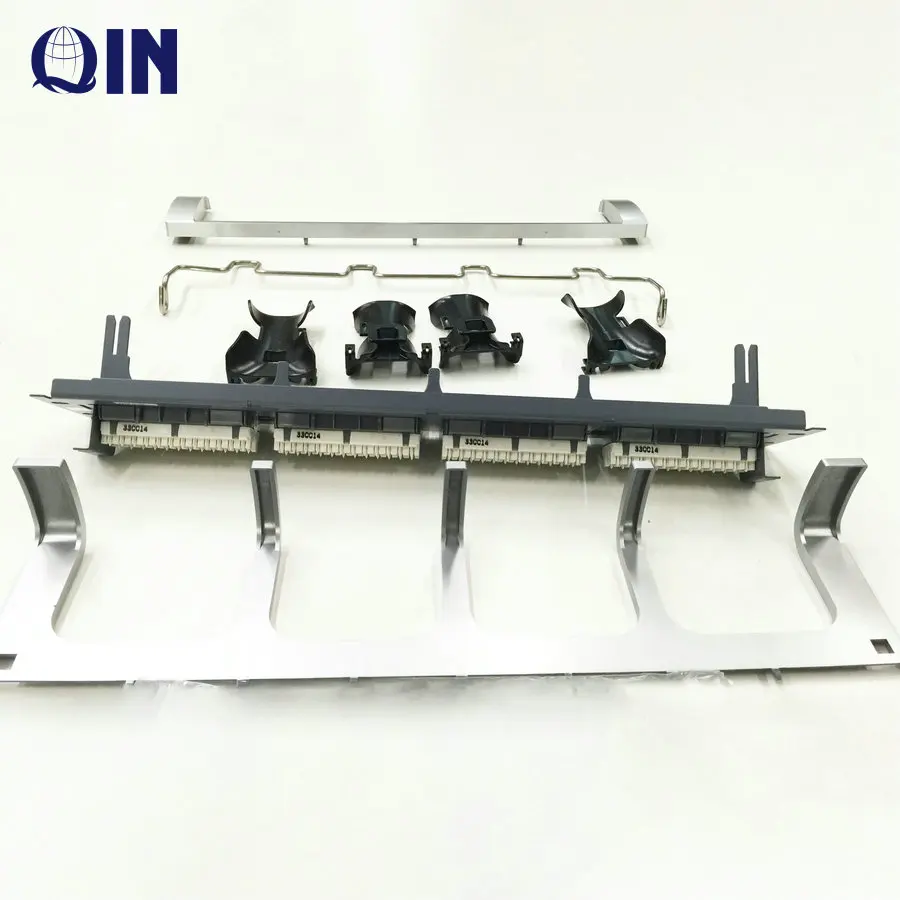

OEM Commscope Cat6 UTP 24 port Patch Panel New model 19inch UTP 1U Rack Mount Patch panel with Cable manager

Material:
Panel: Cold rolling steel with static plastic spraying
Designation-strip holder: ABS (UL94V-0)
Jack: PBT (UL94V-0)
IDC: PC (UL94V-0)
Module Connector: Phosphor Bronze with Gold Plating
IDC Connector pin: Phosphor Bronze with Silver plating
IDC Connector: Insulation slicing of 22 to 26 AWG
We are professional patch panel manufacturer in China. Our patch panel includes voice type 25port and 50port, data type(cat.5e,cat.6, cat.6a) with 6port 12port 24port 48port and 72port on option. We use good PCD board and IDC connectors (krone IDC, 110 IDC, Dual IDC for option) to ensure the characters for each product. Specially for 24port Cat5e.UTP patch panel ,we offer not only in flat configuration as normal but also offer angel patch panels configuration.

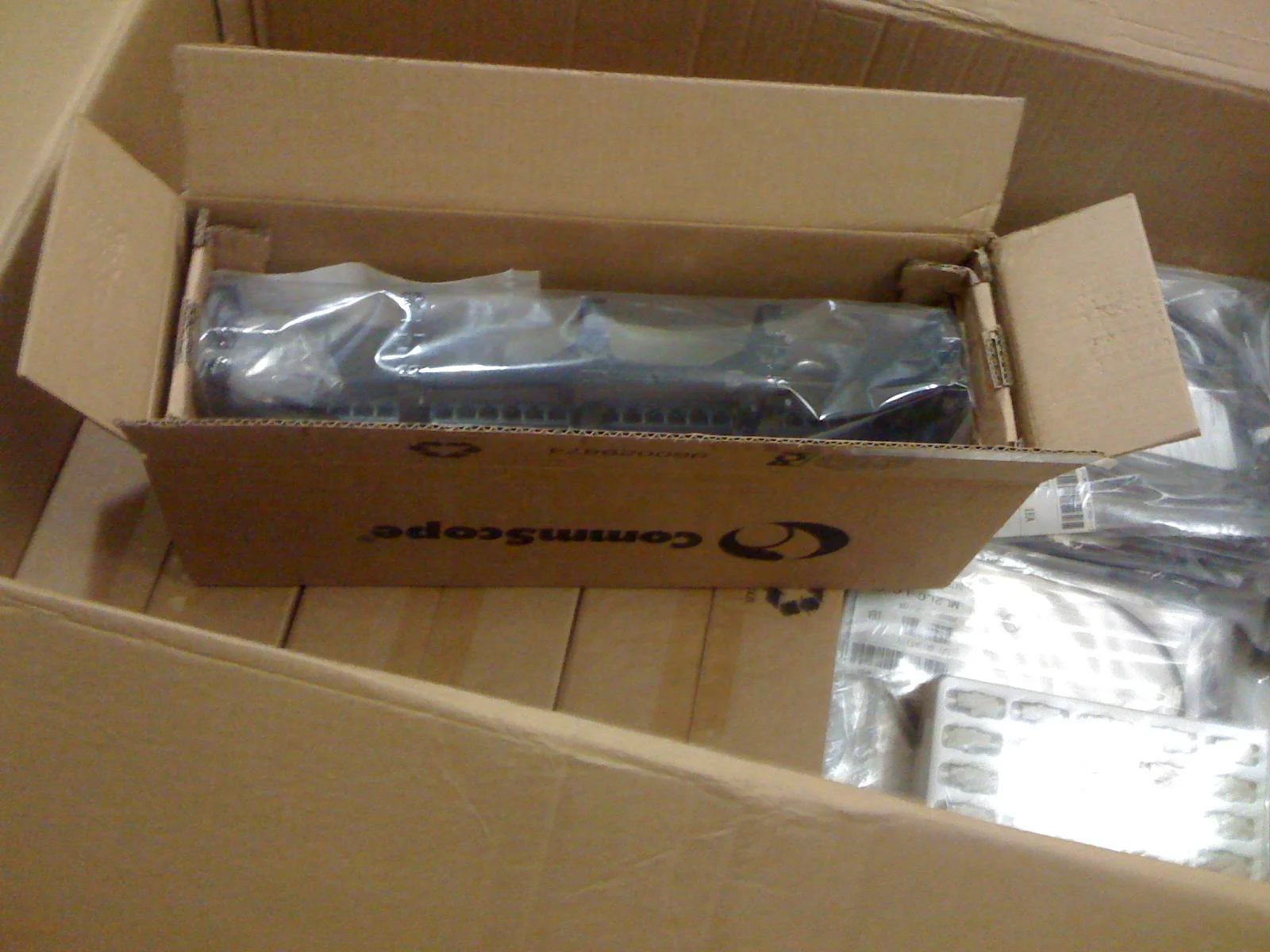

The patch panel is offered universal wiring both T568A and T568B,color Coded TIA/EIA 568a and 568b Wiring For Easy Installation.Termination accepts 22,24 26 AWG (0.64 ,0.5 and 0.4 )solid wires.Meet or exceed the requirement of ANSI /TIA/EIA 568B.2. We will do the Fluke test before sending you our producEach patch panel will be packed firstly with a plastic bag and then a firm inner box.Colorful inner box OEM is available.Usually we use a natural brown box for most of the clients

Each port has the same structure to ensure the consistency of performance

Standards: IEC 11801:2000 Class D and ANSI/TIA/EIA/568B, CAT6

T568A and T568B punching sequence are both compatible

Fits for horizontal distribution in equipment rooms and equipment connection

Connectivity: FCC port for CAT6 UTP patch cord and IDC for horizontal distribution cables

Compatibility: compatible for CAT6 UTP general cable distribution systems

IDC: 110 or dual use types

The entire outer frame is made of high carbon steel with plastic powder scalding

RJ-45 jack frames: PBT, gold-plated phosphor bronze pins

Shielded shell of RJ-45 jack: brass housing with nickel plating

IDC clip: tinned phosphor bronze pins

Fit for 22/23/24AWG cables

Punching duration: 250 times

FCC ports inserting duration: 750 times

Cabling sequence: T568A&B

SYSTIMAX faceplate,patch cable,keystone jacks are also offered!
