Maxwell серии dcz70, машина для резки сотовых листов с программным обеспечением kasemake

Share on (62075395748):


Price:

Quantity:


Product Overview

Description


Product Description

Product Introduction


OCZ70 series high speed digital flatbed cutter is our newly developed carton box sample making system with performance greatly improved compared with the original design.


It features with smart design, high precision, noise reducing and stable quality.

A mature machine in the box sample maker market.

Popular in USA, Europe, Australia, etc


Machine suitable to cut different paper materials like corrugated board, paper board, grey board, etc


Best choice for die making, box makers


Descriptions

\t
Model
\t
DCZ702516
\t
DCZ701713
\t
DCZ701310
\t
Effective cutting area
\t
2500*1600mm
\t
1700*1300mm
\t
1300*1000mm
\t
Configuration
\t
Oscillating knife,pen,creasing tool,drag knife, foam tool, v cut tool
\t
Max aped
\t
1350mm/s
\t
Smallest cutting diameter
\t
6mm
\t
Maximum cutting thickness
\t
30mm
\t
Control line and driver
\t
Servo
\t
Precision
\t
≤0.1mm
\t
Data form
\t
HPGL,DXF,PDF,AI
\t
Voltage
\t
220v±10%50Hz
\t
Data port
\t
parallel port,serial port,USB port
\t
Option
\t
Video registration system, Kasemake Design software
\t
Occupy dimension(L*W*H)
\t
3400*2460*1180mm
\t
2600*21600*1180mm
\t
2200*1680*1180mm
\t
Note
\t
Other size can be customized.

Main Features


1 With two interchangeable tools and whole sets head design, DCZ70 series high speed digital flatbed cutter features convenience to change the cutting tools

2 Its four spindles high speed controller employs modularized installation and comes with convenient maintenance

3. The cutting thickness and cutting speed are both easily set. Besides, the cutting depth is adjustable according to clients' requirements

4.Easy to set parameter, different materials could be processed just after the cutting thickness and cutting speed are set well.

Cutting materials:
Corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion sheet etc.

Application:
Packaging, Graphic.



Certifications
Detailed Images

Machine Parts

Name: Oscillating knife holder(EOK)

Brand: MAXWELL

Original: CHINA

150W MOTOR

powerful

24 hours continuely working

Main Features

Name: Blades
Brand: MAXWELL
Original: CHINA
16 Degree blades

20 degree blades

26 degree blades

Machine Parts

Name: Tools
Brand: Maxwell
Original: China
pen

V-cut (15 degree, 22.5 degree, 30 degree , 45 degree)

Creasing wheels

Drag knife

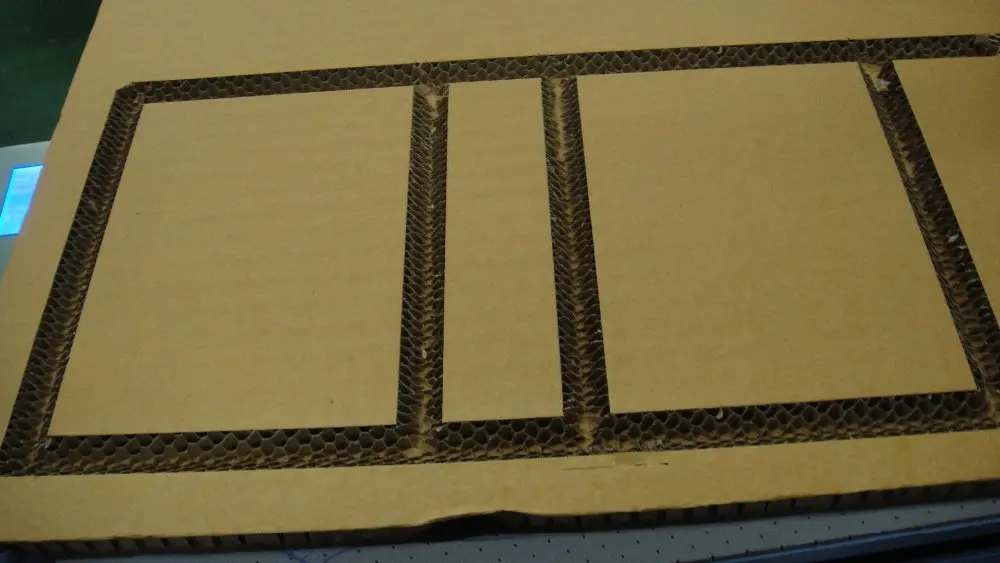

cutted samples

DCZ70 carton box sample maker can cut different type of carton box

Here some samples for referrence

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
3470 (L) * 2260 (W) * 600 (D)
\t
Weight
\t
540KG
\t



Packaging Details
\t
The normal package is wooden Crate box(Size: 3470L*2260W*600H).no need to be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
2520 (L) * 1020 (W) * 840 (D)
\t
Weight
\t
500KG
\t



Packaging Details
\t
The normal package is wooden Crate box(Size: 2520L*1020W*840H)No need to be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
