VMS прицеп, переменные доски для объявлений с креплением на задней части
- Category: Traffic Signs >>>
- Supplier: Quzhou Leon Traffic Equipment Co. Ltd.
Share on (62075431483):
Product Overview
Description

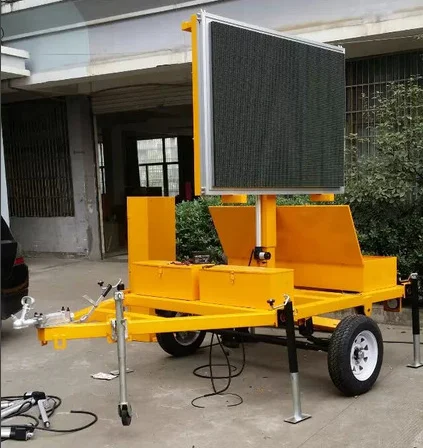

VMS solar Traffic LED signs trailers, VMS trailer, Full color or single color of OEM size manufacture
INTRODUCTION:
TAILER MOUNTED VARIABLE MESSAGE SIGNS BOARDS TO DISPLAY A VARITY OF MESSAGE TO TRAVELLING VEHICLES ON ROAD AND BRIDGE CONSTRUCTION AND MAINTENANCE SITES AND AS AN ADVANCE WARNING FOR ROAD CONDITIONS. THE UNIT COMPLY WITH AUSTRALIAN STANDARDS AS 4852.2
we are professonal at make Trailer for VMS, export to Australia and America, also Canada.
!. Aggregate trailer mass (ATM): the total mass rating of the trailer (unhitched) when it 's carrying the maximum load recommended by the manufacturer:
2 tons
2. Gross trailer mass (GTM): is the total mass rating that can be imposed on the trailer's axle when the trailer is fully loaded and coupled to the towing vehicle
1000lbs
3. weight of trailer not including led screen is 300-350kgs
4. hydraulic lifting and electical braking systems.
SPECIAL FUNCTIONS:

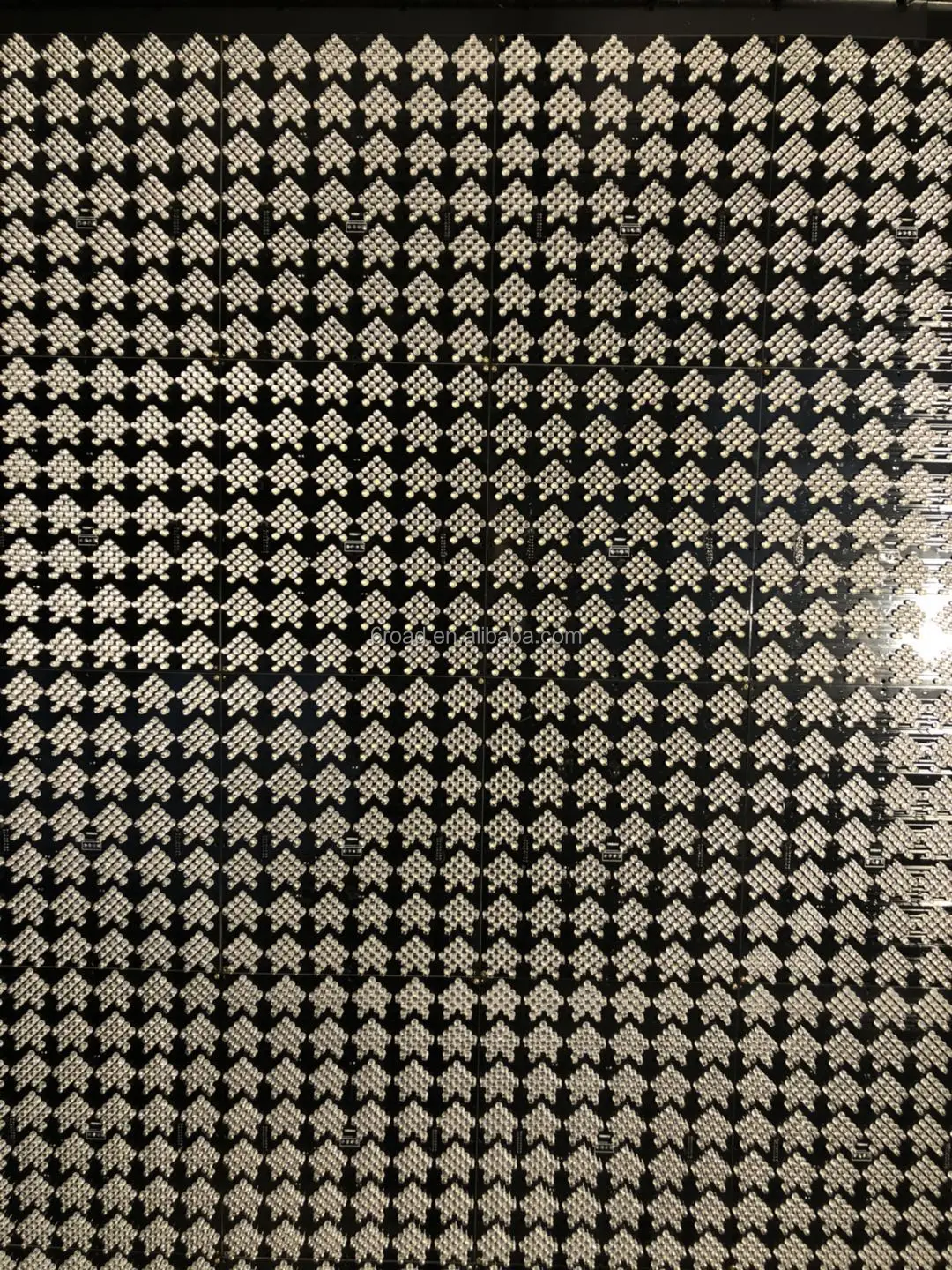

1. SPECIAL LED SCREEN WITH SAFETY GLSS COVER THE LED PANELS OVER THE ENTIRE DISPLAY BOARD FACE. AND ENGEY SAVING CHARACTERS MAKE IT CAN WORK CONTINUELY FOR 7 DAYS, 24HOURS OPERATION BETWEEN CHARGING.
2. BE CAPABLE OF ROTATION 360DEGREES WITH LOCKING MECHANISM. THE DISPLAY ARE CAPABLE OF RAISING AND LOWERING BY HYDRAULIC SYSTEMS.
3. DATA LOGGER
4. RADAR ADDITIONAL FUNCTION.
OEM SERVICE AVAILABLE
FOR TRAILER | ||||||||

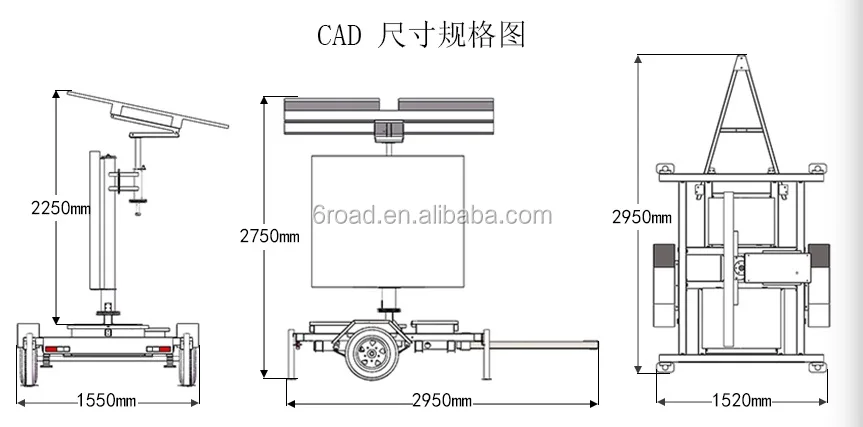

Specification | Size A trailer | Size B trailer | ||||||
Full length of trailer | 2600L*1500W*2000H | 2830L*1410W*2160H | ||||||
Weight load trailer to with stand | 200KG | 250KG | ||||||
| Dimension | 600L*500W*300H | 600L*500W*300H | |||||
Weight | 23.33kg | 23.33kg | ||||||
Solar panel frames | movements | Able to rotate 360 degrees and lay flat for travle | Able to rotate 360 degrees and lay flat for travle | |||||
Dimension | 400L*300W*100H | 400L*300W*100H | ||||||
Voltage | 3*100W | 3*100W | ||||||
Approach speed | 80km/hr | 100km/hr | ||||||
windload | 100km/hr | 120km/hr | ||||||
Tyres | Must be lockable To provide spare tyres storage | Must be lockable To provide spare tyres storage | ||||||
Lift options | Electric lift / Manual Hydraulic lifting | Electric lift/Manual | ||||||
Legs | 4 legs adjustable to different level height and able to move in and out angles for uneven ground | 4 legs adjustable to different level height and able to move in and out angles for uneven ground | ||||||

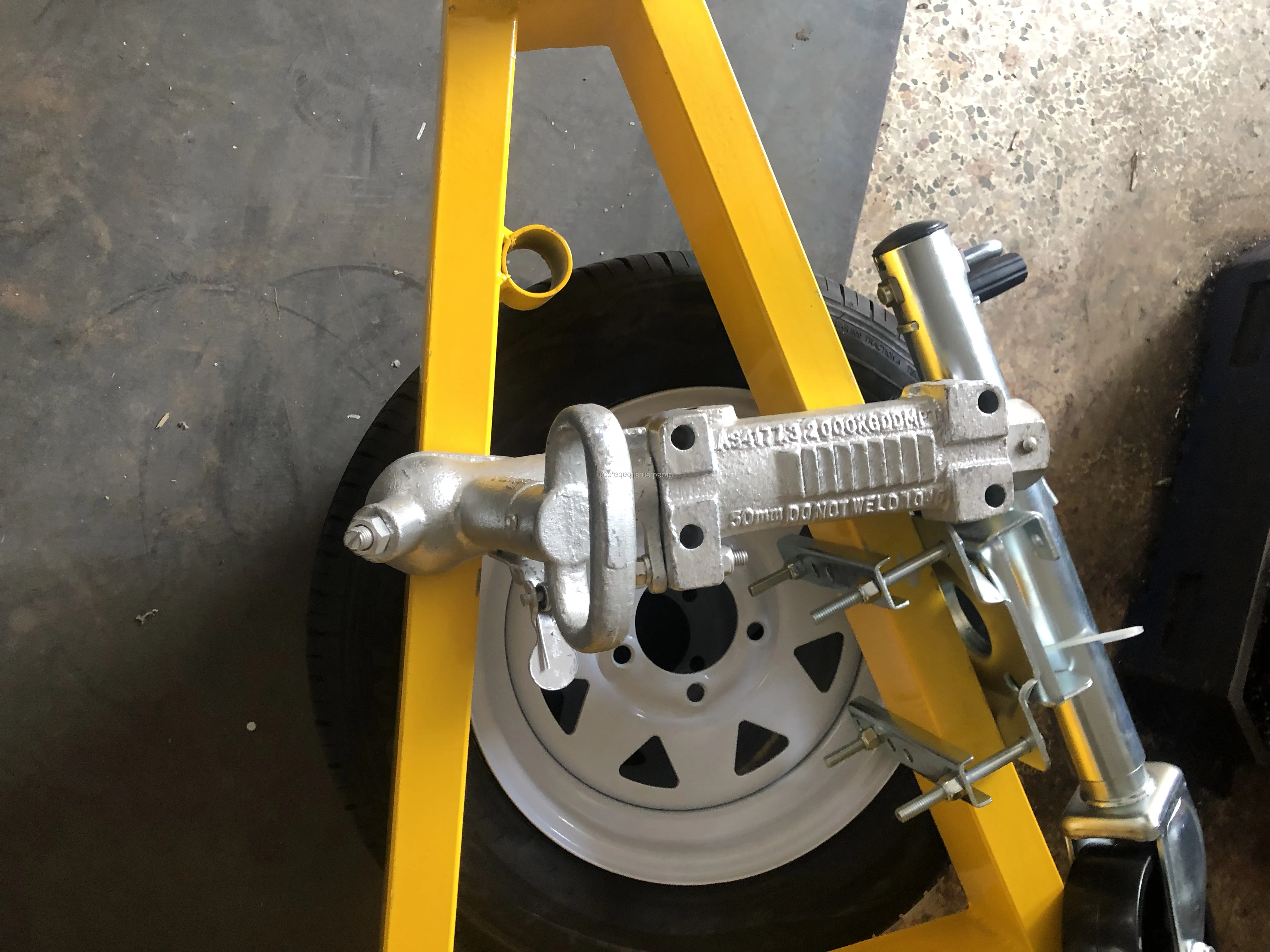

Others | Tow bar &jackey wheel | Tow bar &jackey wheel | ||||||
FOR Variable Message Sign | ||||||||
Model | P10 | P16 | PC Operating system | |||||
Pixel pitch(mm) | 10 | 16 | Windows 98/2000/7.0 | |||||
Pixel density(Dot/m2) | 110000 | 13906 |
| |||||
Pixel configuration | 1R1G1B/2R1G1B/2R1G1B |
| ||||||
WITH ELECTRIC BRAKING SYSTEM AND ALSO MACHENICAL BRAKING.
ROTATIONAL FUNCTION DESIGN AND HYDRAULIC LIFITING FOR VMS SIGN AND BRACKET SUPPORTING SYSTEMS.

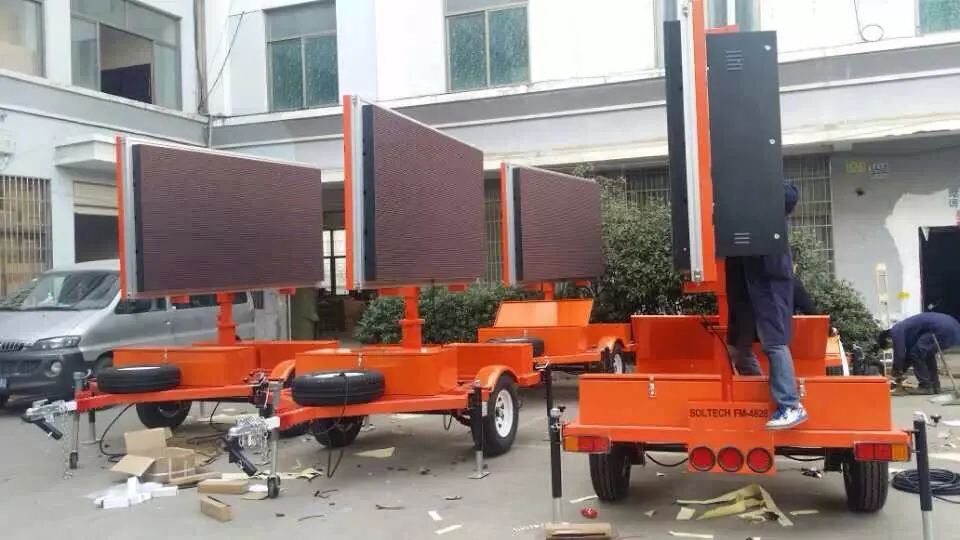

CONTAINER LOADING PICTURE OF OUR TRAILER AND VMS
