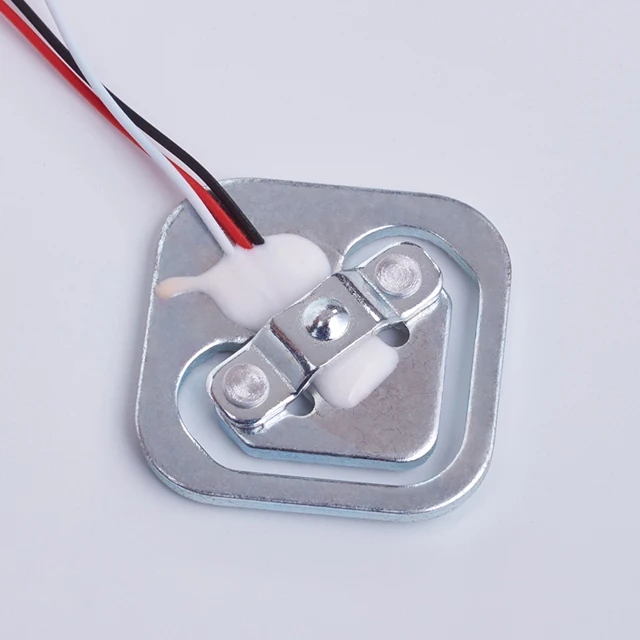

50kg micro load cells
- Category: >>>
- Supplier: Guangdong South China Sea Electronic Measuring Technology Co. Ltd. [Guangdong China]Guangdong
Share on (62075669292):
Product Overview
Description
CZL928F:
1. Rated Load 50 (Kg)
2. Rated Output 1.0±0.15 mV/V
3. Zero Balance ±30%F.S
4. Input Resistance 1000±50Ω
5. Output Resistance 1000±50Ω
6. Excitation Voltage 9-12VDC
7. Nonlinearity 0.2%F.S
8. Hysteresis 0.2%F.S
9. Repeatability 0.2%F.S
10.Creep(30min) 0.2%F.S
11.Operating Temperature -10℃ To +50℃
12.Temperature Effect on Zero 0.2%F.S/10℃
13.Temperature Effect on Span 0.2%F.S/10℃
14.Insulation Resistance 2000MΩ(50VDC)
15. Safe Overload 150%F.S
16.Ultimate Overload 200%FS
17. Cable 470mm
Dimensions:
2. Rated Output 1.0±0.15 mV/V
3. Zero Balance ±30%F.S
4. Input Resistance 1000±50Ω
5. Output Resistance 1000±50Ω
6. Excitation Voltage 9-12VDC
7. Nonlinearity 0.2%F.S
8. Hysteresis 0.2%F.S
9. Repeatability 0.2%F.S
10.Creep(30min) 0.2%F.S
11.Operating Temperature -10℃ To +50℃
12.Temperature Effect on Zero 0.2%F.S/10℃
13.Temperature Effect on Span 0.2%F.S/10℃
14.Insulation Resistance 2000MΩ(50VDC)
15. Safe Overload 150%F.S
16.Ultimate Overload 200%FS
17. Cable 470mm
Dimensions:
