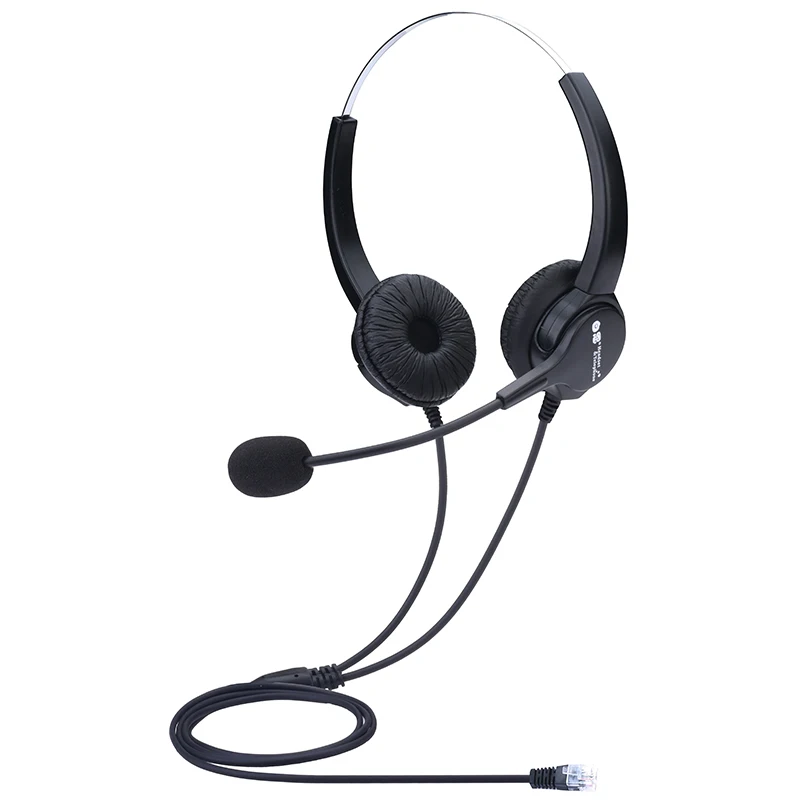

Dh635d dual ear noise reduction telephone rj09 crystal headset high definition and cost performance

I. Use Environment

1: ambient temperature: - 10 ~40.

2: Relative humidity: 10%-95%.

3: Atmospheric pressure: 86-106 kPa

4: Environmental noise: <60dB(A)

II. Functional Indicators

(1) Microphone

1: Single-pointing anti-noise electret capacitive microphone; SNR greater than 58 dB

2: Sensitivity - 40 +3dB (0dB = 1V/Pa, at 1KHz);

3: Impedance 2.2K ohm;

4: Working voltage 2.0V;

(2) Receiver

1: Broadband high-quality receiver;

2: impedance 150 ohms;

3: Frequency range 100-6600HZ;

4: Distortion < 5%;

5: Sensitivity of 100 + 3dB (1000, 12000, 1500, 2000HZ);

3. Wire Material

1: High-quality swing-resistant, low obstruction PU headphone wire (with bullet-proof wire tension material)

2: Line length 2 m to 3 m (including plugs). (Note: Length is measured by stretching spring line)

3: The catheter is a durable spring tube material.
