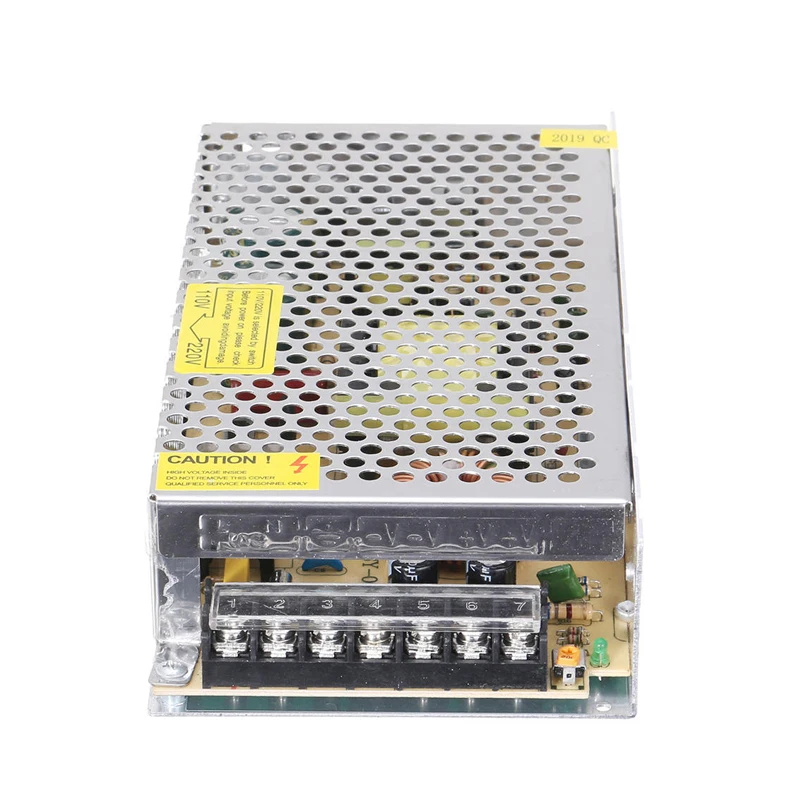

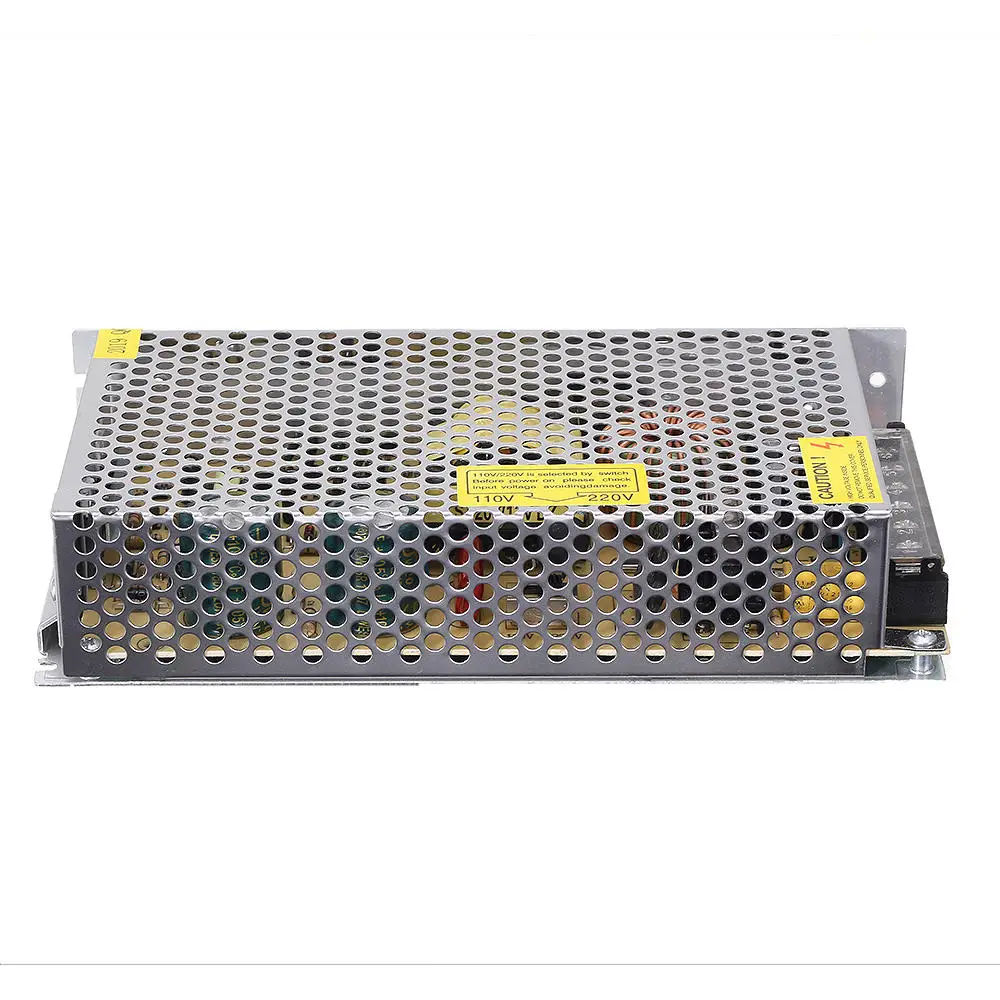

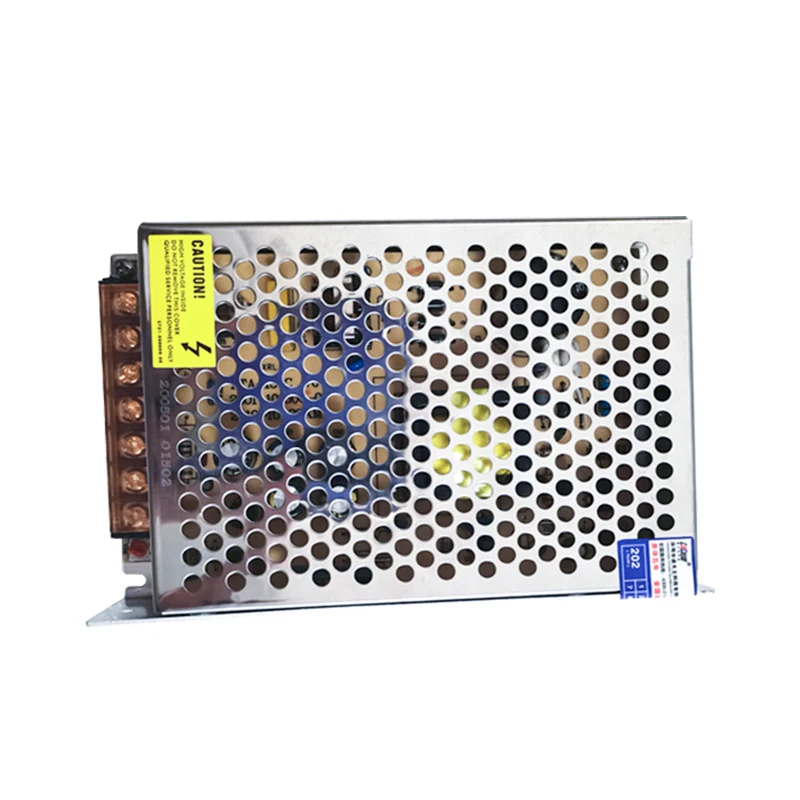

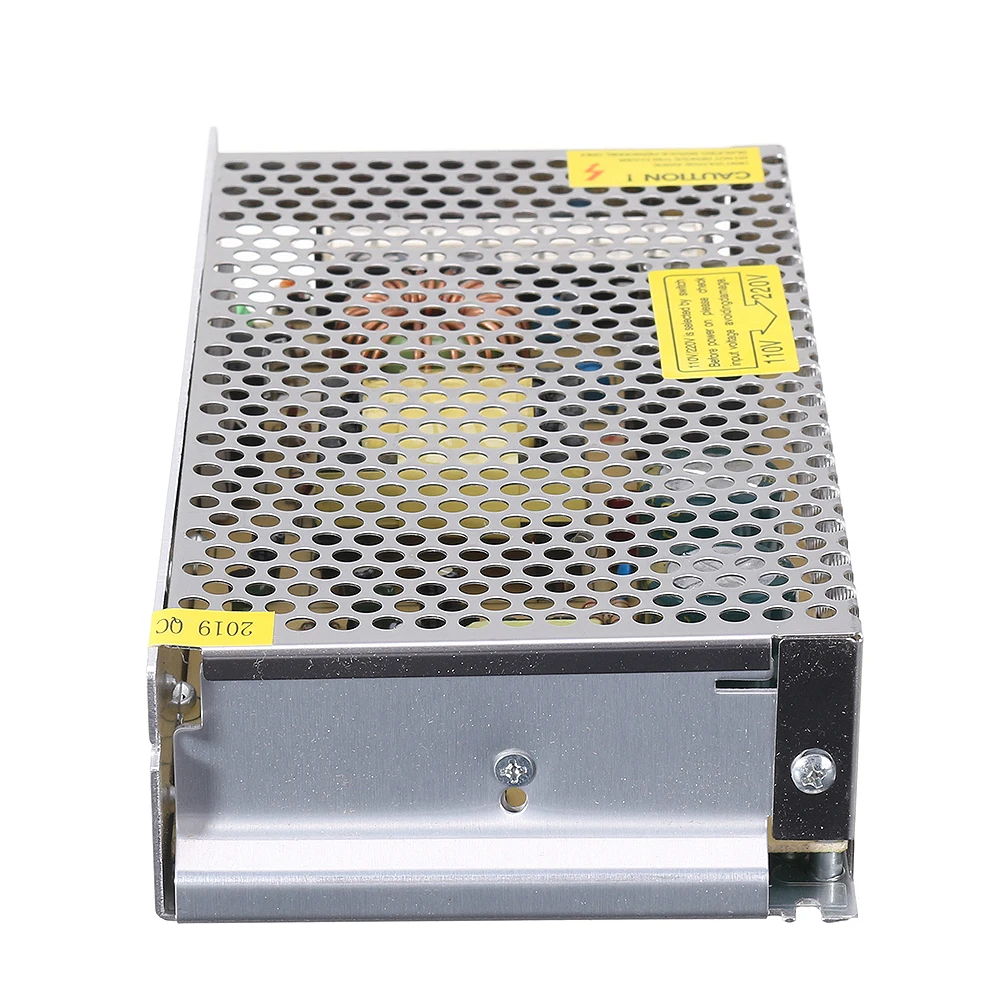

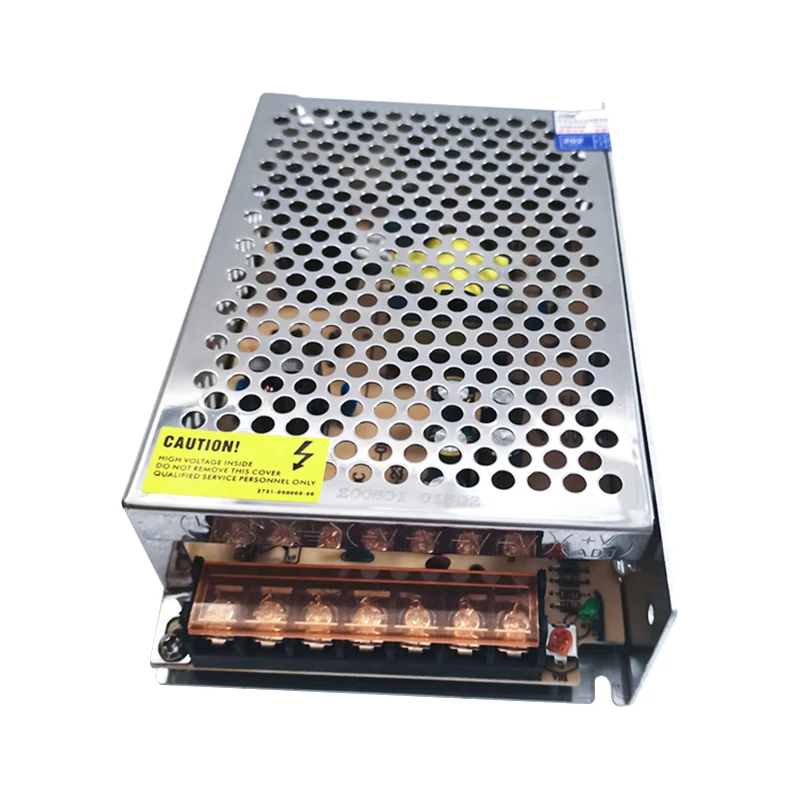

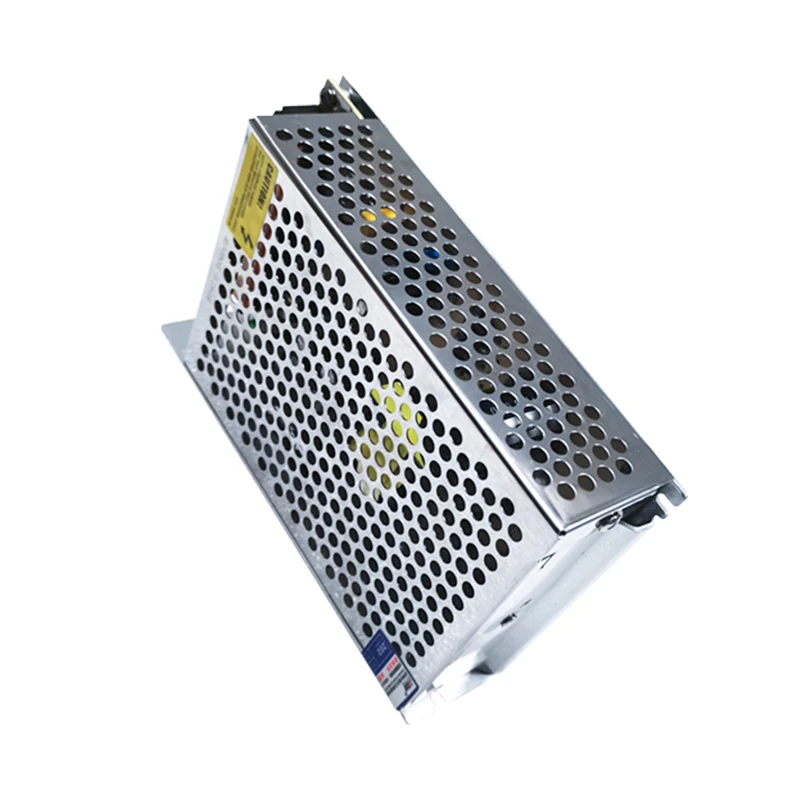

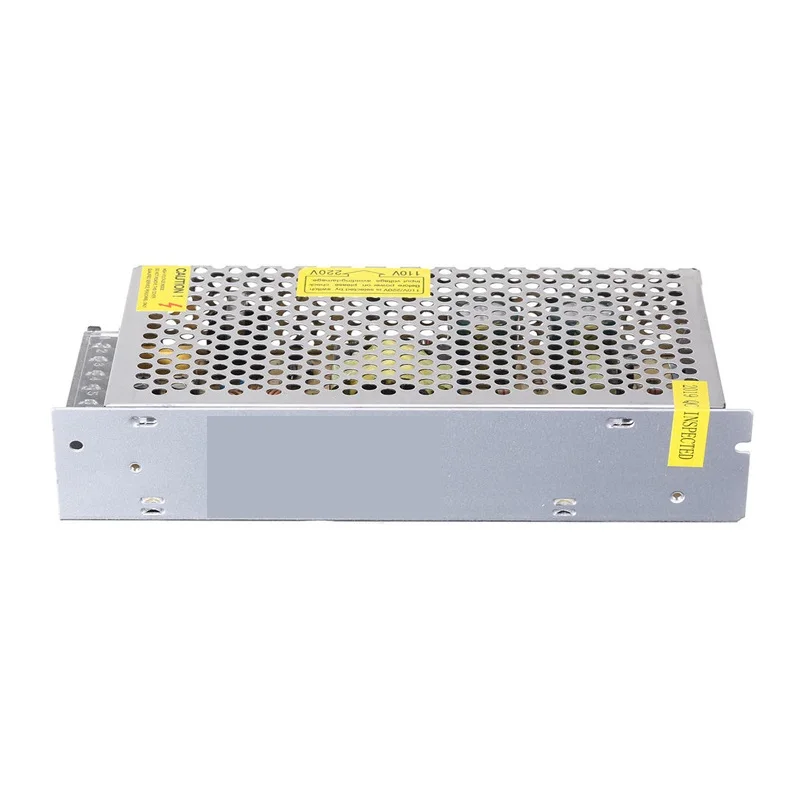

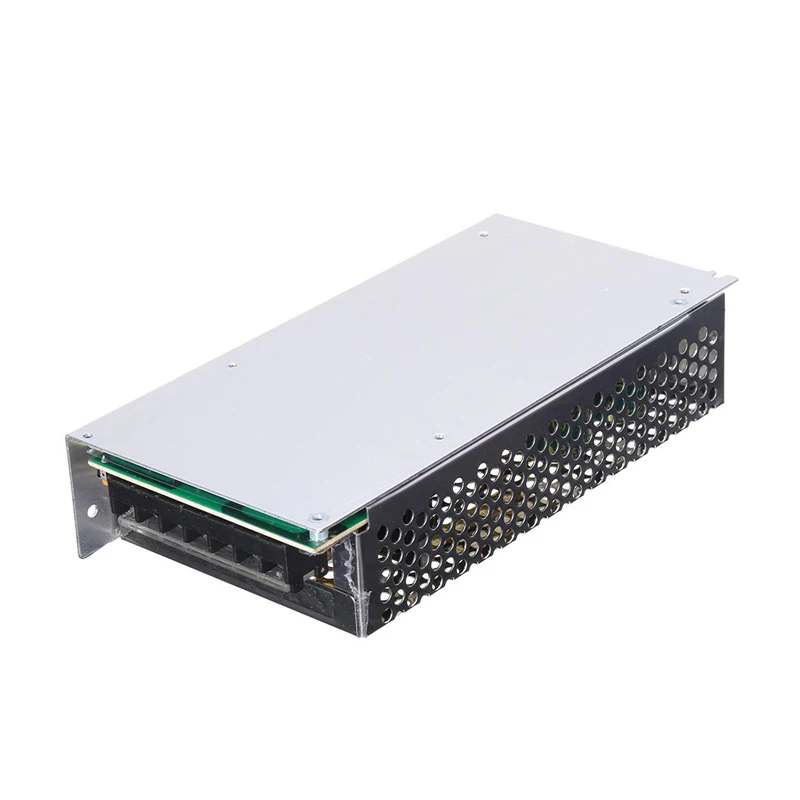

120 Watt Switch Mode Led SMPS DC 12 Volt 10 Amp 24 Volt 5 Amp Power Supply
- Category: >>>
- Supplier: Shenzhen Totiwo Technology Co. Ltd.
Share on (62075738409):
Product Overview
Description
120 Watt Switch Mode Led SMPS DC 12 Volt 10 Amp 24 Volt 5 Amp Power Supply
Model No. | TTW-120-12 | TTW-120-24 | |
Output | DC Voltage | 12V | 24V |
Current Range | 0~10A | 0~5A | |
Power | 120W | ||
Ripple And Noise | Max 240mVp-p | ||
Voltage ADJ.Range | 10~13.5V | 20~26.4V | |
Voltage Tolerance | ±5% | ||
Setup, Rise Time | 1500ms, 30ms / 230VAC | ||
Input | Voltage Range | 90~160VAC/180~260VAC | |
Frequency Range | 50~60Hz | ||
Efficiency | >0.85 | ||
PF | 0.6 | ||
Current | 7A/110VAC, 4A/220VAC | ||
Surge Current | 40A/110VAC, 60A/220VAC | ||
Leakage Current | Max 3.5mA/240VAC | ||
Protection | Overload | Above 110%-150% of rated power | |
Shut-down output voltage, auto recovery after fault condition is removed | |||
Overvoltage | Above Max. Voltage (105% of rated voltage) | ||
Shut-down output voltage, auto recovery after fault condition is removed | |||
Over temperature | 90℃ ± 5℃(5~12V) 80℃ ± 5℃(24V) | ||
Shut-down output voltage, auto recovery after fault condition is removed | |||
Environment | Working Temp. & humidity | "-20°C~+60°C, 20%~90%RH | |
Storage Temp. & humidity | "-40°C~+85°C, 10%~95%RH | ||
Safety | Withstand Voltage | I/P-O/P: 1.5KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min; | |
Safety | GB4943 ;IEC60950-1; EN60950-1 | ||
EMC | EN55032:2015/AC:2016; EN61000-3-2:2014; EN61000-3-3:2013; EN55024:2010+A1:2015 | ||
LVD | EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 | ||
Other | Cooling | free air | |
Lifespan | 20000hrs | ||
Dimensions (L*W*H) | 200*100*42mm | ||
Weight | 350g | ||
Note | 1. The above mentioned data were measured at 230VAC input and 25°C. | ||
Q1: What's your main products?
A: we focus on constant voltage ac-dc power supply from 10w to 2000w with different output voltage(5v, 12v, 24v, 36v, 48v, 60v, 90v, 110v etc), IP rate (IP20, IP43, IP67) and size (standard, thin, slim).
Q2: How long will it take to ship?
A: We have a big warehouse, 90% of goods will be shipped within 3 days.
Q3: Do you accept custom service?
A: We accept custom-made label, colorful box and product.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products with free replacement.
24 volt 5 amp power supply, led smps, power supply 12 volt 10 amp
PLEASE NOTE DC OUTPUT VOLTAGE WHEN YOU PLACE AN ORDER.
