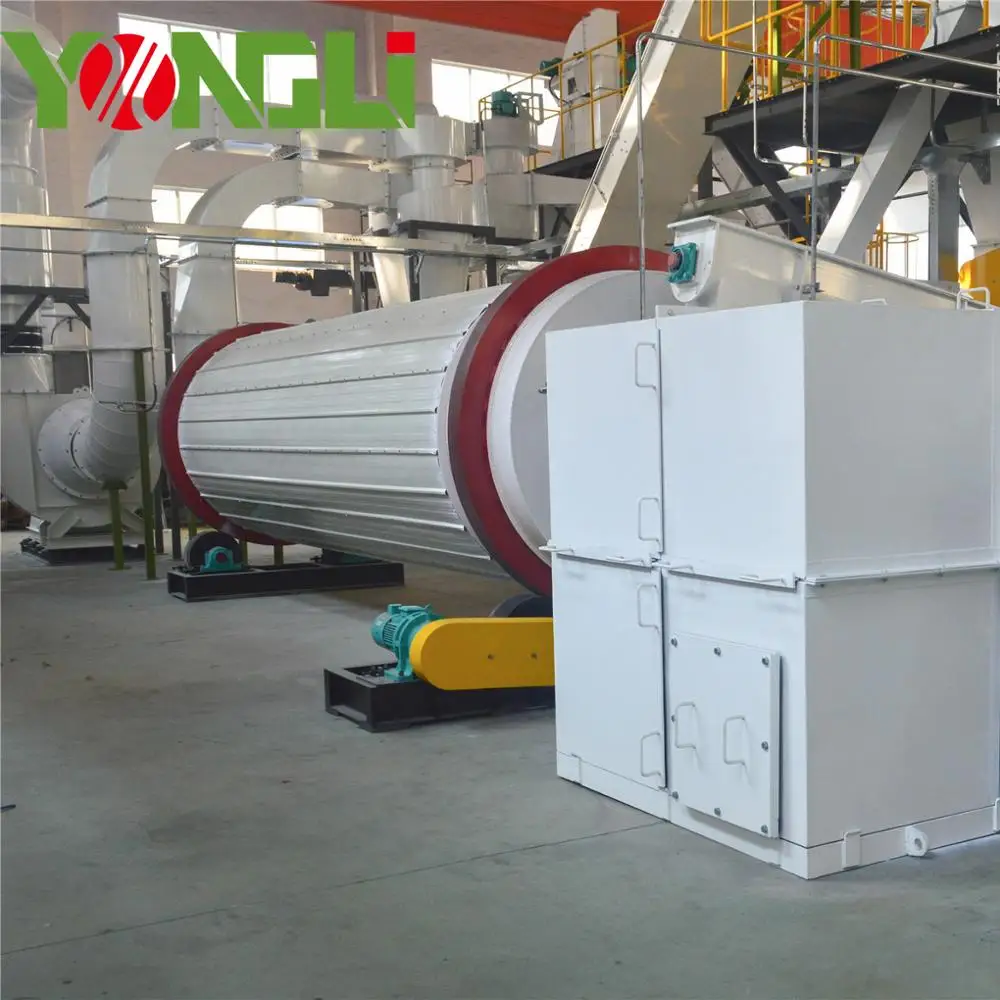

Effective Biomass Sawdust/Woodchips/Wood Shavings/Straw/Paper Pulp Drying Production Line
- Category: >>>
- Supplier: Jiangsu Yongli Machinery Co. Ltd.
Share on (62075846804):
Product Overview
Description
Effective Biomass Sawdust/Woodchips/Wood Shavings/Straw/Paper Pulp Drying Production Line
Company Information
Jiangsu YONGLI Machinery Co.,Ltd. was established in year 2003 with an occupation of 22,000 s.m, located in Jiangsu, China. YONGLI is an excellent provider and operator for feed and biomass equipments. YONGLI is specialized in the design, fabrication and installation of High-end Feed mill projects and wood biomass pellet projects which closely connected with the pellet mill, hammer mill, mixer, drum dryer, wood chipper, packing machine, feed mill, fish feed extruder, cooler, conveyors, bucket elevator etc. YONGLI insist on “Quality is the soul of company", and passed the audit of ISO9001 quality system and all finished products meet the CE standard.
Product Description
The Application of wood sawdust dryer
*Mainly available for raw materials: sawdust or grinded wood powder.
*Available other powder biomass materials: straw, rice husk, alfalfa, peanut shell, palm nut, coconut shell,
cotton seed, bamboo dust, elephant grass,sugar cane,pulp .etc.

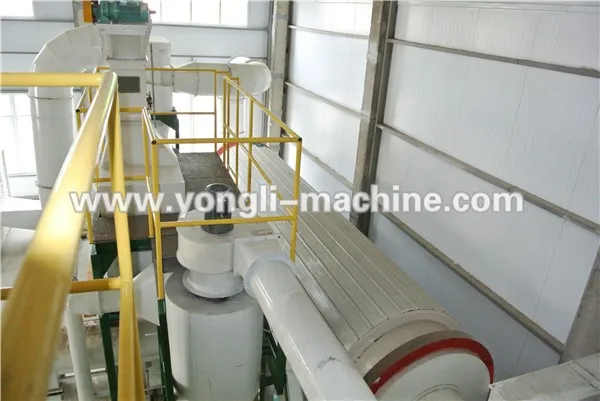

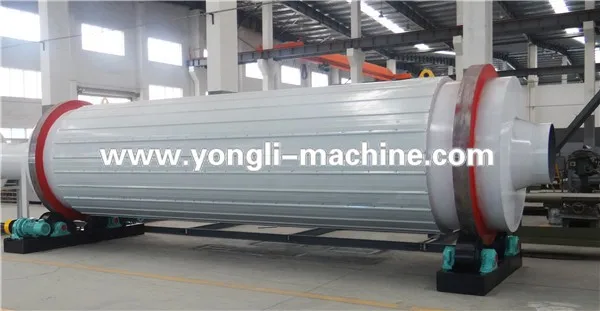

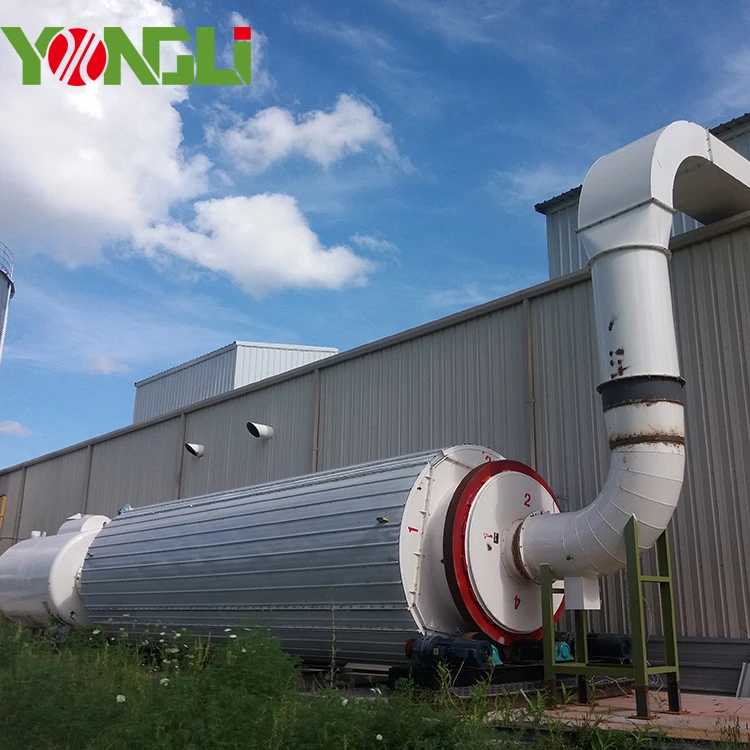

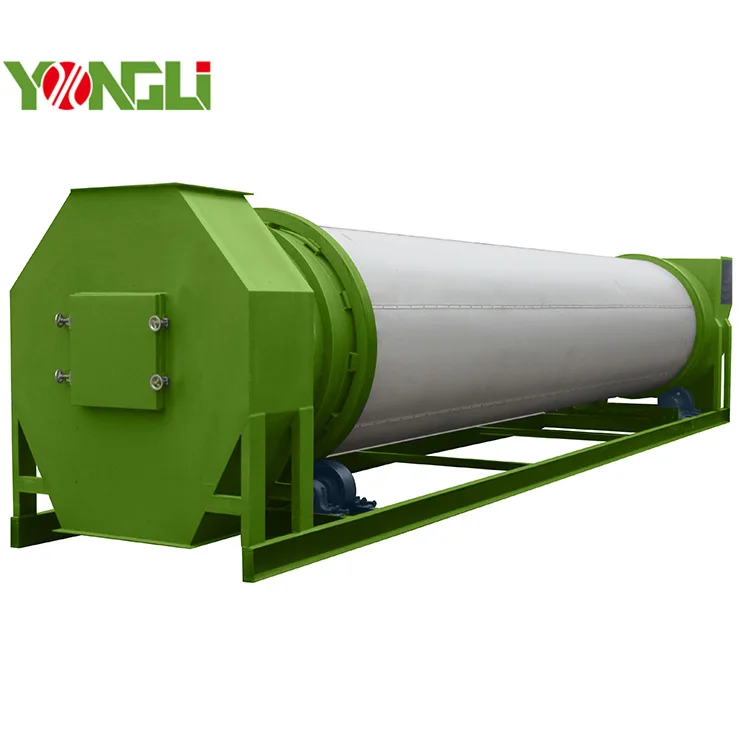

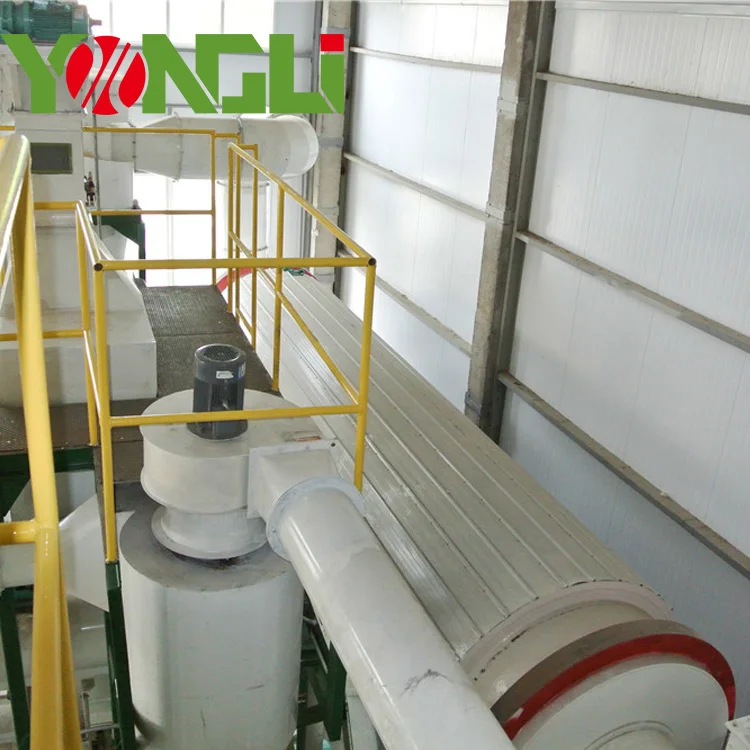

Picture of Biomass Sawdust Rotary Drum Dryer
Basic Features
1.Three-pass dryer, longer mixing duration of hot air and material. It is with high drying efficiency,
heat utilization ratio and less space needed.
2. Support of roller ring and retainer wheel are integral cast steel structure, with high strength,
stable operation, anti-abrasion and long service time.
3. Feeding device is separately designed, which is convenient for installation and transportation.
The drum of dryer can be designed to fit the transportation in the containers.
4. Convenient feeding: feeding from middle of dryer by screw conveyor or from the top
based on the different materials.
5. Sealed by flexible and anti-abrasion steel disc at the drum body and feeding &discharge end.
It's of long service time and with easy installation.
6. Lifting plates installed inside the drum makes the material fully mixed with the hot air,
with low residue and high drying efficiency.
7. Reasonable discharge structure that can separate hot air and material efficiently.
8. Thermal insulation set at outer layer of drum can effectively prevent the heat from losing
and improve the utilization efficiency.
9. Three layers drum dryer's floor space is 30% less than single drum dryer with same capacity.
10.Siemens motor

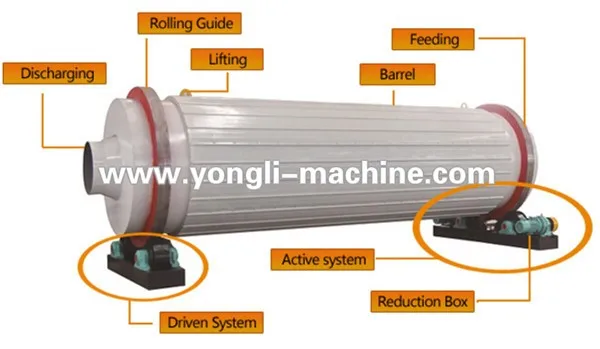

Rotary drum dryer structure
Technical Parameters Of sawdust rotary drum dryer
| Model | YLHG1 | |
| Body | Outside Diameter(mm) | 3160 |
| Total Length(mm) | 10195 | |
| Rotary speed(r/min) | Can be adjusted by process | |
| Capacity(t/h) | 1-3 | |
| Inlet temperature(°C) | <500 | |
| Raw material | Sawdust,wood powder, other powder biomass materials | |
| Moisture(%) | 45 | |
| Outlet temperature(°C) | 80 | |
| Power(kw) | 2.2×2 | |

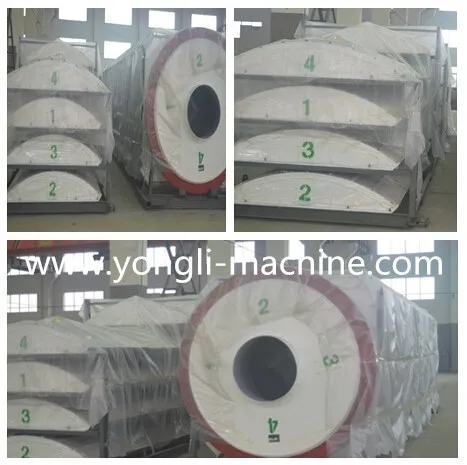

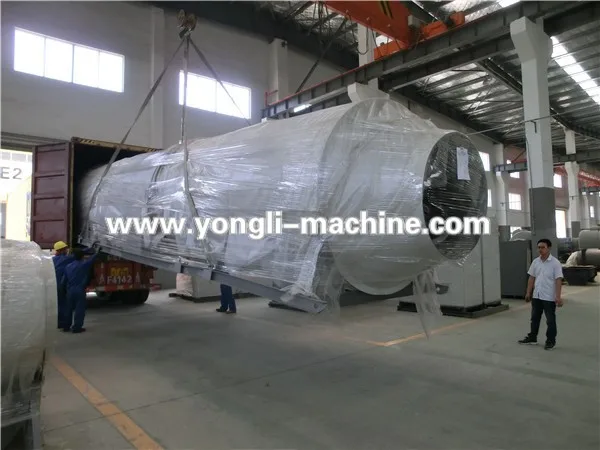

Rotary drum dryer packing
Rotary drum dryer shipment
Rotary drum dryer production team
Yongli Professional Team
Yongli Honor
YONGLI Customers
Our Services
CE Certification
FAQ
1.Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in Yongli workshop before shipment.
2). Yongli wins 40 national patents for machines by our senior R&D engineers.
2. Q: What is your superiority comparing with other suppliers?
Answer:
1). Yongli can make optimal design based on your kinds of raw materials.
2). Yongli has service center in overseas, which can provide you spare parts very fast and on-site service quickly.
3). Yongli R&D ability is very strong, it can develop 8-10 new technology every year.
4). It has at least 90% traders and distributors place order for Yongli every year.
Answer:
1). Yongli can make optimal design based on your kinds of raw materials.
2). Yongli has service center in overseas, which can provide you spare parts very fast and on-site service quickly.
3). Yongli R&D ability is very strong, it can develop 8-10 new technology every year.
4). It has at least 90% traders and distributors place order for Yongli every year.
3. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we provide it. And we can provide free training for on-site workers.
Answer: Sure, we provide it. And we can provide free training for on-site workers.
4. Q: How to train our staff about operation and maintenance?
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
5. Q:What shipment terms you offer?
Answer: We can offer EXW, FOB, CIF, CFR etc based on your request.
Answer: We can offer EXW, FOB, CIF, CFR etc based on your request.
6. Q:What payment terms you take?
Answer: T/T, LC at sight etc.
Answer: T/T, LC at sight etc.
7. Where is your factory located? How can I visit there?
Answer: Our factory is located in Liyang City, Jiangsu Province, China, it is nearby Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. We can ask our driver to pick you up at the airport or train station etc.
Answer: Our factory is located in Liyang City, Jiangsu Province, China, it is nearby Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. We can ask our driver to pick you up at the airport or train station etc.
8. How to contact with us?
Attn: Jack Wang
Phone: + 86 15190513782
