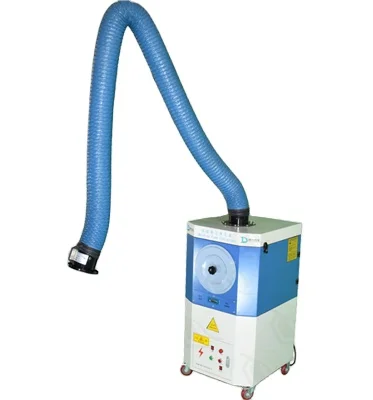

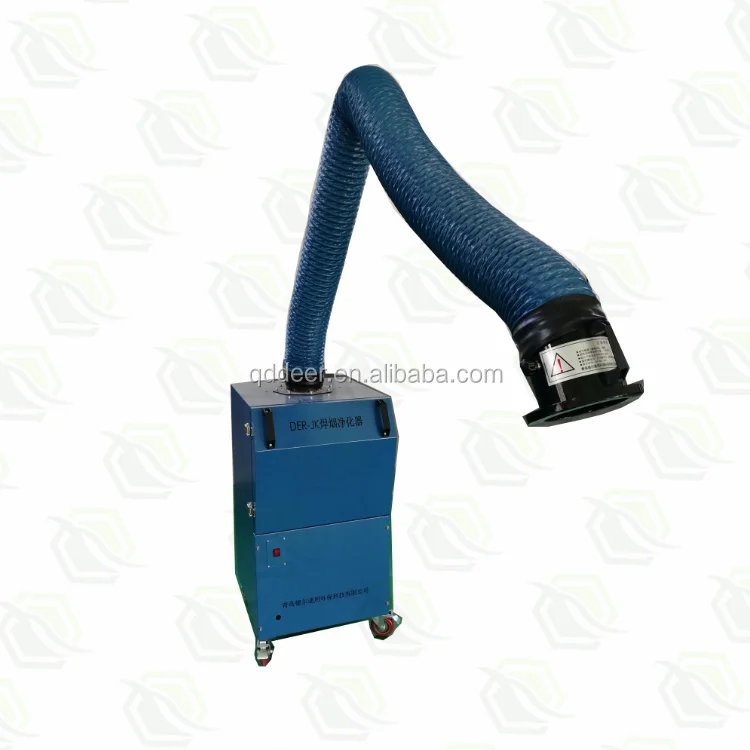

High Quality Mobile Welding Fume Extractor Portable 3hp Dust Collector
- Category: Dust Collector >>>
- Supplier: Qingdao DEER Environmental Protection Technology Co. Ltd
Share on (62075993243):
Product Overview
Description
Products Description
TECHNICAL PARAMETER
DER-VE SERIES WELDING FUME EXTRACTOR
Products Features
1) High precision-use high efficiency nanofiber filter material, PTFE film mulching cartridge filters to achieve indoor stadard GB16297-1996， indoor air can be circulation to avoid indoor energy consumption.
2) Mobility-With new Korean type caster, easy to move and fixed.
Wide application-Just for change cartridge filters, and satisfy different metal smoke and dust, powder dust collection.
3) Economic- Little investment for small and medium workshop and very OK effectiveness.

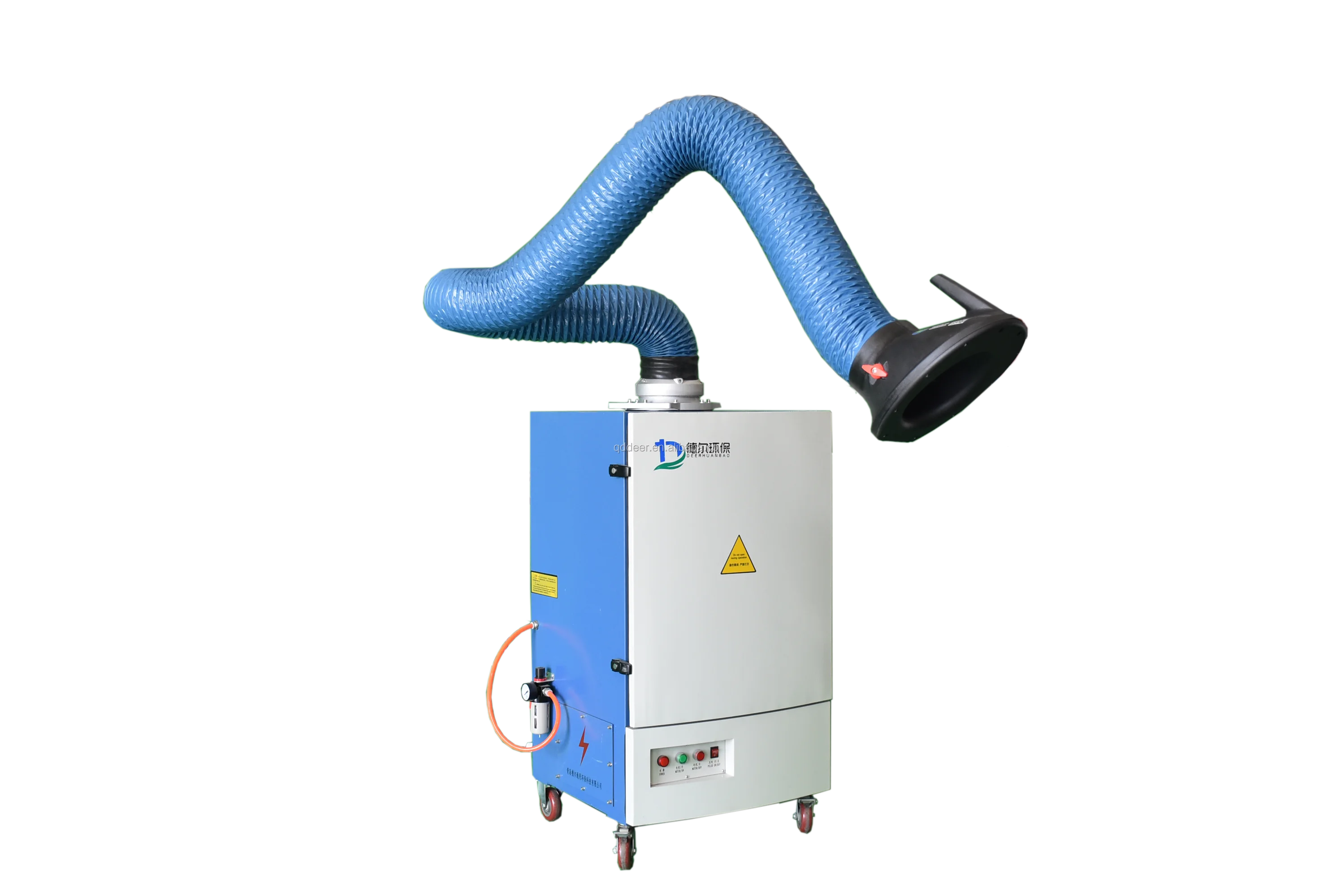

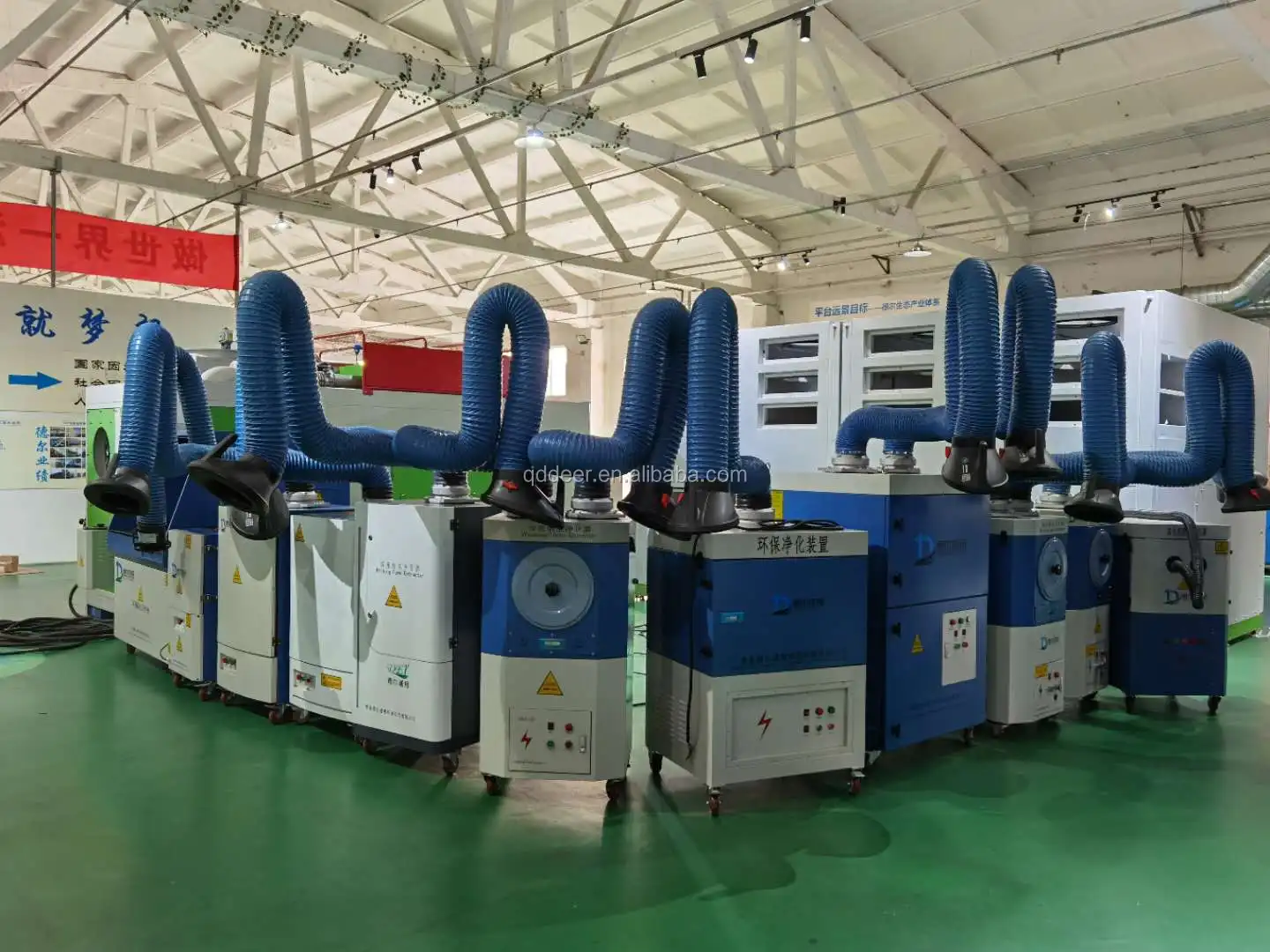

Product Show
I Application Area

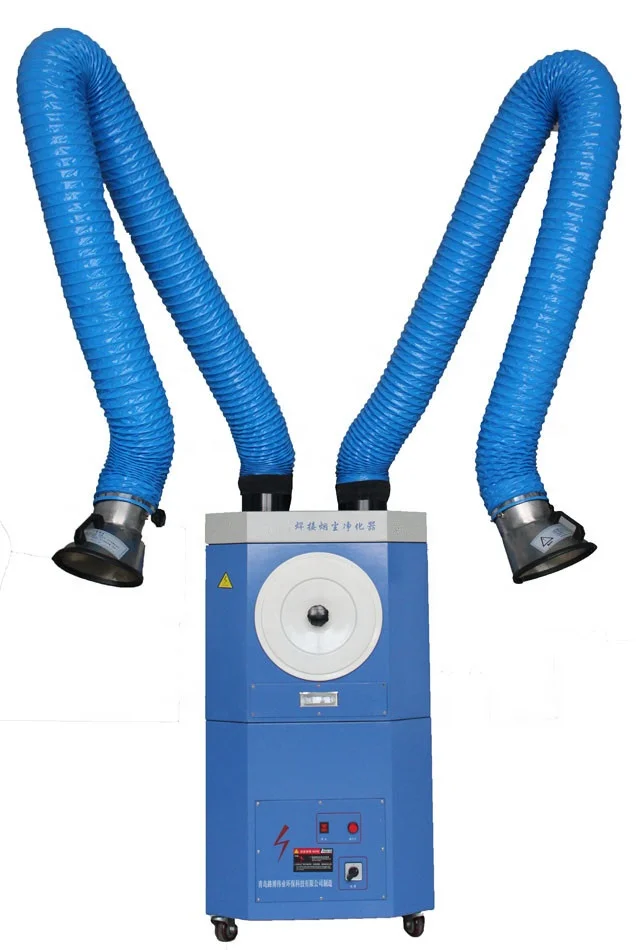

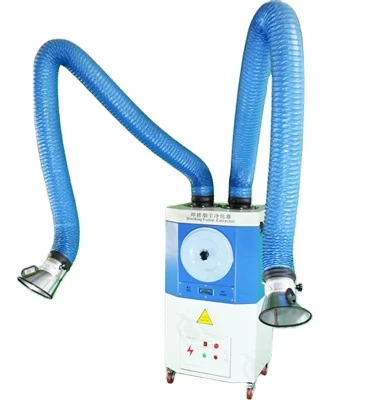

DER-VE type double arm type movable welding fume extractor is used for purifying smoke and dust generated in welding, cutting, polishing, grinding and other processes of rare metals, and precious materials such as the recovery of small metal particles, can purify a large amount of suspended harmful to the human body in the air. With high purification efficiency, low noise, flexible use, small footprint.
Suitable for electric arc welding, carbon dioxide welding, MAG welding, carbon arc gouging welding, gas cutting, special welding smoke in workplace.
III Equipment Advantage
1:Adopt turbine fan and motors, anti-overload circuit which can prevent
motor from burned-out. With the features of high safety, stable performance.
2:Using built-in central electric control mode, simple structure and easy operation.
3: Pulse blowback type automatic dust cleaning: filter core adopts all-round
automatically rotating counter blowing dust cleaning which makes filter dust cleaning
more thoroughly and clean and can always guarantee the extraction machine with a
constant volume of air absorption; Air compressor parts is high-pressure hose
connection with bottom high-pressure air input. It can guarantee the machine always
in good condition. (It can be designed as automatic or manual control according to
user's demand.)
4: Filter drum adopts materials imported from USA with long service life and can absorb
more than 0.3 μm dust particles. It has very good filtering effect to wet and stickydust.
motor from burned-out. With the features of high safety, stable performance.
2:Using built-in central electric control mode, simple structure and easy operation.
3: Pulse blowback type automatic dust cleaning: filter core adopts all-round
automatically rotating counter blowing dust cleaning which makes filter dust cleaning
more thoroughly and clean and can always guarantee the extraction machine with a
constant volume of air absorption; Air compressor parts is high-pressure hose
connection with bottom high-pressure air input. It can guarantee the machine always
in good condition. (It can be designed as automatic or manual control according to
user's demand.)
4: Filter drum adopts materials imported from USA with long service life and can absorb
more than 0.3 μm dust particles. It has very good filtering effect to wet and stickydust.
5:Use the universal absorption arm with 360 degrees activity range, which can absorb
fume and dust from the generation place and greatly improve the dust collection rate
to ensure the working person’s health.
6:It adopts three ways of protective measures for fire hazards and big grain slag inside
the machine, which makes the machine more secure and reliable operation and
longer life.
7:Clean air is exhausted from grille air vents evenly and the noise is reduced to a
minimum.
8:Accompanied by specialized new Korean type caster wheel with brake, which is
convenient for equipment movement and positioning.
9:Photoelectric control open and shut down, high efficiency and energy saving,
cantilever mask with illumination device (optional).
10.The consumable material in the machine is with stable performance and easy to
change.
fume and dust from the generation place and greatly improve the dust collection rate
to ensure the working person’s health.
6:It adopts three ways of protective measures for fire hazards and big grain slag inside
the machine, which makes the machine more secure and reliable operation and
longer life.
7:Clean air is exhausted from grille air vents evenly and the noise is reduced to a
minimum.
8:Accompanied by specialized new Korean type caster wheel with brake, which is
convenient for equipment movement and positioning.
9:Photoelectric control open and shut down, high efficiency and energy saving,
cantilever mask with illumination device (optional).
10.The consumable material in the machine is with stable performance and easy to
change.
Technical Parameters
Model | Airflow m3/h | Filter area m2 | Vol. V/Hz | Power kw | Noise dBA | Out line size Length Width Height mm mm mm | Suction arm | ||||
DER-VE2400 | 2400 | 16 | 380/50 | 2.2 | 75±10 | 900 | 800 | 1400 | Single | ||
DER-VE3600 | 2400 | 16 | 380/50 | 2.2 | 75±10 | 900 | 800 | 1400 | Single | ||
DER-VE2400S | 3600 | 20 | 380/50 | 3.0 | 80±10 | 900 | 800 | 1400 | double | ||
DER-VE3600S | 3600 | 20 | 380/50 | 3.0 | 80±10 | 900 | 800 | 1400 | double | ||
TECHNICAL PARAMETER

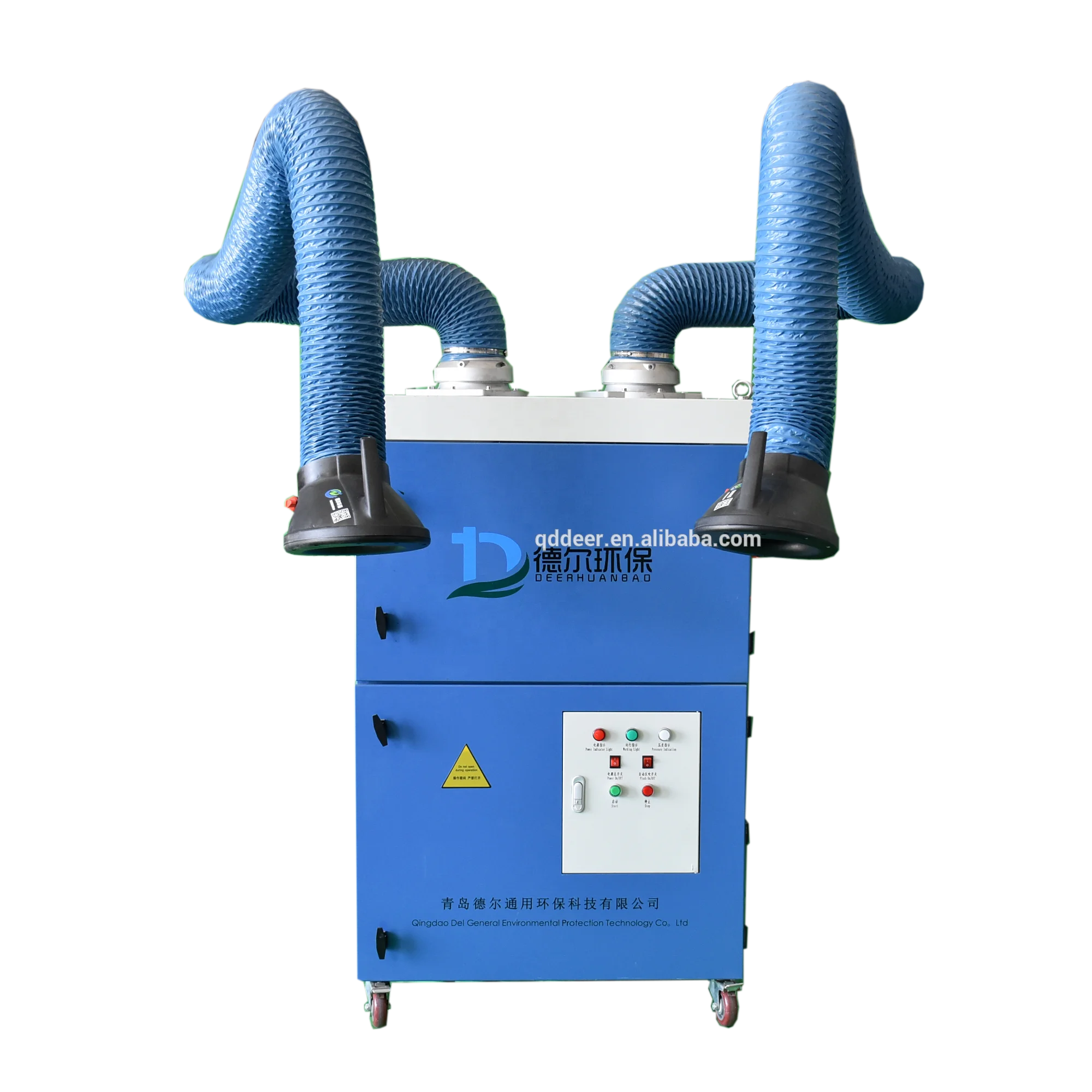

DER-AE SERIES WELDING FUME EXTRACTOR
I Application Area
DER-AE movable Dust & Fume Extraction Machine is used for the purifying of fume and
dust generated from welding, polishing, cutting, grinding and other processes, also for
the recycling of rare metals and precious material. It can purify small metal particles
which are harmful to human body and suspended in the air in large amount with features
of high efficiency of purifying, low noise, agile use, covering small area, etc.
It is suited for electric arc welding, CO2 shielded welding, MAG welding, carbon arc
gouging welding, gas molten cutting, special welding and other workplaces where
generate fume and dust.
dust generated from welding, polishing, cutting, grinding and other processes, also for
the recycling of rare metals and precious material. It can purify small metal particles
which are harmful to human body and suspended in the air in large amount with features
of high efficiency of purifying, low noise, agile use, covering small area, etc.
It is suited for electric arc welding, CO2 shielded welding, MAG welding, carbon arc
gouging welding, gas molten cutting, special welding and other workplaces where
generate fume and dust.
III Equipment Advantage
1:Adopt turbine fan and motors, anti-overload circuit which can prevent
motor from burned-out. With the features of high safety, stable performance.
2:Using built-in central electric control mode, simple structure and easy operation.
3: Pulse blowback type automatic dust cleaning: filter core adopts all-round
automatically rotating counter blowing dust cleaning which makes filter dust cleaning
more thoroughly and clean and can always guarantee the extraction machine with a
constant volume of air absorption; Air compressor parts is high-pressure hose
connection with bottom high-pressure air input. It can guarantee the machine always
in good condition. (It can be designed as automatic or manual control according to
user's demand.)
4: Filter drum adopts materials imported from USA with long service life and can absorb
more than 0.3 μm dust particles. It has very good filtering effect to wet and stickydust.
motor from burned-out. With the features of high safety, stable performance.
2:Using built-in central electric control mode, simple structure and easy operation.
3: Pulse blowback type automatic dust cleaning: filter core adopts all-round
automatically rotating counter blowing dust cleaning which makes filter dust cleaning
more thoroughly and clean and can always guarantee the extraction machine with a
constant volume of air absorption; Air compressor parts is high-pressure hose
connection with bottom high-pressure air input. It can guarantee the machine always
in good condition. (It can be designed as automatic or manual control according to
user's demand.)
4: Filter drum adopts materials imported from USA with long service life and can absorb
more than 0.3 μm dust particles. It has very good filtering effect to wet and stickydust.
5:Use the universal absorption arm with 360 degrees activity range, which can absorb
fume and dust from the generation place and greatly improve the dust collection rate
to ensure the working person’s health.
6:It adopts three ways of protective measures for fire hazards and big grain slag inside
the machine, which makes the machine more secure and reliable operation and
longer life.
7:Clean air is exhausted from grille air vents evenly and the noise is reduced to a
minimum.
8:Accompanied by specialized new Korean type caster wheel with brake, which is
convenient for equipment movement and positioning.
9:Photoelectric control open and shut down, high efficiency and energy saving,
cantilever mask with illumination device (optional).
10.The consumable material in the machine is with stable performance and easy to
change.
fume and dust from the generation place and greatly improve the dust collection rate
to ensure the working person’s health.
6:It adopts three ways of protective measures for fire hazards and big grain slag inside
the machine, which makes the machine more secure and reliable operation and
longer life.
7:Clean air is exhausted from grille air vents evenly and the noise is reduced to a
minimum.
8:Accompanied by specialized new Korean type caster wheel with brake, which is
convenient for equipment movement and positioning.
9:Photoelectric control open and shut down, high efficiency and energy saving,
cantilever mask with illumination device (optional).
10.The consumable material in the machine is with stable performance and easy to
change.
MODEL | POWER(KW) | AIRFLOW(M3/H) | VOLTAGE(CUSTOM MADE) | DIMENSION(MM) | ||||
DER-AE1200 | 1.1 | 1200 | 220V/50HZ/1PH | 650*650*1250 | ||||
DER-AE1500 | 1.5 | 1500 | 380V/50HZ/3PH | 650*650*1250 | ||||
DER-AE2400 | 2.2 | 2400 | 150V/60HZ/1PH | 650*650*1250 | ||||
DER-AE3600 | 3.0 | 3600 | 220V/60HZ/1PH | 5650*650*1200 | ||||
WITH AUNTOMATIC BACK BLOWING SYSTEM | ||||||||
EXTRACTION ARM:ONE OR TWO EXTRACTION ARM | ||||||||
Spare parts:

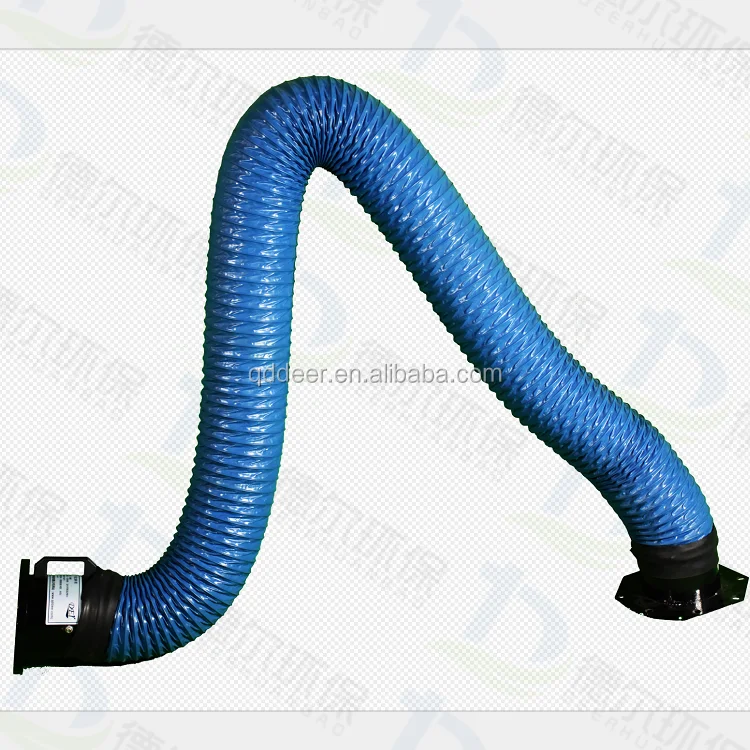

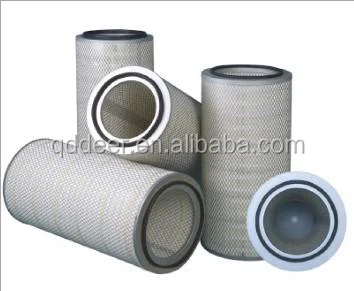

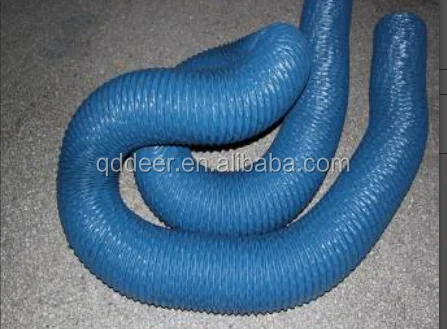

CARTRIDGE FILTER PVC HOSE EXTRACTION ARM
TECHNICAL PARAMETER
DER-DE SERIES WELDING FUME EXTRACTOR
Product structure characteristics
DER-DE type ■ Filter unit-- The pre-filter layer, the main filter layer and the chemical filter layer 3 parts to consist.
The pre-filtration layer can adsorb relatively big particles in the airflow to avoid the earlier blockage of the main filter layer.
The main filter layer is HEPA filter cartridge, vertical installed.
The filtration efficiency of high efficiency filter material for filtration of 0.3 micron particles is 99.9%,
and chemical filter cartridge is generally activated carbon layer, which can effectively adsorb the odor and harmful gas in the airflow, so that the indoor air can be discharged to meet the standard.
■ Pulse cleaning (optional)-- The pulse control system can be cleaned by hand or timing automatically clean the filter barrel.
III Equipment Advantage
1:Adopt turbine fan and motors, anti-overload circuit which can prevent
motor from burned-out. With the features of high safety, stable performance.
2:Using built-in central electric control mode, simple structure and easy operation.
3: Pulse blowback type automatic dust cleaning: filter core adopts all-round
automatically rotating counter blowing dust cleaning which makes filter dust cleaning
more thoroughly and clean and can always guarantee the extraction machine with a
constant volume of air absorption; Air compressor parts is high-pressure hose
connection with bottom high-pressure air input. It can guarantee the machine always
in good condition. (It can be designed as automatic or manual control according to
user's demand.)
4: Filter drum adopts materials imported from USA with long service life and can absorb
more than 0.3 μm dust particles. It has very good filtering effect to wet and stickydust.
motor from burned-out. With the features of high safety, stable performance.
2:Using built-in central electric control mode, simple structure and easy operation.
3: Pulse blowback type automatic dust cleaning: filter core adopts all-round
automatically rotating counter blowing dust cleaning which makes filter dust cleaning
more thoroughly and clean and can always guarantee the extraction machine with a
constant volume of air absorption; Air compressor parts is high-pressure hose
connection with bottom high-pressure air input. It can guarantee the machine always
in good condition. (It can be designed as automatic or manual control according to
user's demand.)
4: Filter drum adopts materials imported from USA with long service life and can absorb
more than 0.3 μm dust particles. It has very good filtering effect to wet and stickydust.
5:Use the universal absorption arm with 360 degrees activity range, which can absorb
fume and dust from the generation place and greatly improve the dust collection rate
to ensure the working person’s health.
6:It adopts three ways of protective measures for fire hazards and big grain slag inside
the machine, which makes the machine more secure and reliable operation and
longer life.
7:Clean air is exhausted from grille air vents evenly and the noise is reduced to a
minimum.
8:Accompanied by specialized new Korean type caster wheel with brake, which is
convenient for equipment movement and positioning.
9:Photoelectric control open and shut down, high efficiency and energy saving,
cantilever mask with illumination device (optional).
10.The consumable material in the machine is with stable performance and easy to
change.
fume and dust from the generation place and greatly improve the dust collection rate
to ensure the working person’s health.
6:It adopts three ways of protective measures for fire hazards and big grain slag inside
the machine, which makes the machine more secure and reliable operation and
longer life.
7:Clean air is exhausted from grille air vents evenly and the noise is reduced to a
minimum.
8:Accompanied by specialized new Korean type caster wheel with brake, which is
convenient for equipment movement and positioning.
9:Photoelectric control open and shut down, high efficiency and energy saving,
cantilever mask with illumination device (optional).
10.The consumable material in the machine is with stable performance and easy to
change.
MODEL | POWER(KW) | AIRFLOW(M3/H) | VOLTAGE(CUSTOM MADE) | DIMENSION(MM) | ||||
DER-DE1200 | 1.1 | 1200 | 380V/50HZ31PH | 900*800*1400 | ||||
DER-DE1500 | 1.5 | 1500 | 220V/50/60HZ/3PH | 900*800*1400 | ||||
DER-DE2400 | 2.2 | 2400 | 115V/60HZ/1PH | |||||
WITH AUNTOMATIC BACK BLOWING SYSTEM | ||||||||
EXTRACTION ARM:ONE OR TWO EXTRACTION ARM | ||||||||
Spare parts:
CARTRIDGE FILTER PVC HOSE EXTRACTION ARM
TECHNICAL PARAMETER
DER-MINI SERIES WELDING FUME EXTRACTOR
I Application Area
DER-MINI purification Mobile welding fume purifier is a light and high efficiency collector, which is designed according to the needs of various industrial dust collections.
It replies to the welding fumes, polishing, and other dust treatment in chemicals producing. Operators, who work for a long time in the environment of high concentration of dust, breathing in excess toxic substances, will cause headaches, nausea, asthma, chronic bronchitis and other symptoms, which seriously impact on health, and normal production.
MODEL | POWER(KW) | AIRFLOW(M3/H) | VOLTAGE(CUSTOM MADE) | DIMENSION(MM) |
DER-JK1200 | 0.75 | 1200 | 115V/60HZ/1PH | 630*500*1000 |
DER-JK1500 | 1.1 | 1200 | 220V/50HZ/1PH | 630*500*1000 |
TECHNICAL PARAMETER
DER-CE-Z SERIES WELDING FUME EXTRACTOR
I Application Area
CE-Z series wall mounted type welding fume extractor professionally design for capturing the fume and dust, and provide service for the customer of purifying the fume and dust.
Product structure characteristics
■ Adopts the universal arm that can freely move 360°.
It can absorb the fume and dust from the source place that the fume smoke happens, greatly increases the collection rate of the fume and dust, and directly captures the dust at the source to ensure the welder's health.
■ The clean air is discharged after noise reduction from the air fan outlet.
■ Consumptive material performance stable in the purifier, easy to change.
■ Small size, small power, and easy operation.
■ The wall-mounted type purifier saves space and easy operation.
■ An external control box to control, and the control box can install the suitable position according to working condition.
■ Adopts the universal arm that can freely move 360°.
It can absorb the fume and dust from the source place that the fume smoke happens, greatly increases the collection rate of the fume and dust, and directly captures the dust at the source to ensure the welder's health.
■ The clean air is discharged after noise reduction from the air fan outlet.
■ Consumptive material performance stable in the purifier, easy to change.
■ Small size, small power, and easy operation.
■ The wall-mounted type purifier saves space and easy operation.
■ An external control box to control, and the control box can install the suitable position according to working condition.
MODEL | POWER(KW) | AIRFLOW(M3/H) | VOLTAGE(CUSTOM MADE) | DIMENSION(MM) | ||||
DER-CE-Z1500 | 1.5 | 1500 | 380V/50HZ31PH | 1150*700*600 | ||||
DER-CE-Z2400 | 2.2 | 2400 | 220V/50/60HZ/3PH | 1150*700*600 | ||||
DER-CE-Z3600 | 3.0 | 3600 | 115V/60HZ/1PH | 1150*700*600 | ||||
WITH AUNTOMATIC BACK BLOWING SYSTEM | ||||||||
EXTRACTION ARM:ONE OR TWO EXTRACTION ARM | ||||||||
Company Profile
Qingdao Deer Environmental Protection Technology Co., Ltd
Qingdao Deer Environmental Protection Technology Co., Ltd has insisted on scientific and technological progress and increased investment in science and technology. The company has 11 independent R&D patents, Shandong Environmental Pollution Control Qualification Certificate, ISO9001 Quality Management System Certificate, ISO14001 Environmental Management System Certificate,OHSAS18001 Occupational Health and Safety Management System Certificate, High-tech Enterprise Certificate, etc.
Qingdao Deer Environmental Protection Technology Co., Ltd has established friendly strategic cooperative relations with famous domestic research institutes and design institutes and is
supported by a technical team of professors with solid theoretical knowledge and senior engineers with rich practical experience serves as the support, and constantly brings forth the new through the old according to the market demand.
supported by a technical team of professors with solid theoretical knowledge and senior engineers with rich practical experience serves as the support, and constantly brings forth the new through the old according to the market demand.
Contact us:
WECHAT:JUNO516
PHONE:+86 15865519554
QQ:986812685
EMAIL:JUNOLANG@QD-DEER.COM
Certifications
We Recommend
Allwin 750W two stage dust collection machine 5 micron bag dust collector
US $122.00-$135.00
DC18 Two stages metal drum dust collector for woodworking power tool
US $168.00-$179.00
Fabric Filter Woodworking Dust Collector Dedust System
US $500.00-$8000
New Arrivals
New products from manufacturers at wholesale prices
