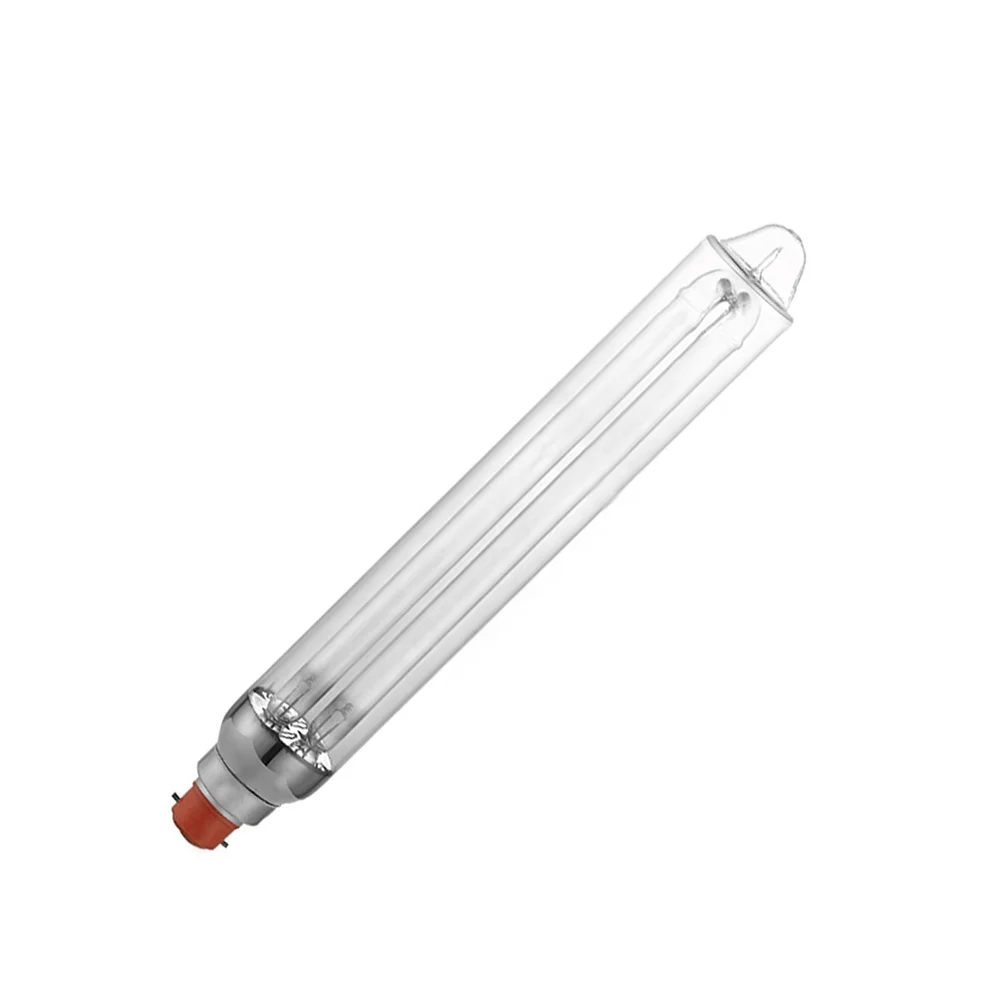

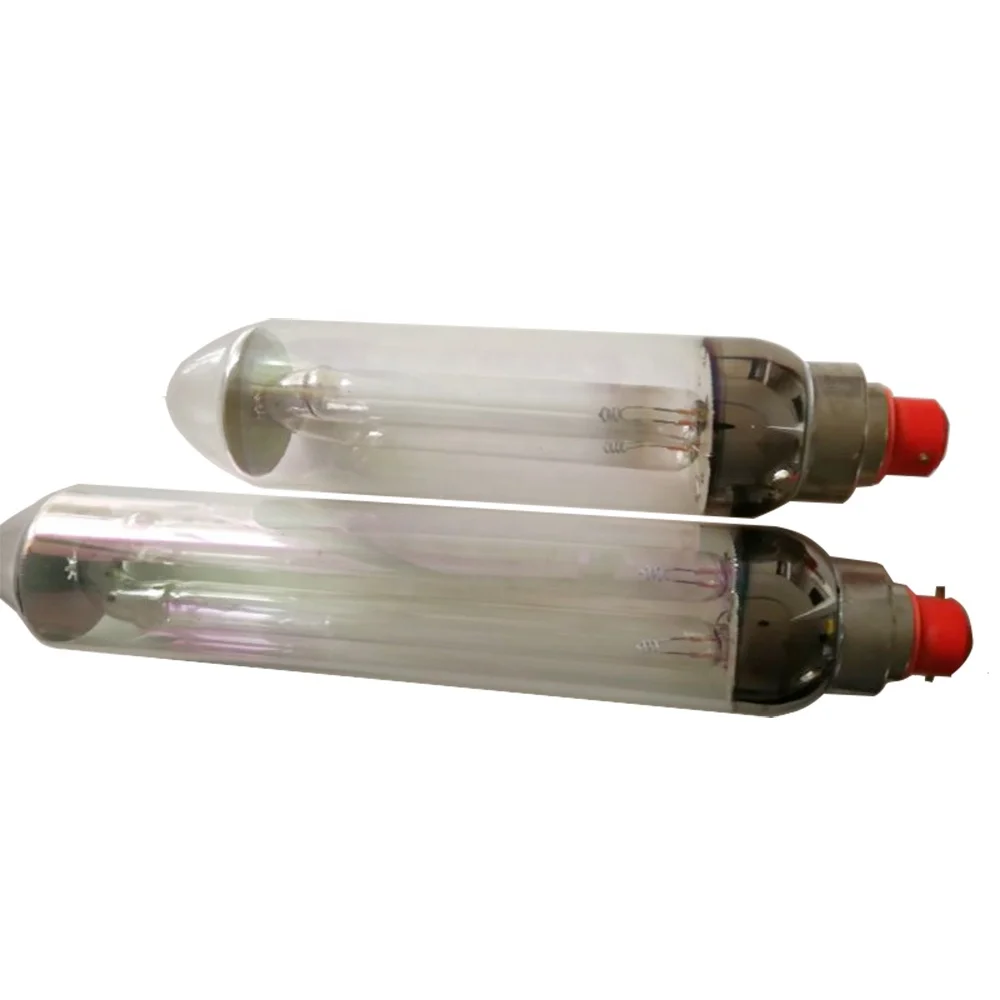

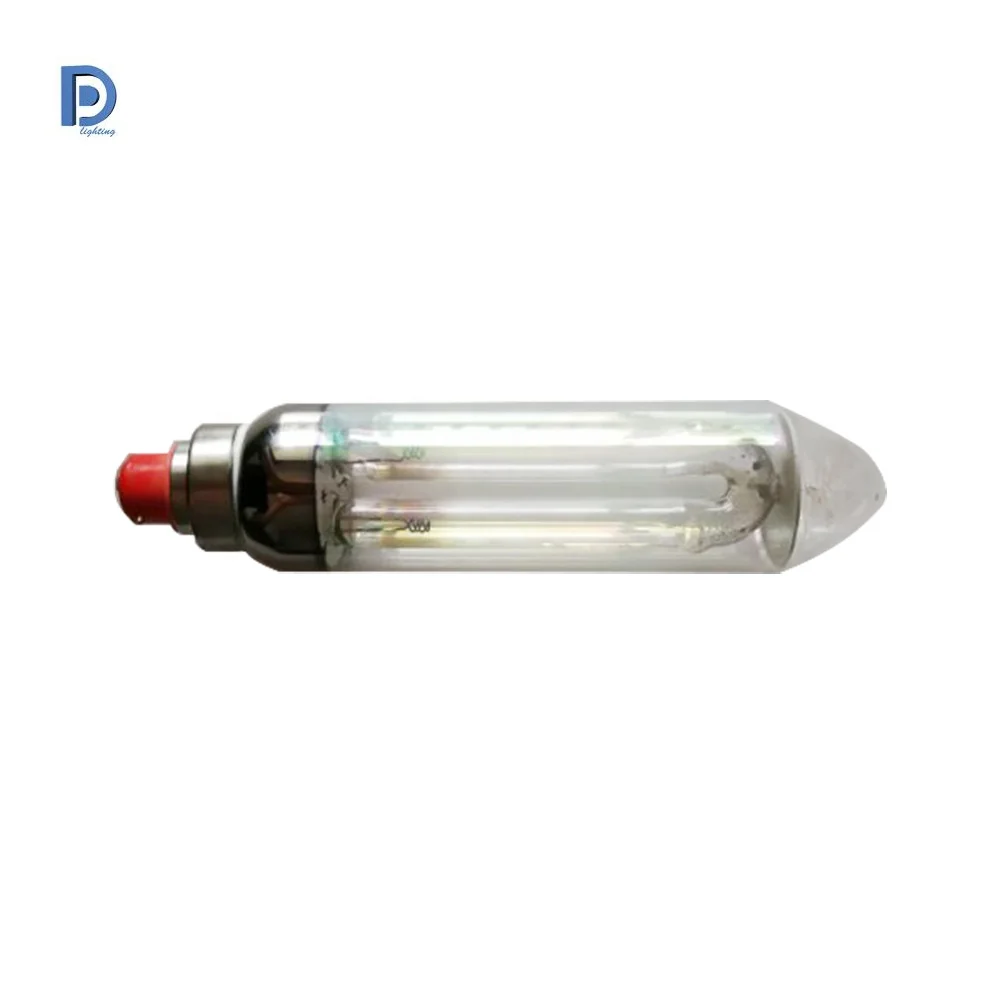

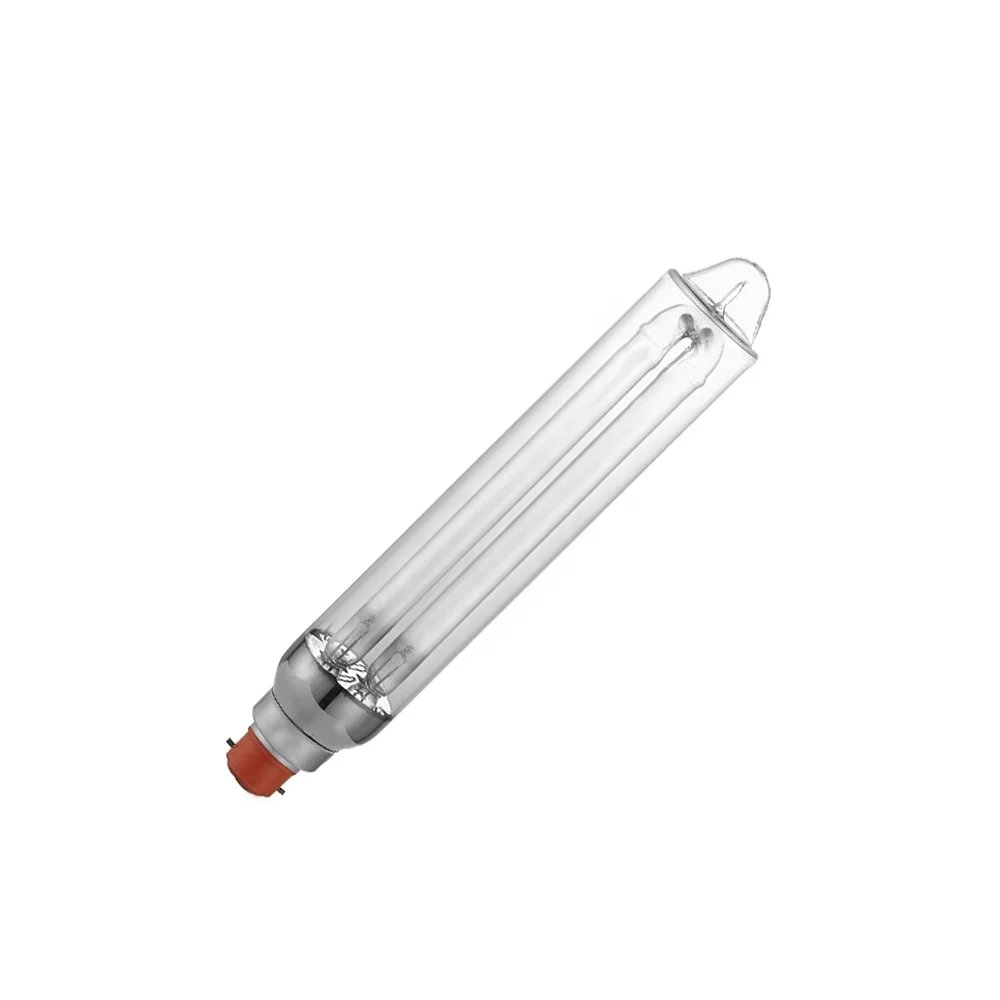

SOX Low Pressure Sodium Lamp 135W BY22d

SOX-Low Pressure Sodium Lamp 135W BY22d

SOX

Low Pressure Sodium Lamp

Benefits

• High luminous efficacy leads to low energy consumption

Features

• Uniform sodium distribution in the discharge tube by means of dimples for a more stable discharge, higher efficacy and better lumen maintenance and lamp life

• Monochromatic yellow color with non-existent color rendering

Application

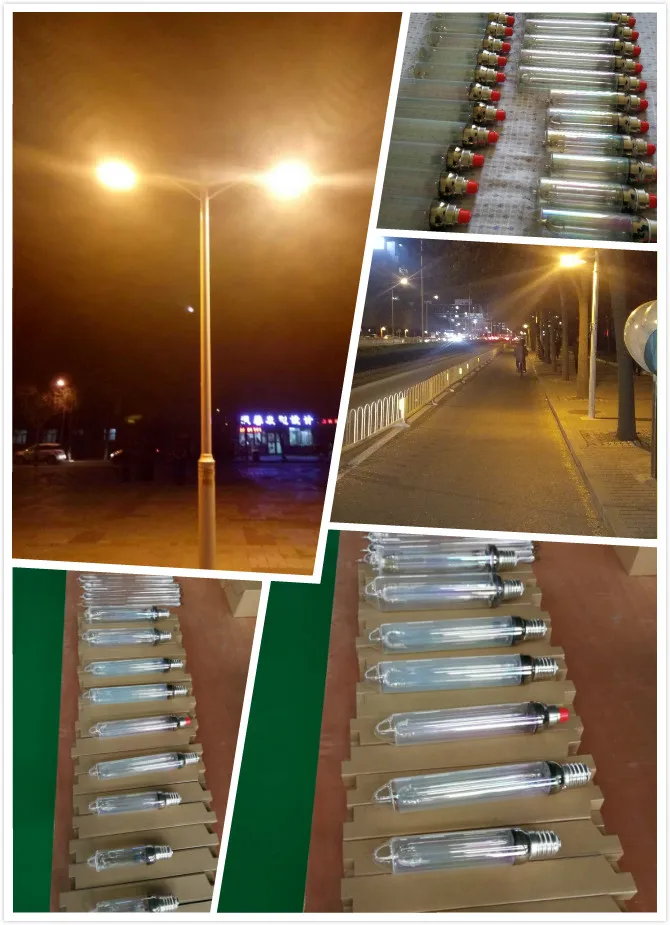

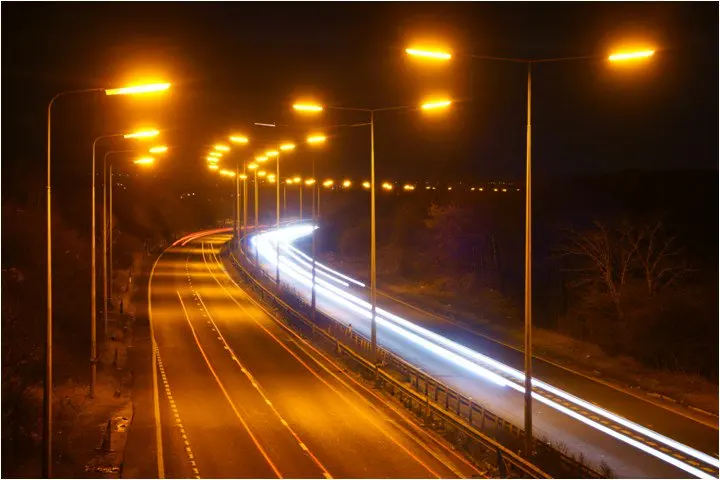

• Road lighting, railway marshalling yards and crossings, airports, harbours and docks, quarries, foundries and rolling mills

• Security and orientation lighting

Versions



SOX

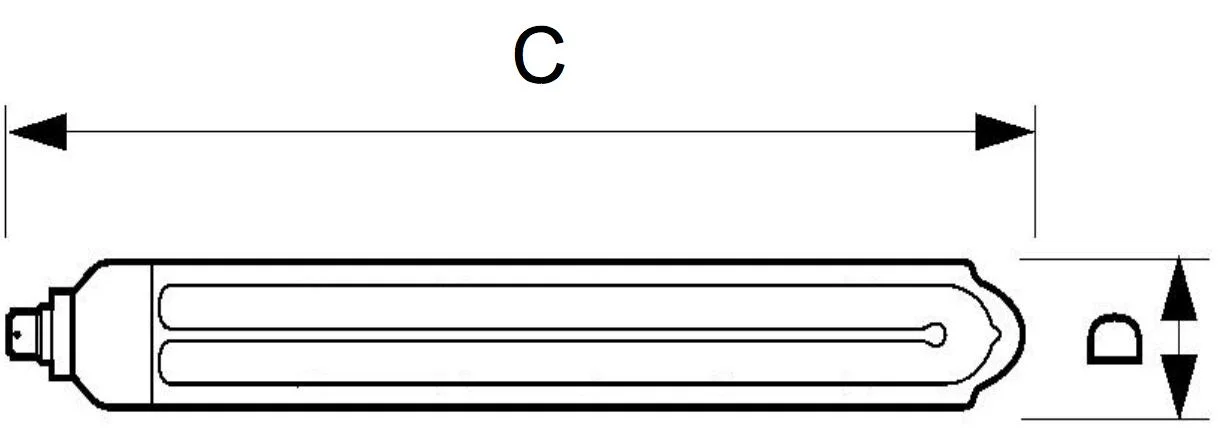

Dimentional Drawing





Product	D (Max)	C (Max)
SOX 35W BY22d	53 mm	311 mm
SOX 55W BY22d	53 mm	425 mm

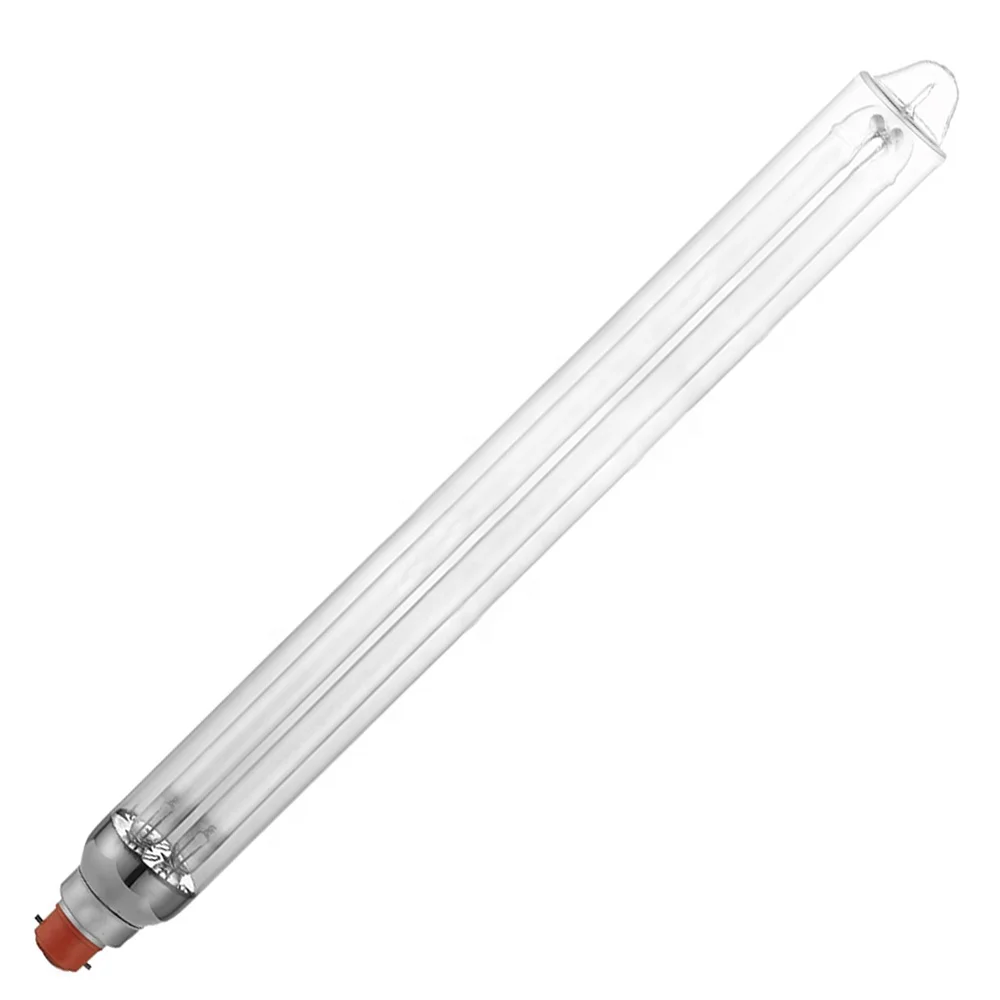

SOX 90W BY22d	66 mm	525 mm
SOX 135W BY22d	66 mm	765 mm

Operating and Electrical

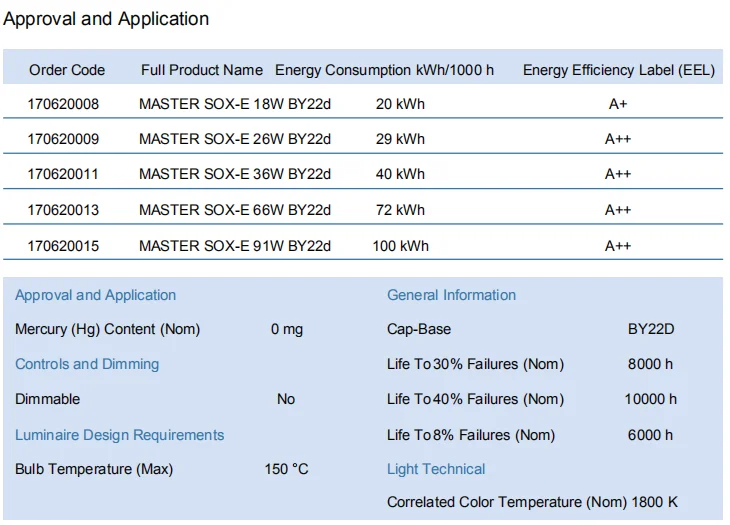

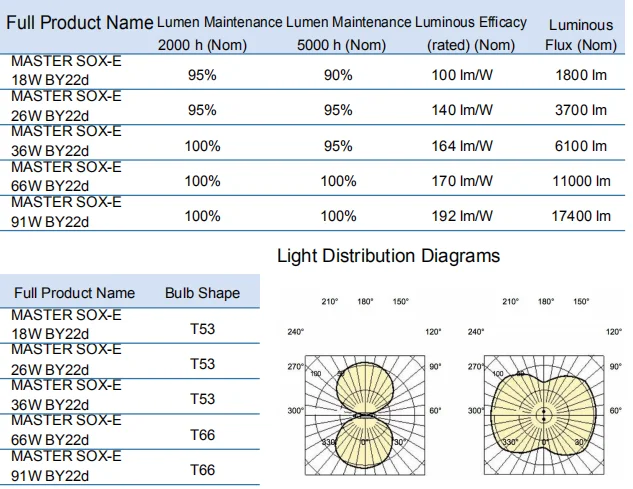

Full product name	Lamp Current(Nom)	Volatge(Nom)	Power (Rated)(Nom)
MASTER SOX-E 18W BY22d	0.33A	57V	18.0W
MASTER SOX-E 26W BY22d	0.37A	69V	26.0W
MASTER SOX-E 36W BY22d	0.32A	120V	36.0W
MASTER SOX-E 66W BY22d	0.6A	123V	66.0W
MASTER SOX-E 91W BY22d	0.46A	173V	91.0W
