V-15-1C25 15A/250VAC 3 pins burgess cherry push button micro switch

1. High accuracy of action position.
2. Good shock resistance ,maximum 1000m/s².
3. Good heat resistance,maximum operating temperature is T105°C.
4. High-strength shell,when mounting,the plastic shell can withstand torsional moment of 6kgf.cm without break.
specification
\t
Contact resistance
\t
15mΩ. max (initial)
\t
Insulation resistance
\t
100mΩ min. (at 500VDC)
\t
Dielectric strength
\t
1,000VAC 50/60Hz for 1 minute
\t
Life
\t
Mechanical: 10,000,000 operations min.
Electrical:100, 000 operations min. ( full road)
\t

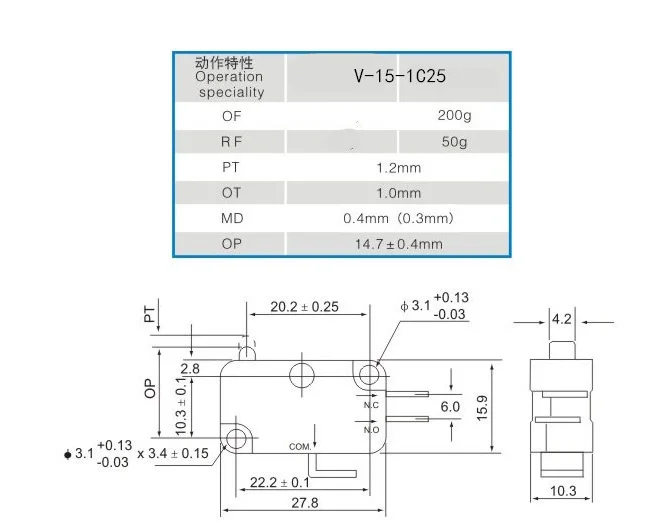

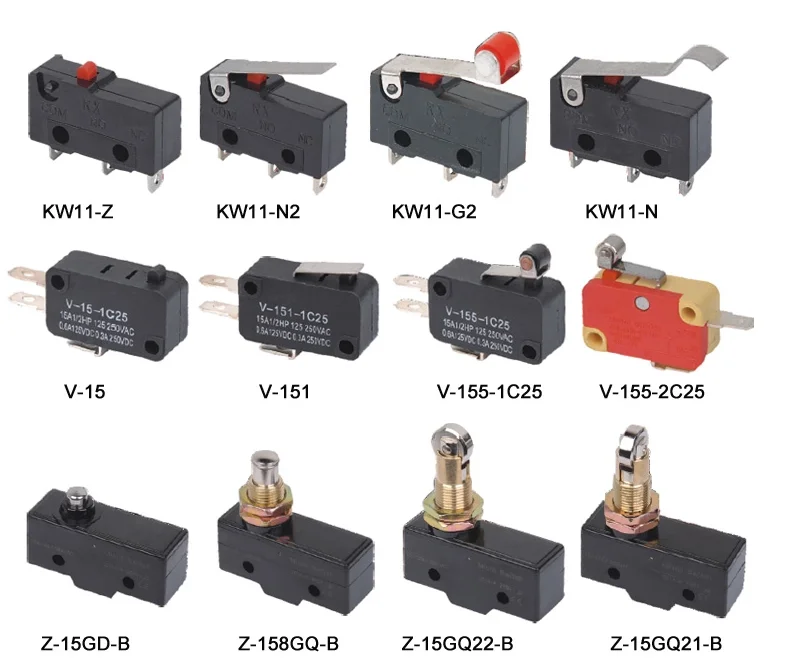

Models
\t
V-15-1C25
\t
V-151-1C25
\t
V-152-1C25
\t
V-153-1C25
\t
V-154-1C25
\t
V-155-1C25
\t
V-156-1C25
\t
OF max.
\t
200g
\t
200g
\t
125g
\t
65g
\t
125g
\t
240g
\t
125g
\t
RF min.
\t
50g
\t
50g
\t
14g
\t
6g
\t
14g
\t
50g
\t
14g
\t
PT max.
\t
1.2mm
\t
1.6mm
\t
4.0mm
\t
9.0mm
\t
4.0mm
\t
1.6mm
\t
4.0mm
\t
OT min.
\t
1.0mm
\t
0.8mm
\t
1.6mm
\t
2.0mm
\t
1.6mm
\t
0.8mm
\t
1.6mm
\t
MD max.
\t
0.4mm  (0.3mm)
\t
2.8mm (0.8mm)
\t
1.5mm (0.8mm)
\t
2.8mm (0.8mm)
\t
1.5mm (0.8mm)
\t
0.6mm (0.5mm)
\t
1.5mm (0.5mm)
\t
OP
\t
14.7±0.4mm
\t
15.2±0.5mm
\t
15.2±1.2mm
\t
15.2±3.2mm
\t
18.7±1.2mm
\t
20.7±0.5mm
\t
20.7±1.2mm
\t

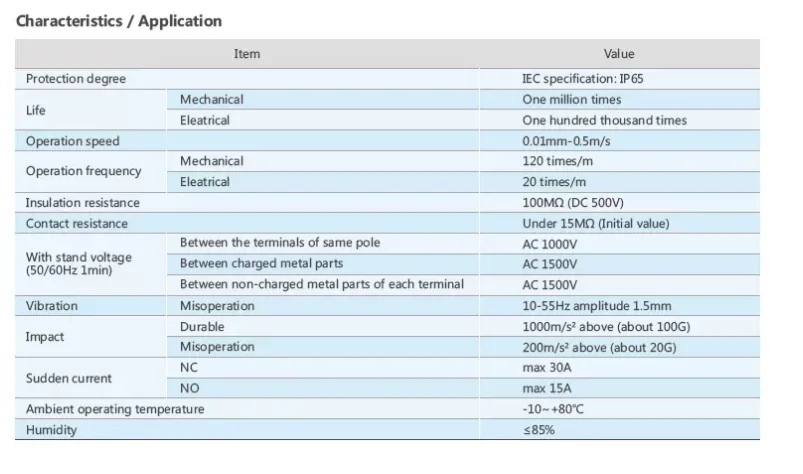

Item
\t
Value
\t
Operation speed
\t
0.01mm to 50m/Sec
\t
Action frequency
\t
120 times/Minute
\t
Contact resistance
\t
Under 15mΩ (Initial)
\t
Insulation resistance
\t
100mΩ above (under 500VDC)
\t
Vibration
\t
Action: 10 to 55Hz: 1.5mm pairs swing
\t
Ambient temperature
\t
-25°C to 80°C
\t
Protection structure
\t
IEC specification: IP65
\t
Humidity
\t
Below 95%RH
\t
Serve life
\t
Mechanically: 10000000 times above (at rated ot); Electrically: 500000 times above
\t
Hitting
\t
Machine: 400m/Sec² (about 40G'S); Action: 100m/Sec² (about 10G'S)
\t
Bearing voltage
\t
Non-contact end: 1000VAC, 50/60Hz for one minute, Current parts and noncurrent, parts and end and connect opsition: 1500VAC, 50/60Hz for one minute
