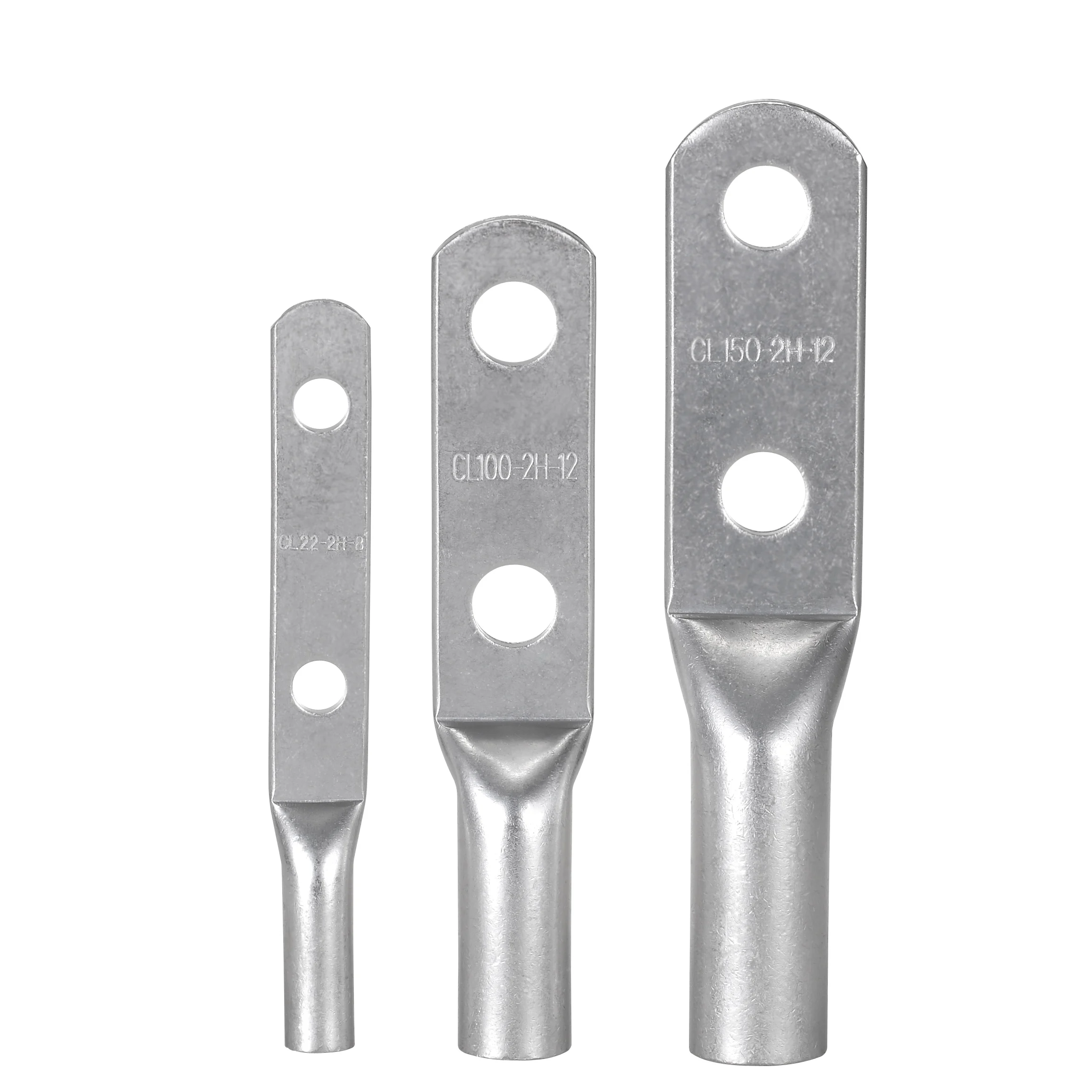

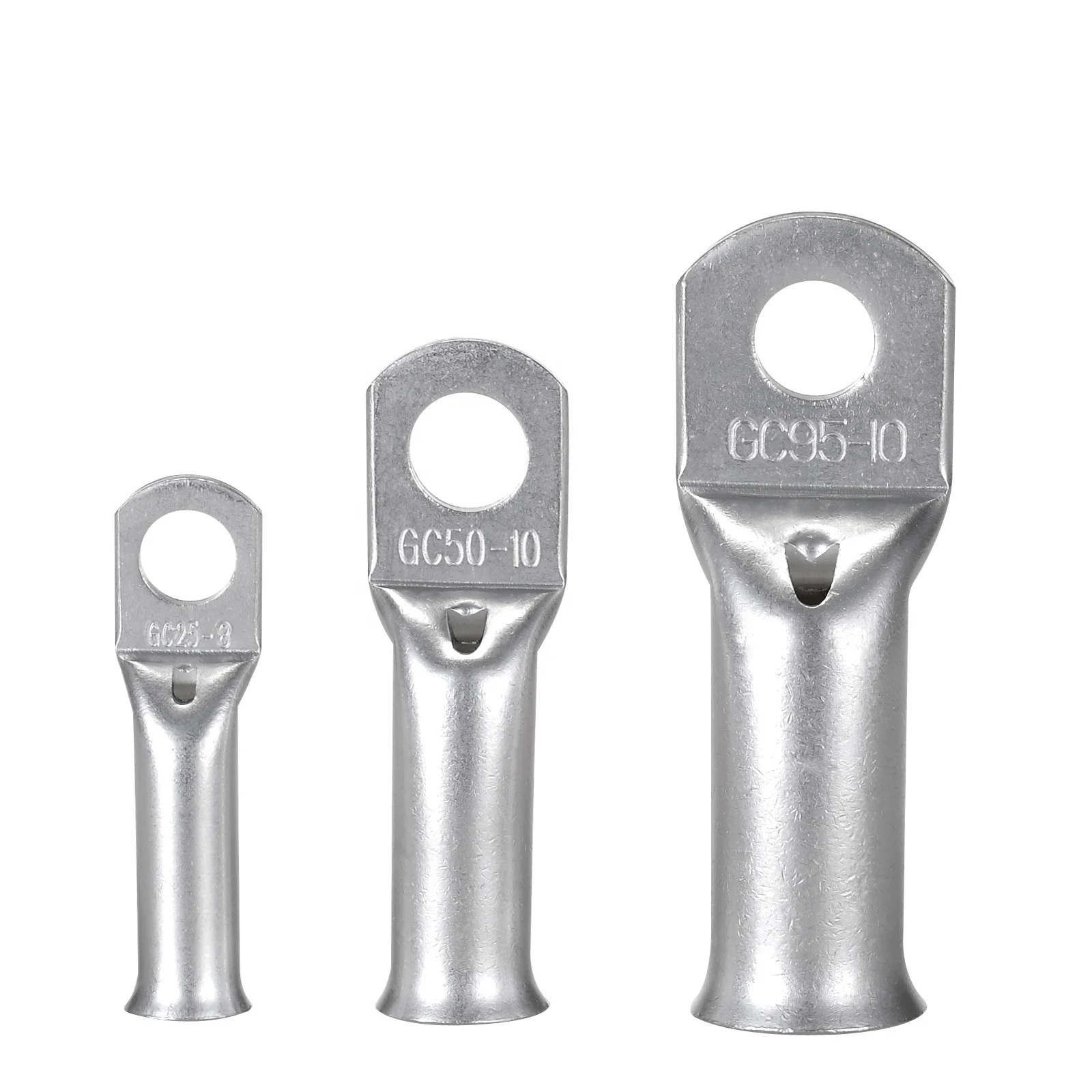

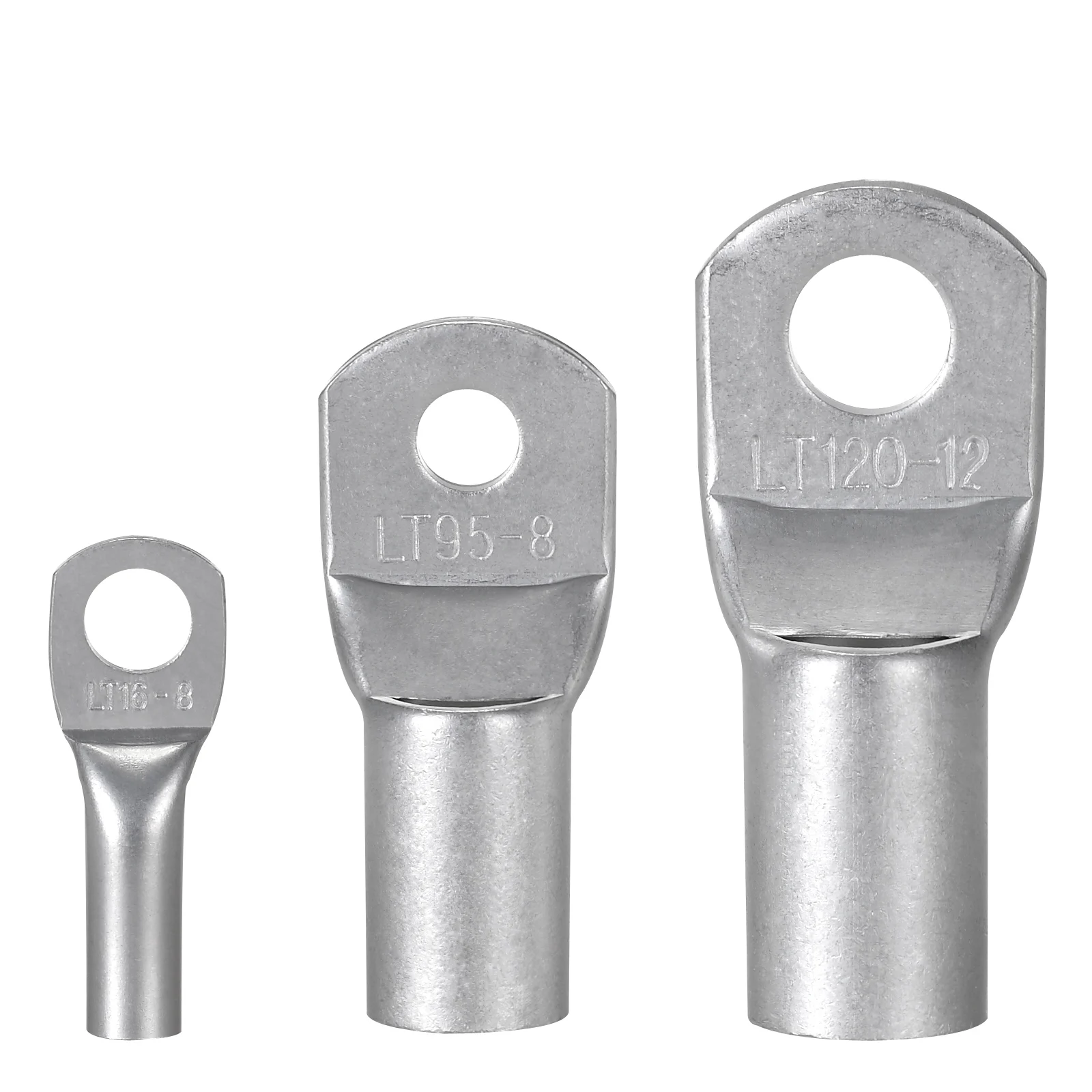

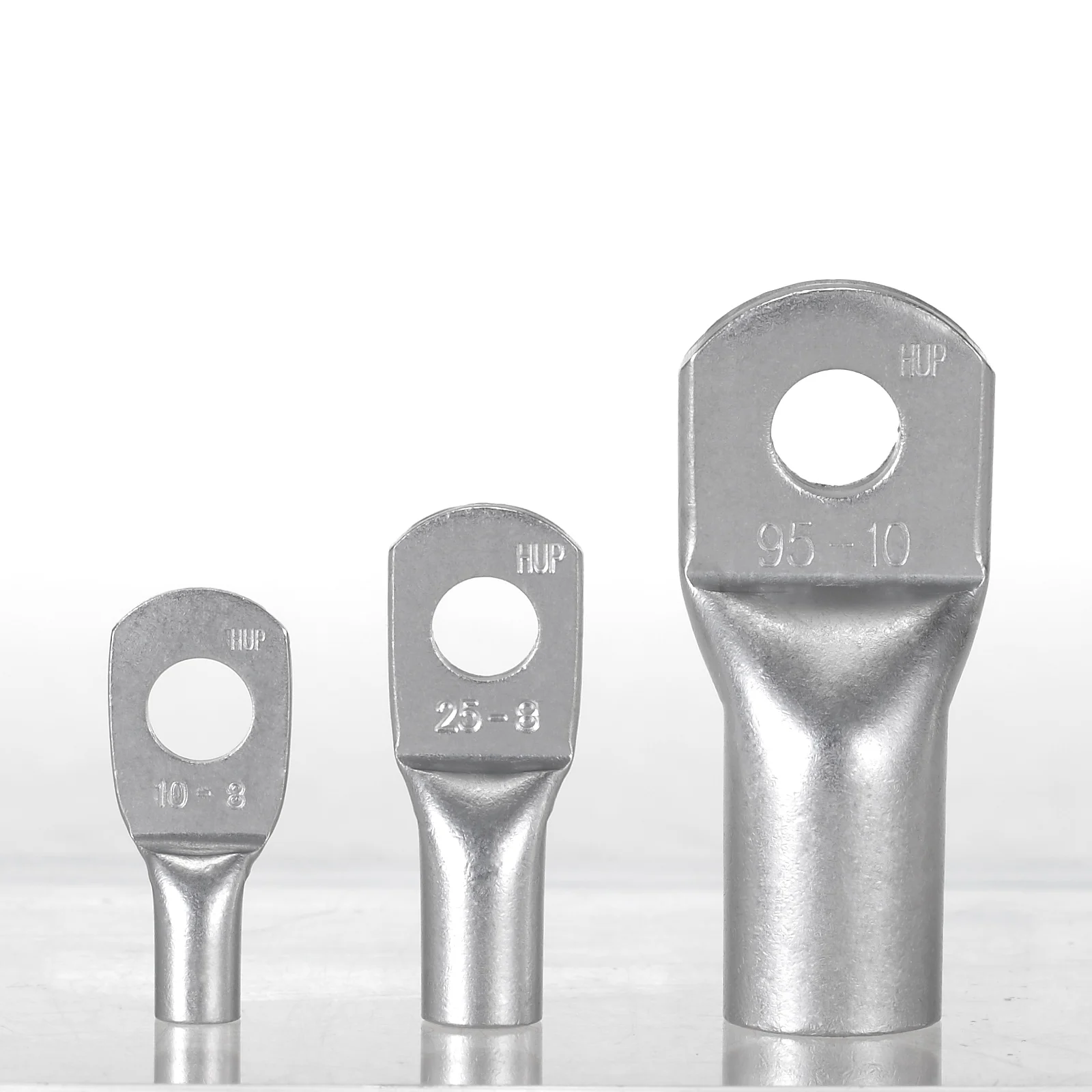

These products are suitable for the connectionof copper conductors (section 1.5-1000² ) in power cable with electronic equipment they are made of with higher 99.9 percent pure copper tube T2 and coated with tin. Working temperature -55 degree to 150 degree.

| Item No. | Dimensions (mm) | |||||
| φE | ΦD | Φd | W | B | L | |
| SC1.5-4 | 4.2 | 3.7 | 1.8 | 8 | 5 | 16 |
| SC1.5-5 | 5.2 | 3.7 | 1.8 | 10 | 5 | 17 |
| SC1.5-6 | 6.5 | 3.7 | 1.8 | 10 | 5 | 18 |
| SC2.5-4 | 4.2 | 4 | 2.4 | 8 | 7 | 18 |
| SC2.5-5 | 5.2 | 4 | 2.4 | 10 | 7 | 20 |
| SC2.5-6 | 6.5 | 4 | 2.4 | 10 | 7 | 20 |
| SC2.5-8 | 8.4 | 4 | 2.4 | 12.5 | 7 | 23 |
| SC4-4 | 4.2 | 4.8 | 3.1 | 10 | 7 | 20 |
| SC4-5 | 5.2 | 4.8 | 3.1 | 10 | 7 | 20 |
| SC4-6 | 6.5 | 4.8 | 3.1 | 10 | 7 | 20 |
| SC4-8 | 8.4 | 4.8 | 3.1 | 12.5 | 7 | 23 |
| SC6-4 | 4.2 | 5.5 | 3.8 | 10 | 9 | 24 |
| SC6-5 | 5.2 | 5.5 | 3.8 | 10 | 9 | 24 |
| SC6-6 | 6.5 | 5.5 | 3.8 | 12 | 9 | 24 |
| SC6-8 | 8.4 | 5.5 | 3.8 | 12.5 | 9 | 26 |
| SC6-10 | 10.5 | 6.2 | 4 | 15 | 9 | 28 |
| SC10-5 | 5.2 | 6.2 | 4.5 | 12 | 9 | 25 |
| SC10-6 | 6.5 | 6.2 | 4.5 | 12 | 9 | 25 |
| SC10-8 | 8.4 | 6.2 | 4.5 | 12.5 | 9 | 27 |
| SC10-10 | 10.5 | 6.2 | 4.5 | 15 | 9 | 29 |
| SC10-12 | 13 | 6.2 | 4.5 | 17 | 9 | 31 |
| SC16-5 | 5.2 | 7.1 | 5.4 | 12 | 12 | 30 |
| SC16-6 | 6.5 | 7.1 | 5.4 | 12 | 12 | 30 |
| SC16-8 | 8.4 | 7.1 | 5.4 | 12.5 | 12 | 30 |
| SC16-10 | 10.5 | 7.1 | 5.4 | 16 | 12 | 33 |
| SC16-12 | 13 | 7.1 | 5.4 | 17 | 12 | 35 |
| SC25-5 | 5.2 | 8.8 | 6.8 | 13 | 12 | 33 |
| SC25-6 | 6.5 | 8.8 | 6.8 | 13 | 12 | 33 |
| SC25-8 | 8.4 | 8.8 | 6.8 | 15 | 12 | 33 |
| SC25-10 | 10.5 | 8.8 | 6.8 | 18 | 12 | 34 |
| SC25-12 | 13 | 8.8 | 6.8 | 18 | 12 | 35 |
| SC25-14 | 15 | 8.8 | 6.8 | 20 | 12 | 38 |
| SC35-5 | 5.2 | 10.6 | 8.2 | 16 | 14 | 38 |
| SC35-6 | 6.5 | 10.6 | 8.2 | 16 | 14 | 38 |
| SC35-8 | 8.4 | 10.6 | 8.2 | 16 | 14 | 38 |
| SC35-10 | 10.5 | 10.6 | 8.2 | 18 | 14 | 39 |
| SC35-12 | 13 | 10.6 | 8.2 | 19 | 14 | 40.5 |
| SC35-14 | 15 | 10.6 | 8.2 | 20 | 14 | 42 |
| SC50-6 | 6.5 | 12.4 | 9.5 | 17.8 | 16 | 45 |
| SC50-8 | 8.4 | 12.4 | 9.5 | 17.8 | 16 | 45 |
| SC50-10 | 10.5 | 12.4 | 9.5 | 17.8 | 16 | 45 |
| SC50-12 | 13 | 12.4 | 9.5 | 20 | 16 | 45 |
| SC50-14 | 15 | 12.4 | 9.5 | 22 | 16 | 46 |
| SC50-16 | 17 | 12.4 | 9.5 | 24 | 16 | 47 |
| SC70-8 | 8.4 | 14.7 | 11.2 | 21 | 20 | 52 |
| SC70-10 | 10.5 | 14.7 | 11.2 | 21 | 20 | 52 |
| SC70-12 | 13 | 14.7 | 11.2 | 21 | 20 | 52 |
| SC70-14 | 15 | 14.7 | 11.2 | 21 | 20 | 52 |
| SC70-16 | 17 | 14.7 | 11.2 | 25 | 20 | 53 |
| SC95-8 | 8.4 | 17.4 | 13.5 | 25 | 23 | 58 |
| SC95-10 | 10.5 | 17.4 | 13.5 | 25 | 23 | 58 |
| SC95-12 | 13 | 17.4 | 13.5 | 25 | 23 | 58 |
| SC95-14 | 15 | 17.4 | 13.5 | 25 | 23 | 58 |
| SC95-16 | 17 | 17.4 | 13.5 | 25 | 23 | 58 |
| SC120-8 | 8.4 | 19.4 | 15 | 28 | 22 | 63 |
| SC120-10 | 10.5 | 19.4 | 15 | 28 | 22 | 63 |
| SC120-12 | 13 | 19.4 | 15 | 28 | 22 | 63 |
| SC120-14 | 15 | 19.4 | 15 | 28 | 22 | 63 |
| SC120-16 | 17 | 19.4 | 15 | 28 | 22 | 63 |
| SC120-20 | 21 | 19.4 | 15 | 28 | 22 | 63 |
| SC150-8 | 8.4 | 21.2 | 16.5 | 30.5 | 26 | 70 |
| SC150-10 | 10.5 | 21.2 | 16.5 | 30.5 | 26 | 70 |
| SC150-12 | 13 | 21.2 | 16.5 | 30.5 | 26 | 70 |
| SC150-14 | 15 | 21.2 | 16.5 | 30.5 | 26 | 70 |
| SC150-16 | 17 | 21.2 | 16.5 | 30.5 | 26 | 70 |
| SC150-20 | 21 | 21.2 | 16.5 | 30.5 | 26 | 70 |
| SC185-10 | 10.5 | 23.5 | 18.5 | 34 | 32 | 75 |
| SC185-12 | 13 | 23.5 | 18.5 | 34 | 32 | 75 |
| SC185-14 | 15 | 23.5 | 18.5 | 34 | 32 | 75 |
| SC185-16 | 17 | 23.5 | 18.5 | 34 | 32 | 75 |
| SC185-20 | 21 | 23.5 | 18.5 | 34 | 32 | 75 |
| SC240-10 | 10.5 | 26.5 | 21 | 38.5 | 38 | 90 |
| SC240-12 | 13 | 26.5 | 21 | 38.5 | 38 | 90 |
| SC240-14 | 15 | 26.5 | 21 | 38.5 | 38 | 90 |
| SC240-16 | 17 | 26.5 | 21 | 38.5 | 38 | 90 |
| SC240-18 | 19 | 26.5 | 21 | 38.5 | 38 | 90 |
| SC240-20 | 21 | 26.5 | 21 | 38.5 | 38 | 90 |
| SC300-10 | 10.5 | 30 | 23.5 | 43 | 42 | 98 |
| SC300-12 | 13 | 30 | 23.5 | 43 | 42 | 98 |
| SC300-14 | 15 | 30 | 23.5 | 43 | 42 | 98 |
| SC300-16 | 17 | 30 | 23.5 | 43 | 42 | 98 |
| SC300-20 | 21 | 30 | 23.5 | 43 | 42 | 98 |
| SC400-10 | 10.5 | 36.5 | 28.5 | 52 | 44 | 110 |
| SC400-12 | 13 | 36.5 | 28.5 | 52 | 44 | 110 |
| SC400-14 | 15 | 36.5 | 28.5 | 52 | 44 | 110 |
| SC400-16 | 17 | 36.5 | 28.5 | 52 | 44 | 110 |
| SC400-20 | 21 | 36.5 | 28.5 | 52 | 44 | 110 |
| SC500-10 | 10.5 | 39 | 30 | 56 | 48 | 120 |
| SC500-12 | 13 | 39 | 30 | 56 | 48 | 120 |
| SC500-14 | 15 | 39 | 30 | 56 | 48 | 120 |
| SC500-16 | 17 | 39 | 30 | 56 | 48 | 120 |
| SC500-20 | 21 | 39 | 30 | 56 | 48 | 120 |
| SC630-10 | 10.5 | 45 | 35 | 65 | 56 | 140 |
| SC630-12 | 13 | 45 | 35 | 65 | 56 | 140 |
| SC630-14 | 15 | 45 | 35 | 65 | 56 | 140 |
| SC630-16 | 17 | 45 | 35 | 65 | 56 | 140 |
| SC630-20 | 21 | 45 | 35 | 65 | 56 | 140 |
| SC800-20 | 21 | 72 | 170 | 50 | 39 | 60 |
| SC1000-22 | 23 | 81 | 200 | 56 | 40 | 87 |
