mini lathe drilling milling multi functional 3 in 1 lathe brushless motor 750W mill drill lathe combo sale
- Category: >>>
- Supplier: Shenzhen Dijin Machine Equipment Co. Ltd.
Share on (62076122883):
Product Overview
Description
lathe drill mill combo BHP250V
Specification:
Feature : 1. Longitudinal automatic feed .
2. Milling head tilt +-90 degree
3.lathe bed surface hardening.
4.equip with three jaw chuck guard ,tool post guard .

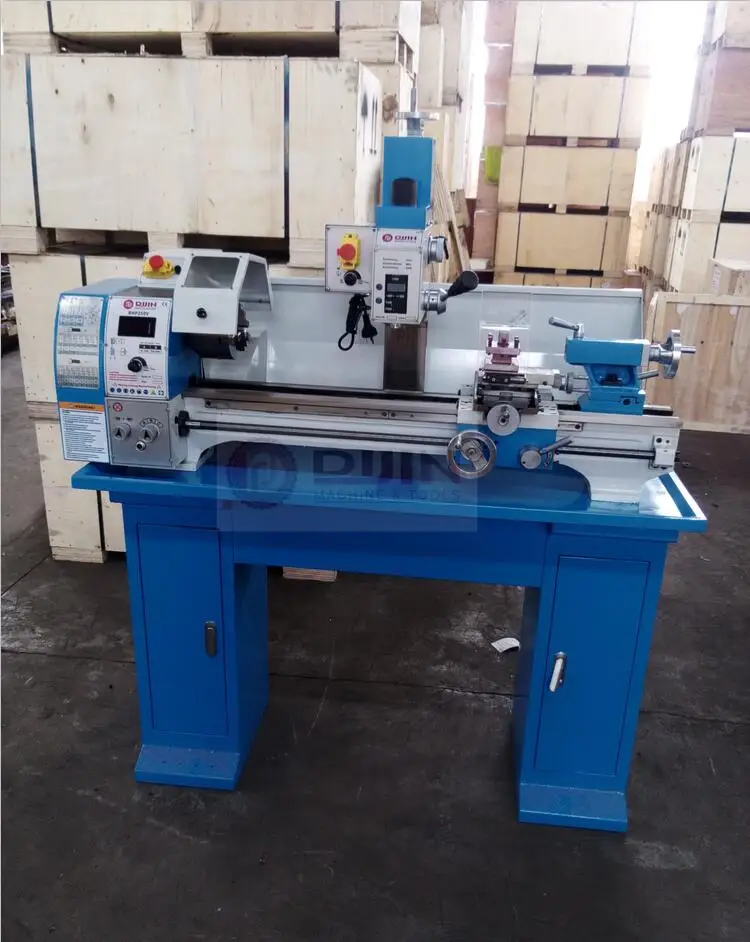

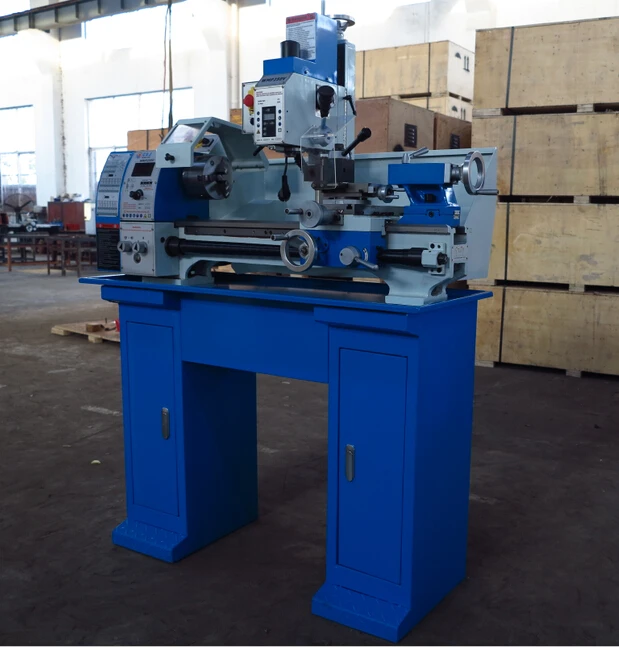

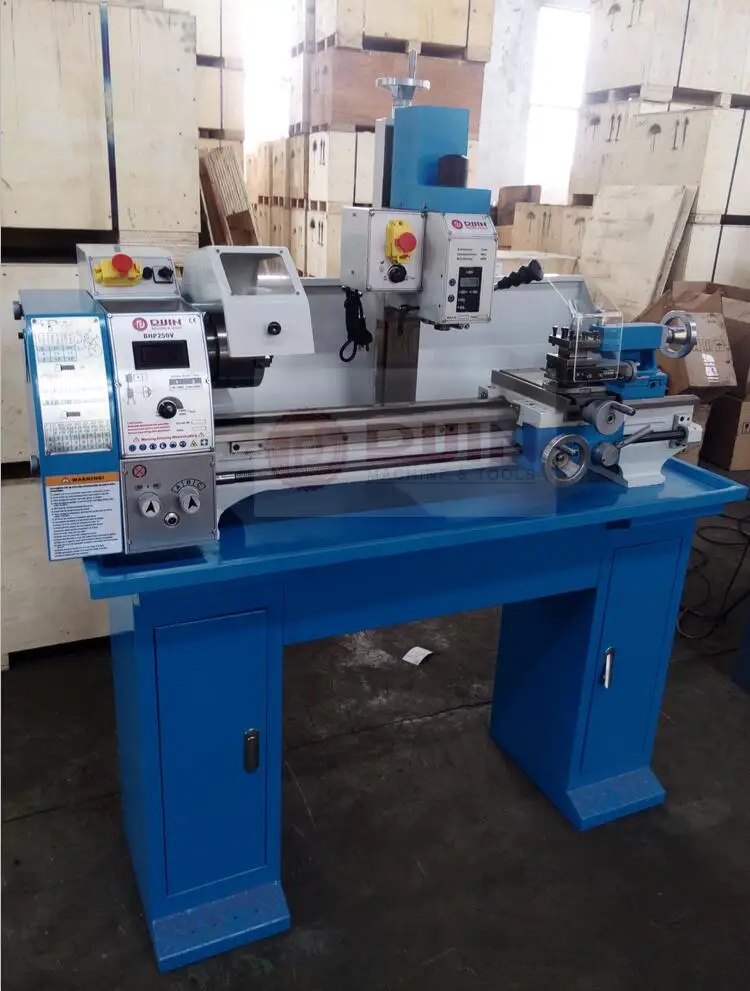

NOTE: Machine stand,Euro quickly change tool post and digital readout are optional accessory ,Not standard part,The website picture just for display purpose
We also can updated BHP250VF ,use two rod ,X,Y axis automatic feed .
Model BHP250V Specification:
Max distance between center | 750mm |
Max swing over bed | 250mm |
Max swing over cross slide | 165mm |
Taper of spindle bore | Mt4 |
Bed of width | 135mm |
Spindle bore | 26mm |
Range of spindle | 50-2000rpm |
Slide feed speed | 0.07-0.40mm/r |
Inch threads | 8-56TPI (21kinds) |
Metric threads | 0.2-3.5mm(18kinds) |
Top slide travel | 50mm |
Cross slide of travel | 115mm |
Tail stocks quill travel | 70mm |
Taper of tail stocks quill | Mt2 |
motor | 750W |
Max drill capacity | 16mm |
Max end mill capacity | 16mm |
Max face mill capacity | 50mm |
Taper of spindle | Mt2 |
Vertical travel | 210mm |
T-Slot | 10mm |
Main motor | 500w |
Spindle travel | 50mm |
Spindle speed | 50-2250rpm |
Overall Packing size | 1400*700*880mm |
Overall Net /gross weight | 200/230kgs |
