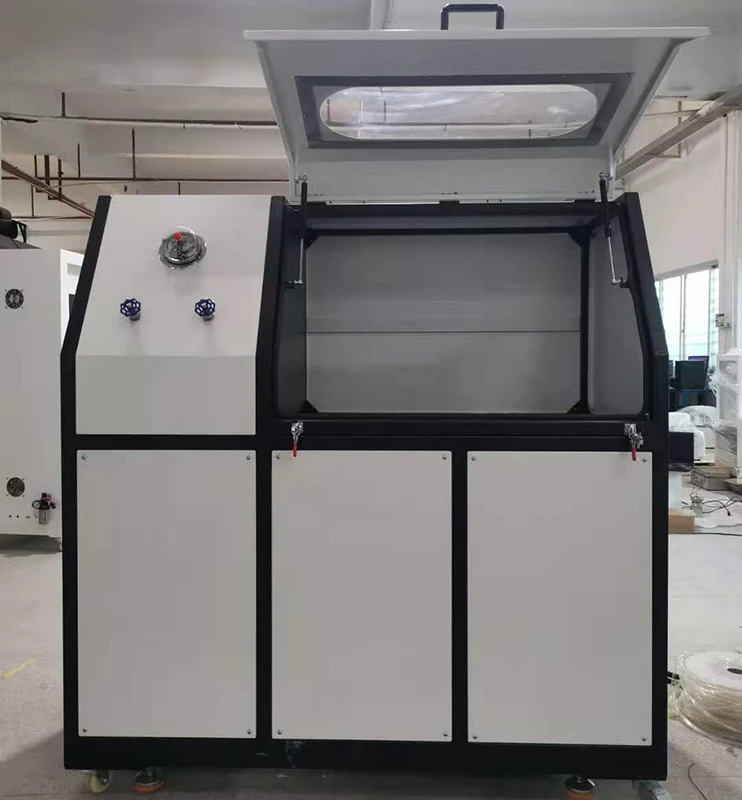

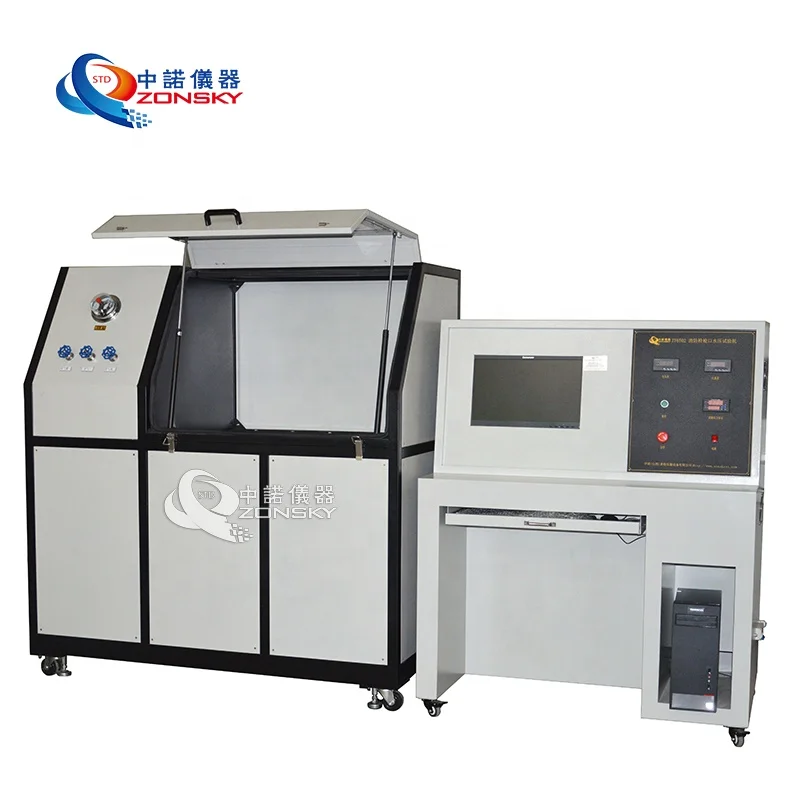

Fire Coupling Water Branch Hydrostatic Pressure Testing Machine
1. Overview

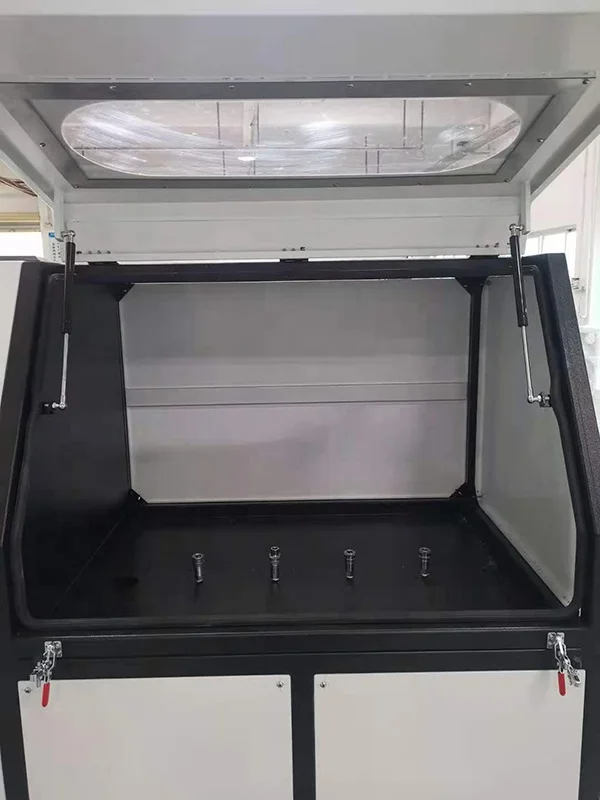

ZY6502 Fire Coupling Water Branch Hydrostatic Pressure Testing Machine is suitable for detecting all kinds of fire fighting water guns and indoor fire hydrants with working pressure of 0.2 Mpa ~ 4.0 Mpa and flow rate no more than 16 L/s. Its design and manufacture meet the requirements of GB3445-2005 "Indoor Fire Hydrant", GB12514.2-2006 "Fire Interface", GB8181-2005 "Fire Fighting Water Gun". This equipment adopts computer automatic frequency conversion control technology and multi-channel voltage regulator system, which performs hydraulic sealing and pressure test on various types of hydrant nozzles. The computer automatically records the data, prints the test report as required, and recycle water, and the unique test sample can be quickly installed and disassembled, saving time and effort, and can test 1-6 samples at the same time, improving the automation degree of the hydrant nozzle test.
2. Main technical parameters | ||||||||
Pressure regulation range | 0-10 MPa | |||||||
Boost rate | 5~10 Mpa/min adjustable | |||||||
Number of test pieces | 10 samples can be tested simultaneously | |||||||
High pressure water output | 120 L/min | |||||||
Pressure collection accuracy | ±0.05 MPa | |||||||
Pressure sensing mode | Current transmitter mode | |||||||
Voltage regulator pressure | 25 Mpa | |||||||
Pressure collection interval | 0.1 s | |||||||
High pressure pump pressure range | 0-20 MPa | |||||||
Frequency converter frequency modulation range | 0-50 Hz | |||||||
Pressure pipe diameter | DN25 seamless steel pipe and rubber hose | |||||||
Power | AC380V, power: 8KW | |||||||
Machine size | L1650 x W800 x H1590 mm | |||||||

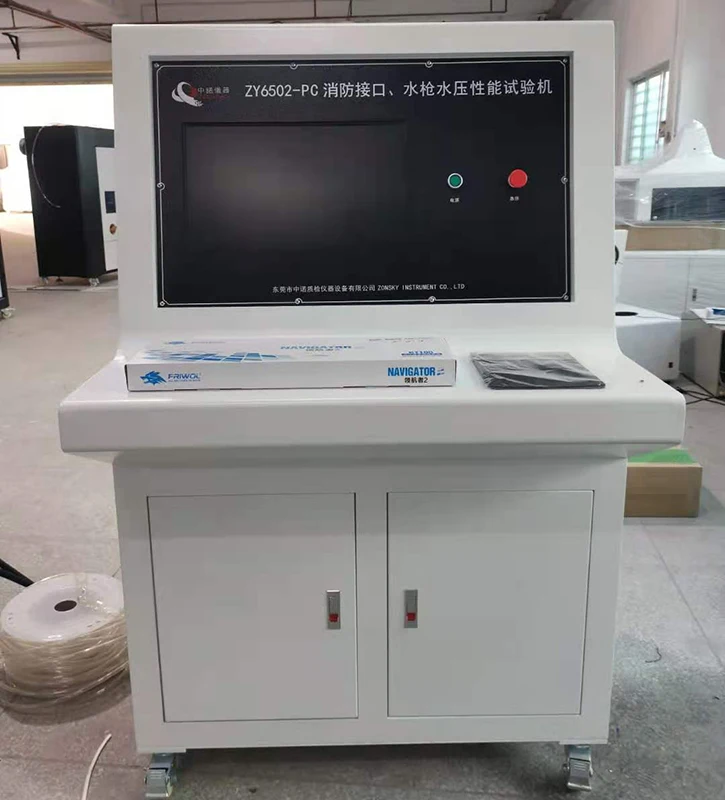

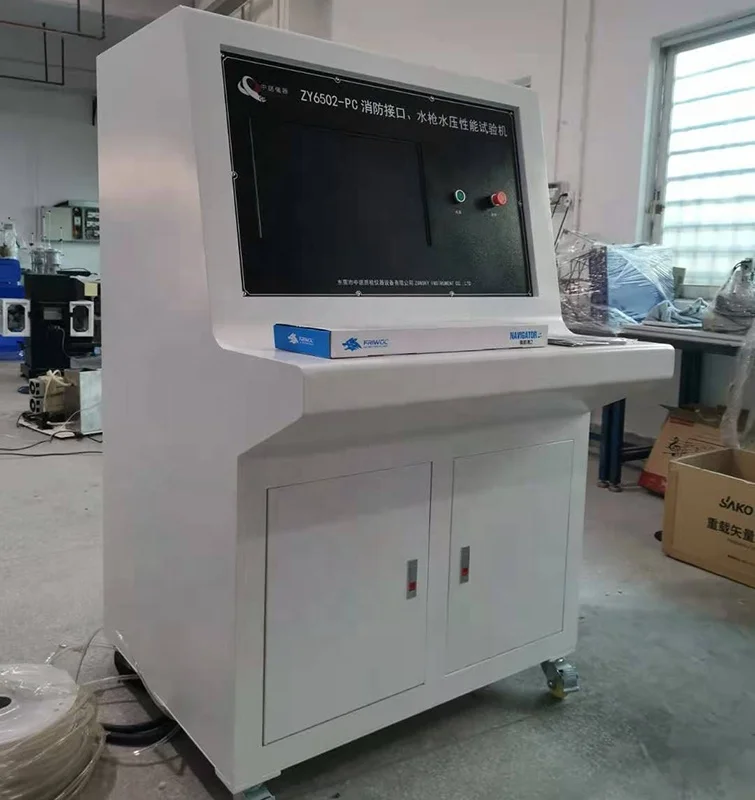

Size of control cabinet | L1200 x W750 x H1400 mm | |||||||
Use of environmental conditions
Fire Hydrant Pressure Testing Equipment is suitable for indoor environment, the temperature is above 5℃, have good water and drainage pipes. The 380V grid voltage is stable.
