  • SMPS MeanWell LRS 200 48 200W 48V AC to DC Single Output high efficiency 30mm of low profile design switching power supply
SMPS MeanWell LRS 200 48 200W 48V AC to DC Single Output high efficiency 30mm of low profile design switching power supply
SMPS MeanWell LRS-200-48 200W 48V AC to DC Single Output high efficiency 30mm of low profile design switching power supply

SMPS MeanWell LRS 200 48 200W 48V AC to DC Single Output high efficiency 30mm of low profile design switching power supply

Share on (62076288535):


Price:

Quantity:


Product Overview

Description


Model No.:Mean Well LRS-200-48 Switch SMPS  Power Supply  200W 48V 4.4A15pcs/10.9Kg/0.78CUFT



Product Description


Features:




  • AC input range selectable by switch




  • Withstand 300VAC surge input for 5 second




  • Protections: Short circuit / Overload / Over voltage / Over temperature




  • Cooling by free air convection




  • 1U low profile




  • Withstand 5G vibration test




  • LED indicator for power on




  • No load power consumption<0.75W




  • 100% full load burn-in test




  • High operating temperature up to 70°C




  • Operating altitude up to 5000 meters (Note.8)




  • High efficiency, long life and high reliability


     3 years warranty




Pictures:

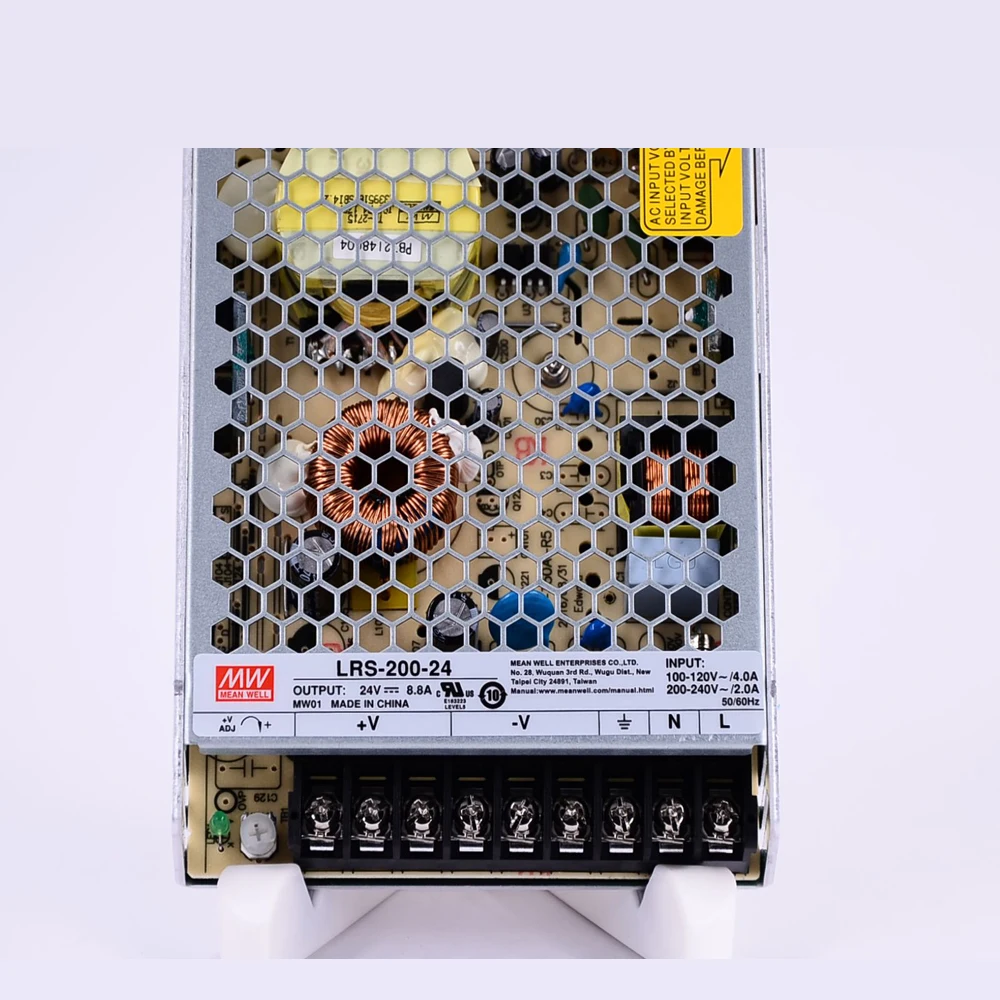

LRS-200-24




Product Overviews


Model No.: Mean Well LRS-200-48 Switch SMPS  Power Supply  200W 48V 4.4A

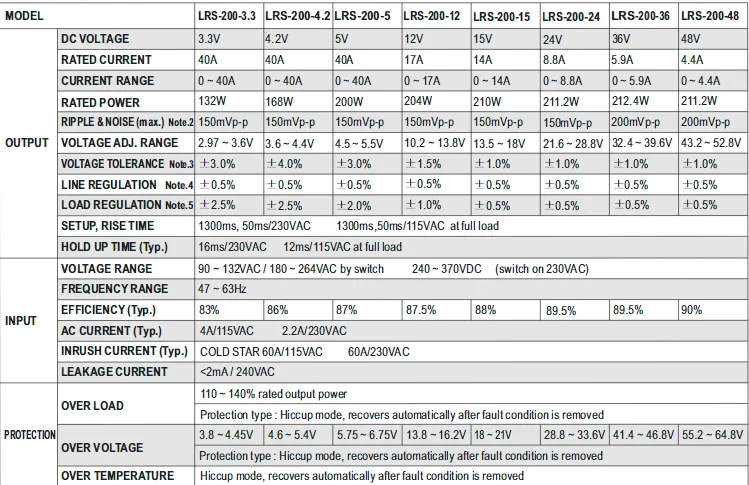

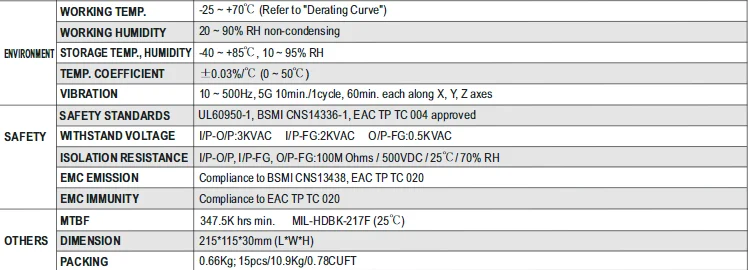

Specification









Packing & Shipping


Model No.: Mean Well LRS-200-48 Switch SMPS  Power Supply  200W 48V 4.4A




Cornor of Warehouse:


.jpg


Three Ways of Shipping for Your Choice: By Courier / By Air / By Sea


 -1 .jpg






Certifications


Model No.:Mean Well LRS-200-48 Switch SMPS  Power Supply  200W 48V 4.4A







Our Services





1.       All inquiries will be replied in 48 hours


2.       All MEANWELL products are 100% original


3.       Delivery time: 1-5 working days


4.       Warranty: 2-7 years for different models


5.       Offer aftersales service until you are satisfied
