3inch 24V solar pump system
- Category: >>>
- Supplier: Zhejiang Boyi Mechanical And Electrical Technology Co. Ltd.
Share on (62076305112):
Product Overview
Description
3inch 24V solar pump system
Contact: Mr. Andy
Email / skype : andy(at)boyitechcn.com
Mobile / Wechat / Whatsapp: +86-151-5777-0580
Tel : +86-574-8831-6617
SPECIFICATION
1. Model NO. : 3BYS(T)1.5/80-D24/210
1. Max Head : 80m;
2. Max Flow : 1.5 m3/hr;
3. Power : 210W;
4. Voltage : 36VV;

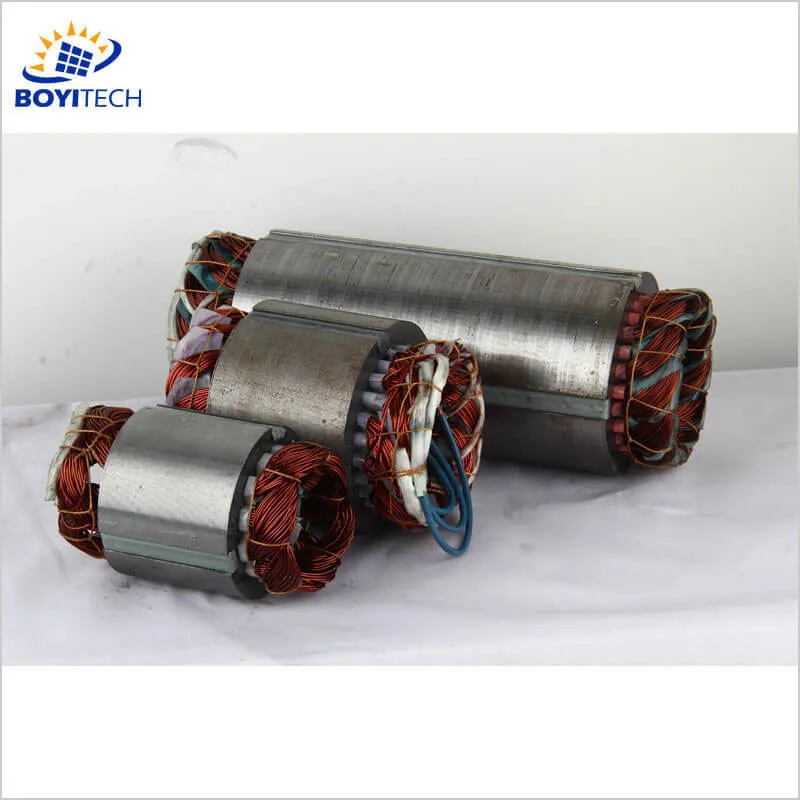

5. Motor : DC motor;
6. Material : Stainless steel;

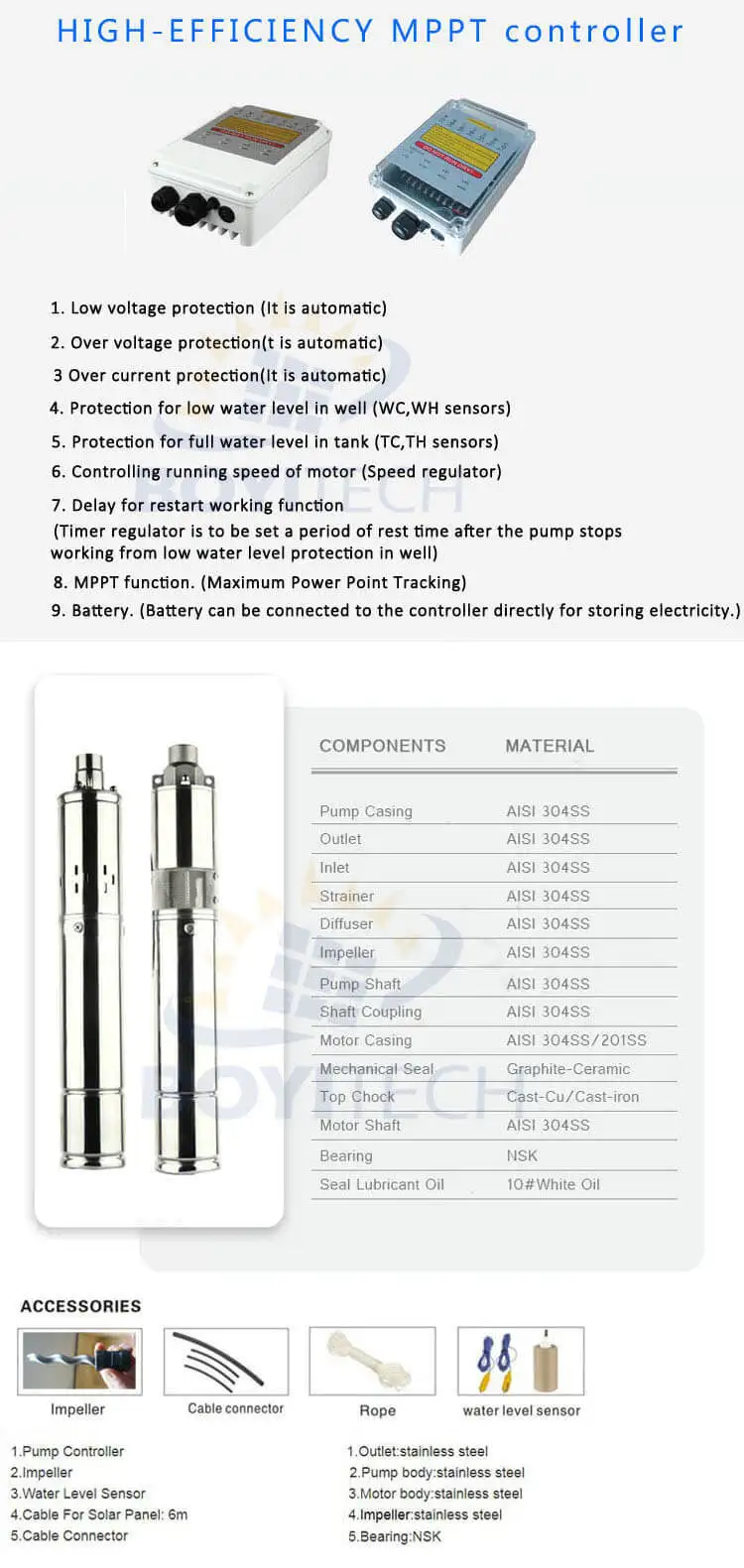

7. Controller : external mppt type for Automatic restating;
| Model | Imper | solar array voltage | solar array power | Max.flow | Max.head | OUTLET | G.W | Dimension |
| V | W | m³/h | M | IN | KG | MM | ||
| 3BYS(T)1.0/30-D24/80 | Screw | 36 | 110 | 1 | 30 | 0.75' | 7 | 76*460 |
| 3BYS(T)1.3/50-D24/140 | 36 | 180 | 1.3 | 50 | 0.75' | 7.2 | 76*460 | |
| 3BYS(T)1.5/80-D24/210 | 36 | 280 | 1.5 | 80 | 0.75' | 7.5 | 76*460 | |
| 3BYS(T)1.5/95-D24/270 | 36 | 360 | 1.5 | 95 | 0.75' | 8 | 76*460 | |
| 3BYS(T)2.1/100-D48/500 | 72 | 660 | 2.1 | 100 | 0.75' | 8.5 | 76*460 | |
| 3BYS(T)2.3/80-D48/750 | 72 | 960 | 2.3 | 80 | 0.75' | 9 | 76*460 | |
| 3BYS(T)2.3/120-D72/1000 | 108 | 1320 | 2.3 | 120 | 0.75' | 9.5 | 76*460 | |
| 3BYS(T)2.3/140-D72/1300 | 108 | 1680 | 2.3 | 140 | 0.75' | 10 | 76*460 |
3BYS(T)1.0/30-D24/80, 1*36V 190W panel.
3BYS(T)1.3/50-D24/140, 1*36V 200W panel.
3BYS(T)1.5/80-D24/210, 1*36V 280W panel.
3BYS(T)1.5/95-D24/270, 2*36V 190W panel.
3BYS(T)2.1/100-D48/500, 2*36V 320W panel.
3BYS(T)2.3/80-D48/750, 4*36V 240W panel.
3BYS(T)2.3/120-D72/1000, 6*36V 200W panel.
3BYS(T)2.3/140-D72/1300, 6*36V 280W panel.
Please click below for different inch solar pump
3inch centrifugal solar water pump
| Model | Imper | solar array voltage | solar array power | Max.flow | Max.head | OUTLET | G.W | Dimension |
| V | W | m³/h | M | IN | KG | MM | ||
| 3BYSC5.0/30-D24/270 |
Centrifugal (stainless steel) | 36 | 480 | 5 | 30 | 1.25' | 13 | 76*500 |
| 3BYSC5.0/50-D48/500 | 72 | 600 | 5 | 50 | 1.25' | 13.5 | 76*500 | |
| 3BYSC5.0/65-D48/750 | 72 | 600 | 5 | 65 | 1.25' | 14 | 76*500 | |
| 3BYSC6.5/80-D72/1000 | 108 | 1320 | 6.5 | 80 | 1.25' | 14.5 | 76*560 | |
| 3BYSC6.5/120-D72/1300 | 108 | 1680 | 6.5 | 120 | 1.25' | 15.5 | 76*600 | |
| 3BYSC7.0/140-D192/1800 | 288 | 2400 | 7 | 140 | 1.25' | 17.5 | 76*650 | |
| 3BYSC7.0/180-D216/2200 | 288 | 2880 | 7 | 180 | 1.25' | 18.5 | 76*720 |
| Model | Imper | solar array voltage | solar array power | Max.flow | Max.head | OUTLET | G.W | Dimension |
| V | W | m³/h | M | IN | KG | MM | ||
| 4BYS2.1/50-D24/270 | Screw | 36 | 360 | 2.1 | 50 | 1' | 9.5 | 100*480 |
| 4BYS3.0/60-D36/500 | 54 | 660 | 3 | 60 | 1' | 10 | 100*480 | |
| 4BYS3.6/80-D48/750 | 72 | 960 | 3.6 | 80 | 1' | 10.5 | 100*480 | |
| 4BYS3.8/95-D72/1000 | 108 | 1320 | 3.8 | 95 | 1' | 13.5 | 100*550 | |
| 4BYS4.2/110-D72/1300 | 108 | 1680 | 4.2 | 110 | 1' | 14 | 100*550 |
4inch centrifugal solar water pump
Model | Imper | solar array voltage | solar array power | Max.flow | Max.head | OUTLET | G.W | Dimension |
| V | W | m³/h | M | IN | KG | MM | ||
| 4BYSC5.5/38-D36/400 | Centrifugal (stainless steel) | 54 | 520 | 5.5 | 38 | 1.25' | 12.5 | 100*650 |
| 4BYSC5.5/58-D48/750 | 72 | 960 | 5.5 | 58 | 1.25' | 13.5 | 100*680 | |
| 4BYSC6.0/80-D72/1000 | 108 | 1320 | 6 | 80 | 1.25' | 15.5 | 100*740 | |
| 4BYSC5.5/125-D72/1300 | 108 | 1680 | 5.5 | 125 | 1.25' | 16.5 | 100*880 | |
| 4BYSC10/50-D48/750 | 72 | 960 | 10 | 50 | 1.5' | 13.5 | 100*540 | |
| 4BYSC10/70-D72/1000 | 108 | 1320 | 10 | 70 | 1.5' | 15 | 100*650 | |
| 4BYSC10/90-D72/1300 | 108 | 1680 | 10 | 90 | 1.5' | 15.5 | 100*680 | |
| 4BYSC15/40-D72/1000 | 108 | 1320 | 15 | 40 | 2' | 13.5 | 100*540 | |
| 4BYSC15/70-D72/1300 | 108 | 1680 | 15 | 70 | 2' | 14 | 100*620 |
Model | Imper | solar array voltage | solar array power | Max.flow | Max.head | OUTLET | Dimension |
| V | W | m³/h | M | IN | MM | ||
| 4BYSC5/145-D192/1500 | Centrifugal (stainless steel) | 288 | 2100 | 5 | 145 | 1.25" | 100 |
| 4BYSC5/185-D192/1800 | 288 | 2400 | 5 | 185 | 1.25" | 100 | |
| 4BYSC5/230-D216/2200 | 288 | 2880 | 5 | 230 | 1.25" | 100 | |
| 4BYSC5/310-D216/3000 | 288 | 3600 | 5 | 310 | 1.25" | 100 | |
| 4BYSC9/100-D72/1500 | 108 | 1800 | 9 | 100 | 1.25" | 100 | |
| 4BYSC9/125-D216/1800 | 288 | 2240 | 9 | 125 | 1.25" | 100 | |
| 4BYSC9/158-D216/2200 | 288 | 2880 | 9 | 158 | 1.25" | 100 | |
| 4BYSC9/211-D216/3000 | 288 | 3600 | 9 | 211 | 1.25" | 100 | |
| 4BYSC13/56-D168/1500 | 252 | 2100 | 13 | 56 | 1.5" | 100 | |
| 4BYSC13/92-D216/2200 | 288 | 2880 | 13 | 92 | 1.5" | 100 | |
| 4BYSC13/106-D216/3000 | 288 | 3600 | 13 | 106 | 1.5" | 100 | |
| 4BYSC13/148-D216/4000 | 324 | 6000 | 13 | 148 | 1.5" | 100 | |
| 4BYSC22/53-D216/1800 | 288 | 2240 | 22 | 53 | 2" | 100 | |
| 4BYSC22/62-D216/2200 | 288 | 2880 | 22 | 62 | 2" | 100 | |
| 4BYSC22/90-D216/3000 | 288 | 3600 | 22 | 90 | 2" | 100 | |
| 4BYSC25/91-D380/4000 | 540 | 6000 | 25 | 91 | 2" | 100 | |
| 4BYSC25/125-D380/5500 | 540 | 8250 | 25 | 125 | 2" | 100 | |
| 4BYSC25/168-D380/7500 | 540 | 11250 | 25 | 168 | 2" | 100 | |
| 4BYSC25/210-D380/11000 | 540 | 16500 | 25 | 210 | 2" | 100 |
6inch centrifugal solar water pump
| Model | Imper | solar array voltage | solar array power | Max.flow | Max.head | OUTLET | Dimension |
| V | W | m³/h | M | IN | MM | ||
| 6BYSC35/31-D216/1800 | Centrifugal (stainless steel) | 288 | 2240 | 35 | 31 | 3' | 150 |
| 6BYSC35/45-D216/2200 | 288 | 2880 | 35 | 45 | 3' | 150 | |
| 6BYSC35/63-D216/3000 | 288 | 3600 | 35 | 63 | 3' | 150 | |
| 6BYSC49/15-D216/1800 | 288 | 2240 | 49 | 15 | 3'/4' | 150 | |
| 6BYSC49/31-D216/2500 | 288 | 3040 | 49 | 31 | 3'/4' | 150 | |
| 6BYSC49/42-D216/3000 | 288 | 3600 | 49 | 42 | 3'/4' | 150 | |
| 6BYSC70/20-D216/2500 | 288 | 3040 | 70 | 20 | 4' | 150 | |
| 6BYSC70/32-D216/3000 | 288 | 3600 | 70 | 32 | 4' | 150 | |
| 6BYSC78/17-D216/2500 | 288 | 3040 | 78 | 17 | 4' | 150 | |
| 6BYSC78/28-D216/3000 | 288 | 3600 | 78 | 28 | 4' | 150 |
| Model | Imper | solar array voltage | solar array power | Max.flow | Max.head | OUTLET | Dimension |
| V | W | m³/h | M | IN | MM | ||
| 6BYSC33/86-D380/5500 | Centrifugal (stainless steel) | 540 | 8250 | 33 | 86 | 3' | 150 |
| 6BYSC33/101-D380/7500 | 540 | 11250 | 33 | 101 | 3' | 150 | |
| 6BYSC33/158-D380/9200 | 540 | 13800 | 33 | 158 | 3' | 150 | |
| 6BYSC33/187-D380/11000 | 540 | 16500 | 33 | 187 | 3' | 150 | |
| 6BYSC49/71-D380/5500 | 540 | 8250 | 49 | 71 | 3' | 150 | |
| 6BYSC49/100-D380/7500 | 540 | 11250 | 49 | 100 | 3' | 150 | |
| 6BYSC49/129-D380/9200 | 540 | 13800 | 49 | 129 | 3' | 150 | |
| 6BYSC49/157-D380/11000 | 540 | 16500 | 49 | 157 | 3' | 150 | |
| 6BYSC68/29-D380/4000 | 540 | 6000 | 68 | 29 | 4' | 150 | |
| 6BYSC68/44-D380/5500 | 540 | 8250 | 68 | 44 | 4' | 150 | |
| 6BYSC68/58-D380/7500 | 540 | 11250 | 68 | 58 | 4' | 150 | |
| 6BYSC68/78-D380/9200 | 540 | 13800 | 68 | 78 | 4' | 150 | |
| 6BYSC68/93-D380/11000 | 540 | 16500 | 68 | 93 | 4' | 150 |
Don't know how to choose? just click here to get a FREE solution.
FAQ
Q:What's your MOQ?
A: 1pcs.
Q. What about the warranty?
A. 18 months. Replace new one in 12 months, send spare parts after 12 months.
Q:What's your payment terms?
A: 30% deposit, 70% against OBL, L/C,D/A,D/P
Q: What is the delivery time?
A: 3 days for samples; 15 days for bulk order.
Q:Can you we do OEM brand?
A:Yes, acceptable.
Q: How to buy our pumps ?
A: Max life, max flow, water well size.
Q. How is the packaging?
A. Below 3KW, export carton box. Exceed 3KW, export wooden case.
Q: How to selecting the solar panels:
A: power of PV panels (watts) =Rated power of pump (watts) x1.5
Panels in parallel double the current and the wattage of the panels
Panels in series double the voltage and the wattage of the panels
e.g. 2 x 12V/ 100 W panels in parallel → 12 V/200W system
2 x 12V/ 100 W panels in series → 24V/200W system
