Chinese herb powder grinder machine Industrial powder crusher
Product Description

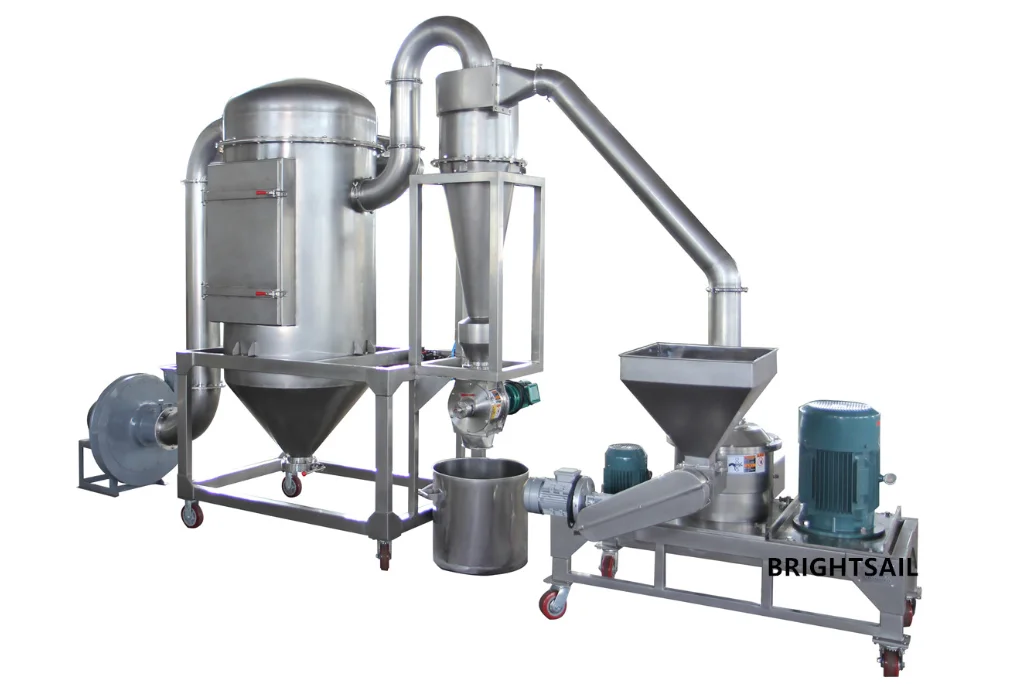

BSP ultra fine grinder(air classifier mill) is one type grinder which can make very fine powder. For sugar grinding, the output size can be 60~1000mesh. For dried ginger and turmeric grinding, this type can also grind them into very fine powder.And this grinder can produce powder very evenly, the distribution of powder is very even.
Technical data
Model
BSP-350
BSP-450
BSP-500
BSP-750
Capacity(kg/h)
20-200
40-500
60-800
120-1800
Input granule size (mm)
<15
<15
<15
<15
Out powder size (mesh)
60-2500
60-2500
60-2500
60-2500
Crush motor power (KW)
7.5
15
22
45
classifier motor (KW)
1.1
2.2
7.5
11
Feed motor power (KW)
0.37
0.75
0.75
1.1
Blower (KW)
5.5
7.5
18.5
37
Rotary valve (KW)
0.75
0.75
0.75
1.1
Cutter rotating speed (rpm)
~6500
~5600
~4400
~3100
Classifier impeller rotating speed (rpm)
4000
4000
4000
3500
Overall size (L*W*H)(mm)
5000*1400*2800
5400*1500*2900
6600*2000*3600
9800*2700*4900
Weight(kg)
1600
1800
2300
3100
Remark: 8,000 USD is only the crusher part price of our BSP ultra-fine pulverizer.
Please contact me to know details and price of the whole grinding set.
Detailed Images

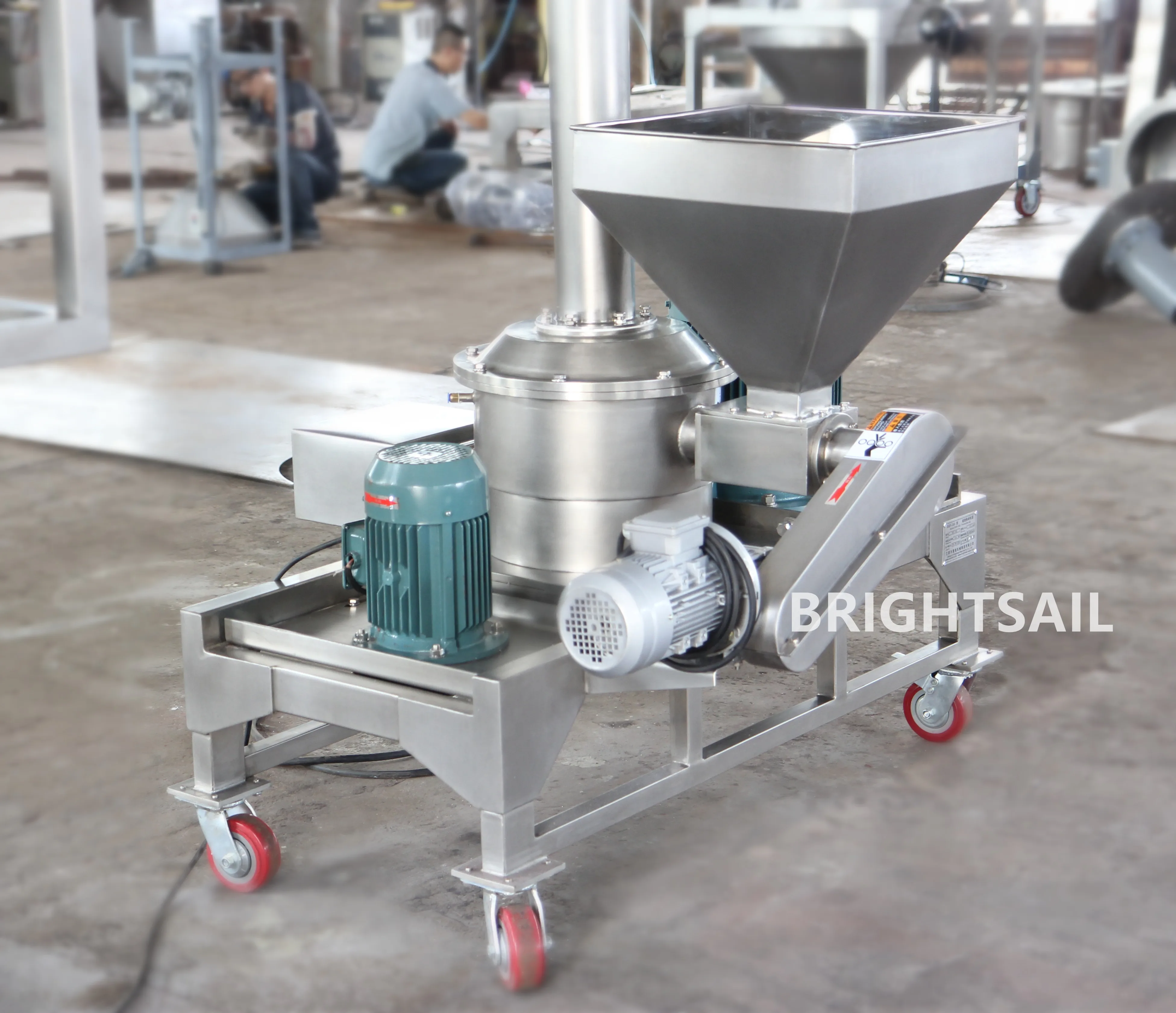

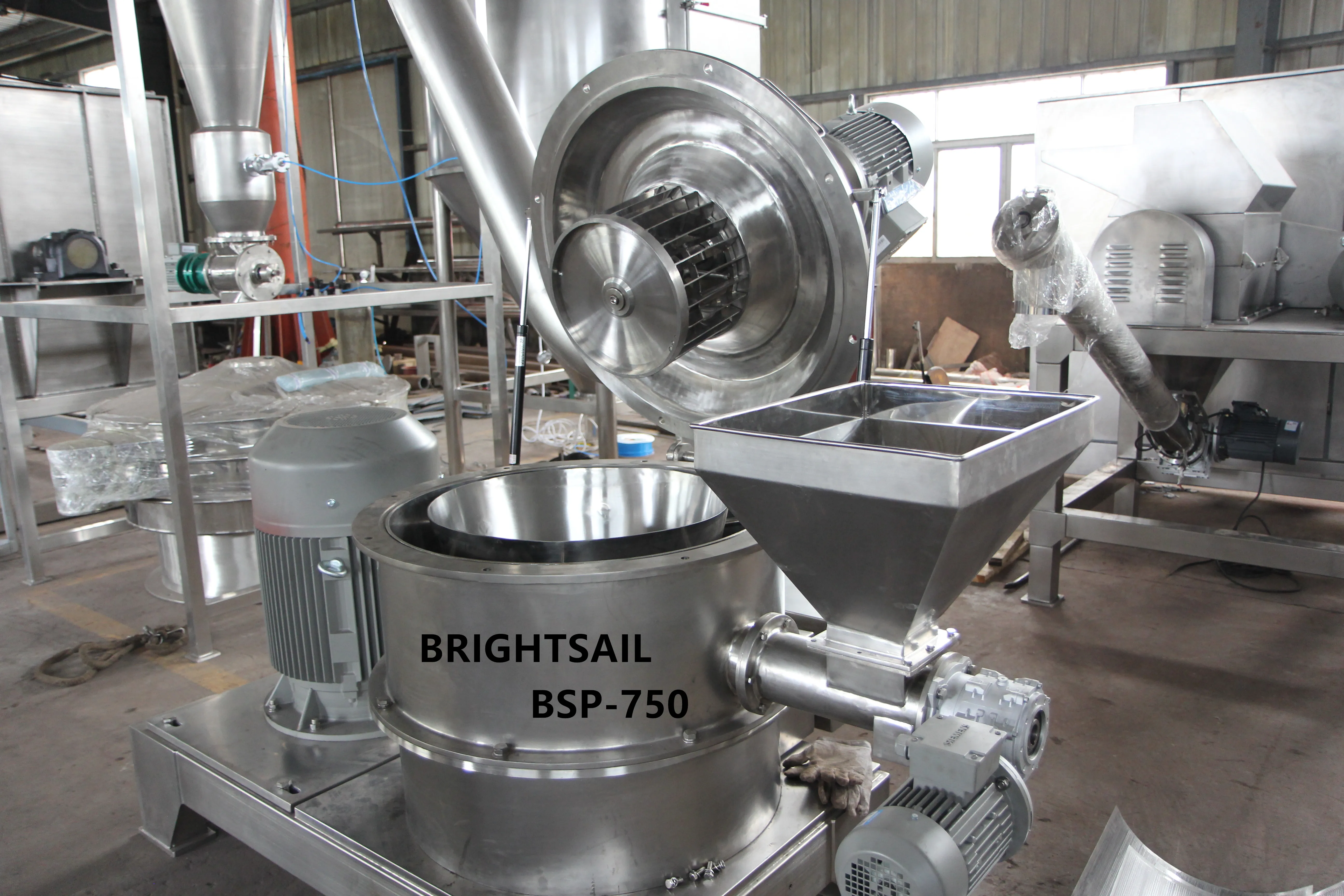

(1)The left motor is crush motor;the right motor is classifier motor.It adopts a small screw feeder, make sure feed speed is even and controllable.

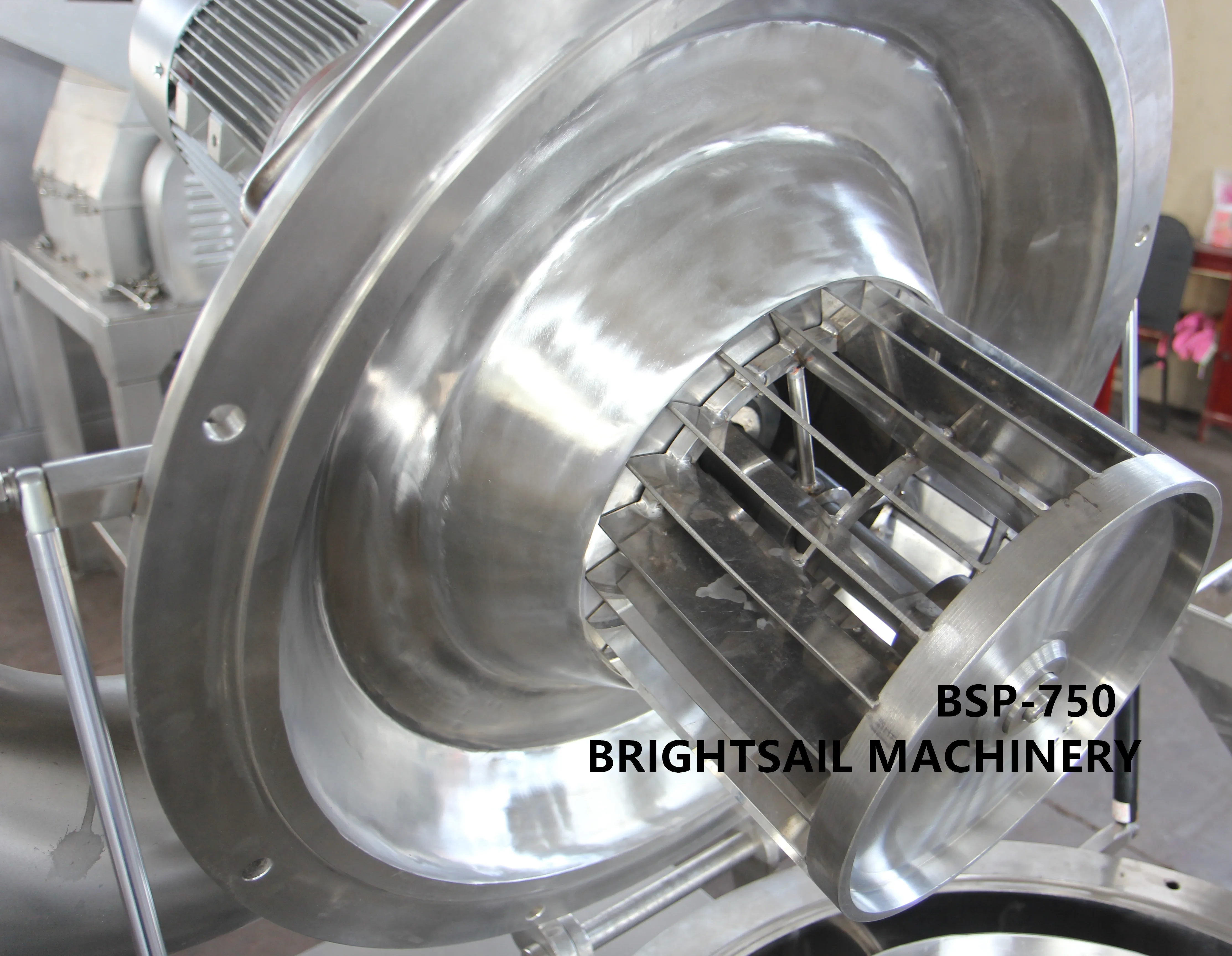

(2)Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades.The powder passes the guide ring and enters the classifier chamber.
(3)Rotary valve make powder discharge speed even,Rotary valve is also made of stainless steel and to clean it and dismantle is convenient.
(4)Dust is collected inside the dust collecting box.
Company Information

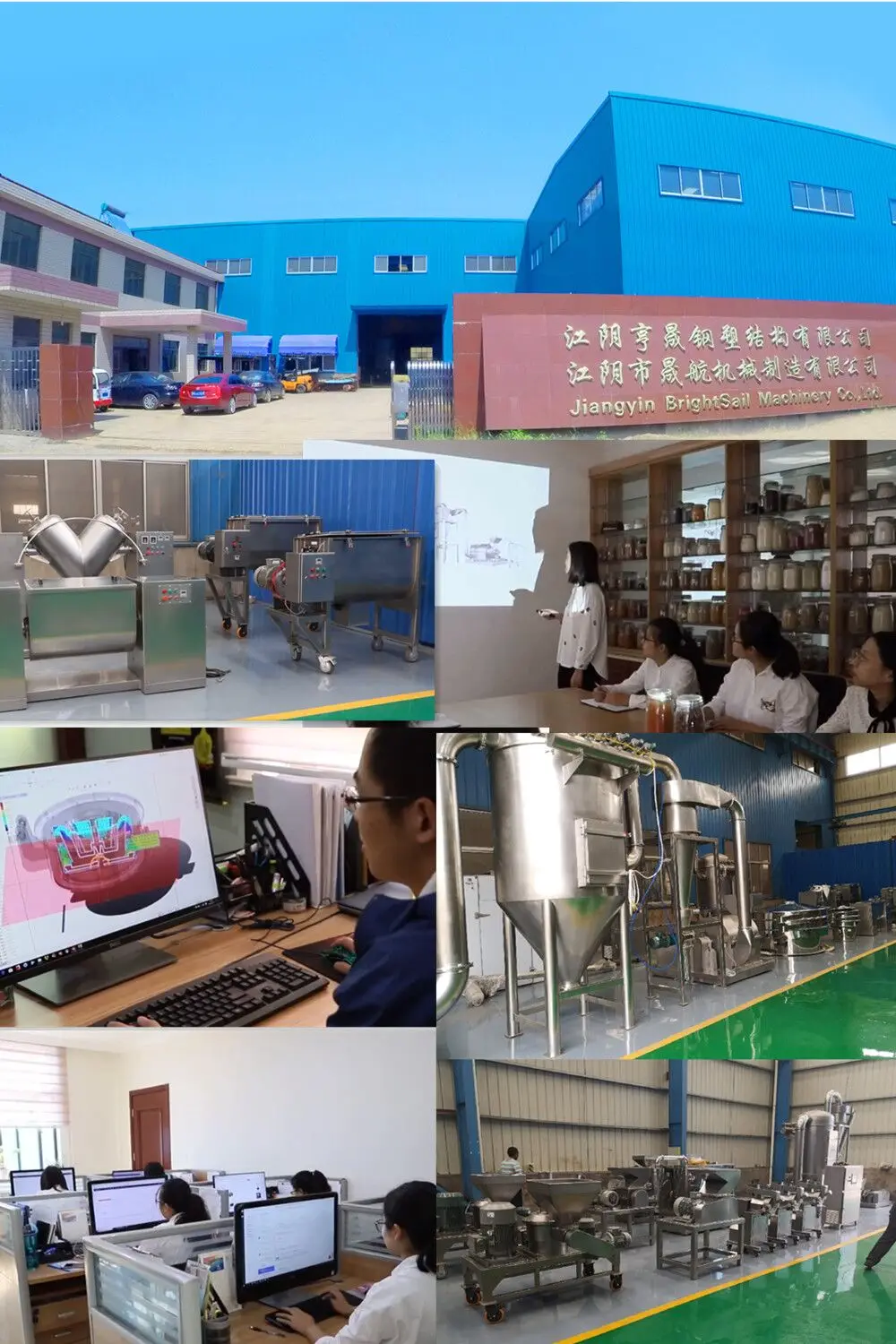

Brightsail Industries Group Co.,Ltd. is the trade dept of Jiangyin Brightsail Machinery Co.,Ltd and Jiangyin Heng Sheng Steel Structure Co.Ltd which is established in 2002.
We provide professional powder processing overall solution,grinder,mixer,sifter,welding service,welding machine,chemical powder...etc. We have sent our products to more than 50 countries around the world for now.
Our customers
Certifications
Our grinder machine has been certified by European Conformity and International Organization for Standardization.
Our Services
1. Pre-sales service:Inquiry and consulting support with 24 hours, Machine test service, Factory visit
2. After-sales service:Instructing how to install and use the machine, One year warranty, video support

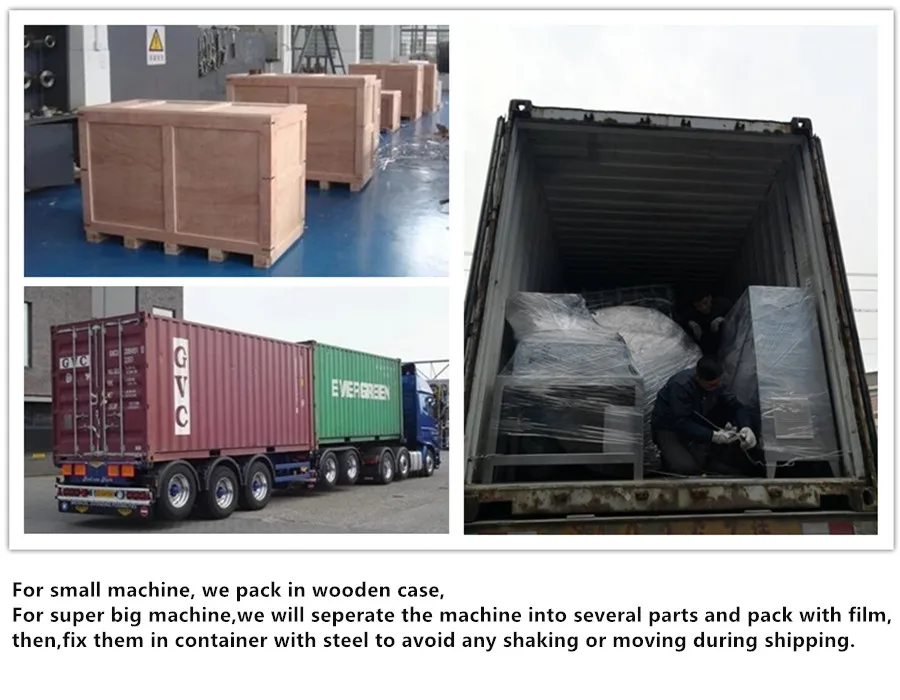

Packaging & Shipping
FAQ
About Chinese herb powder grinder machine Industrial powder crusher:
1.What capacity(kg/hr) do you need?
2.What powder particle size do you need?(for example,40 mesh,60 mesh,100 mesh,200 mesh,...etc)
