Product Overview
Description
Product Description
Anyang grinding steel balls making machine/skew rolling mill is specially designed for the grinding steel balls of different materials such as medium carbon steel, alloy steel etc, which is widely used in the field of mines, gold, copper, bauxite, iron ore, aluminum ore, nonferrous non-ferrous metal ore, metallurgical and mining, cement, thermal power, flue gas desulfurization, magnetic materials, coal water mixture, pellets, superfine powder, slag, fly ash, calcium carbonate, quartz sand etc industries grinding ball or rod miller etc. Equipped with conveyor system and heating furnace, can realize mechanization and automation production.
Automatic anyang grinding steel balls making machine/skew rolling mill line without human intervention, automatic production, makes sure the stability of the steel ball quality. This line production process contributes to environmental protection, saving energy but high efficiency. Steel balls have precision dimension, good roundness, high hardness and good mechanical properties and high impact toughness, strong crushing ability etc characteristics.
[Advantages of anyang grinding steel balls making machine/skew rolling mill]
1. Main body is with good rigidity.
2. Adjust is easy.
3. Locking is solid, high stability.
4. Easy to change guide plate.
5. Production is compete automation, high production efficiency,large output.
6. Low energy consumption, no pollution.
Besides above, anyang griding steel balls making machine/skew rolling mill also has following functions:
1. Automatic control the quenching temperature, make sure the quenching quality.
2. Automatic roll fast rewind function, make sure the rollers be not damaged.
3. Automatic feeding function, improve the material utilization.
AAnyang design the steel ball hot rolling production line is fully automatic production line, upto the latest levels of hot-rolled steel ball production. Anyang design and manufacture series steel ball hot rolling production line, including ZQ20, ZQ30, ZQ40, ZQ50, ZQ60, ZQ80, ZQ100, ZQ120 etc complete size of steel balls miller lines, can produce φ 20 ~ 120mm different size steel balls.
[Advantages of rolling balls]
1. Good surface and roundness
2. Equilibrium Internal and external hardness(<5HRC)
3. Low broken rate, long working life
4. High density, strong impact toughness
5. High performance price ratio, cost saving is obvious
Anyang griding steel balls making machine/skew rolling mill Parameters
Model | Unit | ZQ20 | ZQ30 | ZQ40 | ZQ50 | ZQ60 | ZQ80 | ZQ100 | ZQ120 |
Steel ball diameter | mm | 15-20 | 20-30 | 30-40 | 35-50 | 40-60 | 60-80 | 70-100 | 80-120 |
Roller diameter | mm | 170 | 220 | 260 | 300 | 340 | 450 | 600 | 690 |
Roller angle range | o | 0-5 | 0-6 | 0-6 | 0-8 | 0-6 | 0-8 | 0-7 | 0-7 |
Productivity | pcs/m | 120 | 102 | 90 | 72 | 72 | 64 | 50 | 40 |
Motor power | Kw | 30 | 40 | 80 | 130 | 185 | 450 | 650 | 1000 |
Detailed Images

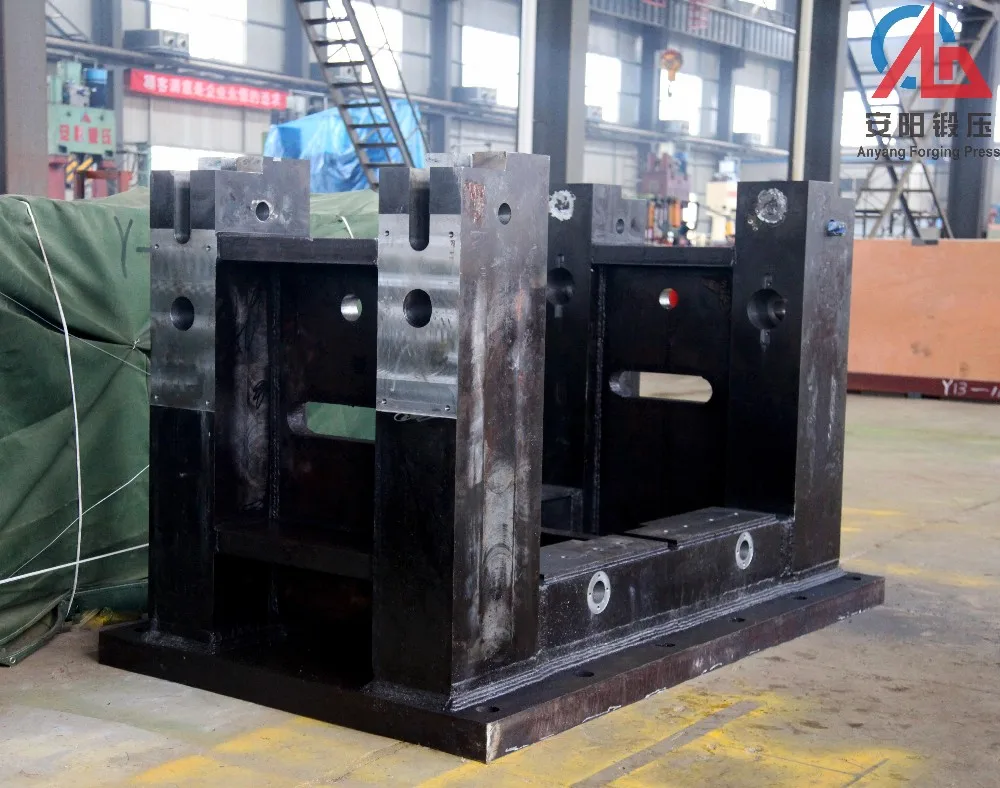

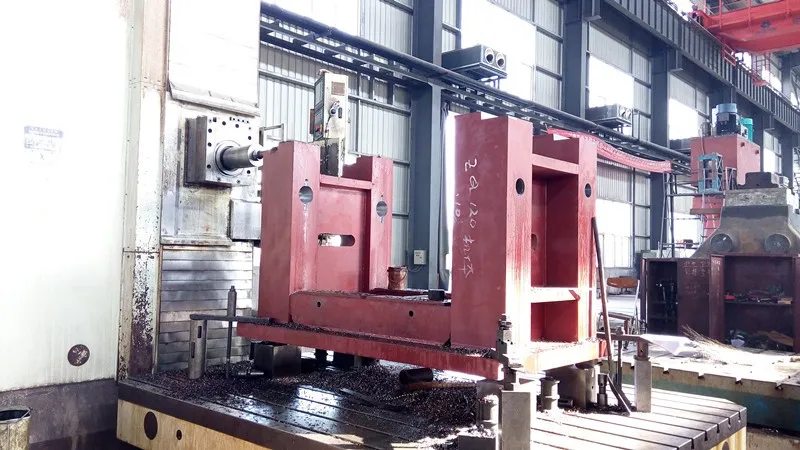

Anyang griding steel balls making machine/skew rolling millbody frame
Name: steel ball machine bady frame
Brand: anyang
Original: China
The steel ball machine body frame is welded by good quality steel plates and machined on the CNC boring and milling lather.
Anyang griding steel balls making machine/skew rolling mill Main Features

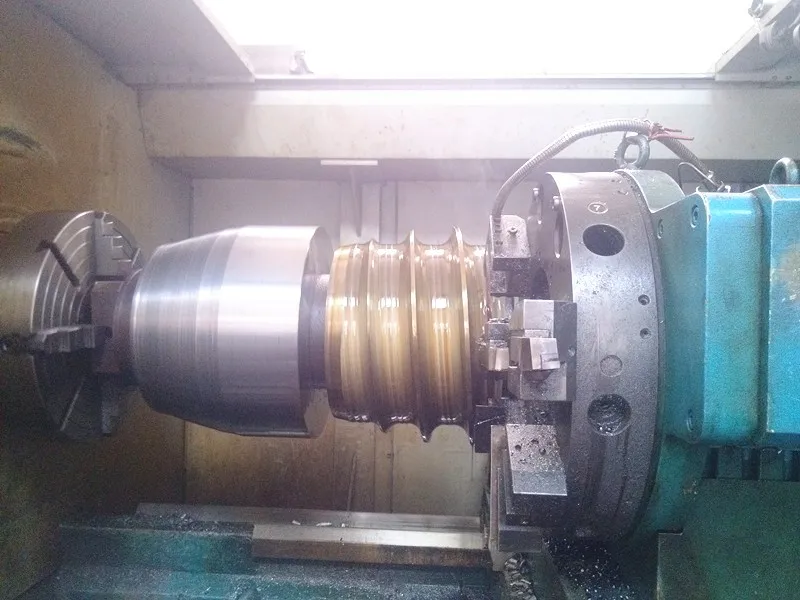

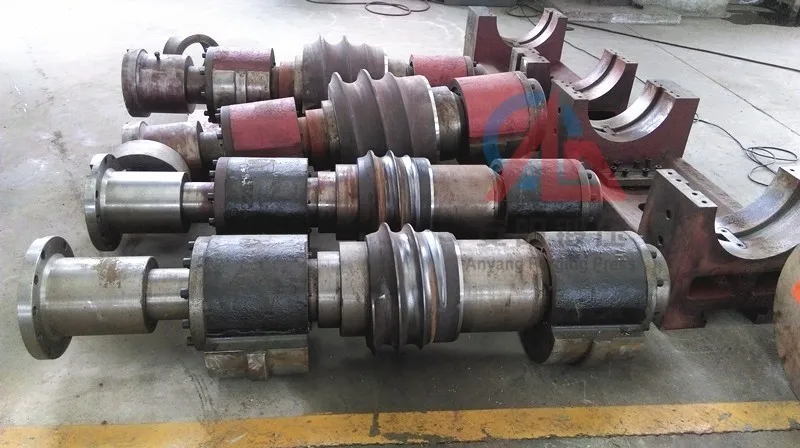

Name: steel ball machine roller
Brand: anyang
Original: China
Steel ball machine roller adopt the good quality H13 materical forging, heat treatment and machined on the CNC machining center.
Anyang griding steel balls making machine/skew rolling mill testing
Name: install and commissioning
anyang have over 30 professional engineers team to install and commissioning every sets of steel ball machines before delivery, make sure all of them are 100% perfect.

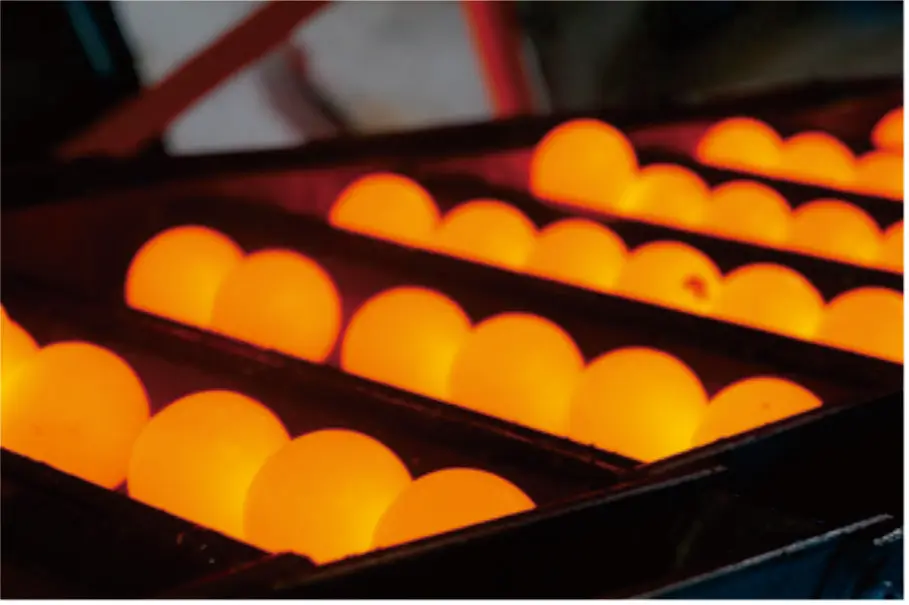

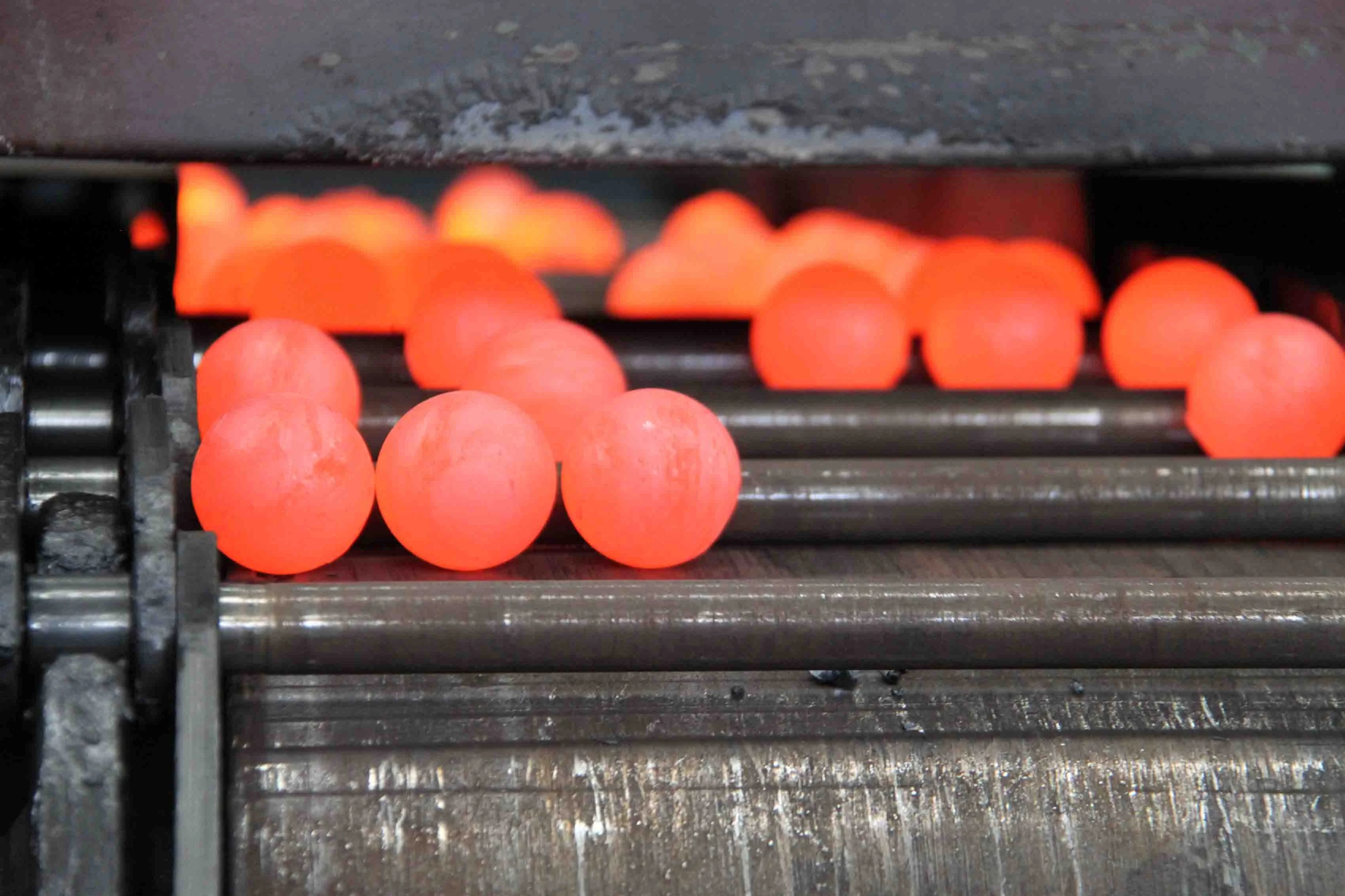

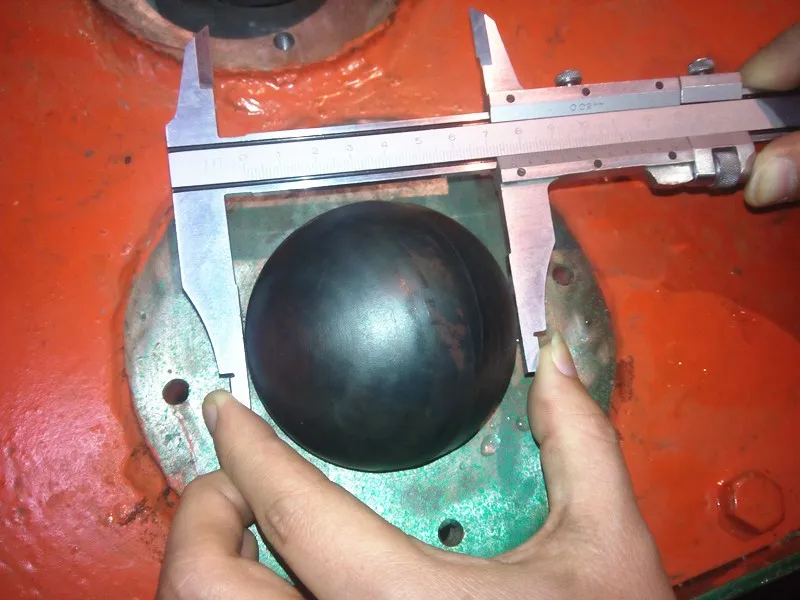

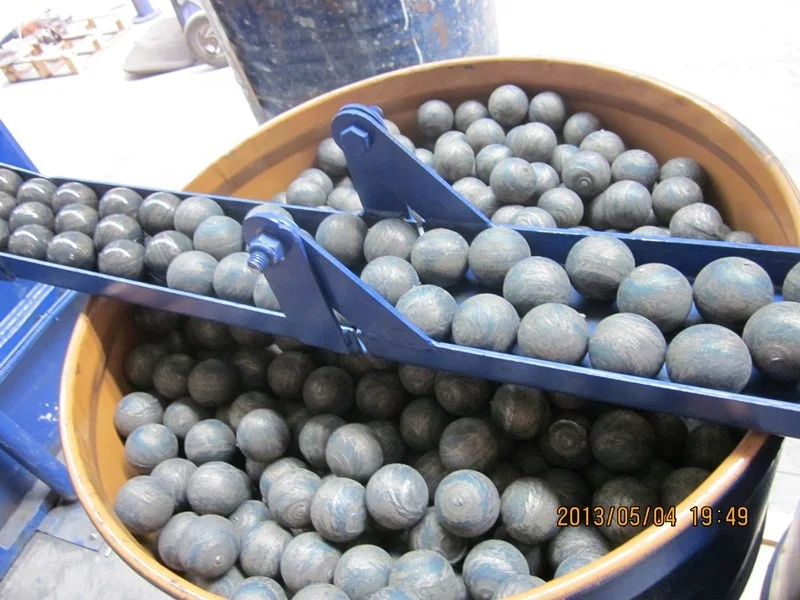

steel ball quality is good
the rolling steel balls have following advantages:
1,Good sureface and roundness;
2,Equilibrium Internal and external hardness（<5HRC）;
3,Low broken rate, long working life;
4,High density, strong impact toughness;
5,High performance price ratio, cost saving is obvious.
Manufacture
Anyang forging press have 4 sets of big CNC vertical boring-milling machine to process hydraulic open die forging hammer frame casting, and have 6 sets of CNC machining center to machine anyang griding steel balls making machine/skew rolling mill frame, rolling die etc key parts. also have over 200 sets of cnc lathers to produce other parts for anyang griding steel balls making machine/skew rolling mill.
Certifications
Our anyang griding steel balls making machine/skew rolling mill have got CE, design patent, famous brand etc certifications.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
