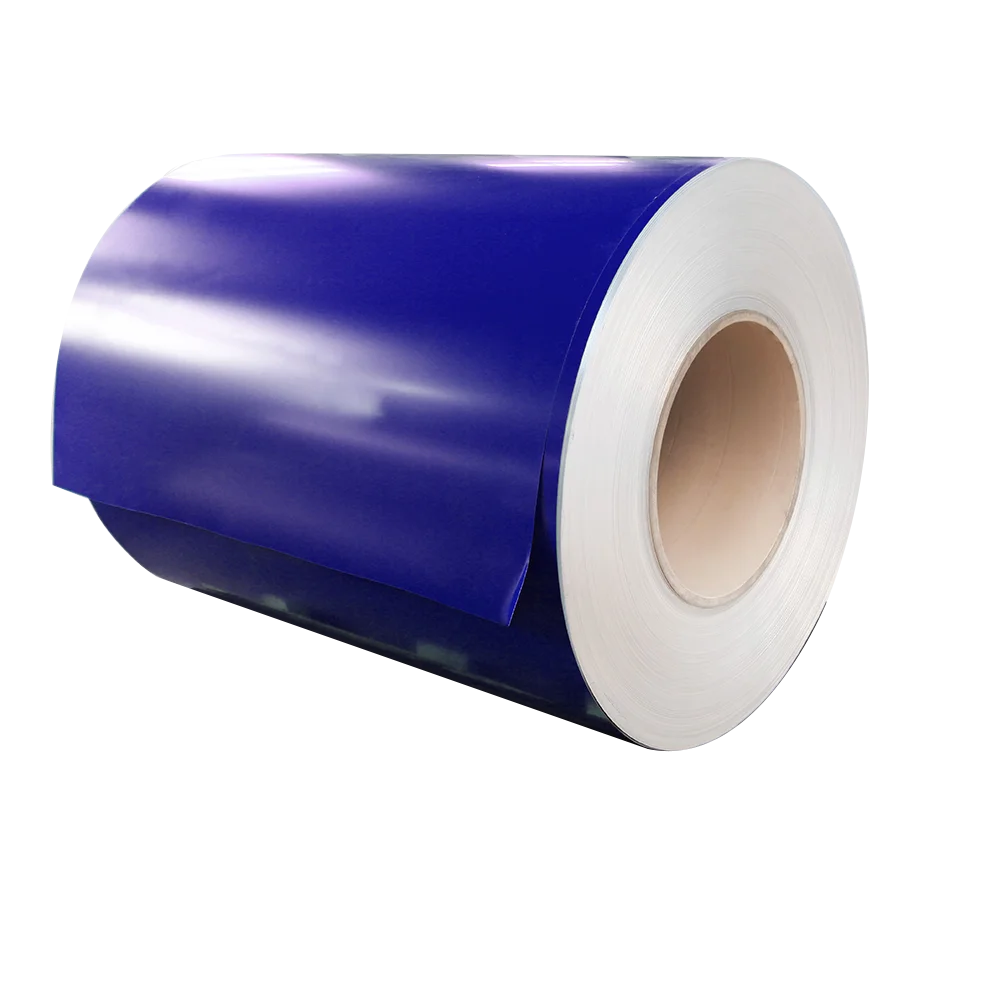

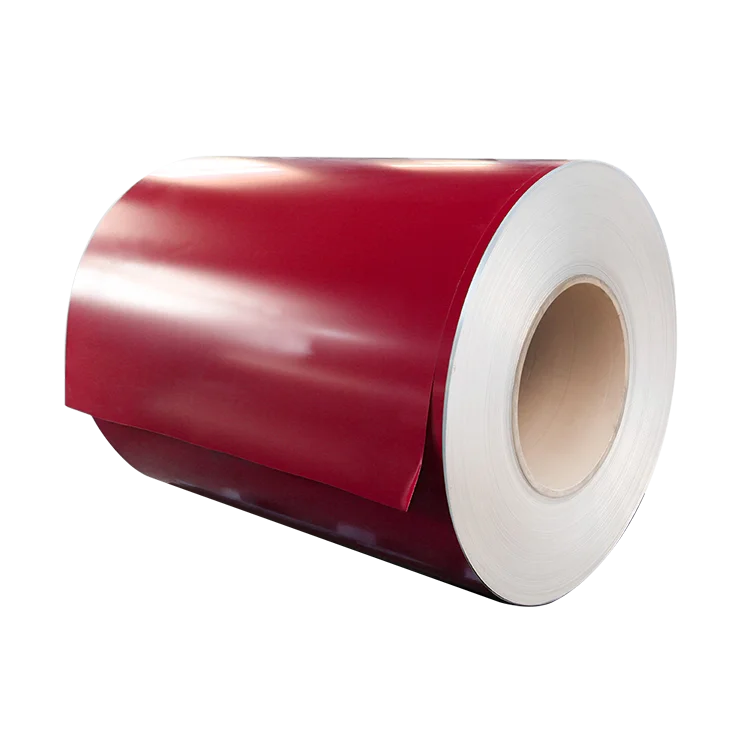

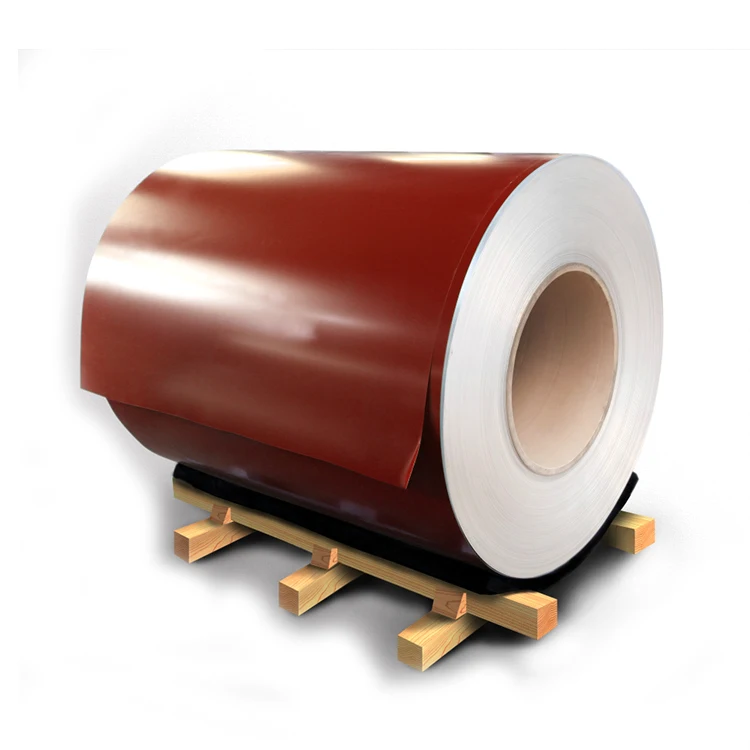

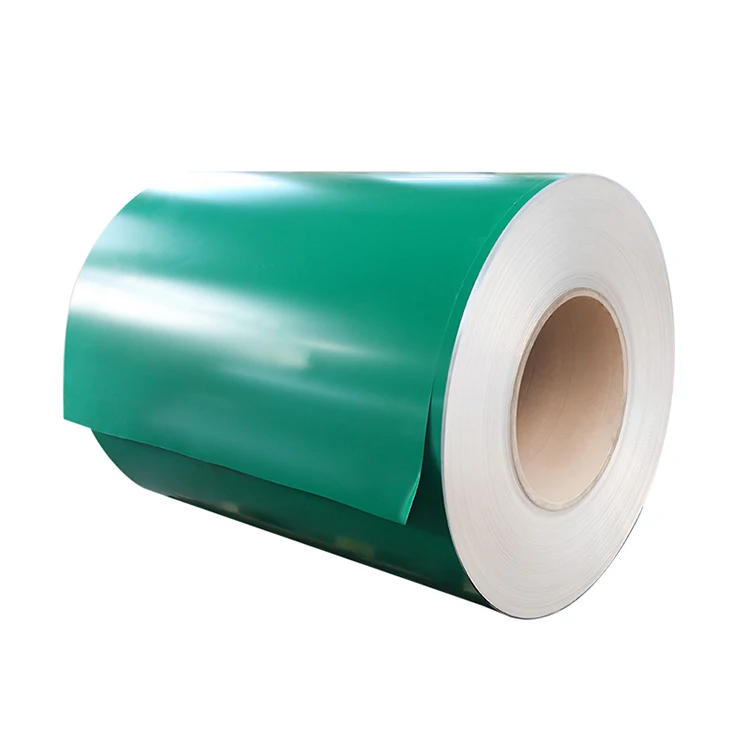

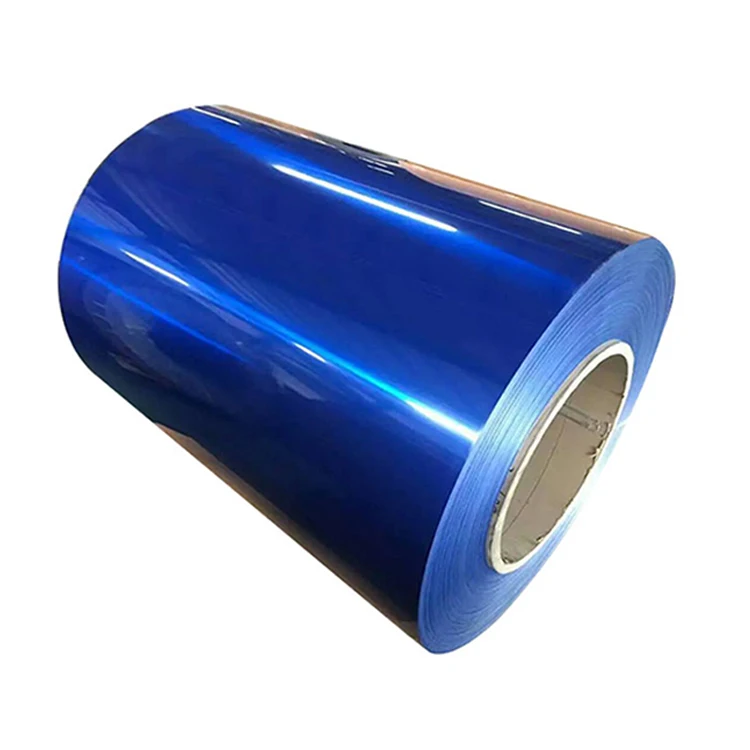

High quality hot selling color coating aluminum coil for aluminum composite panel

1.Product introduction

Color coated Aluminum coils are used more and more in roofing, ceiling, roller shutters, door face, kitchen cabinet, cladding system because it is light, beautiful, easy processed, and long lasting.

We have 16 splitting machines for aluminum strips process, to satisfy the huge demand for aluminum housed hold ceiling (size of 30x30cm) for local China market, our monthly production volume is up to 10,000MT.  We usually use aluminum alloy AA1100, 3003, 3005, 3105 for the strips, with thickness 0.2-1.2mm, with width: 173mm, 178, 420mm, 480mm, 575mm, 585mm, 600mm. etc. The wooden color Minimum thickness is 0.03mm, and solid color can be 0.018mm.

All single color like silver, white, champagne, metallic, all available.  Wood and stone colors are our advantaged products, very wide range designs and most competitive prices. You are welcome to send popular designs and we will make them for you!

PE and PVDF coating are suitable for the interior and exterior decoration.

Self-clean PVDF coated aluminium strips, is a new product coated with Self-clean PVDF paint. The appearance is the same with the normal PVDF coated ones, but it can release some material to clean its surface after being exposed to rain or snow and sunshine. And this self-clean program can keep many years.

2. Specification for coated aluminum coils

01)Material: aluminum alloy A1100, A3003, A3005, A3105, A8011

02)Aluminum thickness:0.04-1.20mm

03)Max coil width: 1600mm (standard 1240mm)

04)Coil's standard diameter:1200mm, Interior diameter: 405mm,505mm, etc.

05) weight: 0.5-4.0T/coil or by buyer's option

06) Coating: PE or PVDF coating

07) Surface treatment: anti-scratch, high glossy, matt

08) Color: wooden grain, marble stone, plain color,3D, HD, metallic, patterned, etc.

10) Coating thickness: double coating-25 micron, single coating-18 micron, primer-5 micron

11) Coating hardness: (pencil hardness) HB

12) Coating adhesive: no lower than first grade

13) Impact resistance: no cracking and peeling (50kg/cm, ASTMD-2794:1993)

14)Flexibility(T-bend):2T or by your option

15) MEK resistance: more than 100

3. Applications

Interior applications: wall cladding, ceilings, bathrooms, kitchens and balconies, shutters, doors...

Exterior applications: wall cladding, facades, roofing, canopies, tunnels, column covers, renovations...

Advertisement and market applications: display platforms, signboards, fascia, shop fronts...

Q1: Do you have them in stock?

A1: no. All the goods will be produced according to your order.

Q2: What is the time of delivery?

A2: it usually takes 15-20 days to produce an order. However, for different orders or different times, the exact delivery time may vary.

Q3: Can I mix different colors or specifications in one container?

A3: yes, different colors or specifications can be mixed in one container, but the quantity of each color or specification cannot be less than the moq.

Q4: How well is your factory doing in quality control?

A4: quality comes first. "Management for efficiency, quality and survival" is our purpose. Every product is carefully tested before being packed and shipped.

Q5: Will you deliver on order? How can I believe you?

A5: yes, we will. "Integrity, mutual benefit and win-win" is our business philosophy. If you have any questions, welcome to our factory.
