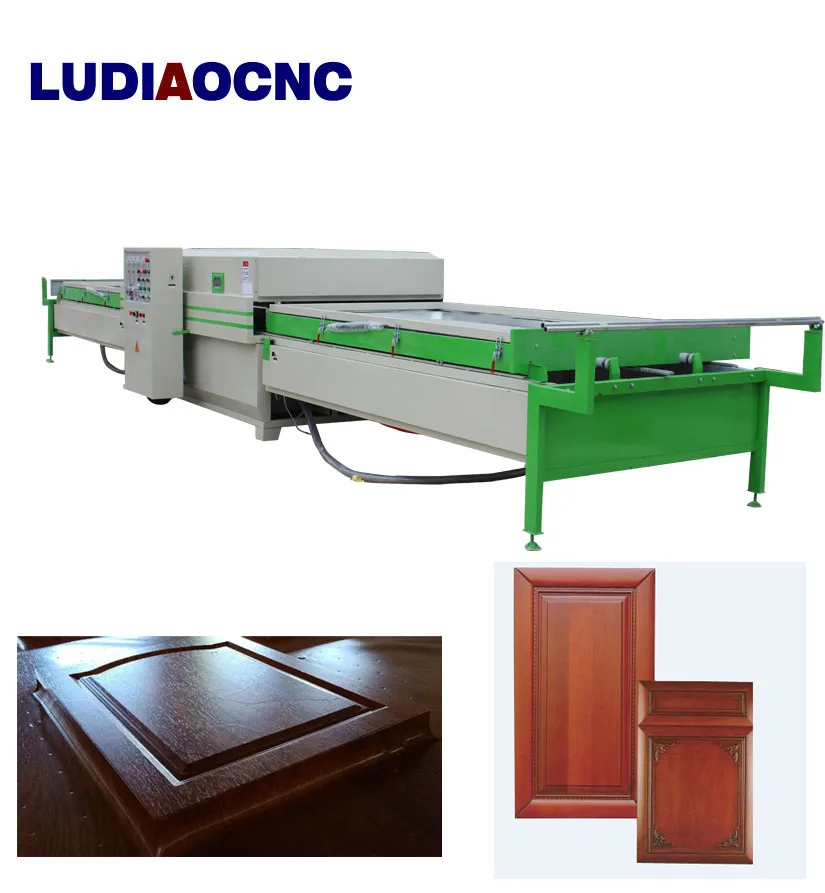

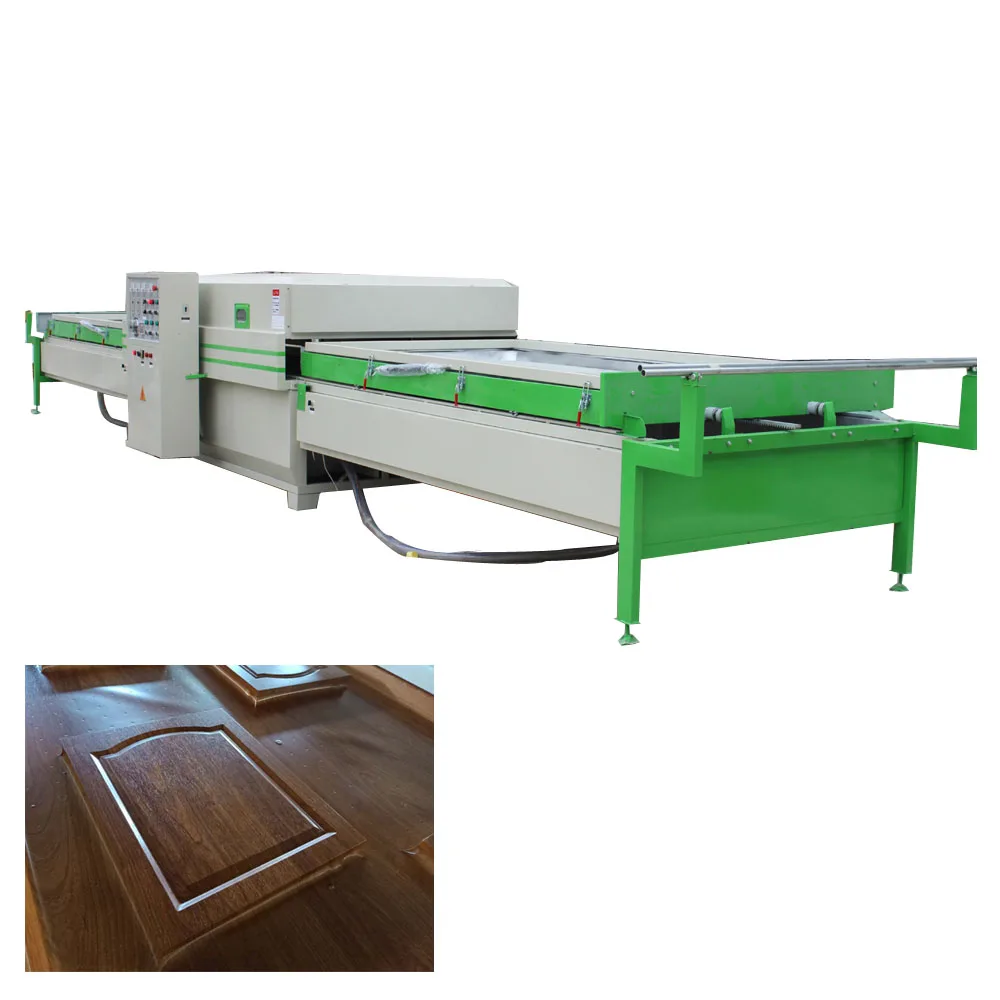

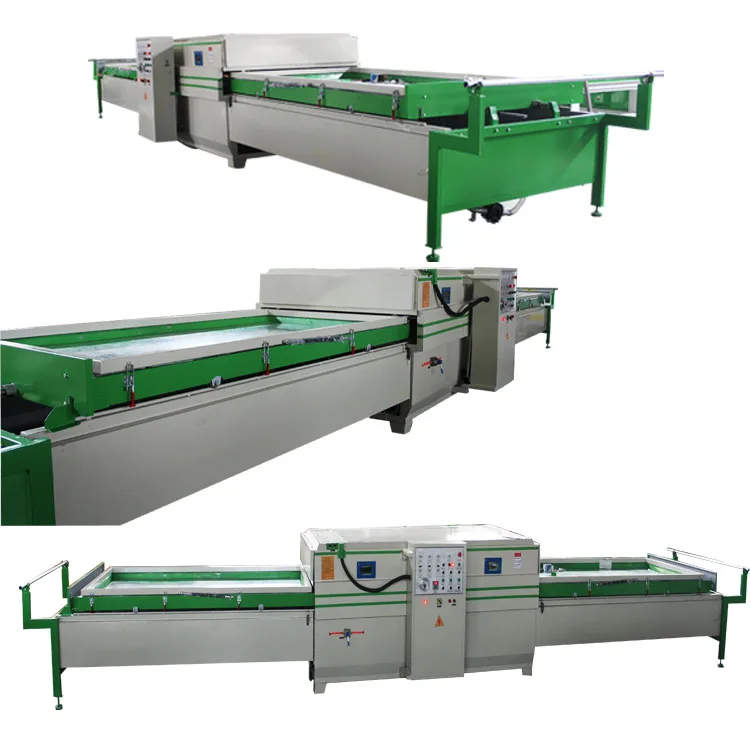

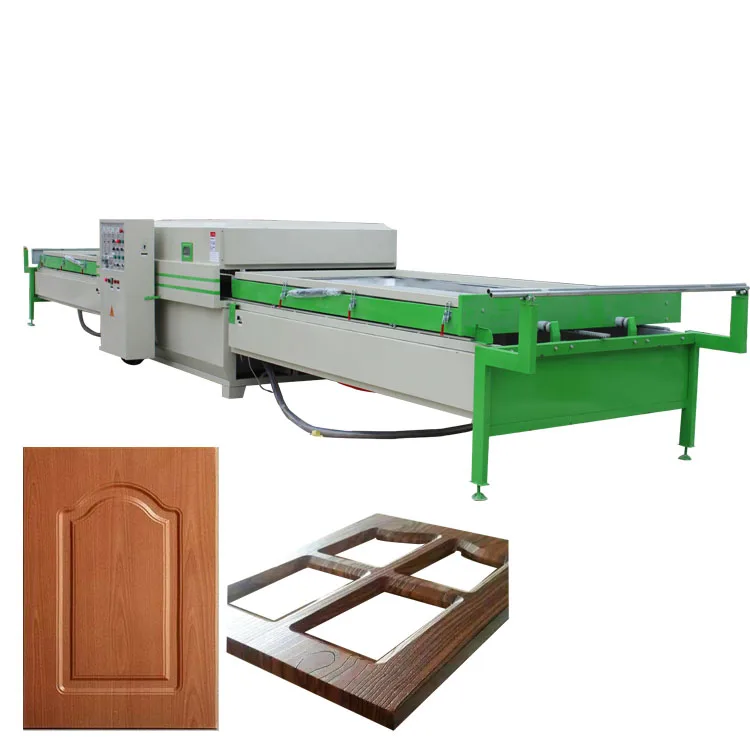

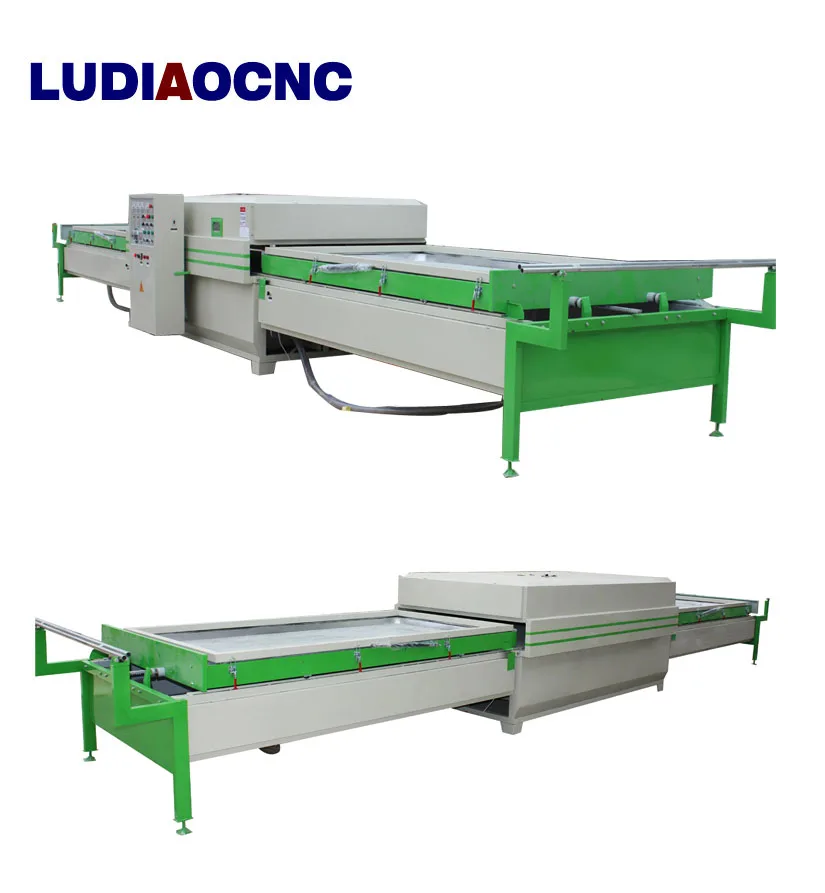

Furniture Door Vacuum Membrane Press Woodworking Machine
Product Description
Product application of Furniture Door Vacuum Membrane Press Woodworking Machine:
This kind of PVC laminating machine is used to laminate the COMMON PVC within 0.6mm thickness or high gloss PVC within 0.55mm thickness on the engraving wooden, MDF, HDF and bamboo boards. It is the best equipment for the door, the cabinet, the furniture, the handicraft article, the packing box and some other filed. At the same time this machine can laminate the wooden veneer on surface of boards with silicon sheet.
Processing range of Furniture Door Vacuum Membrane Press Woodworking Machine:
1: can be used in a variety of PVC film, paste the cover on furniture, cabinets, speakers, crafts, decorative wall panels and other furniture. And after the installation of hot transfer film and single-sided foil veneer work.
2: low, medium and high density fiberboard, plywood, wood boards, metal plates, gypsum board.
3: Features; using digital display control technology, simple operation, high degree of automation.
1, double air walkway vacuum technology, stable walking gas properties, the success rate of the workpiece.
2, table with steel frame, effectively improve the vacuum, durable.
3, switching table can be more than a box of film work to achieve a multi-purpose machine to work efficiently.
4, uses far-infrared temperature heating systems, energy conservation, time saving, uniform heating, thereby reducing the product deformation, wrinkling, degumming and so on.
5, electronic control system uses key components with high temperature, high insulation material configuration, safe and reliable operation.
Technical Parameters of Furniture Door Vacuum Membrane Press Woodworking Machine:
| Model | TM2480b-2 |
| Working area | 2550*1300mm |
| Max. working height | 50mm(optional) |
| Air pressure | -0.1Mpa |
| Gross power | 25KW |
| Actual consume | 5KW |
| Gross weight | 1500KG |
Sample
Certificate
Our Services
1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
Technical support by email, whatsapp, wechat,imo and skype available on time.
4. After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.
