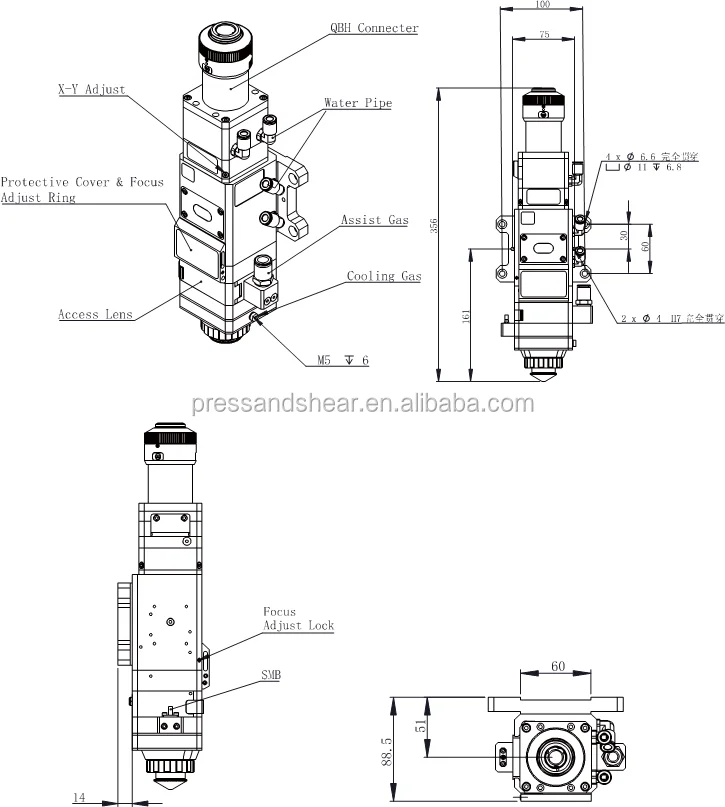

Волоконная Лазерная режущая головка для лазерной головки Raytools модели BT240S

The BT240S series, based on the BT240 design of Swiss RAYTOOLS AG, was launched in 2017 and is suitable for medium and high power industrial applications. Compared with BT240 series, the upgraded BT240S series has been fully optimized in terms of dustproof design and customer experience. During fiber insertion and unplugging, the risk of collimating lens contamination is extremely high. BT240S series adds protective lens on collimating component, which reduces the risk of collimating lens contamination to the greatest extent. At the same time, the structure of the protective mirror has been comprehensively upgraded, and dust cover plate has been added on the protective mirror. The double-layer protection design greatly improves users' experience in changing protective lenses, and the risk of lens contamination is almost zero.

Highly dustproof:
Dust-proof grade IP65, fully enclosed enclosed light path, the possibility of lens pollution is almost zero.
Moving picture zero focus:
The scale can be adjusted flexibly to unify the zero - focus position.
Efficient water cooling:
Focusing lens, collimating lens and nozzle all have built-in cooling function to solve the cutting heating problem.
Optimized structural design:
Integrated fuselage design, the improved QBH fiber interface is no longer stuck due to water leakage, rust and other reasons.

Flat cutting head:
Power level: 3300W
Focusing aperture: 28mm
Collimating lens focal length: 100mm
Focusing lens focal length: 125mm, 155mm, 200mm
Nozzle hole specification: single layer, double layer, non - standard
Optical fiber interface: QBH, QD, QCS
Nozzle aperture: 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
Protective lens:
-Collimating protective mirror:φ24.9mm*1.5mm
-focusing protective mirror:φ27.9mm*4.1mm
Auxiliary gas pressure:≤25bar
Weight: ~ 3.5kg

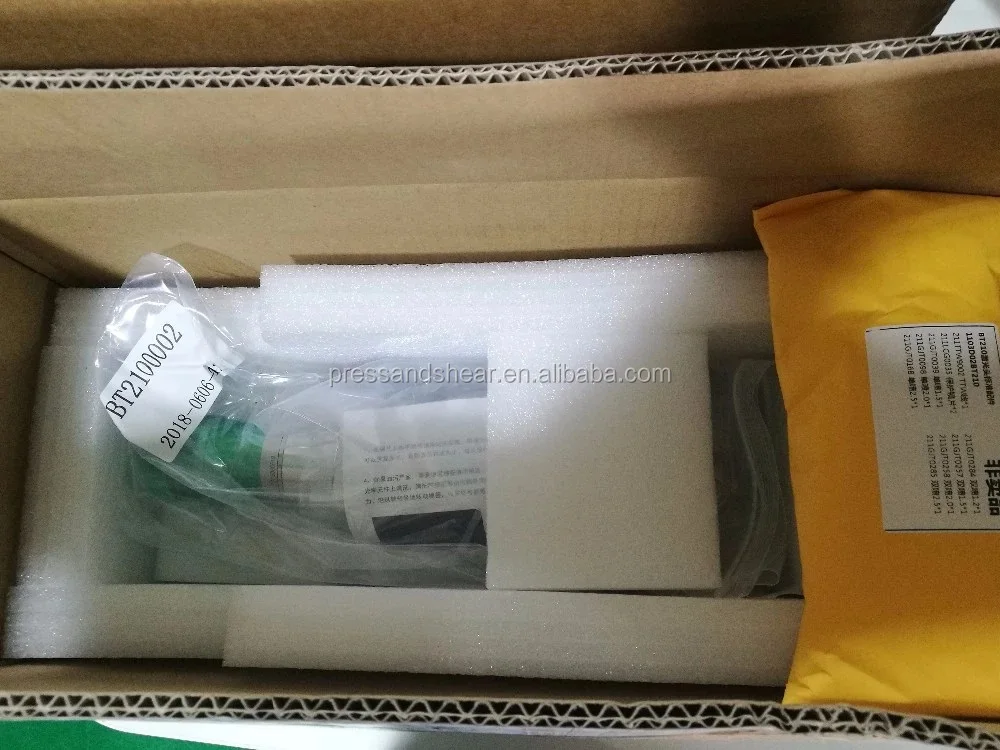

Packaging Details
carton box
Port:Shanghai Port
Lead Time :within 7 working days after receive payment
