Dirty oil cleaning machine portable lube oil purifier oil filtration system
- Category: >>>
- Supplier: Chongqing Lushun Scientific & Technological Development Co. Ltd.
Share on (62076928897):
Product Overview
Description

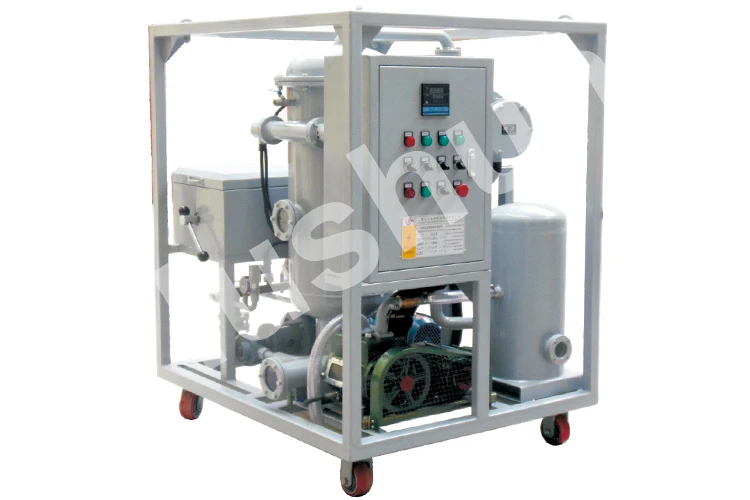

High Viscosity Vacuum Portable Light Weight Insulating Oil Purifier
GZL Series High Viscosity Vacuum Lubricating Oil Purifiers are suitable for purification treatment of high viscosity lubricating oil which is used in industries of mechanical engineering, metallurgy, mining, petroleum, chemistry and power plant etc. They can efficiently remove the water, impurities and harmful gas in the oil to improve the oil properties and recover its performance, and can work online or in circulation through preheating oil tank as well.
Item | Index | Unit | LS-GZL-20 | LS-GZL-30 | LS-GZL-50 | LS-GZL-100 | LS-GZL-150 | LS-GZL-200 | LS-GZL-300 | LS-GZL-500 |
Technical Parameter for Purifier | Flow | L/H | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | 30000 |
Operating Vacuum Degree | MPa | -0.08 — -0.098 | ||||||||
Working Pressure | MPa | ≤0.5 | ||||||||
Temperature Range | ℃ | 20 — 70 | ||||||||
Power supply | V | 380V/50Hz(or at user’s option) | ||||||||
Working Noise | dB(A) | ≤75 | ||||||||
Total Power | kW | 24+3 | 24+3 | 30+5 | 40+5 | 72+5 | 90+6 | 120+10 | 135+16 | |
Pipeline Diameter | mm | 25 | 25 | 32 | 40 | 50 | 50 | 65 | 80 | |
Net Weight | Kg | 500 | 570 | 550 | 700 | 1100 | 1200 | 1300 | 1900 | |
Overall Dimensions (L×W×H) | cm | 120× 110×160 | 120× 110×160 | 130× 115×175 | 155× 130×190 | 175× 155×220 | 175× 155×220 | 180× 170×225 | 220× 190×230 | |
Oil Index After Treatment | Water Content | % | No (GB/T260) | |||||||
Gas Content | % | ≤0.1 (GB/T423) | ||||||||
Filtration Precision | μm | ≤10 | ||||||||
Above size and weight are for reference only, the specific data shall be subject to physical object.
1.Adopts special oil pump to transport high viscosity oil.
2.Unique dehydration and degassing system, quickly separating water content and gas in the oil.
3.Precise multi-stage filtration system, high quality filter element of better pollutant-containing ability and long service life.Function of automatically detecting the pollution degree of filter elements.
4.Optimized heating system with automatic constant temperature controller ensures even heating and stable oil temperature.
5.Advanced fully automatic temperature control system, liquid-level control system, defoaming control system, pressure protection system and excellent main components can ensure operation of the equipment with high performance.
6.The machine supports on-line operation without supervision with indicators to show operation status.
7.Adopts humanization design with low noise, easy operation, long free-maintenance time and energy saving to lower the operation cost.
8.Equipped with indication for changing filters and automatic stop device for overloaded filters.
9.Equipped with emergency stop for electric leakage and power overload to protect the motor.
10.With phase-sequence, phase lose protection function and safety control for sudden shut-down.
1.PLC intelligent control with touch screen operation and operation status dynamic display.
2. Online moisture tester and online particle counter are available as optional components.
3. The whole structure of the machine can be mobiles style with four wheels, fixed style, mobile style with trailer(double axles or single axle)

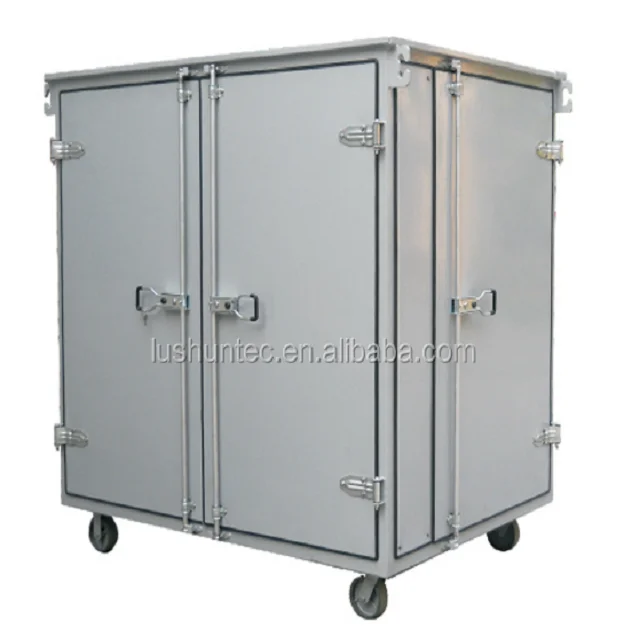

4. Fully enclosed style, conceal eaves type and open style of canvas etc.
